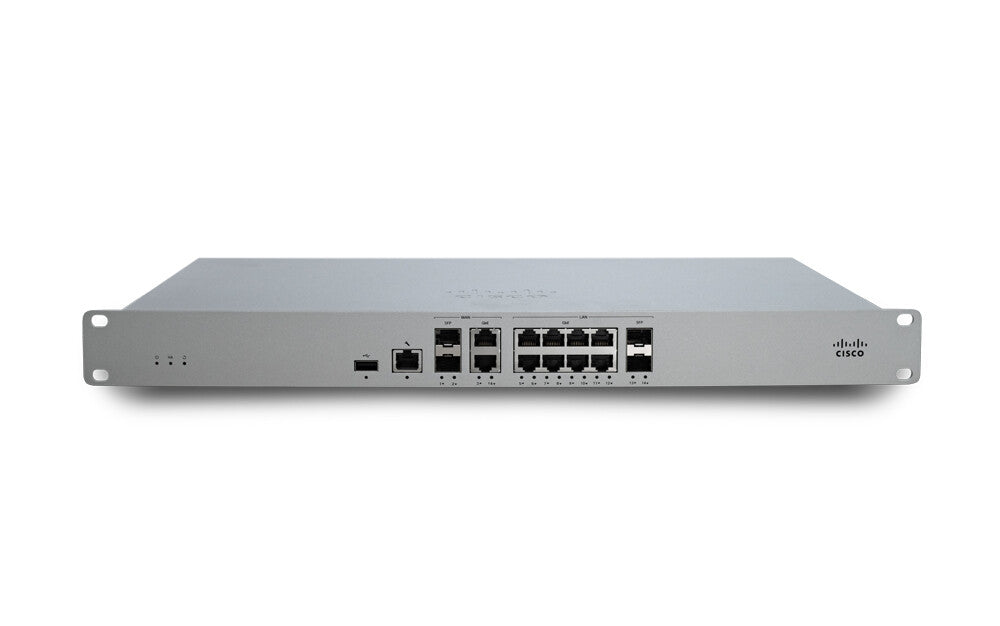

Security and SD-WAN Appliance
SASE building block for small to medium branches
Hardware
Stateful firewall throughput: 1 Gbps
Recommended for up to 250 users
Cloud-based centralized management
Managed centrally over the Web
Classifies applications, users and devices
Zero-touch, self-provisioning deployments
Networking and security
Stateful firewall
Auto VPN™ self-configuring site-to-site VPN
Active Directory integration
Identity-based policies
Client VPN (IPsec)
3G / 4G failover via USB modem
Traffic shaping and application management
Layer 7 application visibility and traffic shaping
Application prioritization
Advanced security services1
Content filtering
Google SafeSearch and YouTube for Schools
Intrusion detection and prevention (IDS/IPS)
Advanced Malware Protection (AMP)
Cisco Threat Grid2
| Data transmission |
|---|
| VPN throughput |
0.5 Gbit/s |
| Firewall throughput |
1 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
| Network |
|---|
| VPN tunnels quantity |
200 |
| Number of users |
250 user(s) |
| Management features |
|---|
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
4 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
10 |
| USB 2.0 ports quantity |
1 |
| Connectivity technology |
Wired |
| Design |
|---|
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
55 W |
| Power consumption (idle) |
12 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100-240 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
3.7 kg |
| Height |
43.8 mm |
| Depth |
250 mm |
| Width |
484.6 mm |
| General |
|---|
| Product family |
Meraki |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Firewall throughput |
1000 Mbit/s |
| VPN throughput |
500 Mbit/s |
| Maximum data transfer rate |
1000 Mbit/s |
