The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our latest generation of 100G transceiver modules solution based on a QSFP form factor.

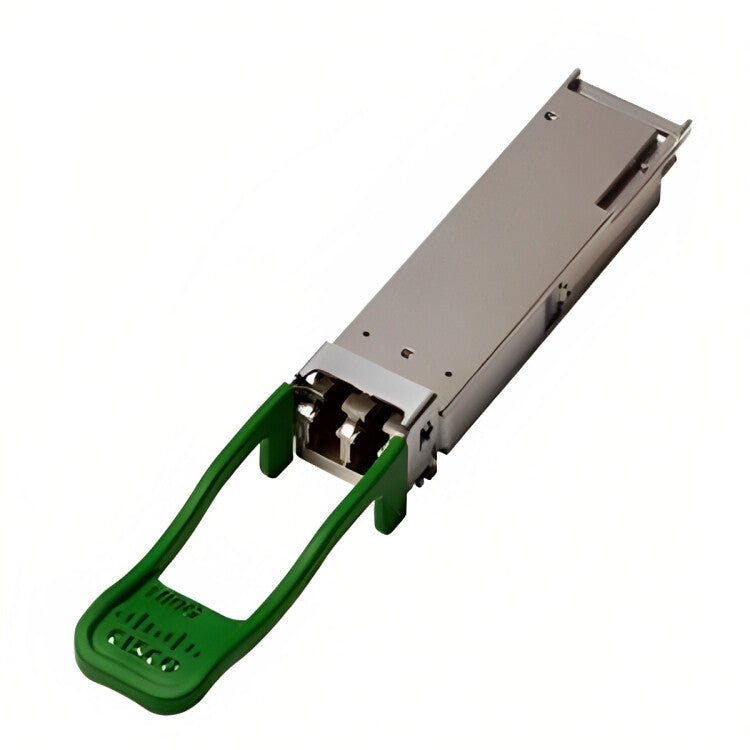

Cisco QSFP-100G-SM-SR
The Cisco QSFP-100G-SM-SR QSFP module supports link lengths of up to 2 kilometers over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. The operating temperature range is from +10 to +60°C with an optical link budget of 4.2 decibels. This 4.2-decibel link budget offers the ability to support the loss from patch panels in the link in a data center environment. QSFP 100G SM-SR is interoperable with QSFP-100G-CWDM4-S.
| Performance |
|---|
| Fiber ethernet cabling technology |
100GBASE |
| Networking standards |
IEEE 802.3ba, IEEE 802.3bm |
| Ethernet interface type |
100 Gigabit Ethernet |
| Rx power (max) |
2.5 dBmW |
| Rx power (min) |
-11.1 dBmW |
| Tx power (max) |
2.5 dBmW |
| Tx power (min) |
-6.9 dBmW |
| Wavelength |
1331 nm |
| Maximum transfer distance |
2000 m |
| SFP transceiver standard |
SR |
| Fiber optic connector |
LC |
| Single-mode fiber (SMF) supported |
Yes |
| Interface type |
QSFP |
| Maximum data transfer rate |
100000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Hot-swap |
Yes |
| Product colour |
Green, Metallic |
| Power |
|---|
| Power consumption (typical) |
3.5 W |
| Certificates |
|---|
| Compliance certificates |
RoHS, WEEE |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
10 - 60 °C |
| Logistics data |
|---|
| Warranty period |
5 year(s) |
