Effortless Efficiency

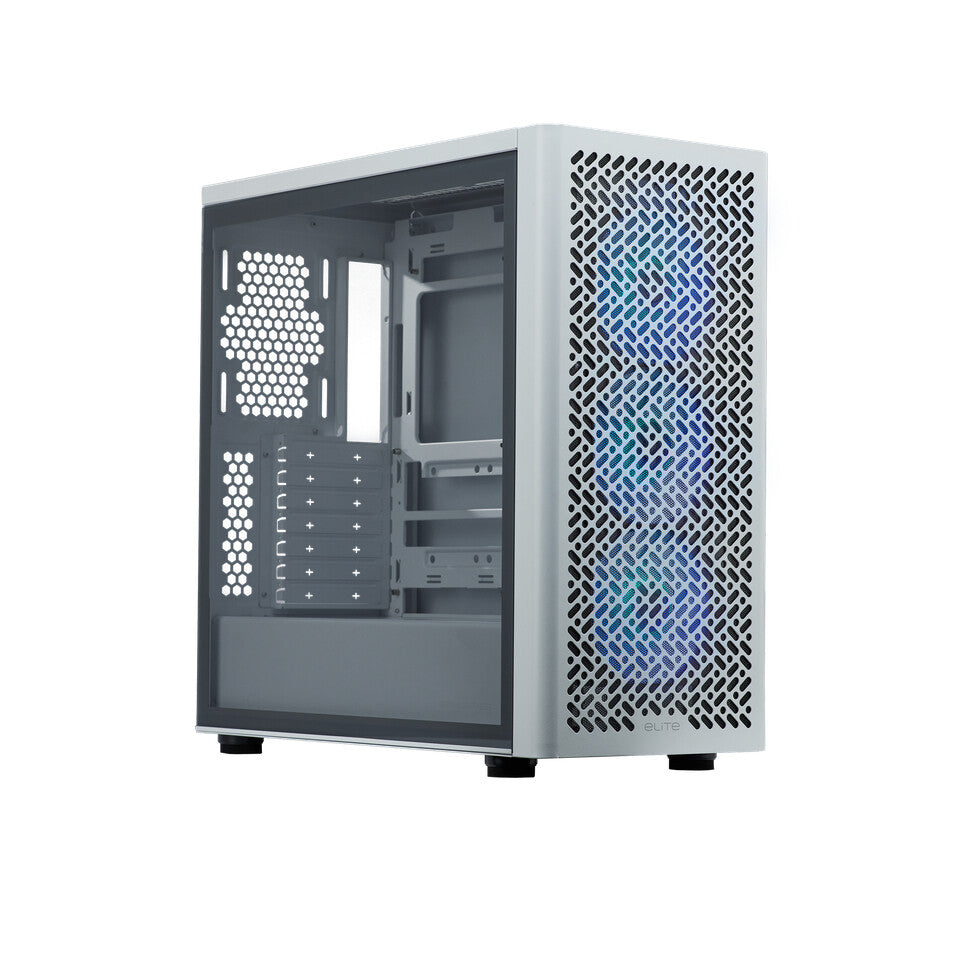

Elite 502
The Elite 502 delivers exceptional cooling and performance with its advanced mesh front panel for enhanced airflow. Designed for mid-to-entry-level builders, it supports up to a 420mm radiator, 410mm GPUs, and modern back-connector motherboards, offering a streamlined and efficient building experience at an accessible price.

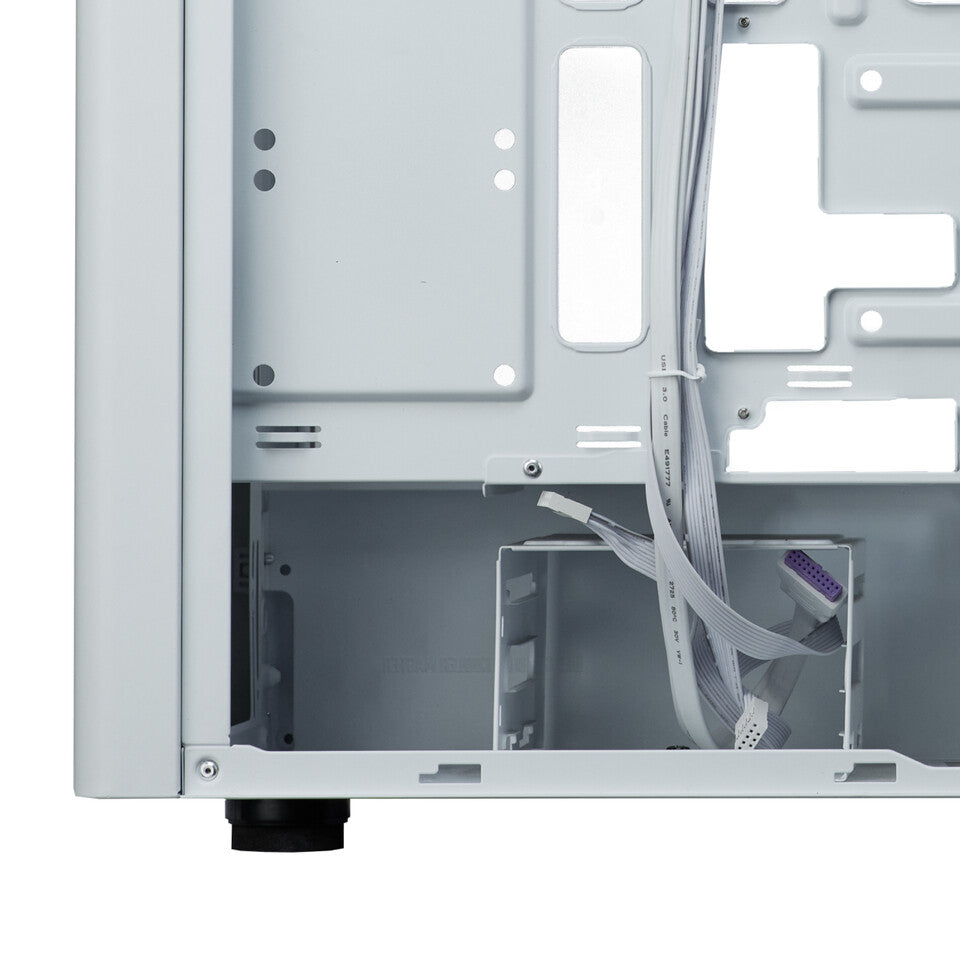

BACK-CONNECTED MOTHERBOARD SUPPORT
Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.
OPTIMIZED AIRFLOW
Equipped with three 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.
ROOM FOR UPDATES
Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.

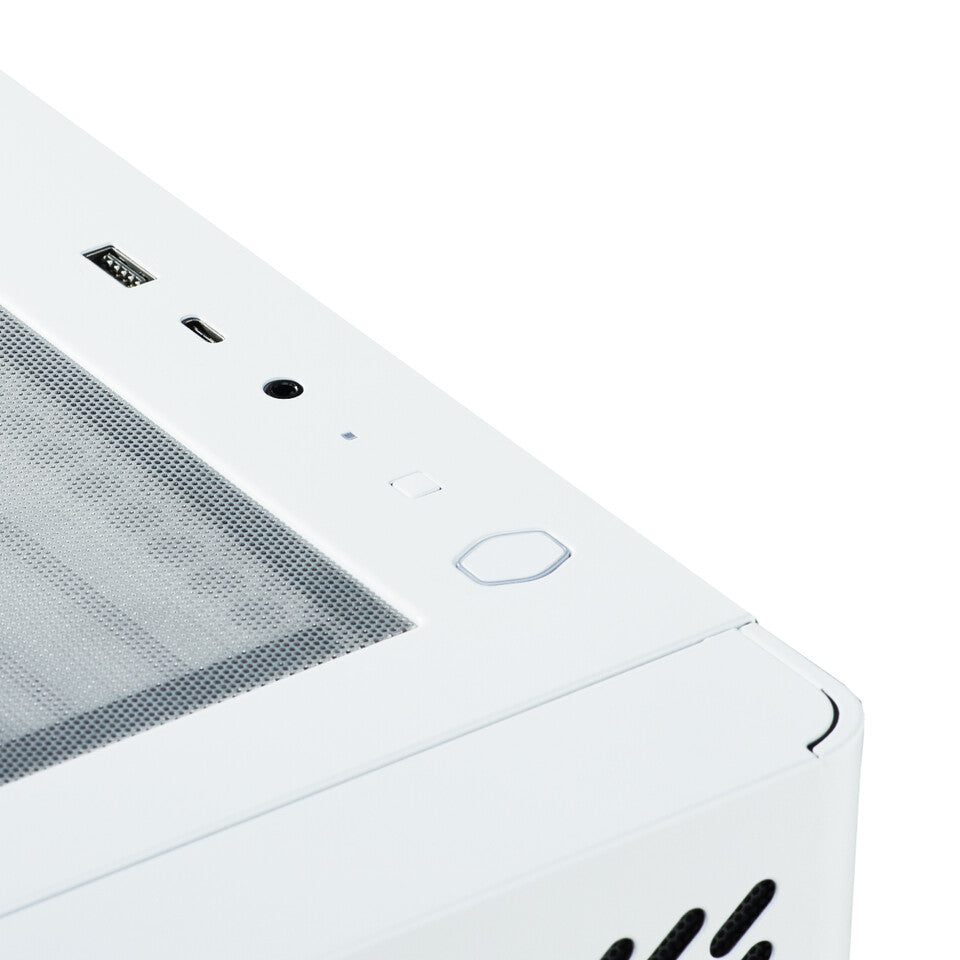

USB TYPE-C SUPPOR
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
VERSATILE THERMAL OPTIONS
Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.
REMOVABLE HDD CAGE
The HDD cage is completely removable, providing better access during assembly and system upgrades.
| Design |
|---|
| Maximum graphics card length |
36 cm |
| Maximum CPU cooler height |
17 cm |
| LED indicators |
Yes |
| On/off button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Tempered glass panel(s) |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of internal 3.5" bays |
2 |
| Number of 2.5" bays |
2 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, EATX, ITX, micro ATX |
| Product colour |
White |
| Material |
Steel |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Cooling |
|---|
| Top radiator sizes supported |
120,140,240,280,360 mm |
| Rear radiator sizes supported |
120 mm |
| Front radiator sizes supported |
120,140,240,280,360,420 mm |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| General |
|---|
| Product family |
Elite |
| Weight & dimensions |
|---|
| Height |
481 mm |
| Depth |
474 mm |
| Width |
230 mm |
