Power Evolved
ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.

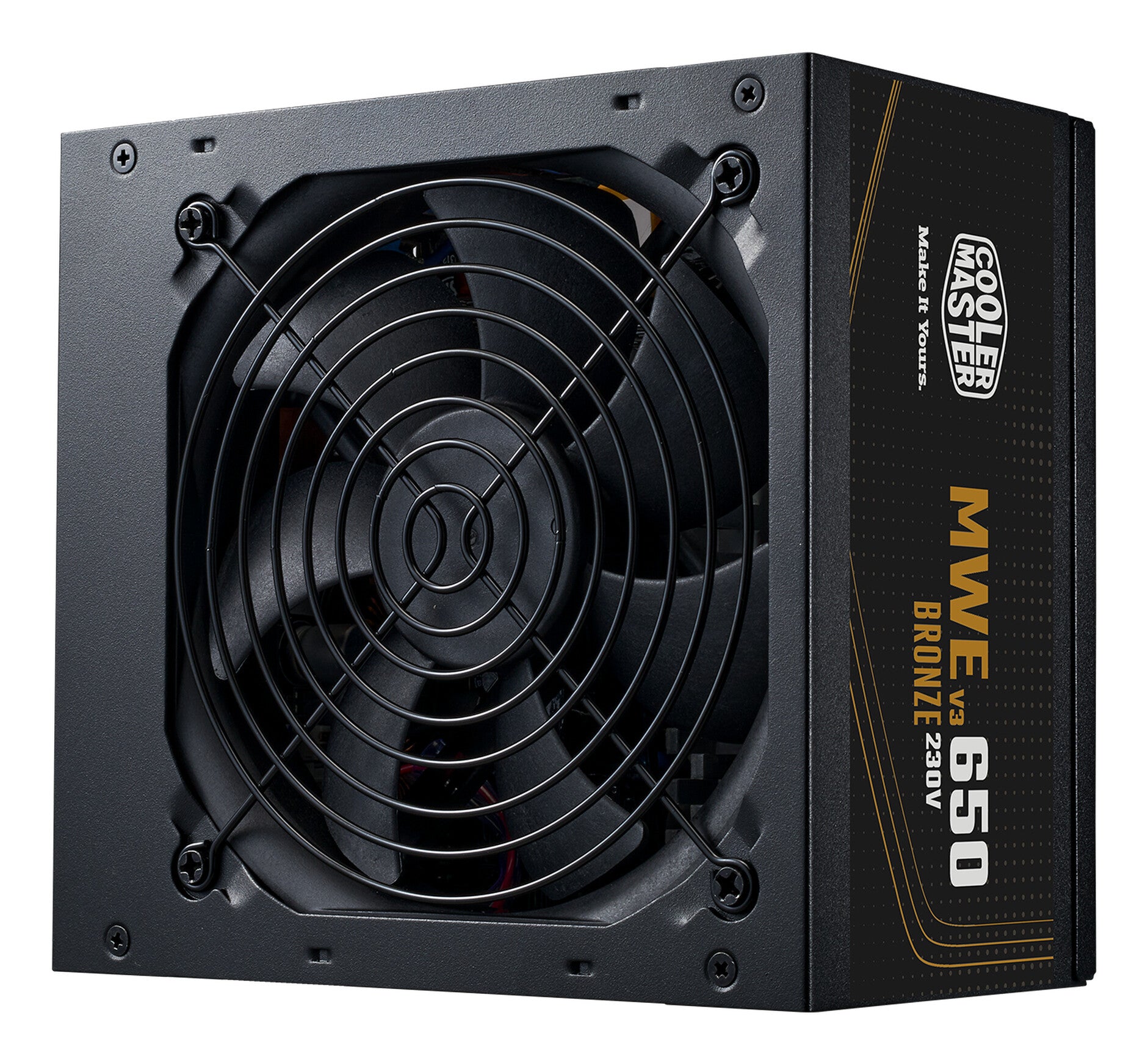

Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
Certified Efficiency
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical loads.
High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.
PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
| Power |
|---|
| Power protection features |
Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power Good signal delay range |
100 - 150 ms |
| Efficiency |
88% |
| Hold time |
16 ms |

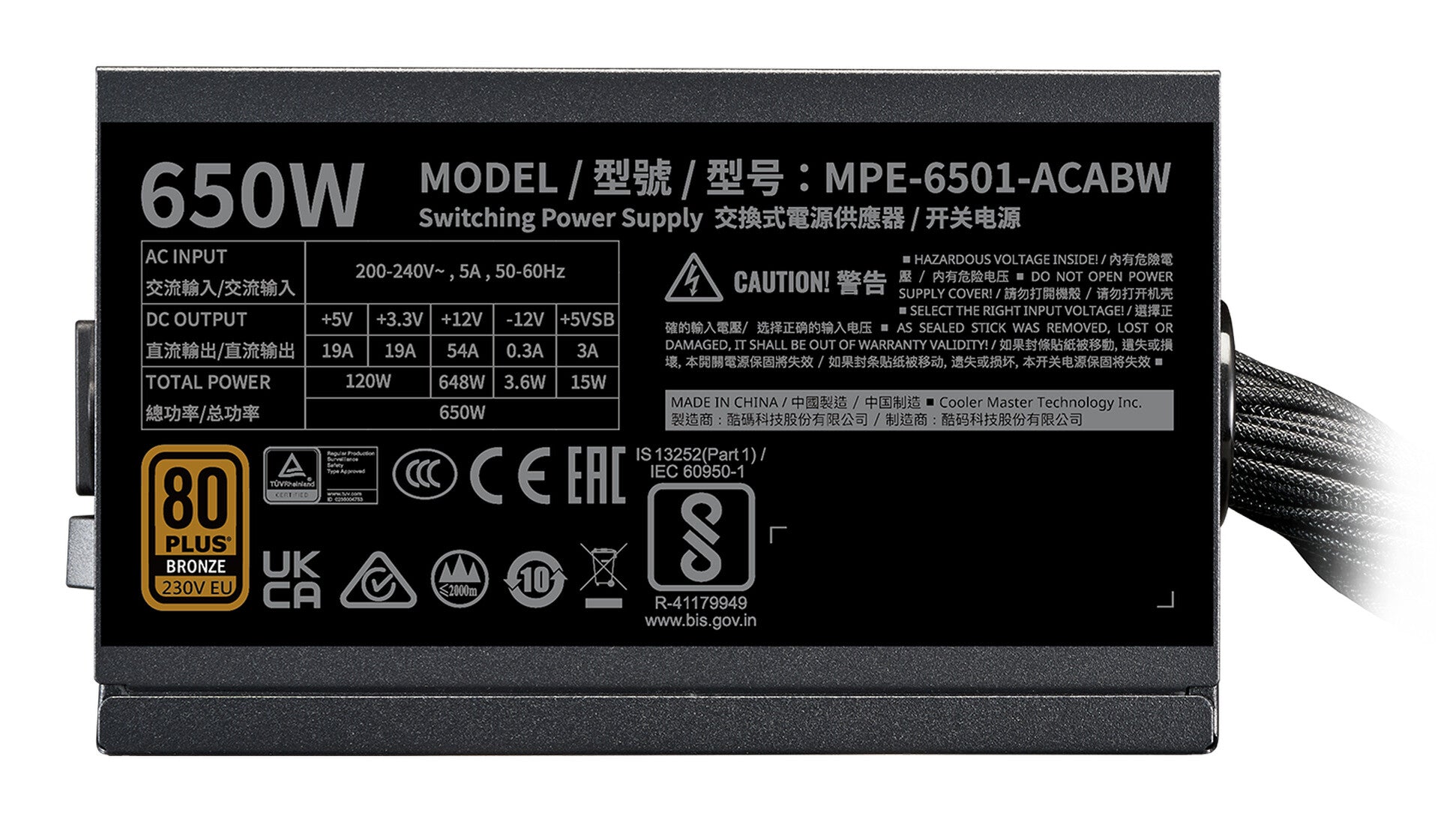

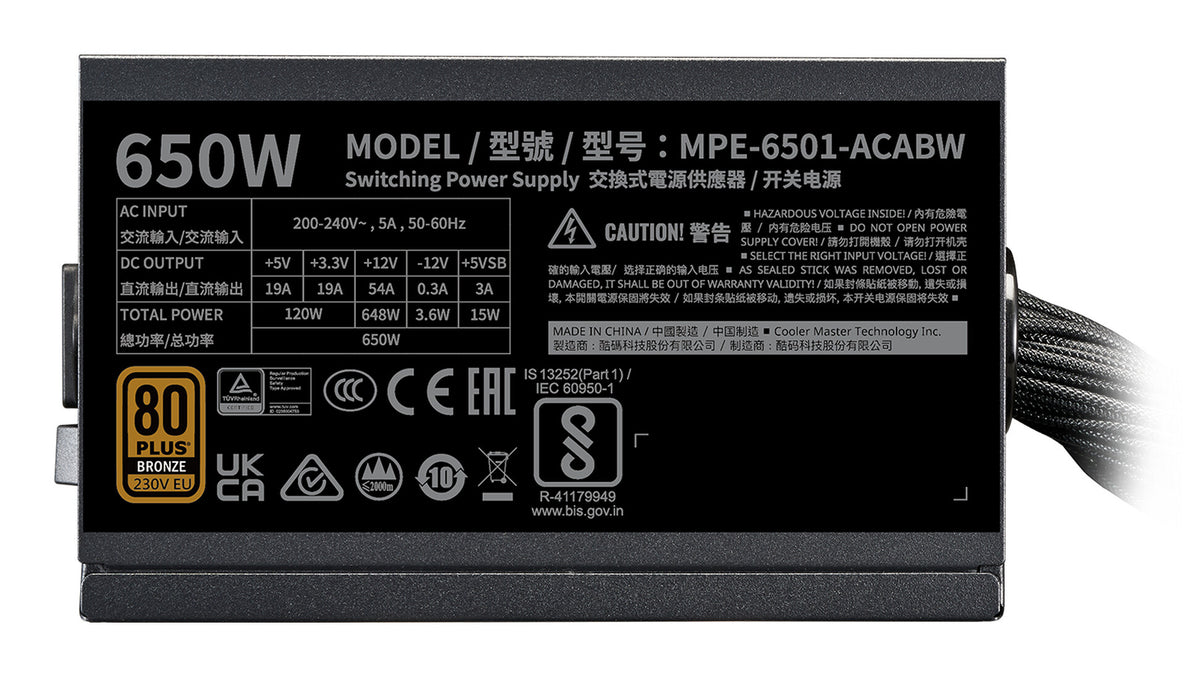

| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
19 A |
| Max output current (+12V) |
54 A |
| Max output current (+3.3V) |
19 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
648 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
200 - 240 V |
| Total power |
650 W |
| Ports & interfaces |
|---|
| Cabling type |
Non-Modular |
| PCI Express power cable length |
62 cm |
| PCI Express power connectors (6+2 pin) |
4 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power cable length |
550,700,400 mm |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| SATA power cable length |
400,550,700 mm |
| Number of SATA power connectors |
6 |
| Motherboard power cable length |
50 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
HDB |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Bronze |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC/Server |
| Design |
|---|

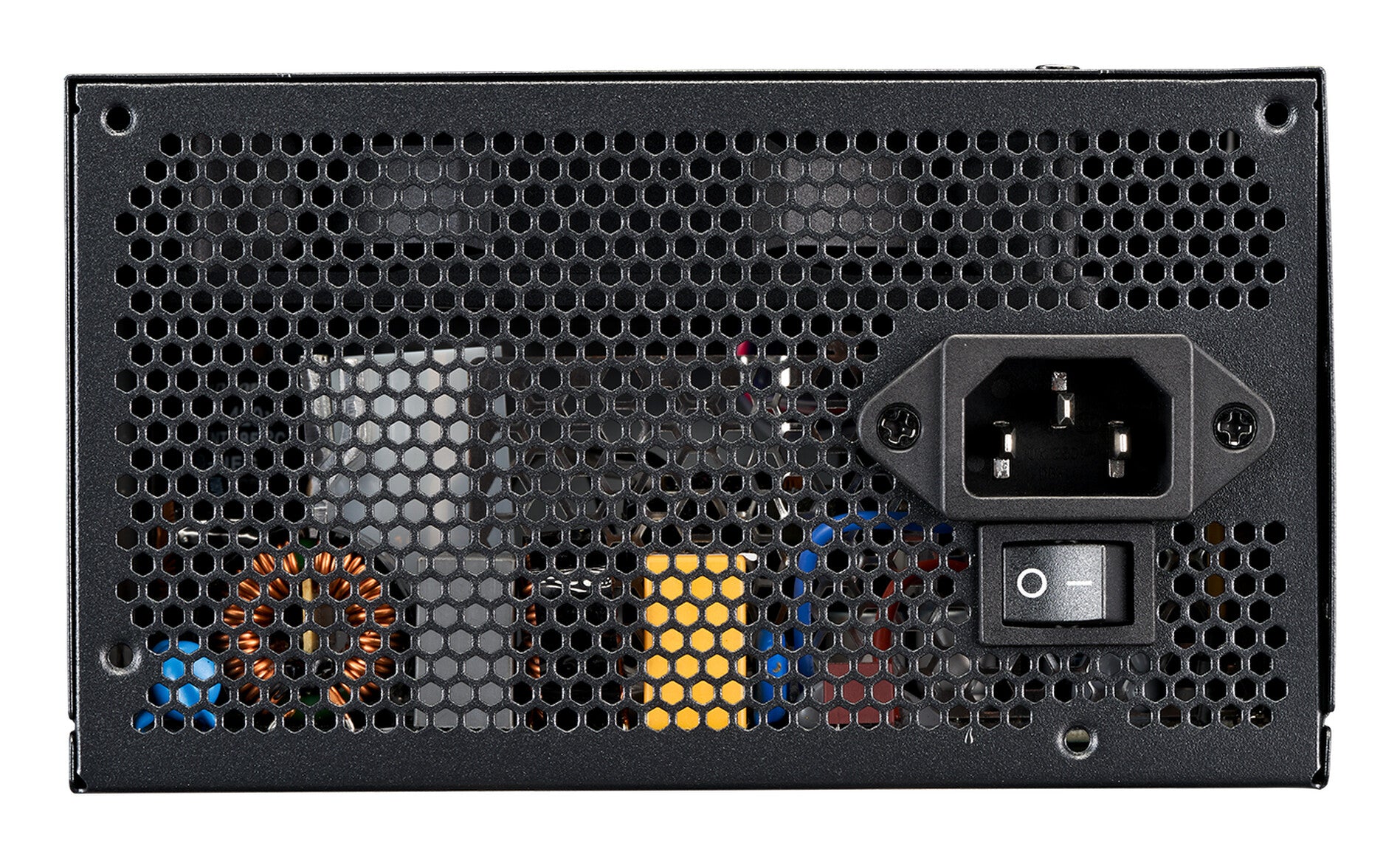

| On/off switch |
Yes |

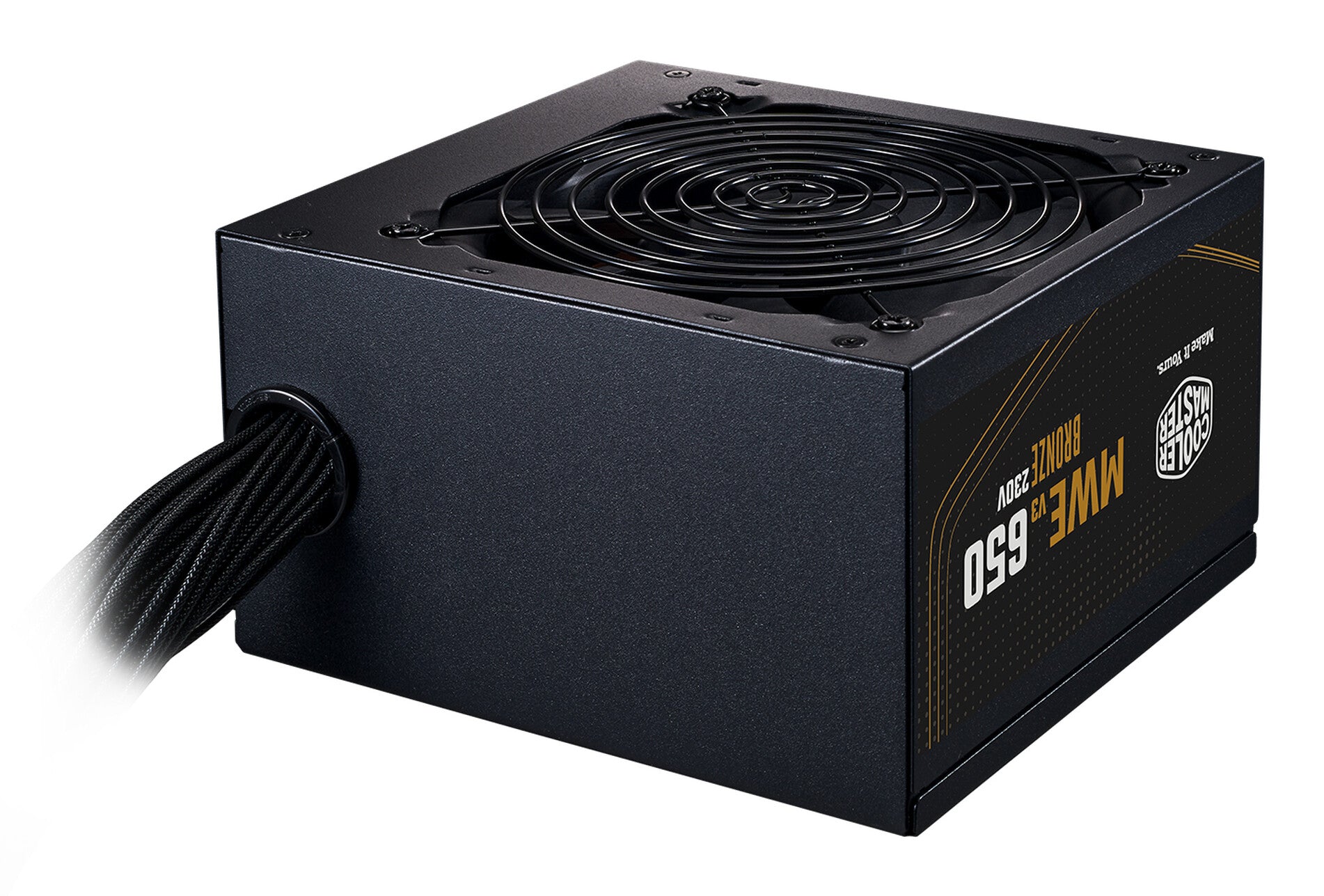

| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
ErP 2014 Lot 3 |
| Compliance certificates |
BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| Weight & dimensions |
|---|
| Weight |
1.65 kg |
| Height |
86 mm |
| Depth |
140 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.05 kg |
| Package height |
110 mm |
| Package depth |
245 mm |
| Package width |
190 mm |
| Logistics data |
|---|
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case height |
215 mm |
| Master (outer) case length |
570 mm |
| Master (outer) case width |
260 mm |
| Master (outer) cases per pallet (air) |
32 pc(s) |
| Other features |
|---|
| EPS cable length |
67 cm |
