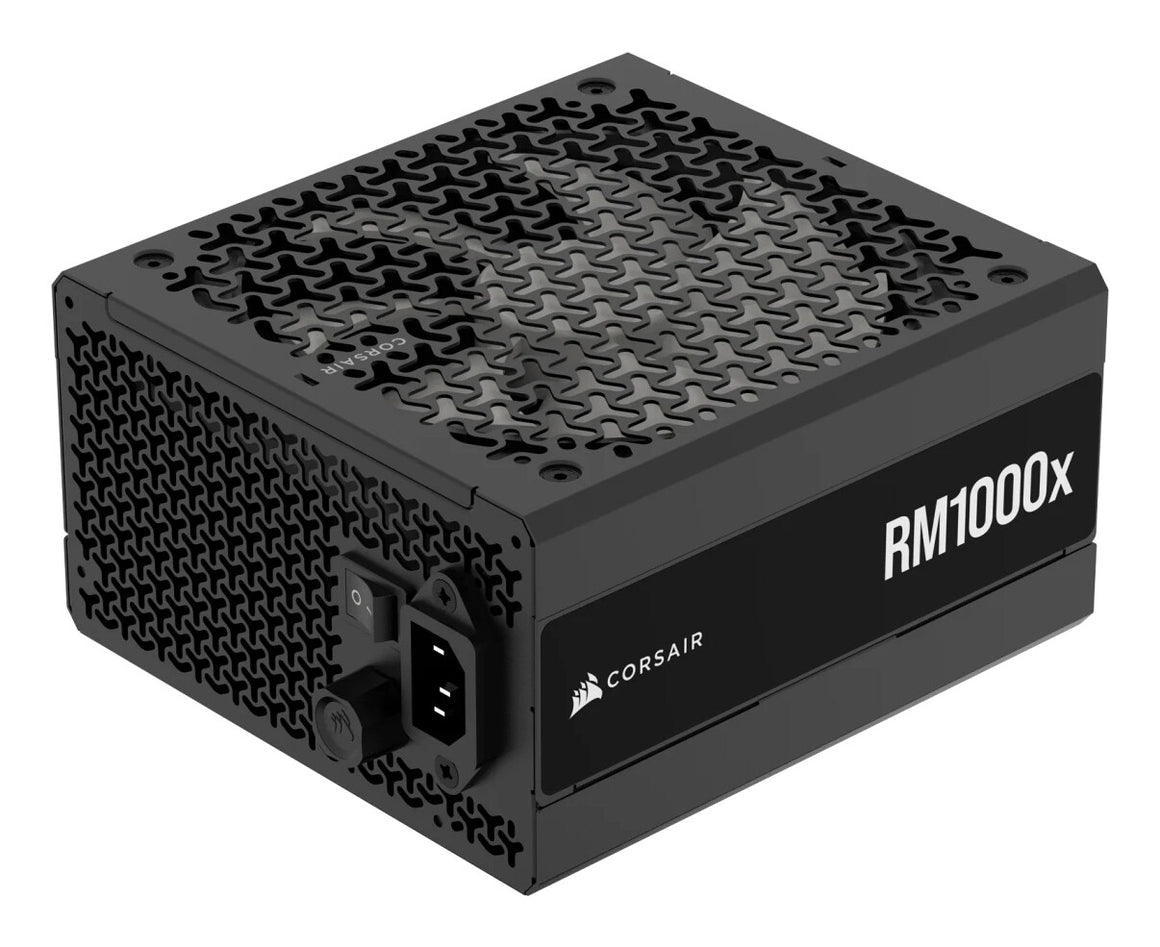

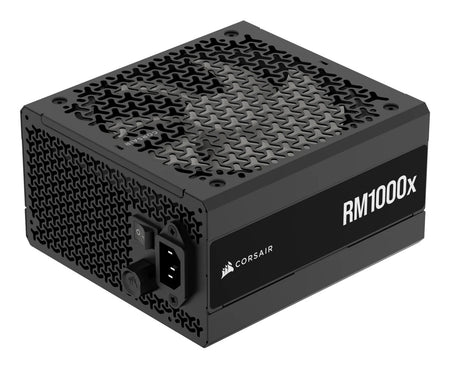

Power your next build with a CORSAIR RMx Series fully modular PSU for quiet, Cybenetics Gold-certified efficient performance.
| Power |
|---|
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.8 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V) |
83.3 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
9.6 W |
| Combined power (+5V) |
150 W |
| Combined power (+12V) |
1000 W |
| Combined power (+3.3V) |
150 W |
| Maximum input current (@220V) |
5 A |
| Maximum input current (@110V) |
12 A |
| Input current |
12 - 5 A |
| AC input frequency |
47 - 63 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
1000 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| PCI Express connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| PCI Express power connectors (12+4 pin) |
1 |
| PCI Express power connectors (6+2 pin) |
4 |
| EPS power connector (4+4 pin) |
Yes |
| Number of PATA power connectors |
6 |
| Number of SATA power connectors |
12 |
| Motherboard power cable length |
61 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Silent mode |
Yes |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Product colour |
Black |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
3.65 kg |
| Height |
86 mm |
| Depth |
160 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package type |
Box |
