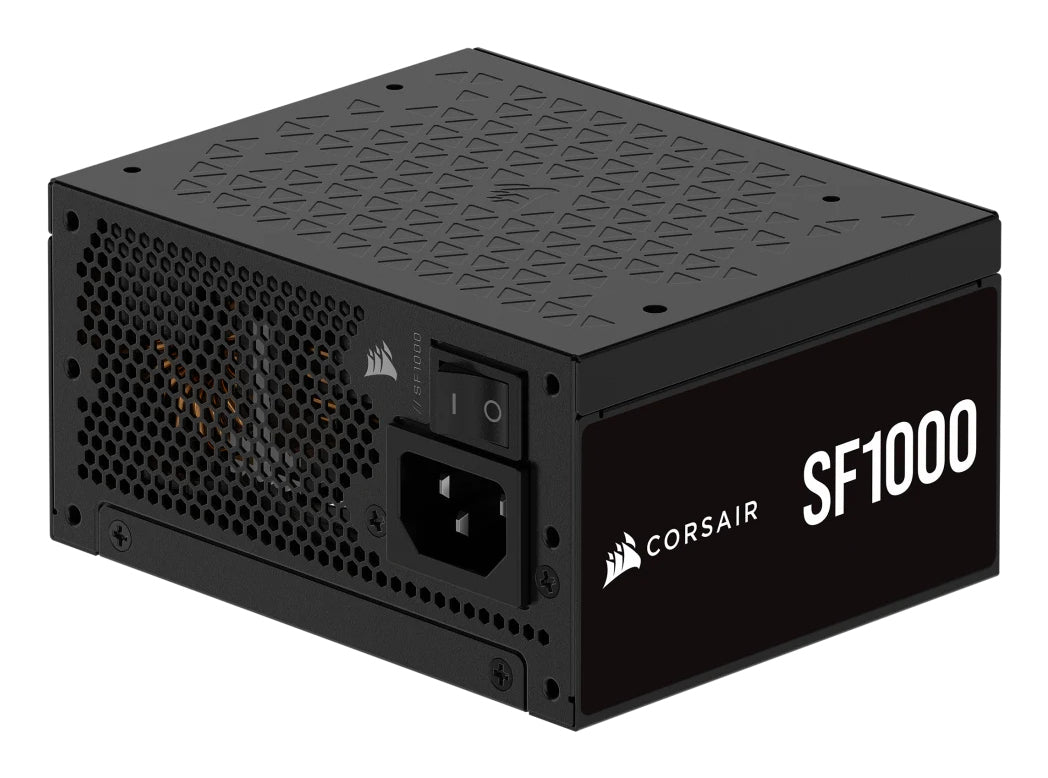

Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.
| Power |
|---|
| Power protection features |
Overheating, Over current, Over power, Over voltage, Short circuit |
| Max output current (+5Vsb) |
3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
83.3 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (+5V) |
130 W |
| Combined power (+12V) |
1000 W |
| Combined power (+3.3V) |
130 W |
| Input current |
6 - 12 A |
| AC input frequency |
47 - 63 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
1000 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| ATX power connector (12+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
4 |
| EPS power connector (4+4 pin) |
Yes |
| Number of PATA power connectors |
1 |
| Number of SATA power connectors |
3 |
| Motherboard power connector |
24-pin ATX |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| Silent mode |
Yes |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
9.2 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Packaging content |
|---|
| Cables included |
AC |
| Weight & dimensions |
|---|
| Weight |
2.3 kg |
| Height |
63.5 mm |
| Depth |
100 mm |
| Width |
125 mm |
