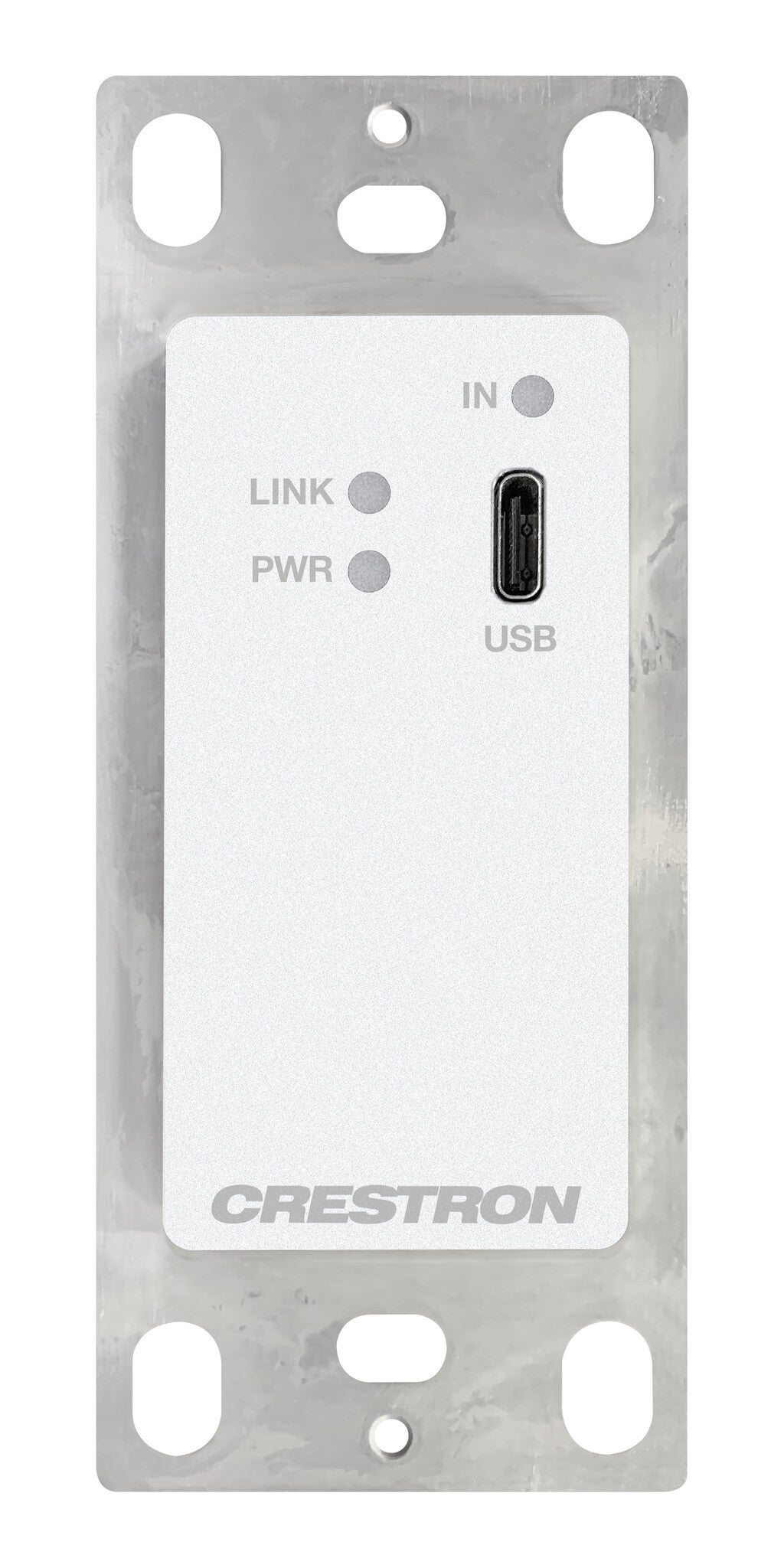

The HD-TX-4KZ-111-1G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HD‑TX‑4KZ‑111-1G includes a USB-C® input with DisplayPort™ Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111-1G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.
The HD-TX-4KZ-111-1G is available in two models: HD-TX-4KZ-111-1G-W (white) and HD-TX-4KZ-111-1G-B (black).
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-111-1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD‑RX‑4KZ‑101, HD‑RXA‑4KZ‑101, HD‑RXC‑4KZ‑101, and HD‑RXCA‑4KZ‑101. Supported DMPS Lite switchers are the HD‑PS621, HD‑PS622, HD‑PS401, HD‑PS402, and HD‑RX‑4K‑210‑C‑E(‑POE).
Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.
The HD-TX-4KZ-111-1G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-111-1G. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-111-1G is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-TX-4KZ-111-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
One-Gang Wall Plate Design
The HD‑TX‑4KZ‑111‑1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-TX-4KZ-111-1G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.
| Features |
|---|
| Product colour |
White |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
| Material |
Metal, Polycarbonate (PC) |
| Frame rate |
60 fps |
| Audio formats supported |
DTS, LPCM |
| Colour depth |
12 bit |
| Rack mounting |
Yes |
| HDCP |
Yes |
| HDCP version |
2.3 |
| LED indicators |
Activity, Link, Power |
| IR pass-through |
Yes |
| RS-232 pass-through |
Yes |
| HDCP pass-through |
Yes |
| Maximum refresh rate |
60 Hz |
| High Dynamic Range (HDR) technology |
Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus) |
| High Dynamic Range (HDR) supported |
Yes |
| Maximum transfer distance |
70 m |
| Cable types supported |
Cat5e |
| Maximum resolution |
4096 x 2160 pixels |
| Type |
AV receiver |
| Ports & interfaces |
|---|
| Number of HDMI outputs |
1 |
| RJ-45 input ports |
1 |
| Connectivity technology |
Wired |
| Power |
|---|
| Current |
2.5 A |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
|---|
| Weight |
152 g |
| Height |
105 mm |
| Depth |
56 mm |
| Width |
44 mm |
| Packaging content |
|---|
| Mounting brackets included |
Yes |
| IR extender included |
Yes |
| IR emitter included |
Yes |
| Cables included |
UTP |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
