D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

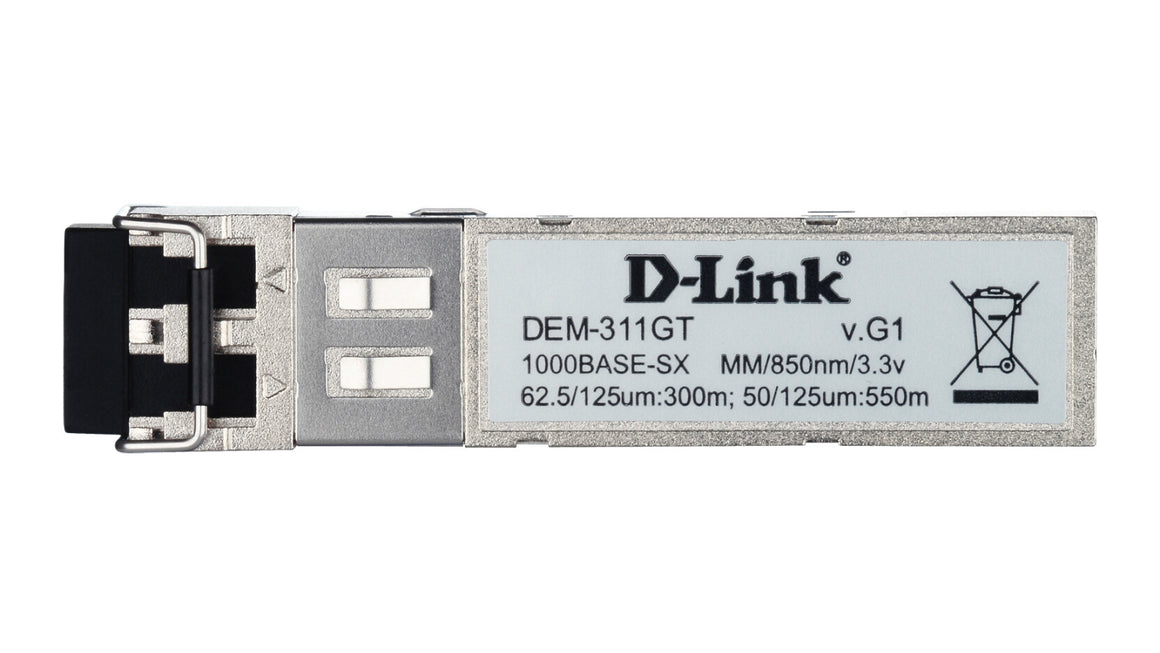

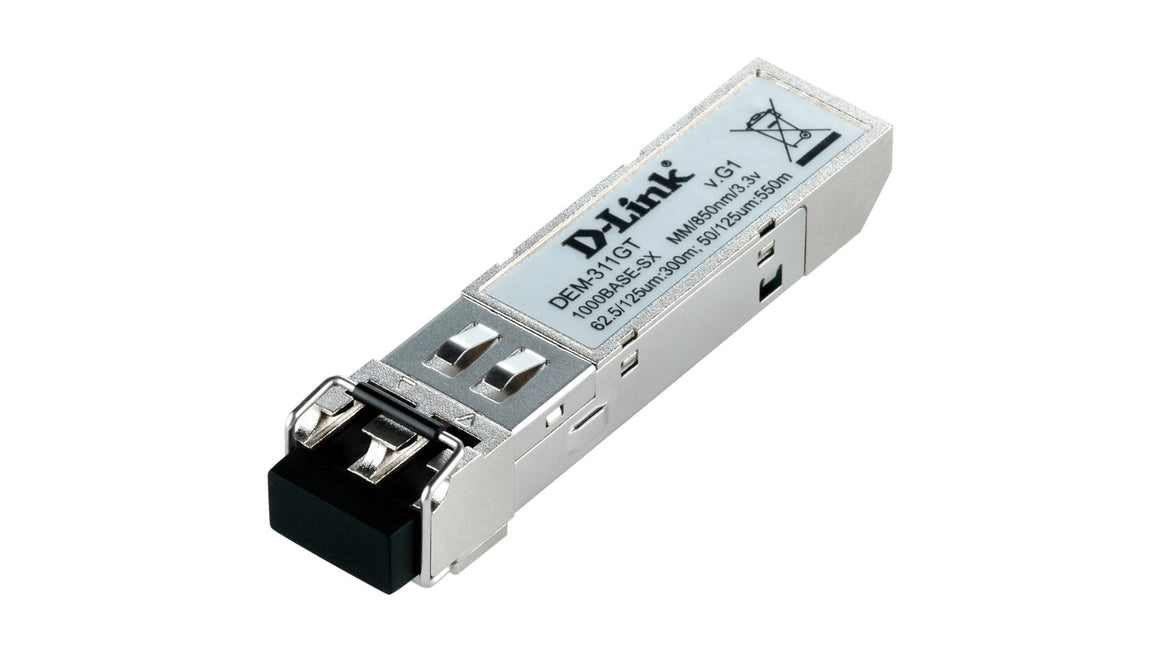

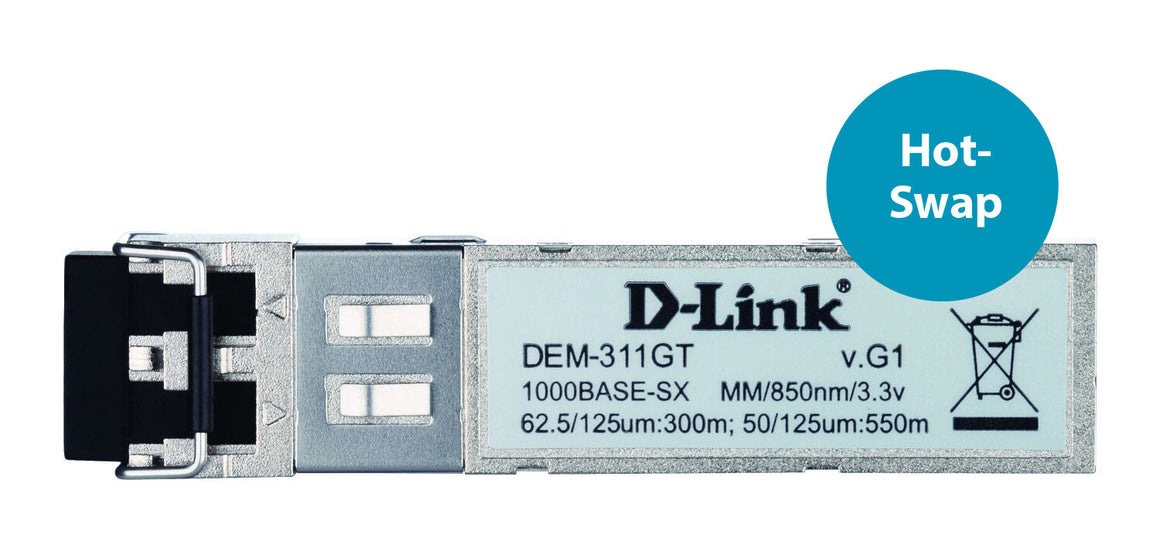

The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
| Performance |
|---|
| Duplex system |
Full |
| Networking standards |
IEEE 802.3x |
| Wavelength |
850 nm |
| Maximum transfer distance |
550 m |
| SFP transceiver standard |
SX |
| Fiber optic connector |
LC |
| Multi-mode fiber (MMF) supported |
Yes |
| Single-mode fiber (SMF) supported |
No |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Hot-Plug support |
Yes |
| Housing material |
Metal |
| Product colour |
Metallic |
| Power |
|---|
| Maximum voltage |
6 V |
| Certificates |
|---|
| Certification |
MSA, RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
8.5 mm |
| Depth |
57.2 mm |
| Width |
13.8 mm |
| Packaging data |
|---|
| Package weight |
64 g |
| Package height |
49 mm |
| Package depth |
131 mm |
| Package width |
74 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85369010 |
| Shipping (inner) case length |
36 cm |
| Shipping (inner) case width |
26 cm |
| Shipping (inner) case height |
31 cm |
| Shipping (inner) case net weight |
3.2 kg |
| Products per shipping (inner) case |
50 pc(s) |
| Pallet gross weight (air) |
246.8 kg |
| Master (outer) cases per pallet (air) |
54 pc(s) |
| Products per pallet (air) |
2700 pc(s) |
| Pallet gross length |
102 cm |
| Pallet gross width |
122 cm |
| Pallet height (air) |
199 cm |
| Pallet gross weight (sea) |
246.8 kg |
| Master (outer) cases per pallet (sea) |
54 pc(s) |
| Products per pallet (sea) |
2700 pc(s) |
| Pallet height (sea) |
199 cm |
| Shipping (inner) case gross weight |
4.2 kg |
