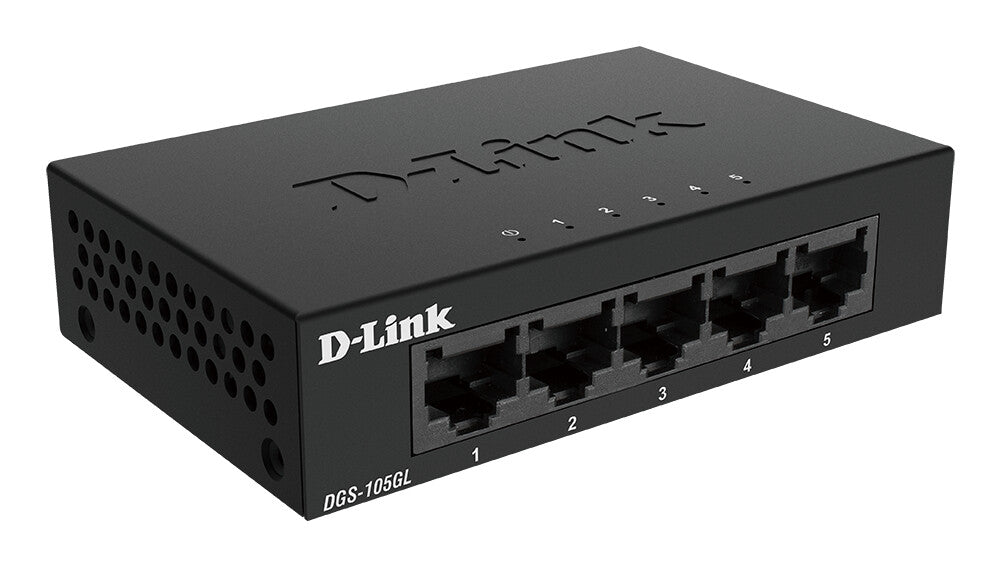

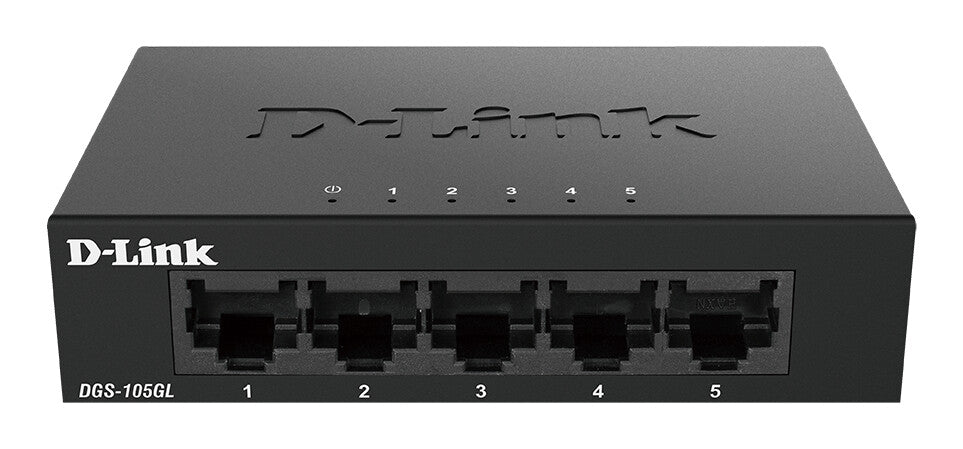

D-Link 5-Port Gigabit Ethernet Switch

SKU: DGS-105GL/B
Regular price £25.80 inc. VAT
  • 5 Gigabit Ethernet ports
  • Metal casing
  • Energy efficient
  • Fanless
  • Plug & Play Installation

Effortless Gigabit networking.
Easily upgrade or extend your home or small business network with high-speed energy-saving Gigabit connectivity. It’s optimised for intensive 4K video streaming, surveillance, large file downloads and conferencing.

Plug-and-play. Easily extend a network.
The DGS-105GL is a plug-and-play device that requires no advanced technical configuration. You can easily connect multiple computers within minutes, and start sharing an internet connection, files, music, and video across your small office or home network.

Effortless traffic optimisation.
With Gigabit transfer speeds on each port, you can rapidly transfer files between connected computers and devices. The switch features 802.1p Quality of Service (QoS), which automatically organises and prioritises time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice calls.

Designed for life, built to last.
The DGS-108GL features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving.
The compact, metal housing and fanless design mean the switches can be placed virtually anywhere and operate silently. The DGS-108GL is designed with energy efficiency in mind. The switches automatically reduce power to ports that are inactive or not connected, and support the IEEE 802.3az Energy-Efficient Ethernet standard.

Management features
Quality of Service (QoS) support Yes
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
Network
Auto MDI/MDI-X Yes
Flow control support Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet forwarding rate (1 Gbps) 1488000 pps
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (10 Mbps) 14880 pps
Jumbo frames 9216
Jumbo frames support Yes
Number of queues 8
Store-and-forward Yes
Forwarding rate 7.44 Mpps
Switching capacity 10 Gbit/s
MAC address table 2000 entries
Design
LED indicators Activity, Link, Power
Housing material Metal
Product colour Black
Form factor Desktop
Stackable Yes
Performance
Mean time between failures (MTBF) 1455562 h
Power
Power consumption (max) 3.55 W
Input current 1 A
DC input voltage 5 V
Power source DC
Operational conditions
Heat dissipation 12.11 BTU/h
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 160 g
Height 24 mm
Depth 64 mm
Width 100 mm
Certificates
Certification CE; FCC; RoHS
Compliance certificates CE, RoHS
Logistics data
Harmonized System (HS) code 85176990
