Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.
| Management features |
|---|
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Copper ethernet cabling technology |
1000BASE-T |
| 10G support |
No |
| Data transmission |
|---|
| Packet buffer memory |
1 MB |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Forwarding rate |
7.4 Mpps |
| Switching capacity |
10 Gbit/s |
| MAC address table |
2000 entries |
| Design |
|---|
| Number of fans |
0 fan(s) |

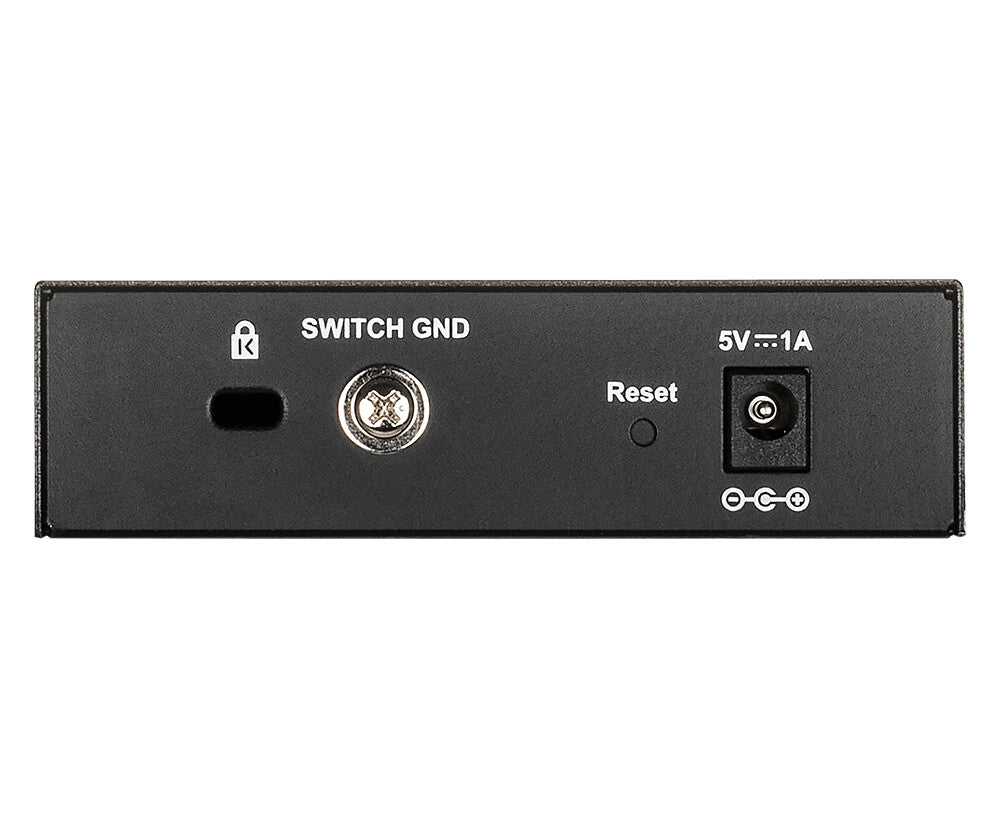

| Reset button |
Yes |
| Product colour |
Black |
| Rack mounting |
No |
| Performance |
|---|
| Fanless |
Yes |
| Noise level |
0 dB |
| Power |
|---|
| Power consumption (max) |
3.42 W |
| Input current |
1 A |
| DC input voltage |
5 V |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating altitude |
0 - 2000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
230 g |
| Height |
82 mm |
| Depth |
28 mm |
| Width |
100.5 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
