Effortless Gigabit networking.
Easily upgrade or extend your home or small business network with high-speed energy-saving Gigabit connectivity. It’s optimised for intensive 4K video streaming, surveillance, large file downloads and conferencing.
Plug-and-play. Easily extend a network.

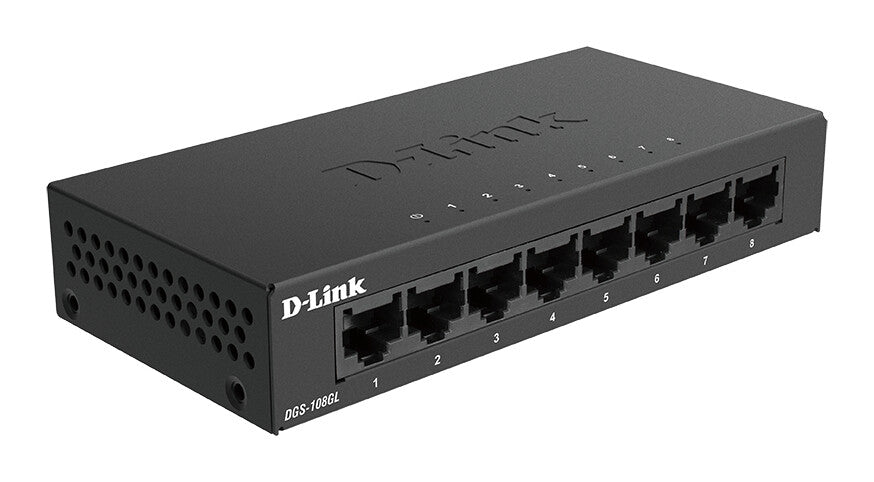

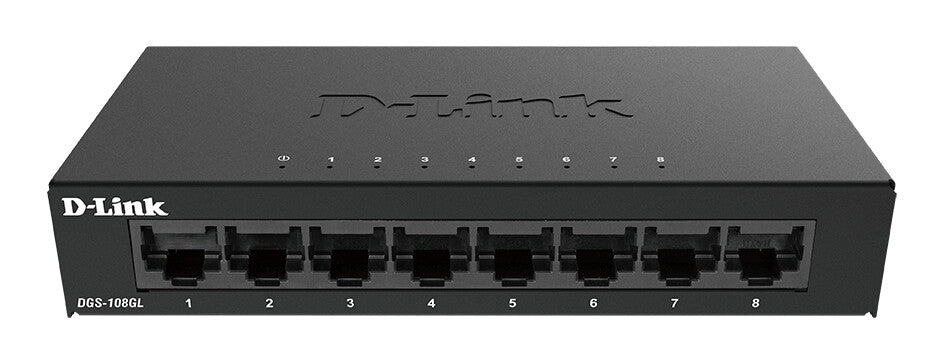

The DGS-108GL is a plug-and-play device that requires no advanced technical configuration. You can easily connect multiple computers within minutes, and start sharing an internet connection, files, music, and video across your small office or home network.
Effortless traffic optimisation.
With Gigabit transfer speeds on each port, you can rapidly transfer files between connected computers and devices. The switch features 802.1p Quality of Service (QoS), which automatically organises and prioritises time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice calls.
Designed for life, built to last.
The DGS-108GL features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.
Energy Saving.
The compact, metal housing and fanless design mean the switches can be placed virtually anywhere and operate silently. The DGS-108GL is designed with energy efficiency in mind. The switches automatically reduce power to ports that are inactive or not connected, and support the IEEE 802.3az Energy-Efficient Ethernet standard.
Management features |
Quality of Service (QoS) support |
Yes |
Switch type |
Unmanaged |
Ports & interfaces |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
8 |
Network |
Auto MDI/MDI-X |
Yes |
Flow control support |
Yes |
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
Data transmission |
Packet forwarding rate (1 Gbps) |
1488000 pps |
Packet forwarding rate (100 Mbps) |
148800 pps |
Packet forwarding rate (10 Mbps) |
14880 pps |
Jumbo frames |
9216 |
Jumbo frames support |
Yes |
Number of queues |
8 |
Store-and-forward |
Yes |
Forwarding rate |
11.9 Mpps |
Switching capacity |
16 Gbit/s |
MAC address table |
4000 entries |
Design |
LED indicators |
Activity, Link, Power |
Housing material |
Metal |
Product colour |
Black |
Form factor |
Desktop |
Stackable |
Yes |
Performance |
Mean time between failures (MTBF) |
1402428 h |
Power |
Power consumption (max) |
4.31 W |
Input current |
1 A |

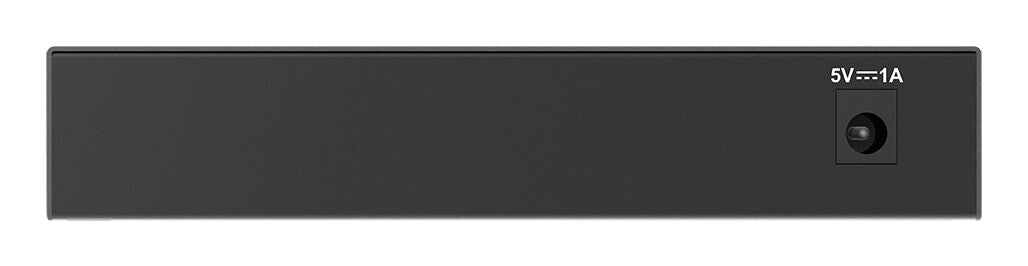

DC input voltage |
5 V |
Power source |
DC |
Operational conditions |
Heat dissipation |
14.7 BTU/h |
Storage relative humidity (H-H) |
5 - 95% |
Operating relative humidity (H-H) |
10 - 90% |
Storage temperature (T-T) |
-10 - 65 °C |
Operating temperature (T-T) |
0 - 40 °C |
Weight & dimensions |
Weight |
240 g |
Height |
26 mm |
Depth |
67 mm |
Width |
140 mm |
Certificates |
Certification |
CE; FCC; RoHS |
Compliance certificates |
CE, RoHS |
Logistics data |
Harmonized System (HS) code |
85176990 |
