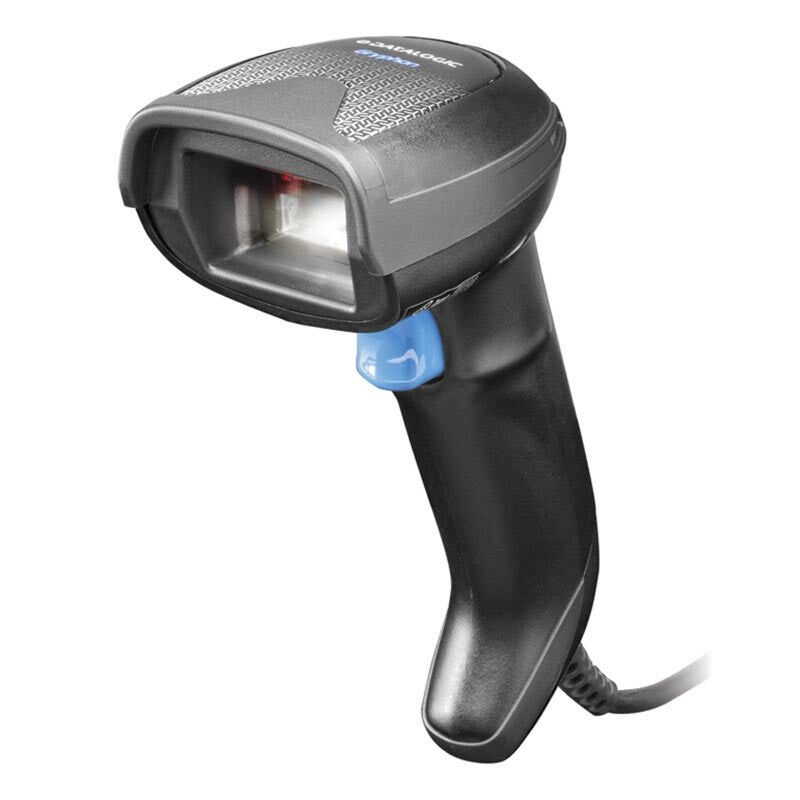

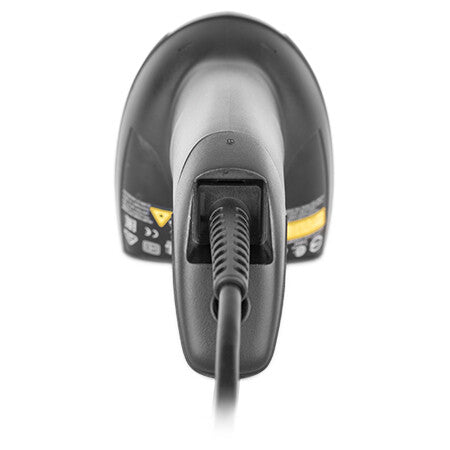

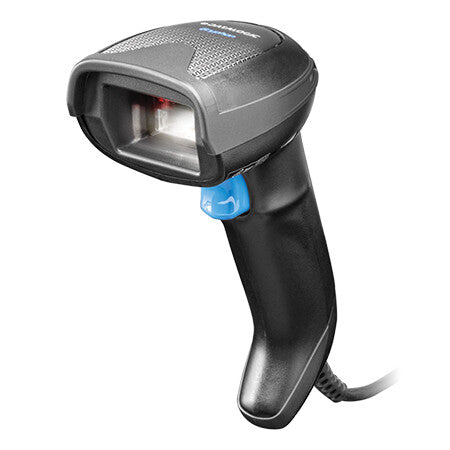

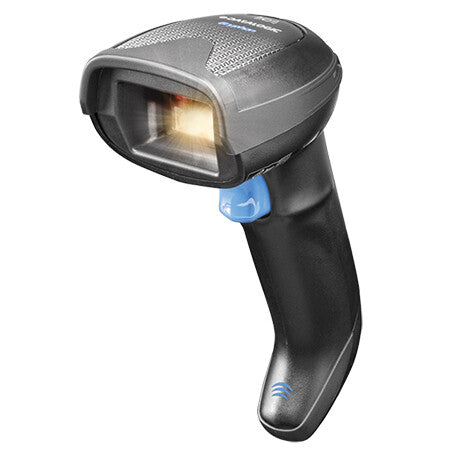

Datalogic Gryphon I GD4500 Handheld bar code reader 1D/2D Black

SKU: GD4590-BK-B
Regular price £250.39 inc. VAT
  • Handheld bar code reader Black
  • Scanner type: 1D/2D
  • Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C. Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
  • 1280 x 800 pixels
  • Tilt reading angle: 0 - 360°
  • Wired Standard interfaces: RS-232, USB, Keyboard wedge
  • Power source type: DC

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.

The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

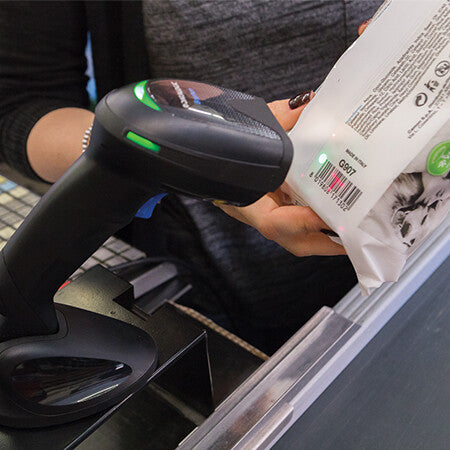

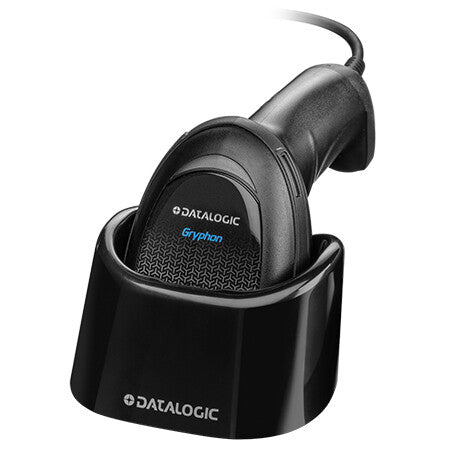

The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.

Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.

The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Scanning
Motion tolerance (cm/s) 88.9
Yaw reading angle -65 - 65°
Pitch reading angle -65 - 65°
Tilt reading angle 0 - 360°
Wavelength 650 nm
Light levels (direct sunlight) 0 - 100000 lx
Optical sensor resolution (W x H) 1280 x 800 pixels
Linear (1D) barcodes supported Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Scanner type 1D/2D
Type Handheld bar code reader
Ports & interfaces
Standard interfaces RS-232, USB, Keyboard wedge
Connectivity technology Wired
Performance
Certification IEC 60825 Class 2
Image formats supported BMP, JPEG
Built-in display No
Protection features Shock resistant
International Protection (IP) code IP52
Product colour Black
Power
Power consumption 300 mA
Input voltage 4.5 - 14 V
Power source type DC
Weight & dimensions
Weight 161 g
Height 166 mm
Depth 109 mm
Width 68 mm
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
