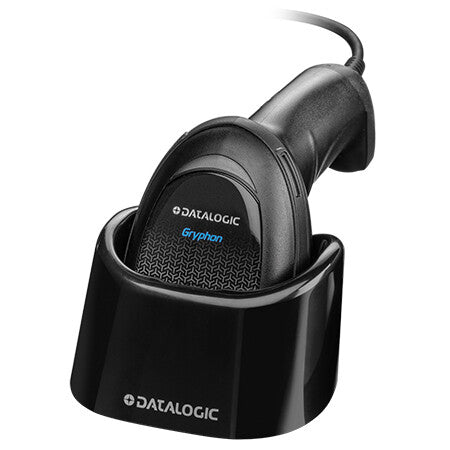

Kit includes Scanner, All in One Permanent Base and USB Cable 90A052258.

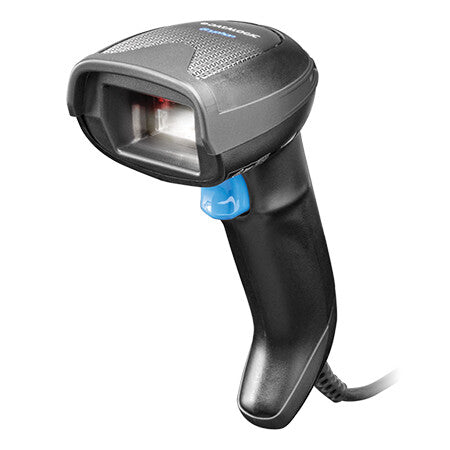

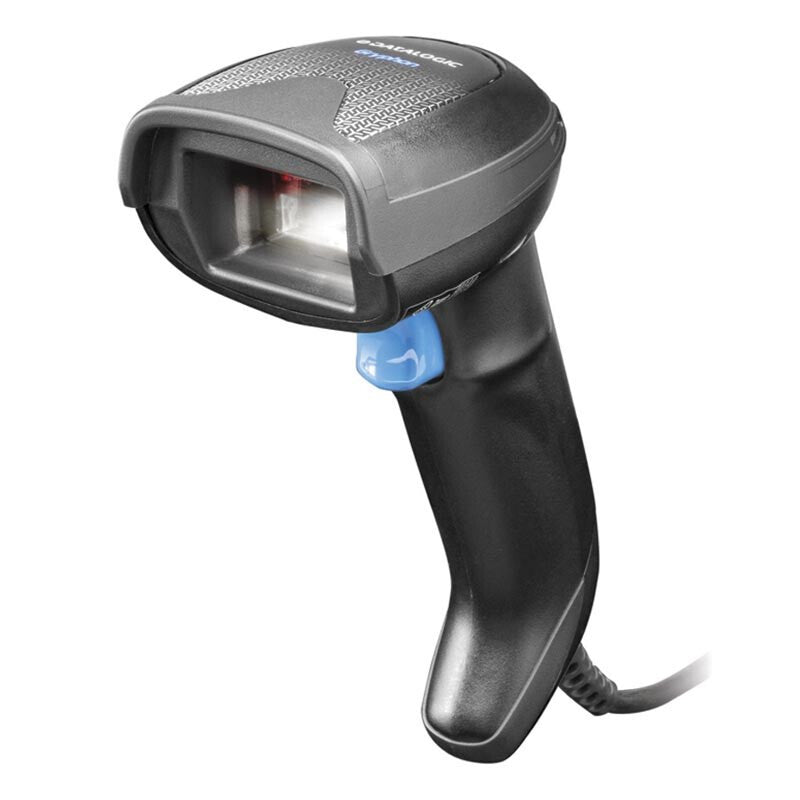

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.
The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.
Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
| Scanning |
| Motion tolerance (cm/s) |
88.9 |
| Pitch reading angle |
-65 - 65° |
| Tilt reading angle |
0 - 360° |
| Wavelength |
650 nm |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Standard interfaces |
USB |
| Connectivity technology |
Wired |
| Performance |
| Certification |
IEC 60825 Class 2 |
| Image formats supported |
TIFF, BMP, JPEG |
| Protection features |
Shock resistant |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
| Power consumption |
300 mA |
| Input voltage |
5 V |
| Power source type |
DC |
| Weight & dimensions |
| Weight |
161 g |
| Height |
166 mm |
| Depth |
109 mm |
| Width |
68 mm |
| Packaging data |
| Cables included |
USB |
| Charging base |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
84716070 |
