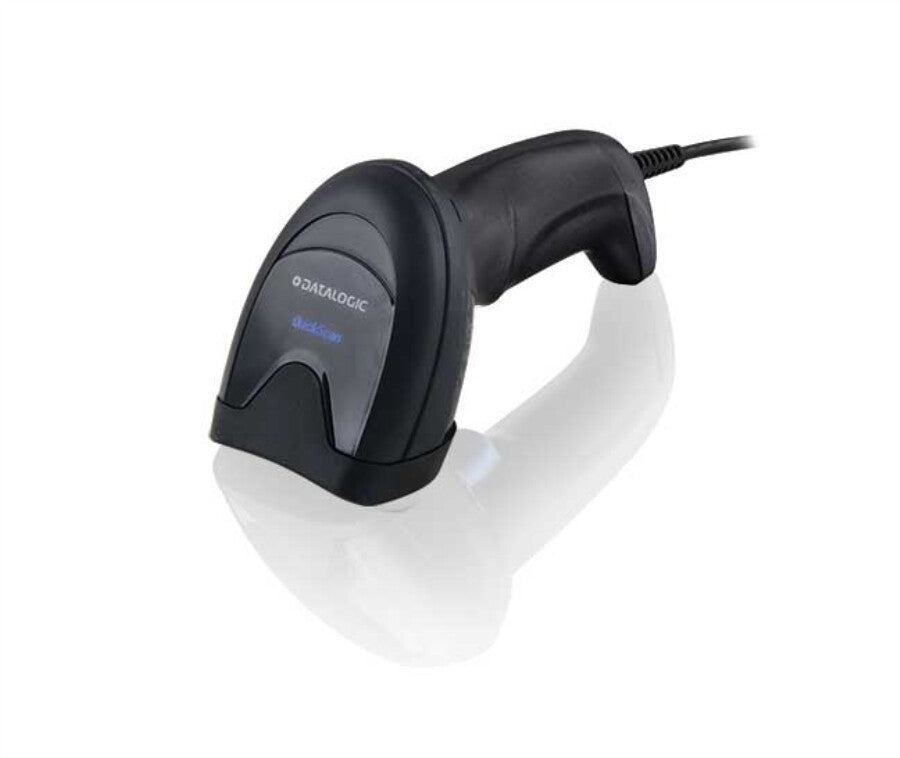

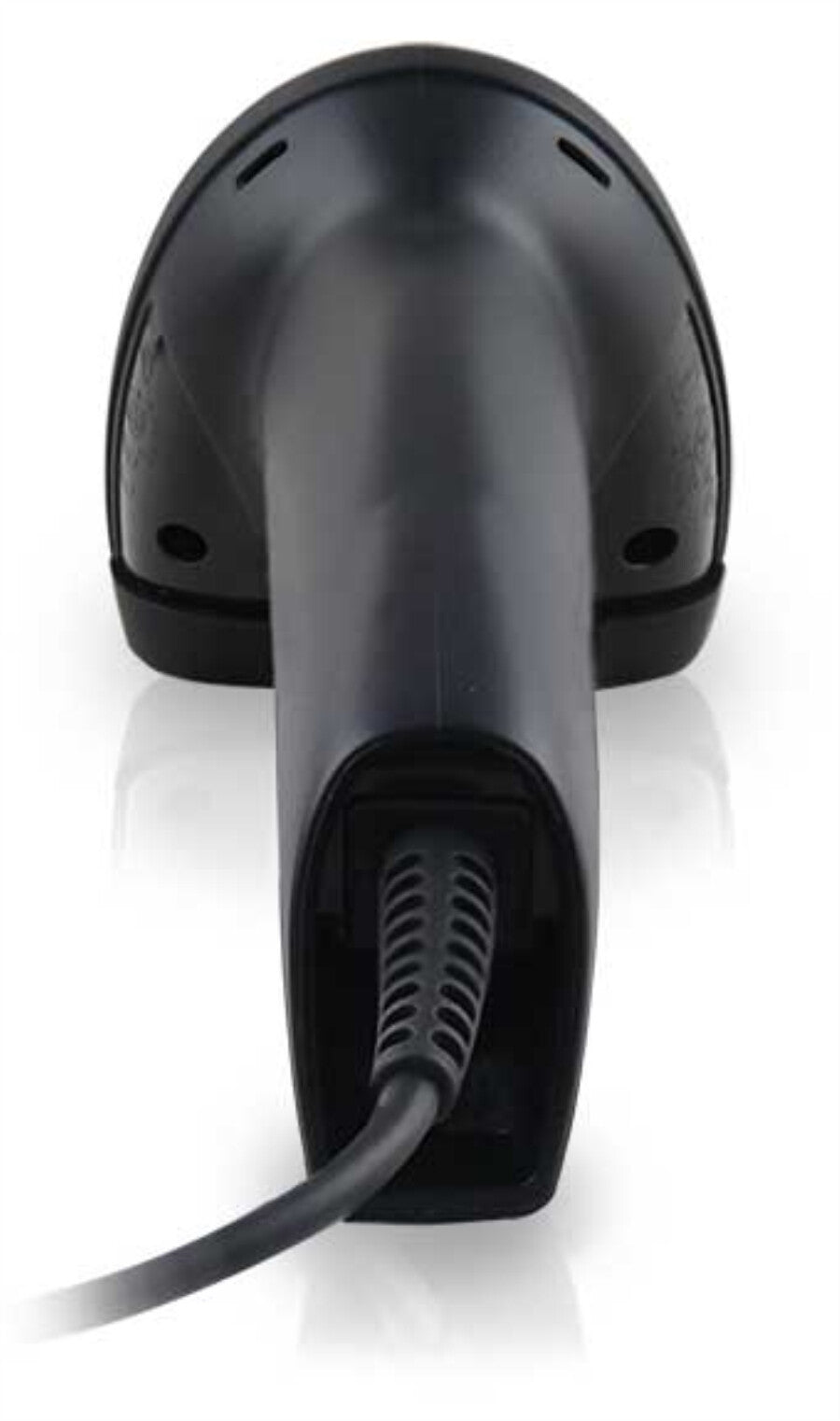

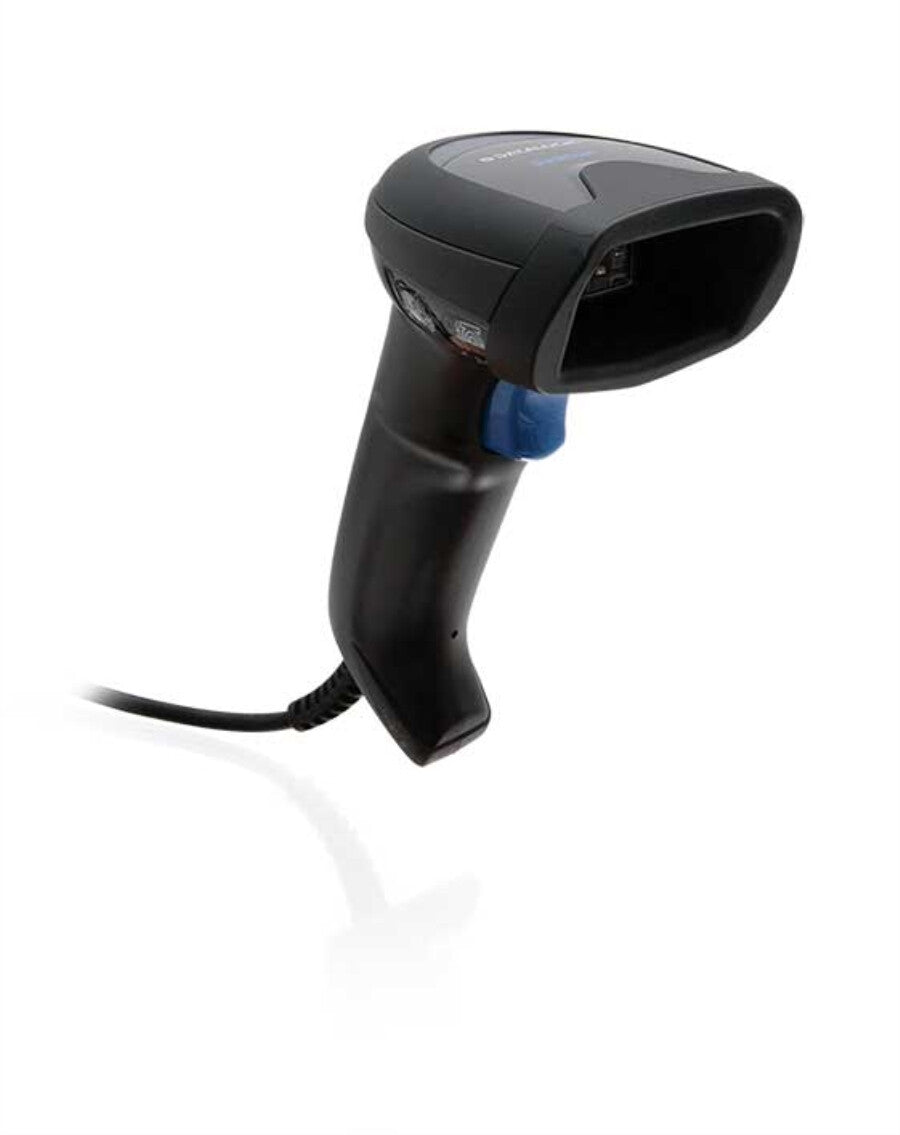

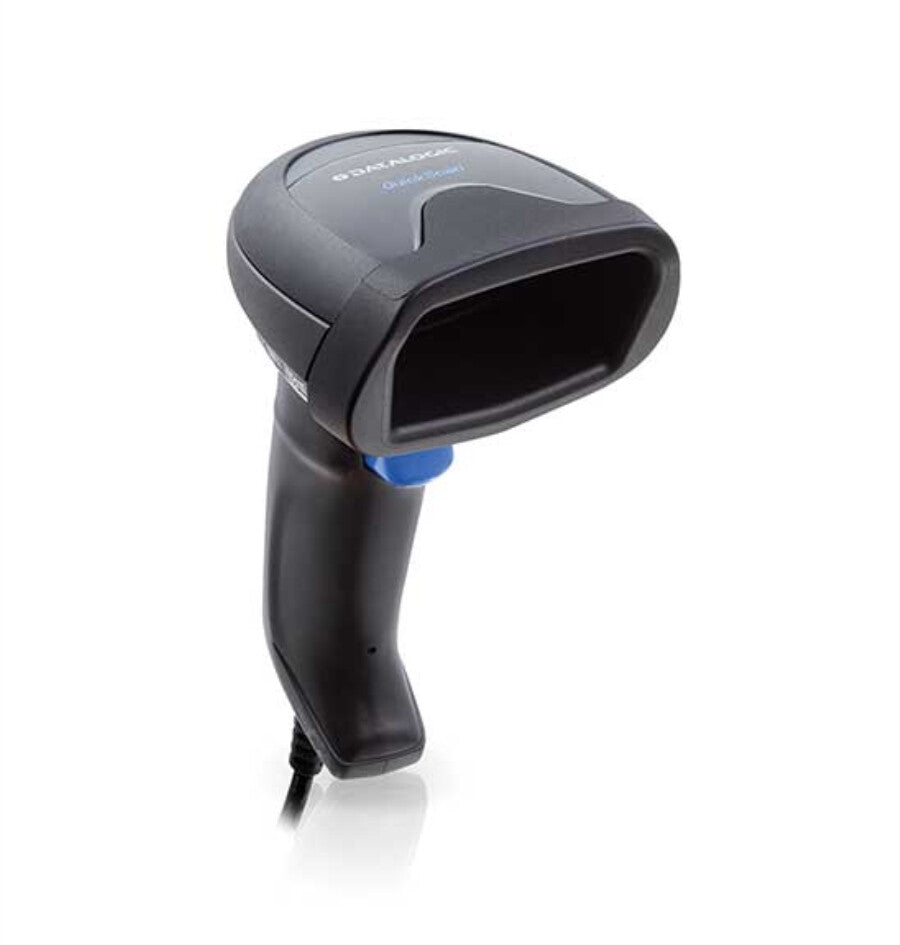

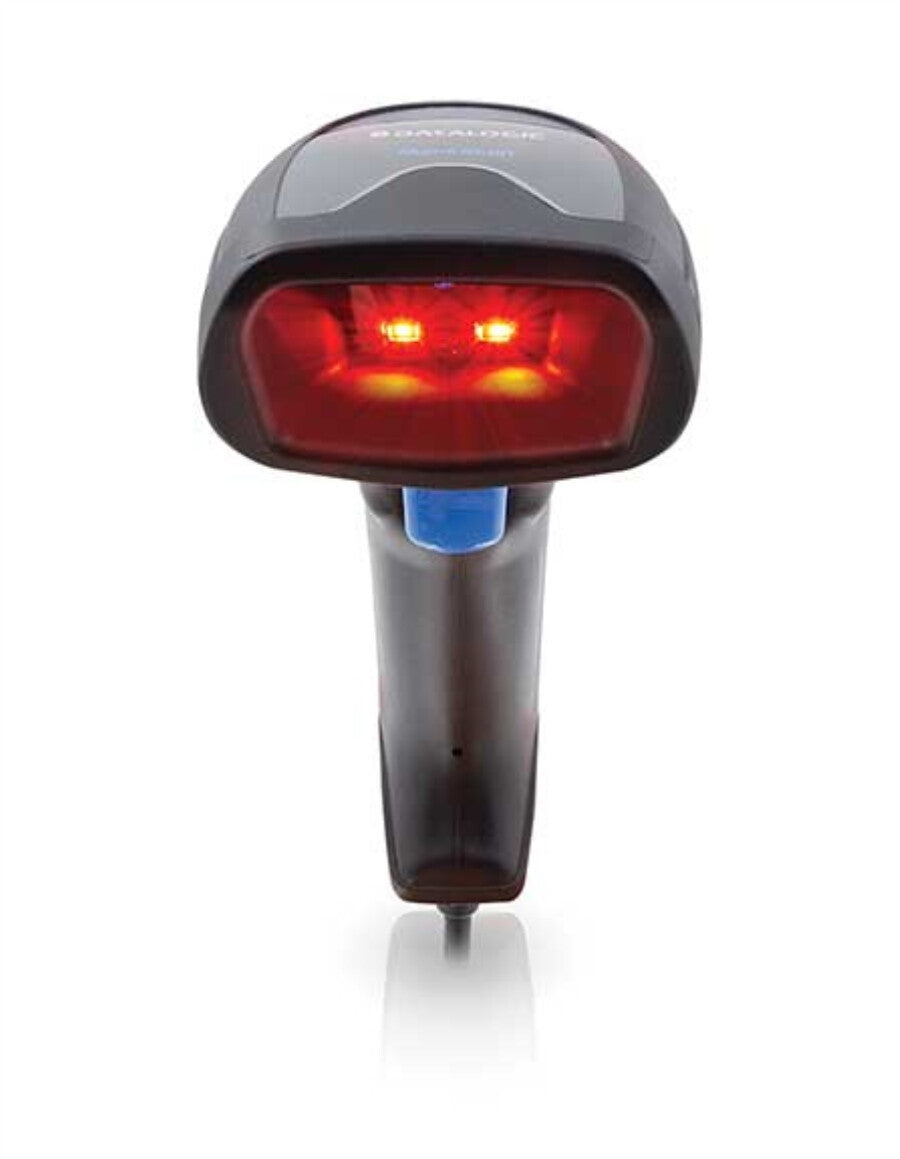

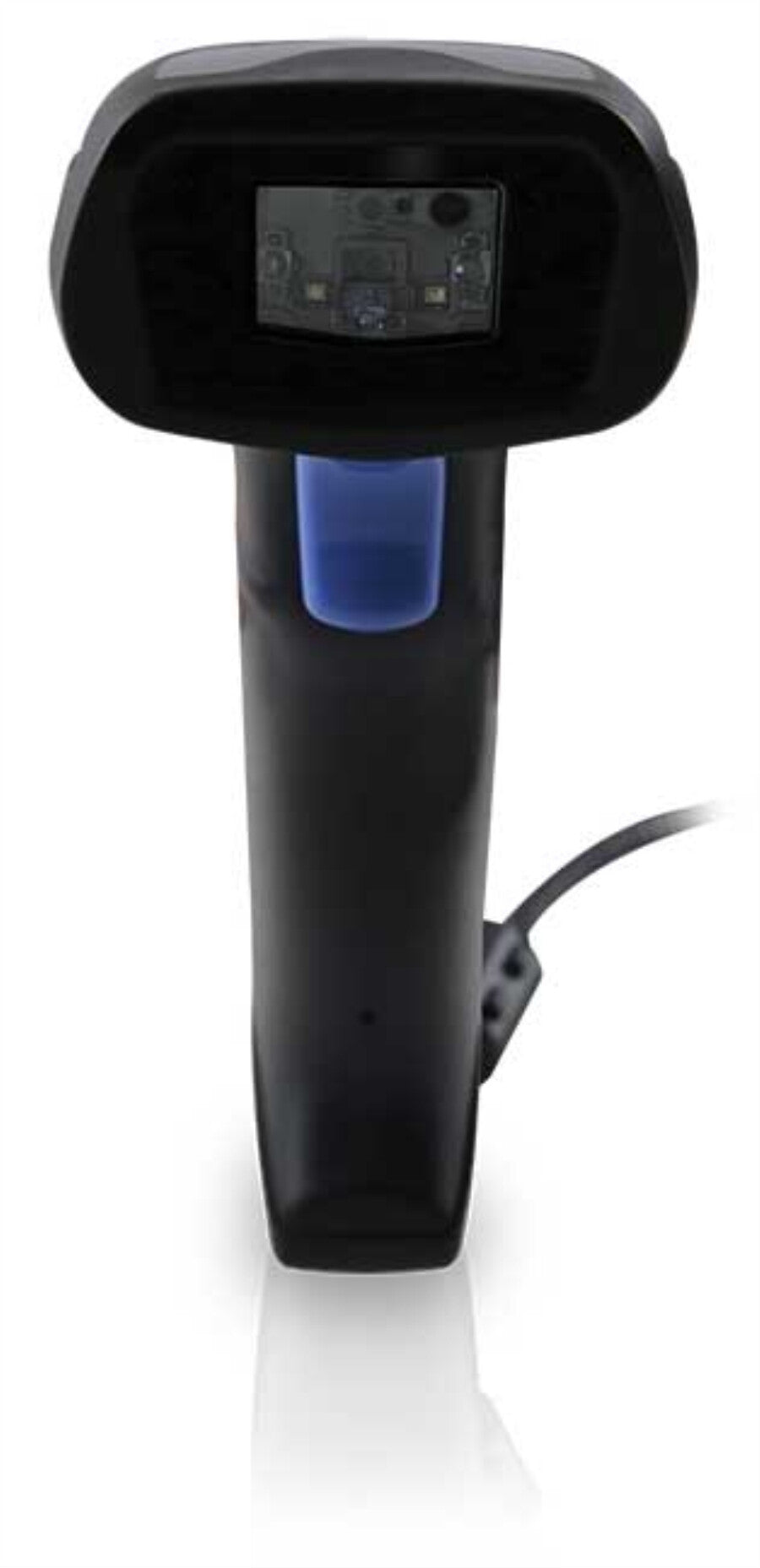

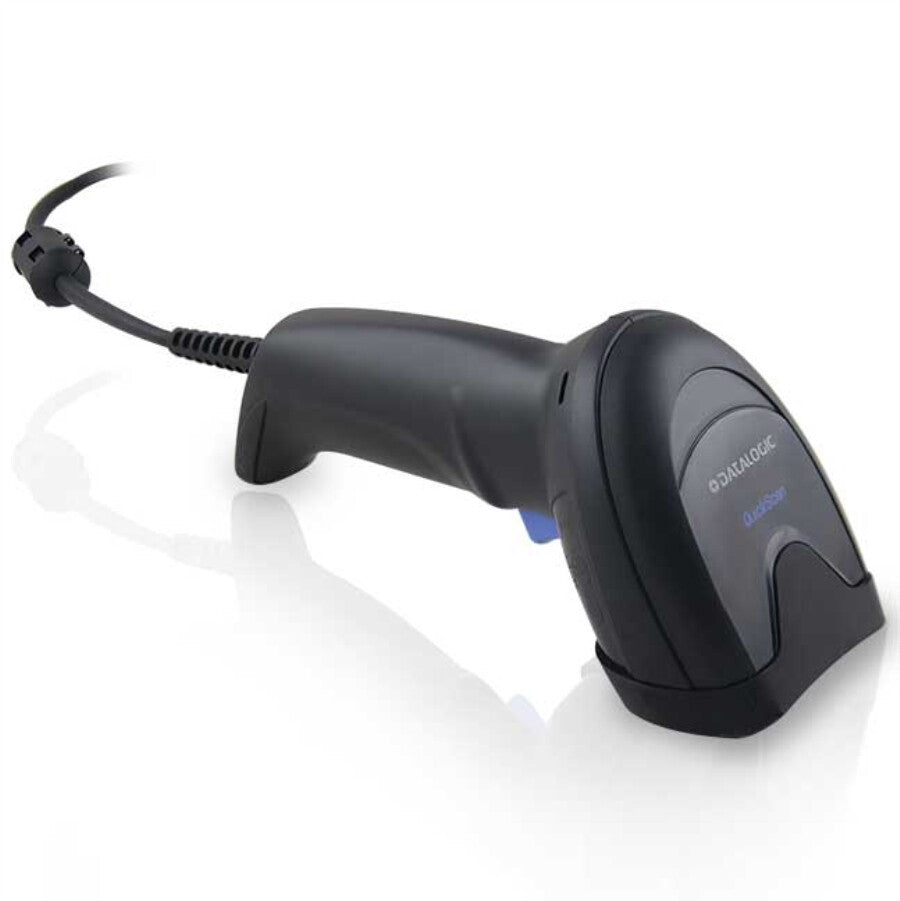

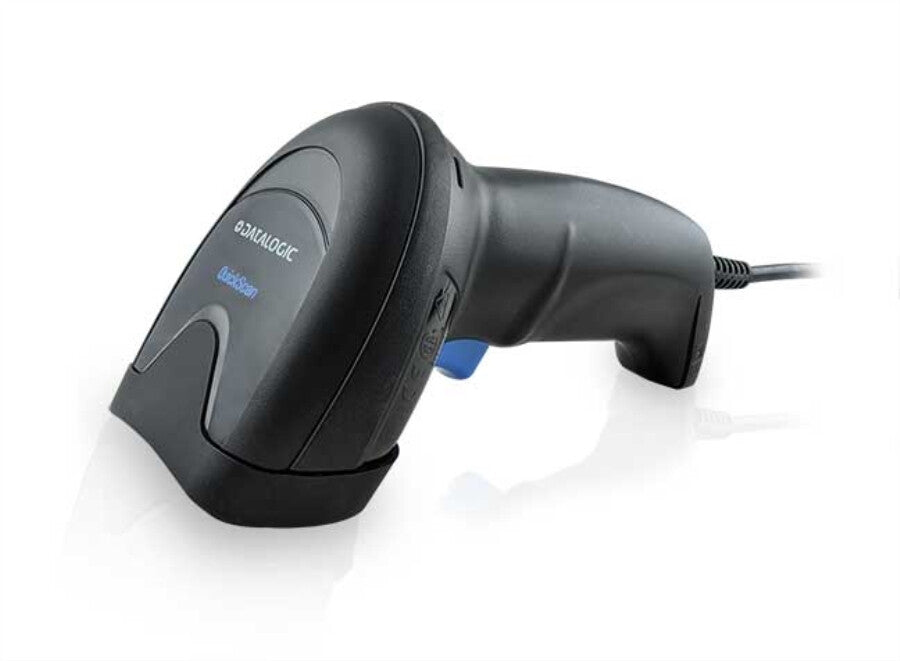

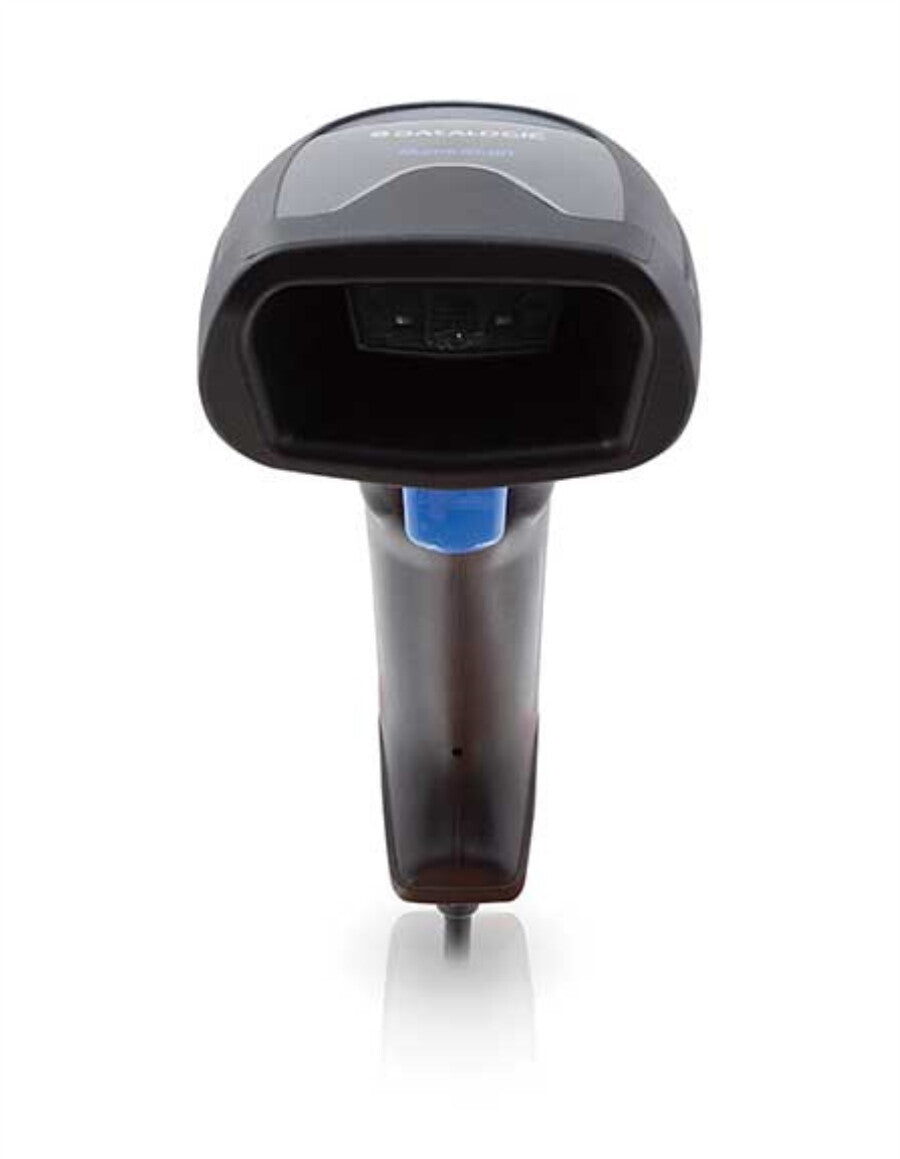

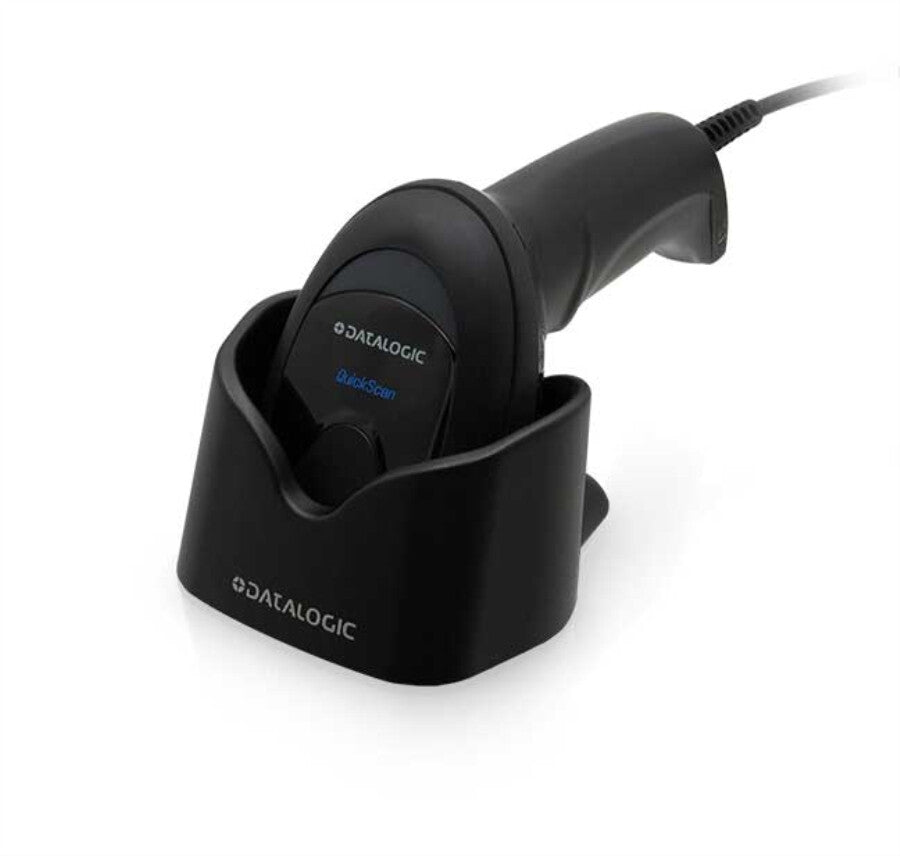

The QuickScan QW2500 is the simplest model within the 2500 Series. It comes in the same rugged, durable IP52 rated housing as the QD2500. The only moving part is the trigger, which will comfortably give you a class-leading 10 million hits. It offers consistent, reliable reading of all standard barcodes. For applications requiring high efficiency and fast throughput, the QW2500 represents one of the best value for money handheld scanners on the market today.
| Scanning |
|---|
| Yaw reading angle |
0 - 65° |
| Pitch reading angle |
0 - 65° |
| Tilt reading angle |
0 - 360° |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| Sensor type |
Laser |
| Linear (1D) barcodes supported |
GS1 DataBar |
| 2D (matrix & stacked) barcodes supported |
Han Xin, Aztec Code, Data Matrix, QR Code, Micro QR Code |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Standard interfaces |
Keyboard wedge, RS-232, USB |
| Connectivity technology |
Wired |
| Performance |
|---|
| Print contrast |
15% |
| Ambient lighting |
Yes |
| Image formats supported |
BMP, JPEG, TIFF |
| LED indicators |
Yes |
| Keys quantity |
1 keys |
| Protection features |
Shock resistant, Water resistant |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
|---|
| Input voltage |
5 V |
| Power source type |
DC, USB |
| Weight & dimensions |
|---|
| Weight |
145 g |
| Height |
126 mm |
| Depth |
68 mm |
| Width |
148 mm |
| Packaging data |
|---|
| Cables included |
USB |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
