SKU: DBT6420-BK-BTK1

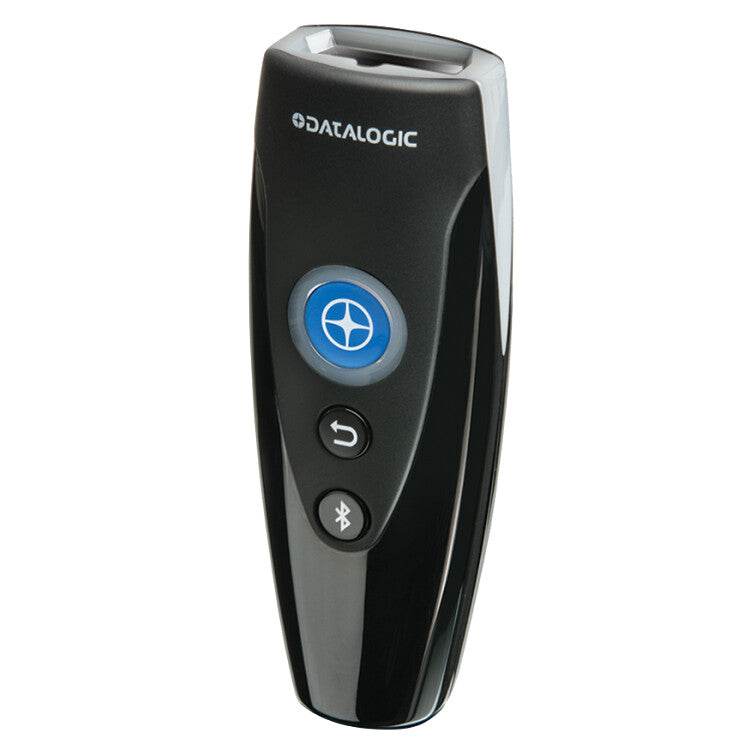

Datalogic RIDA DBT6400 Handheld bar code reader 1D/2D Black

Datalogic
£414.65
iFrame
  • Handheld bar code reader Black
  • Scanner type: 1D/2D
  • GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, RM4SCC / KIX, U.P.C. Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, Small Aztec Code
  • Tilt reading angle: -180 - 180°
  • Wired & Wireless Standard interfaces: Bluetooth, USB
  • Power source type: Battery Lithium-Ion (Li-Ion) 700 mAh

Datalogic’s RIDA DBT6400 cordless imager with Bluetooth wireless technology is the ideal workmate for connection with mobile devices. The imager is a small, ergonomic, perfectly hand-fitted wireless device with a modern and elegant design.

The RIDA DBT6400 imager pairs easily with Android, Apple iOS and Windows Mobile devices as well as standard laptops equipped with Bluetooth wireless technology. This imager reads 1D and 2D bar codes, damaged or poorly printed codes and bar codes on mobile phone screens. Its main features include image capture capability, white illumination and the most efficient aiming system in the market place.

Scanning
Yaw reading angle -60 - 60°
Pitch reading angle -65 - 65°
Tilt reading angle -180 - 180°
Wavelength 650 nm
Linear (1D) barcodes supported GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, RM4SCC / KIX, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, Small Aztec Code
Scanner type 1D/2D
Type Handheld bar code reader
Ports & interfaces
Operating frequency 2400 MHz
Bluetooth version 4.0
Wireless range 25 m
Standard interfaces Bluetooth, USB
Connectivity technology Wired & Wireless
Performance
LED indicators Yes
Protection features Shock resistant
International Protection (IP) code IP50
Product colour Black
Power
Charging time 2.5 h
Battery life 5 h
Number of reads per charge 3000
Battery voltage 5 V
Battery capacity 700 mAh
Battery technology Lithium-Ion (Li-Ion)
Power source type Battery
Weight & dimensions
Weight 85 g
Height 27.5 mm
Depth 42.3 mm
Width 112.5 mm
Packaging data
Cables included USB
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
