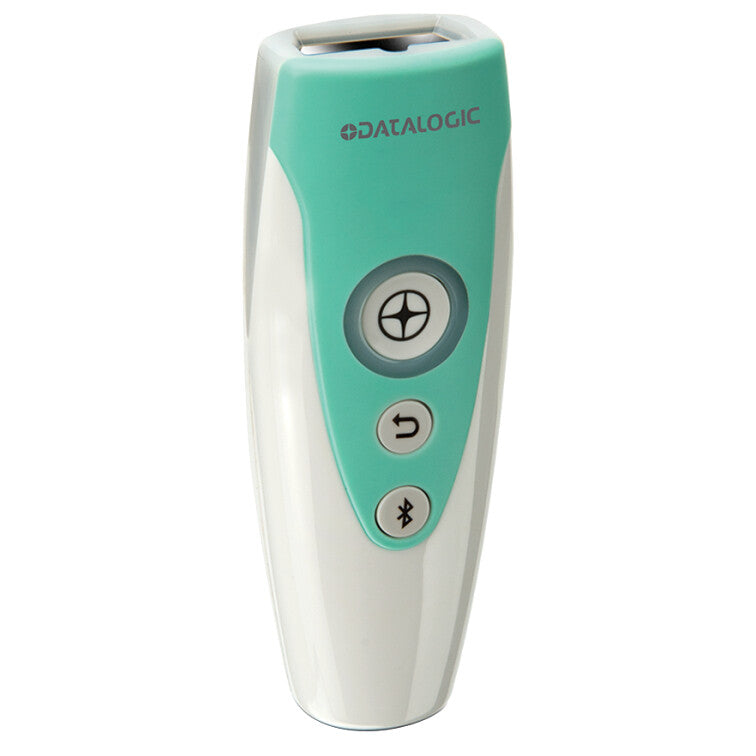

Datalogic’s RIDA DBT6400 cordless area imager with Bluetooth wireless technology is the ideal workmate for connection with mobile devices. The imager is a small, ergonomic, perfectly hand-fitted wireless device with a modern and elegant design.
The RIDA DBT6400 imager pairs easily with Android, Apple iOS and Windows Mobile devices as well as standard laptops equipped with Bluetooth wireless technology. This imager reads 1D and 2D bar codes, damaged or poorly printed codes and bar codes on reflective screens. Its main features include image capture capability, white illumination and the most efficient aiming system in the market place.
The RIDA DBT6400 imager is is equipped with disinfectant ready and antimicrobial enclosures which makes it ideal for bedside point-of-care applications. The compact size and light weight form factor of this mobile imager offers freedom of movement while scanning, with the added benefit of preventing cross-contamination in the hospital.
| Scanning |
|---|
| Yaw reading angle |
-60 - 60° |
| Pitch reading angle |
-65 - 65° |
| Tilt reading angle |
-180 - 180° |
| Wavelength |
650 nm |
| Linear (1D) barcodes supported |
GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, RM4SCC / KIX, U.P.C. |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Operating frequency |
2400 MHz |
| Bluetooth version |
4.0 |
| Wireless range |
25 m |
| Standard interfaces |
Bluetooth, USB |
| Connectivity technology |
Wired & Wireless |
| Performance |
|---|
| LED indicators |
Yes |
| Protection features |
Shock resistant |
| International Protection (IP) code |
IP50 |
| Product colour |
Green, White |
| Power |
|---|
| Charging time |
2.5 h |
| Battery life |
5 h |
| Number of reads per charge |
3000 |
| Battery voltage |
5 V |
| Battery capacity |
700 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
|---|
| Weight |
85 g |
| Height |
27.5 mm |
| Depth |
42.3 mm |
| Width |
112.5 mm |
| Packaging data |
|---|
| Cables included |
USB |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
