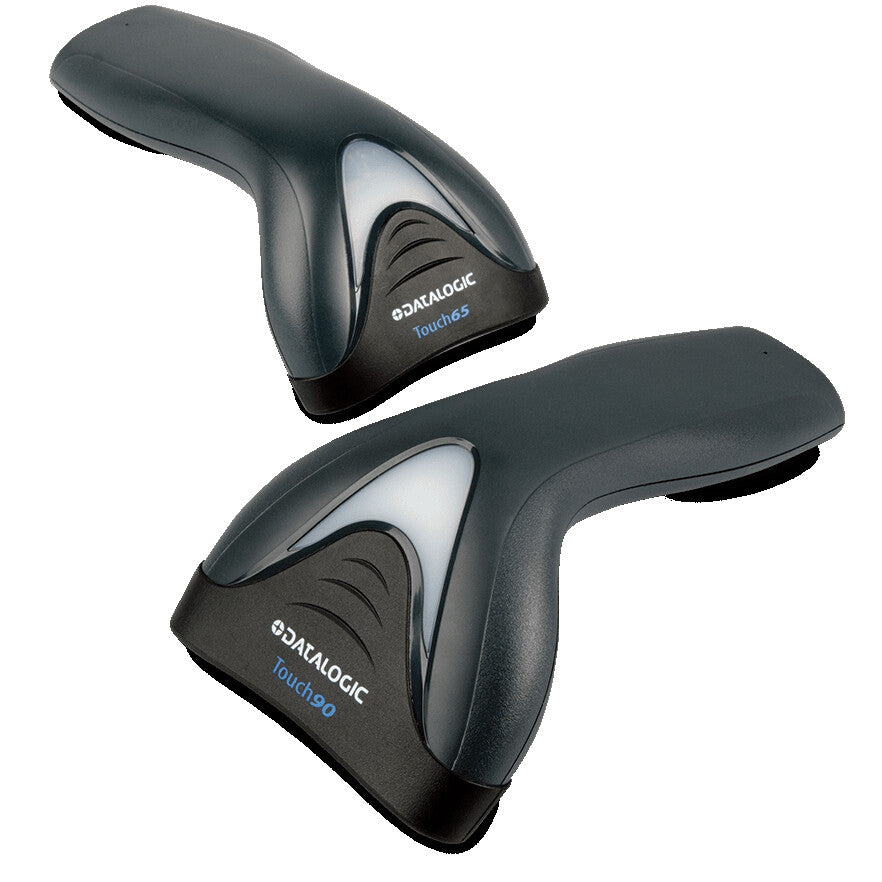

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.
| Scanning |
|---|
| Tilt angle range |
-45 - 45° |
| Yaw reading angle |
-70 - 70° |
| Pitch reading angle |
-65 - 65° |
| Tilt reading angle |
-45 - 45° |
| Wavelength |
640 nm |
| Working distance |
15 cm |
| Ports & interfaces |
|---|
| Standard interfaces |
USB |
| Performance |
|---|
| Certification |
RoHS |
| Buzzer |
Yes |
| International Protection (IP) code |
IP30 |
| Product colour |
Black |
| Power |
|---|
| Power consumption |
100 mA |
| Input voltage |
5 V |
| Weight & dimensions |
|---|
| Weight |
153 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
| Other features |
|---|
| Dimensions (WxDxH) |
104 x 67 x 170 mm |
