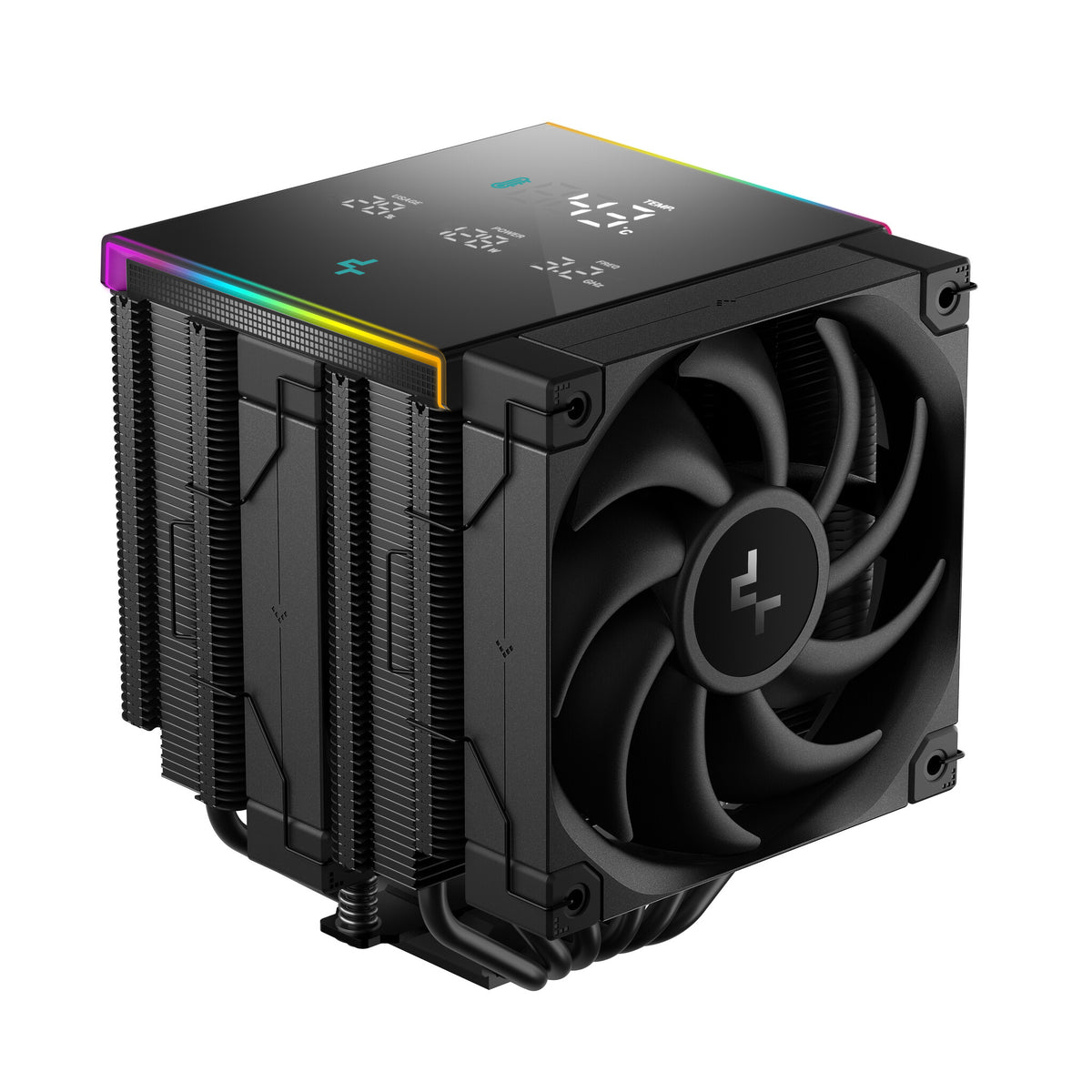

AK620 DIGITAL PRO
The AK DIGITAL air coolers have gone pro with their newest iteration. The AK620 DIGITAL PRO has been upgraded in many aspects, including a multi-data point screen, visual color temperature warnings, and CTT 2.0 heatpipe technology. A very worthy step up in not just aesthetics but cooling performance.
AK620 DIGITAL PRO
DIGITAL COOLERS GO PRO

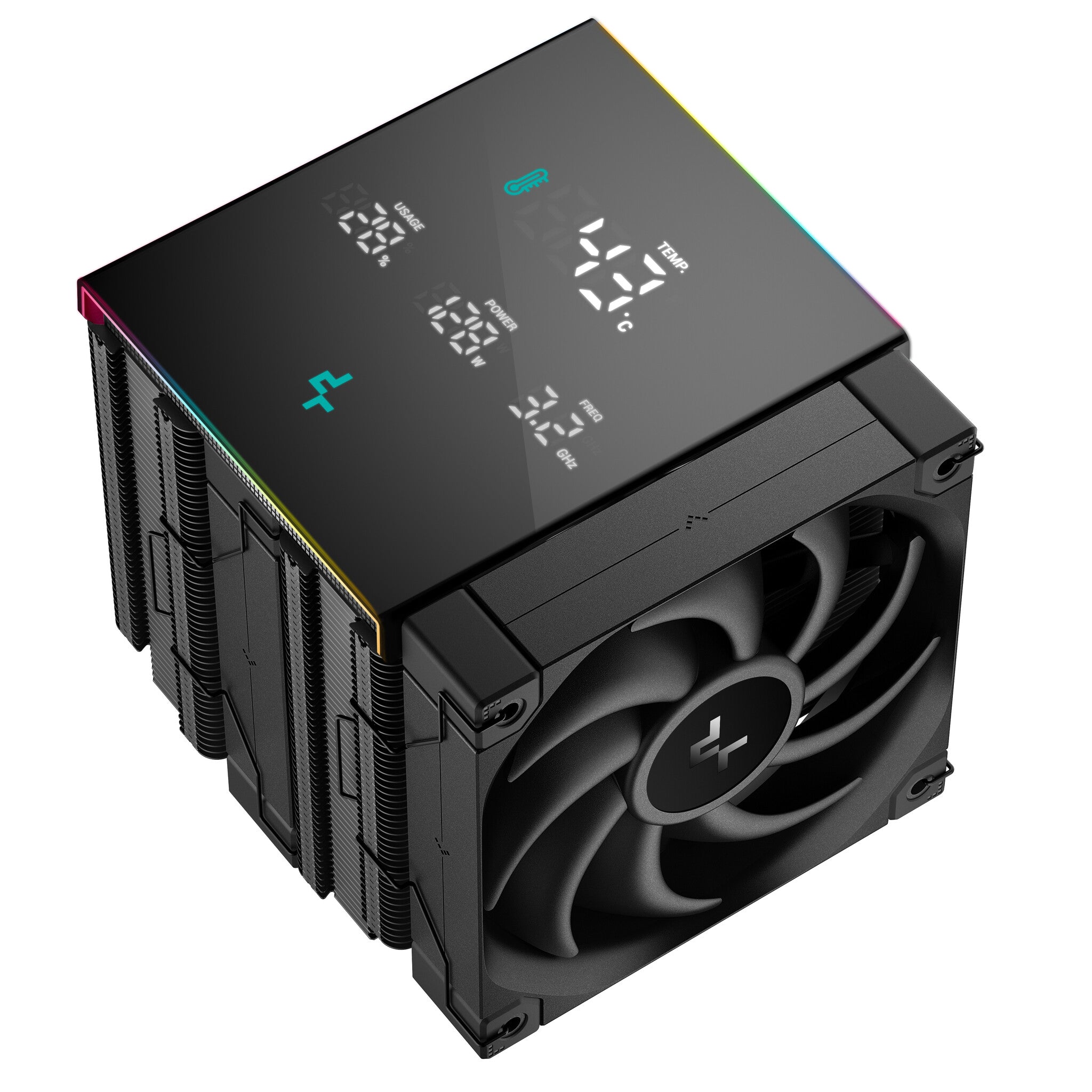

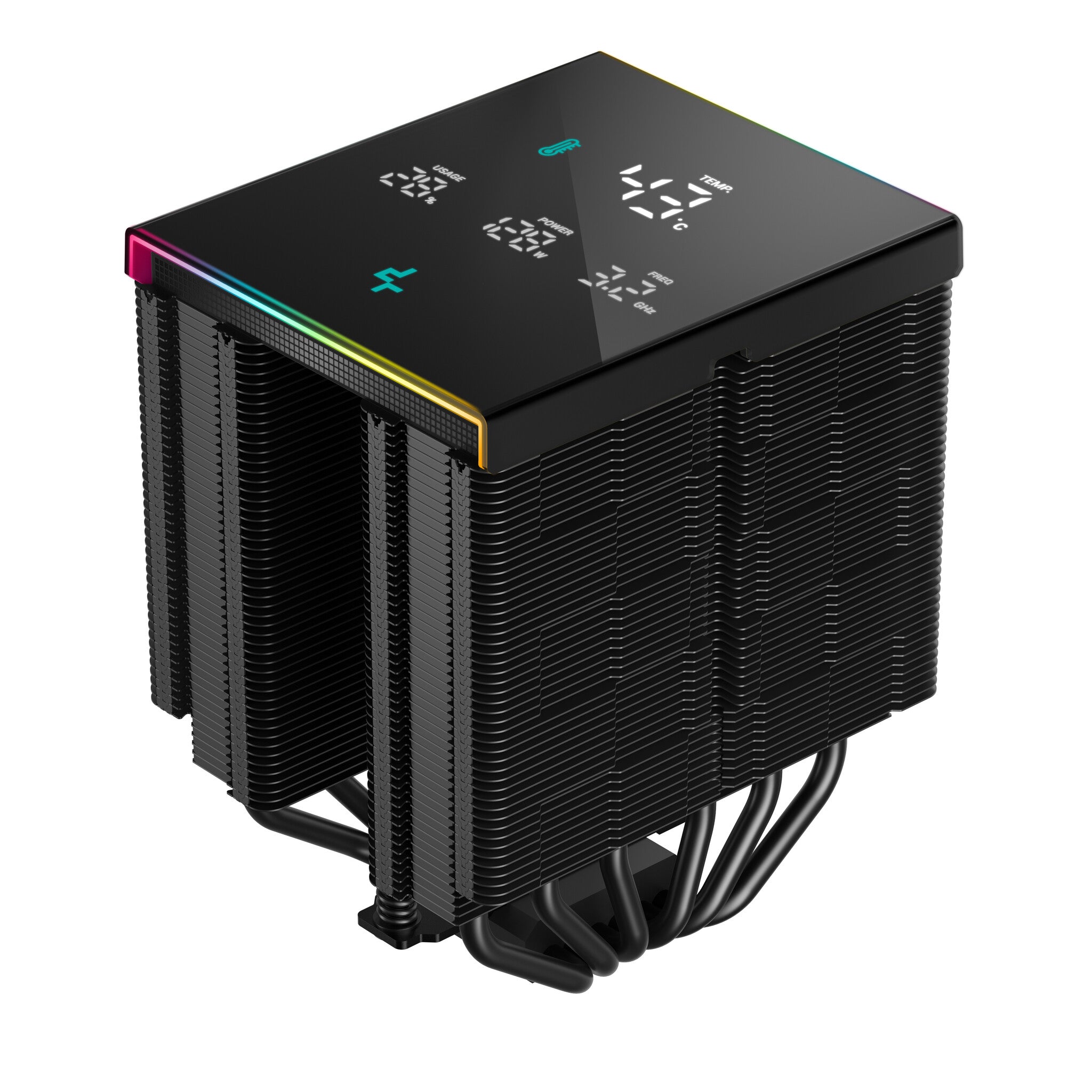

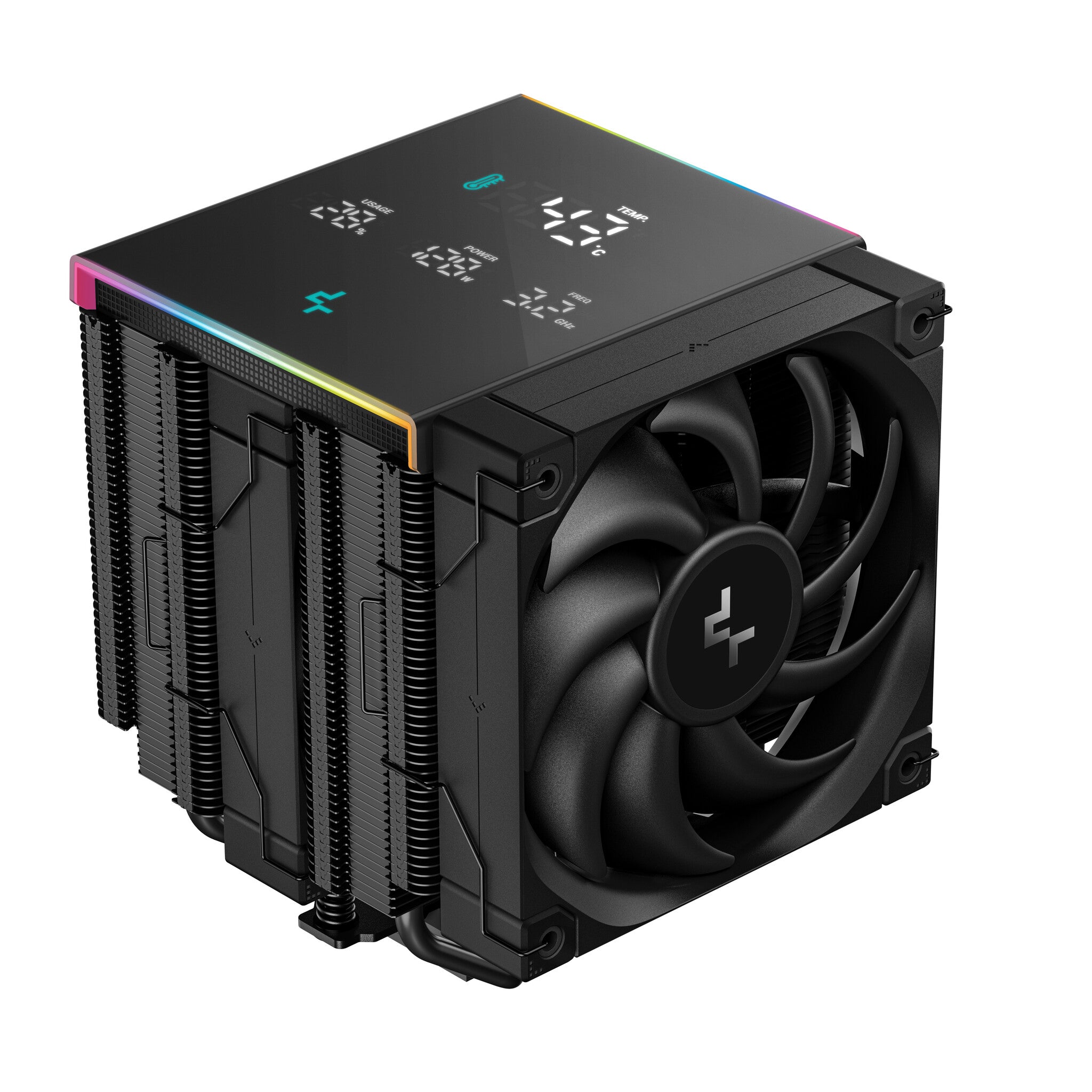

ENHANCED CPU STATUS SCREEN
The sleek and shiny screen of the AK620 DIGITAL PRO has been enhanced to show more than just the temperature; usage, wattage, and frequency have been added and are displayed at the same time. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
VISUAL TEMPERATURE ALERTS
The temperature warning alert system has also been upgraded to have a color-coded visual indicator: under 80 °C, the indicator will stay green; between 80 and 90°C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.

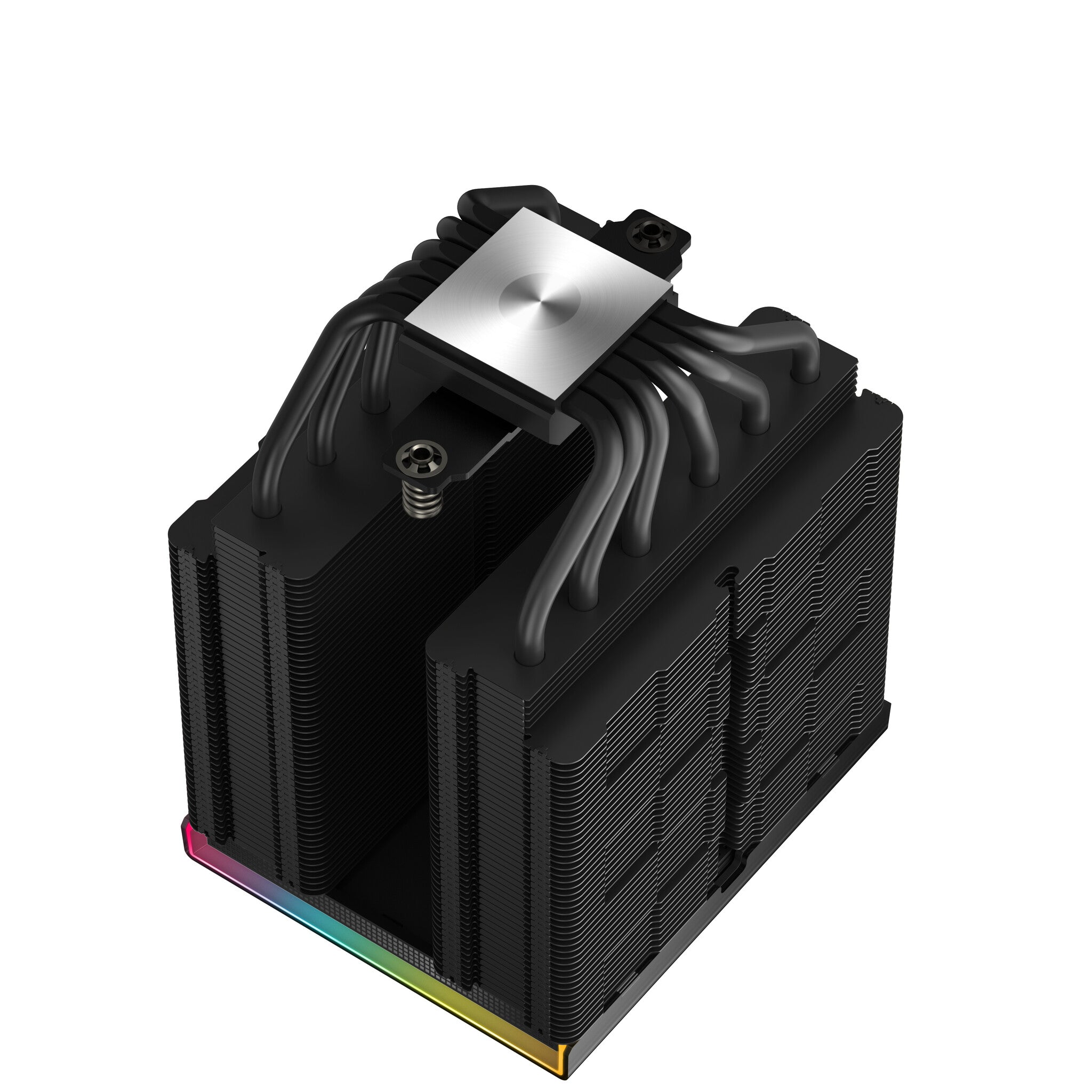

OPTIMIZED COOLING
An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.

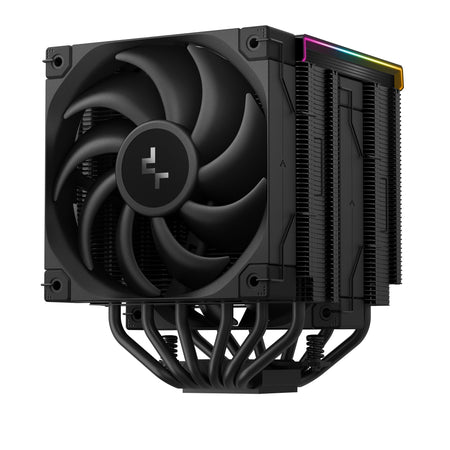

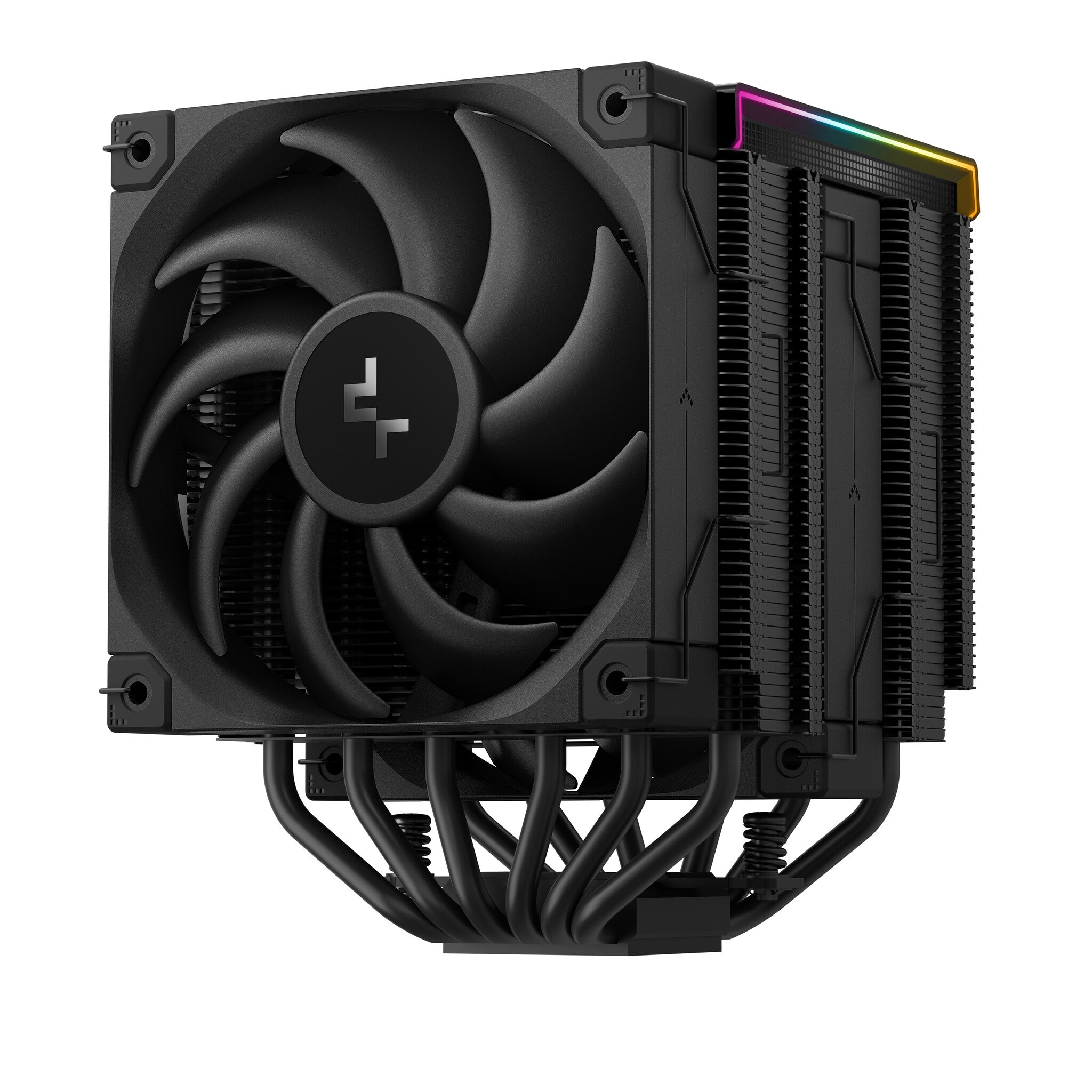

PROVEN AK ZERO DARK DESIGN

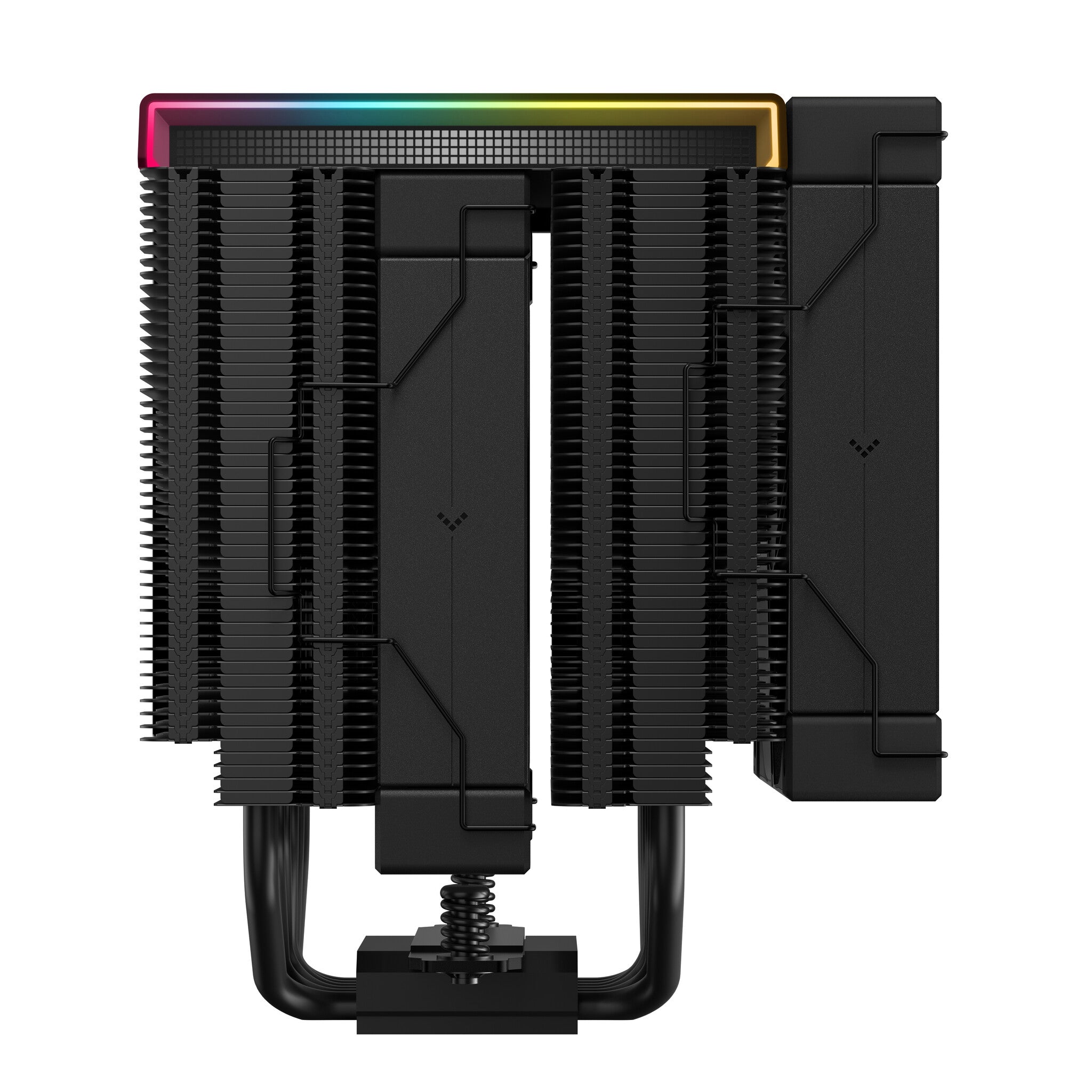

An all-black variation of the dominant AK620 high-performance CPU cooler. The same premium-quality materials, featuring six advanced copper heat pipes, a dense matrix pattern dual-tower heat sink, and two silent FDB fans, produce a powerful winning formula for high performance cooling in a ZERO DARK raven design.

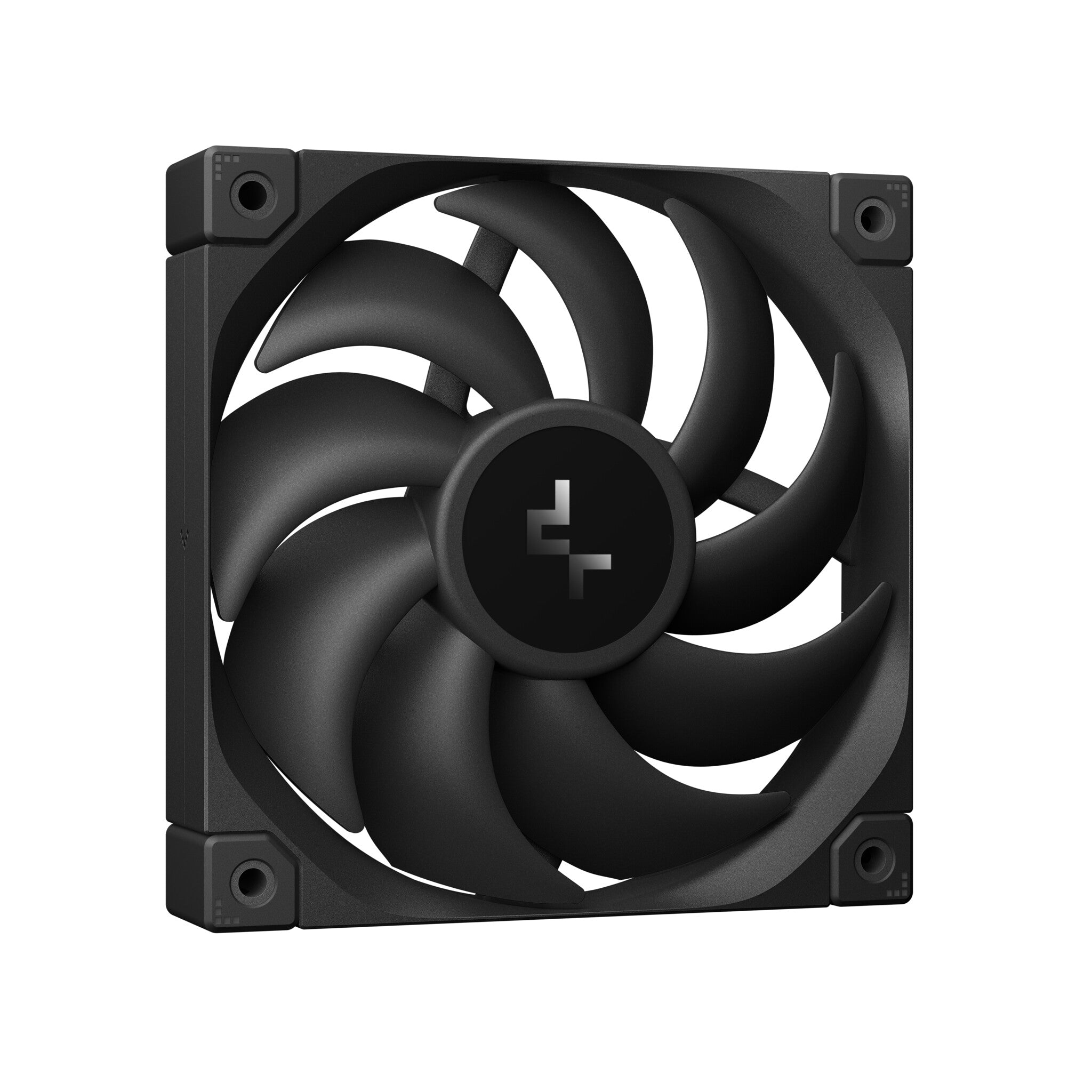

KEEP YOUR COOL

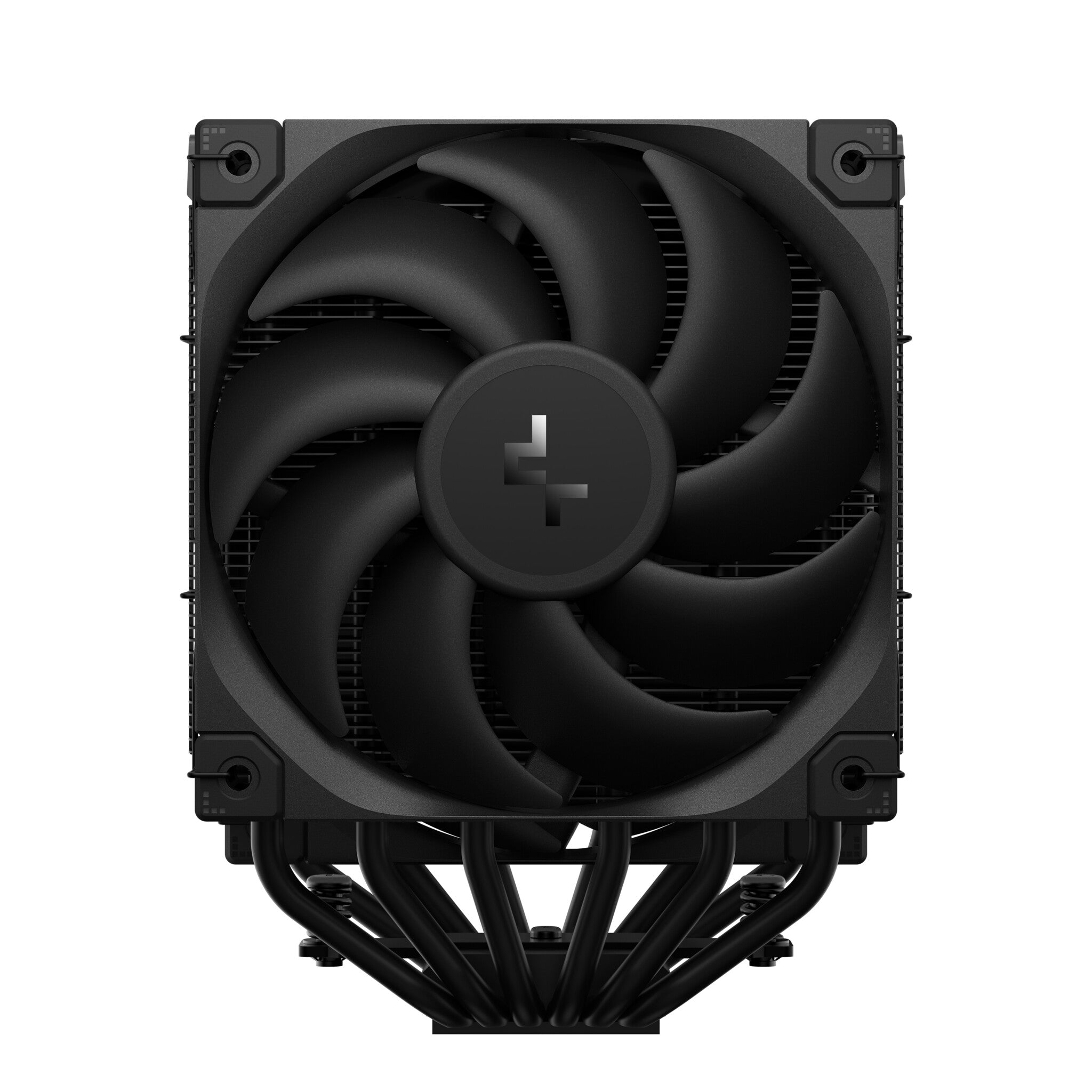

Upgraded to the newly designed FT12 SE fans with a true fluid dynamic bearing, the AK PRO models will get a PWM fan with a blade profile that has been optimized for the perfect balance of airflow and static pressure while minimizing the fan acoustics.
SIMPLIFIED MOUNTING
The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
| Design |
|---|
| Fan connector |
4-pin |
| Illumination colour |
Multi |
| LED connector type |
3-pin |
| Illumination LED |
Yes |
| Number of heat pipes |
6 |
| Number of fan blades |
9 |
| Number of fans |
2 fan(s) |
| Radiator material |
Aluminum |
| Product colour |
Black |
| Power |
|---|
| LED voltage |
5 V |
| LED power consumption (fan) |
5.55 W |
| Fan current |
0.25 A |
| Fan voltage |
12 V |
| Fan power consumption |
3 W |
| Weight & dimensions |
|---|
| Heat pipes diameter |
6 mm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Weight |
1.49 kg |
| Height |
163 mm |
| Depth |
129 mm |
| Radiator height |
15.4 cm |
| Radiator depth |
12.7 cm |
| Radiator width |
11 cm |
| Width |
138 mm |

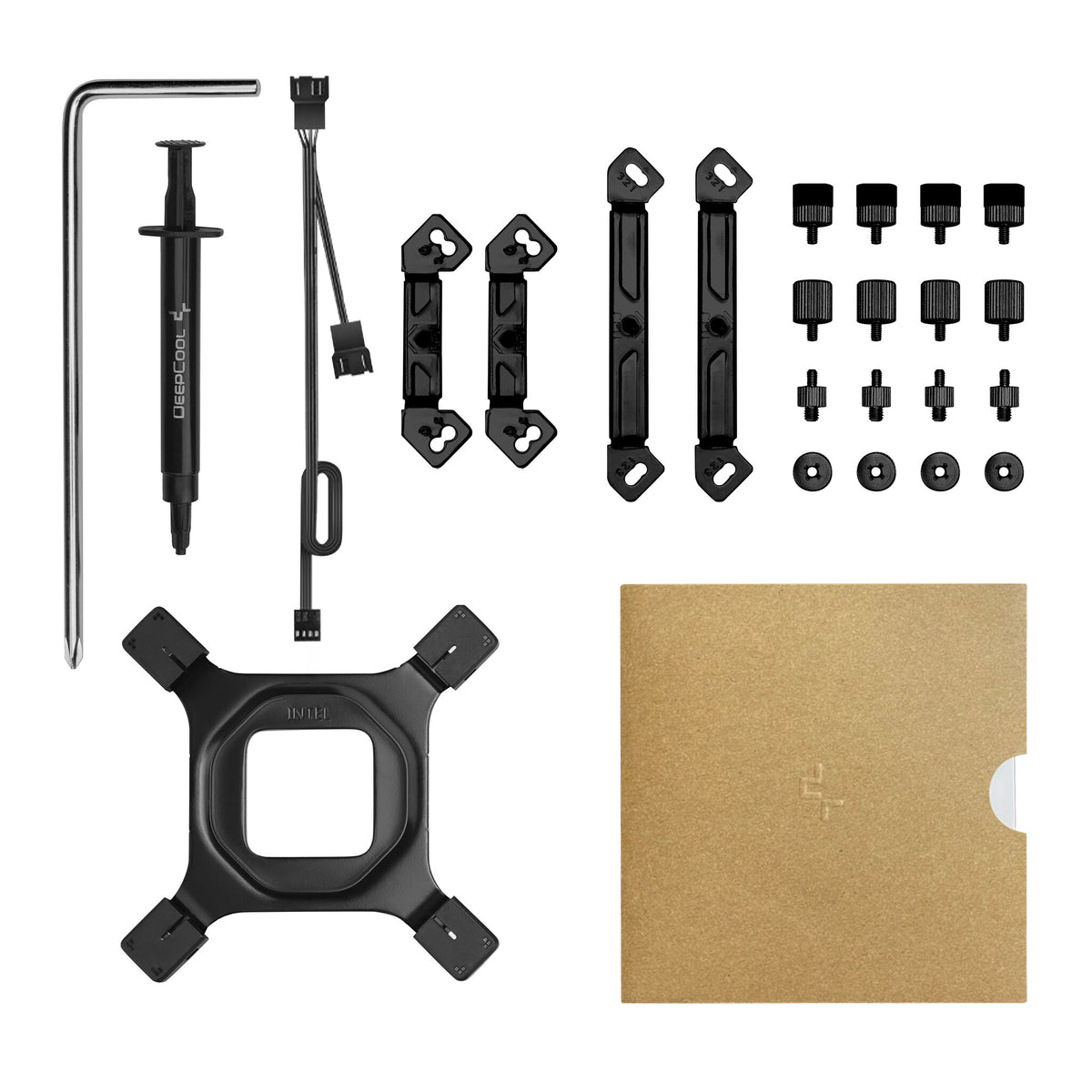

| Packaging content |
|---|
| CPU bracket(s) |
Yes |
| Screws included |
Yes |
| Mounting kit |
Yes |
| Package type |
Box |
