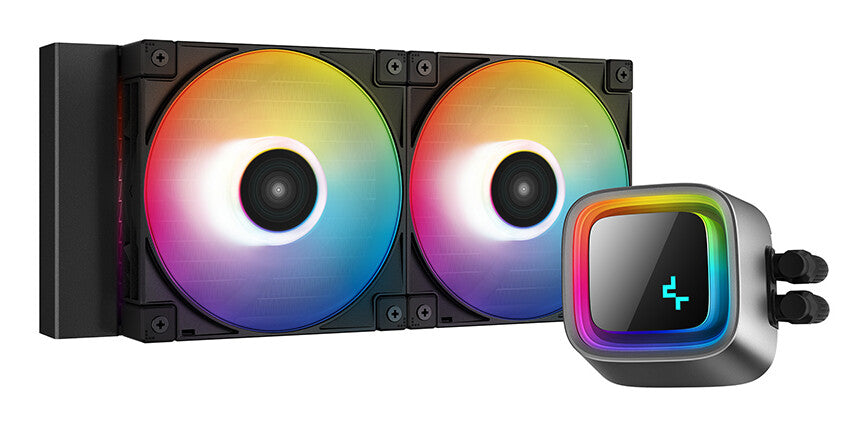

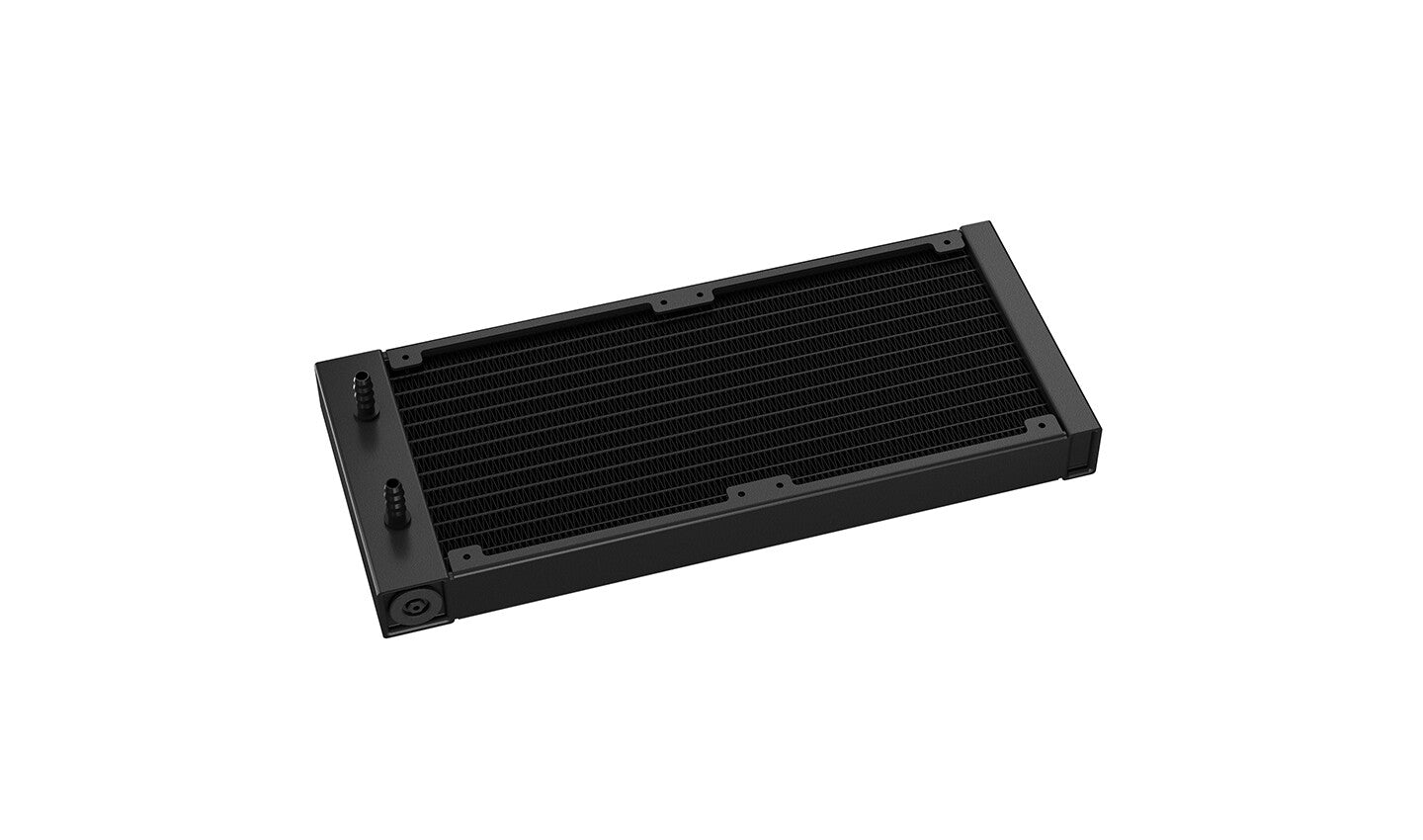

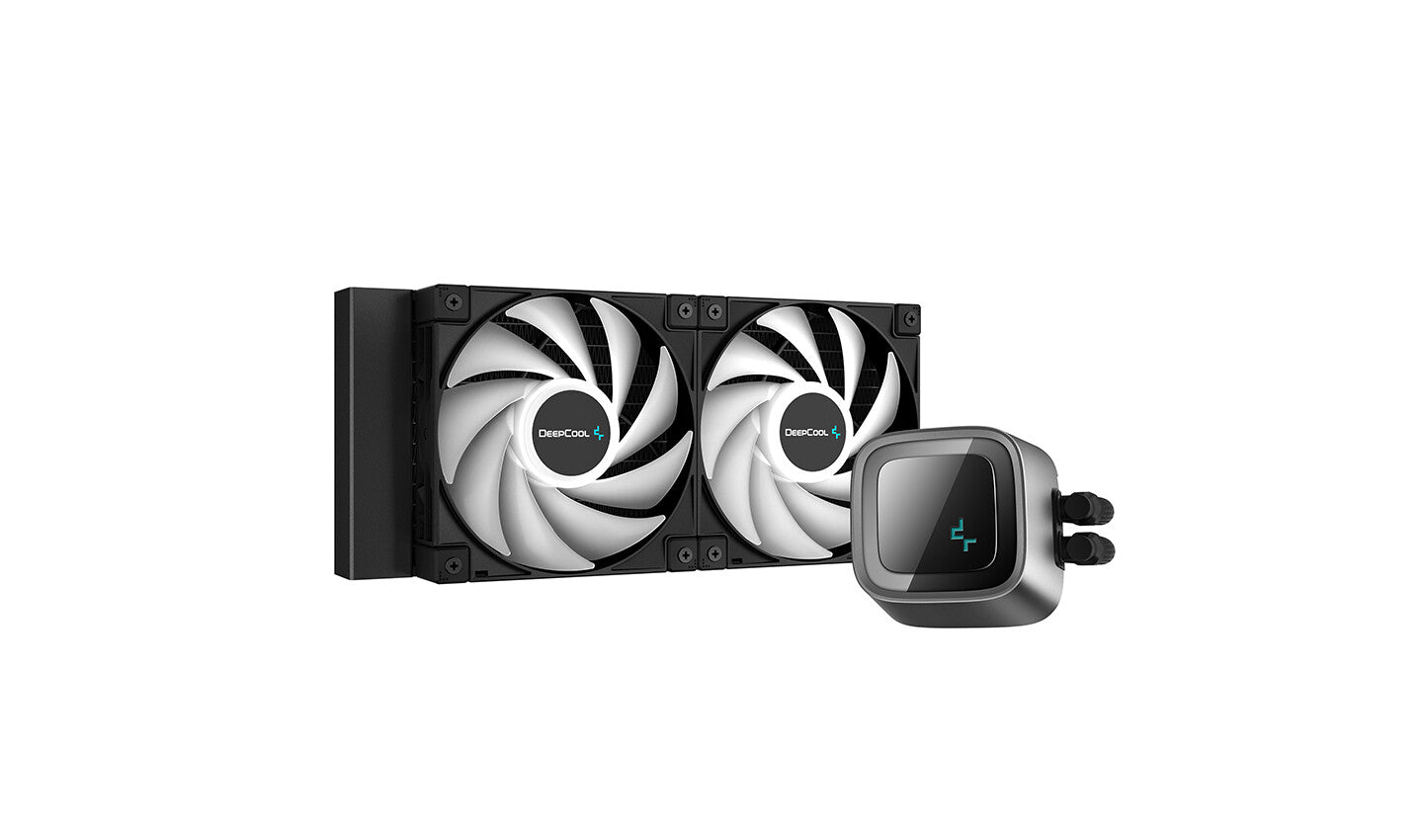

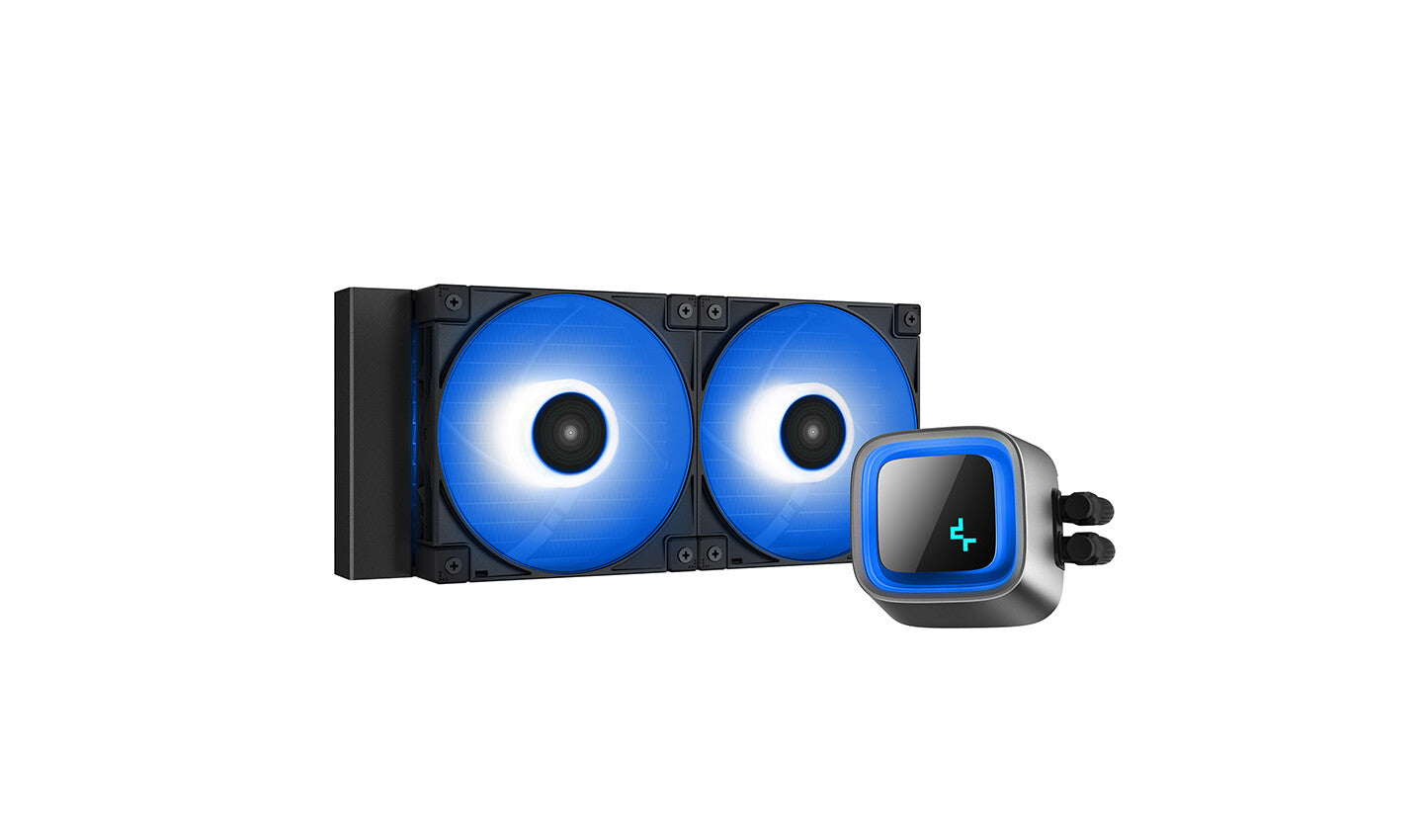

The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.

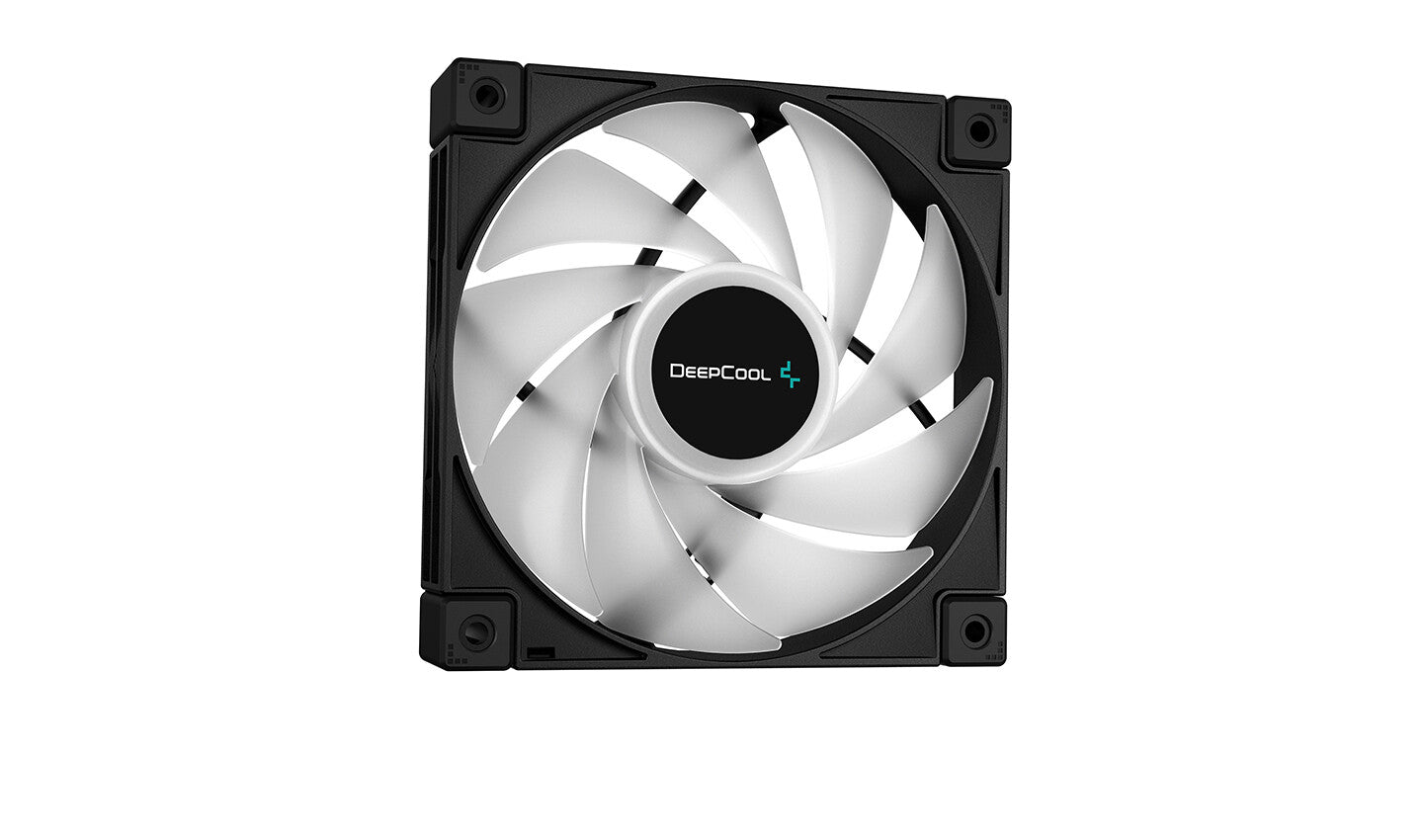

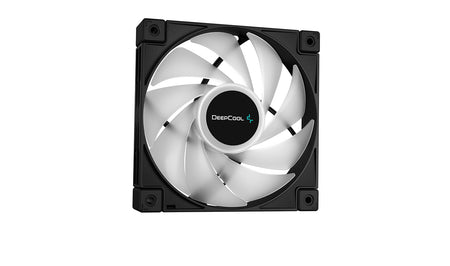

Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.

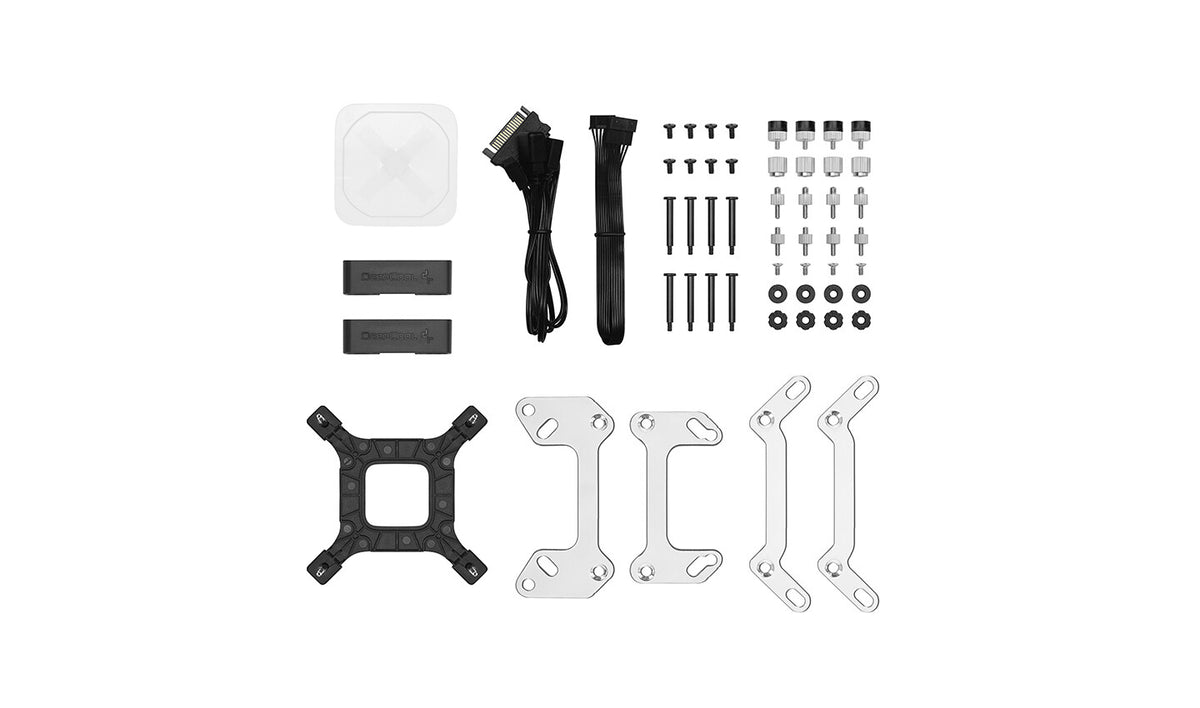

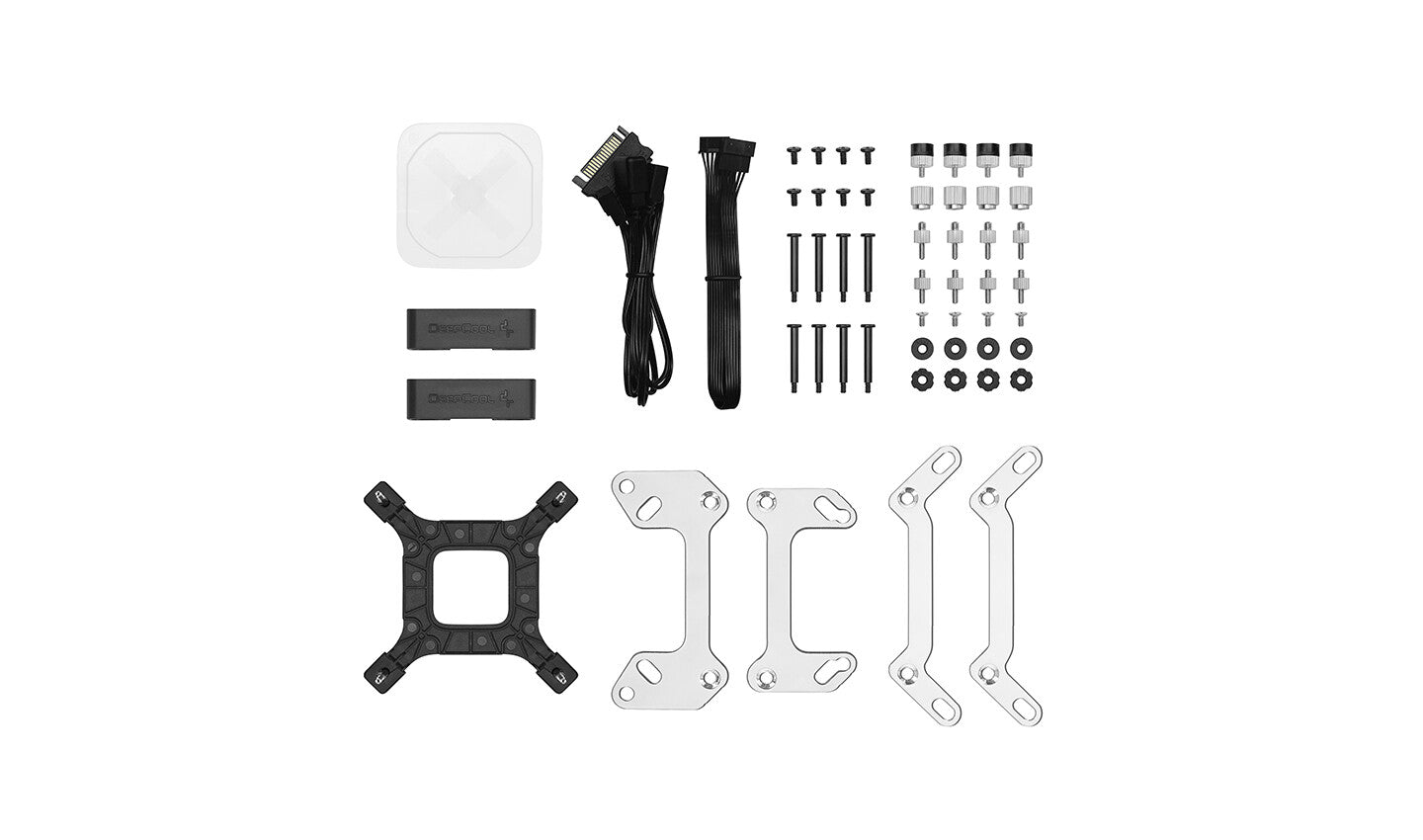

Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.

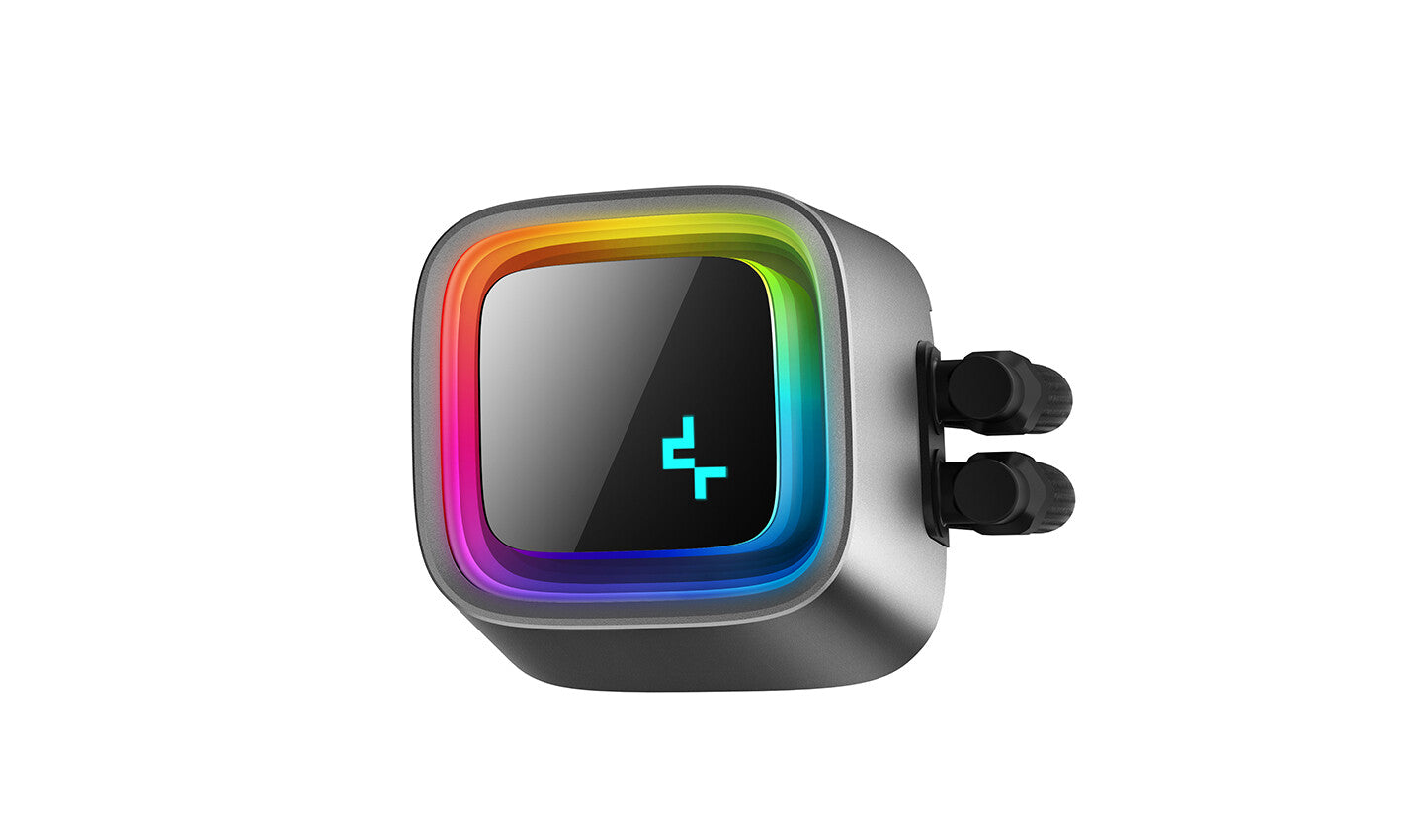

The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
| Design |
|---|
| Fan connector |
4-pin |
| Illumination colour |
Multi |
| LED connector type |
3-pin |
| Illumination LED |
Yes |
| Number of fans |
2 fan(s) |
| Radiator material |
Aluminum |
| Product colour |
Black |
| Power |
|---|
| LED voltage |
5 V |
| LED power consumption (pump) |
2.2 W |
| LED power consumption (fan) |
3.6 W |
| Pump voltage |
12 V |
| Fan current |
0.29 A |
| Pump current |
470 mA |
| Fan voltage |
12 V |
| Pump power consumption |
5.64 W |
| Fan power consumption |
3.48 W |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Weight |
1.3 kg |
| Pump height |
5.7 cm |
| Pump depth |
7.4 cm |
| Pump width |
8.6 cm |
| Tube length |
41 cm |
| Radiator height |
2.7 cm |
| Radiator depth |
28.2 cm |
| Radiator width |
12 cm |
| Other features |
|---|
| Country of origin |
China |
