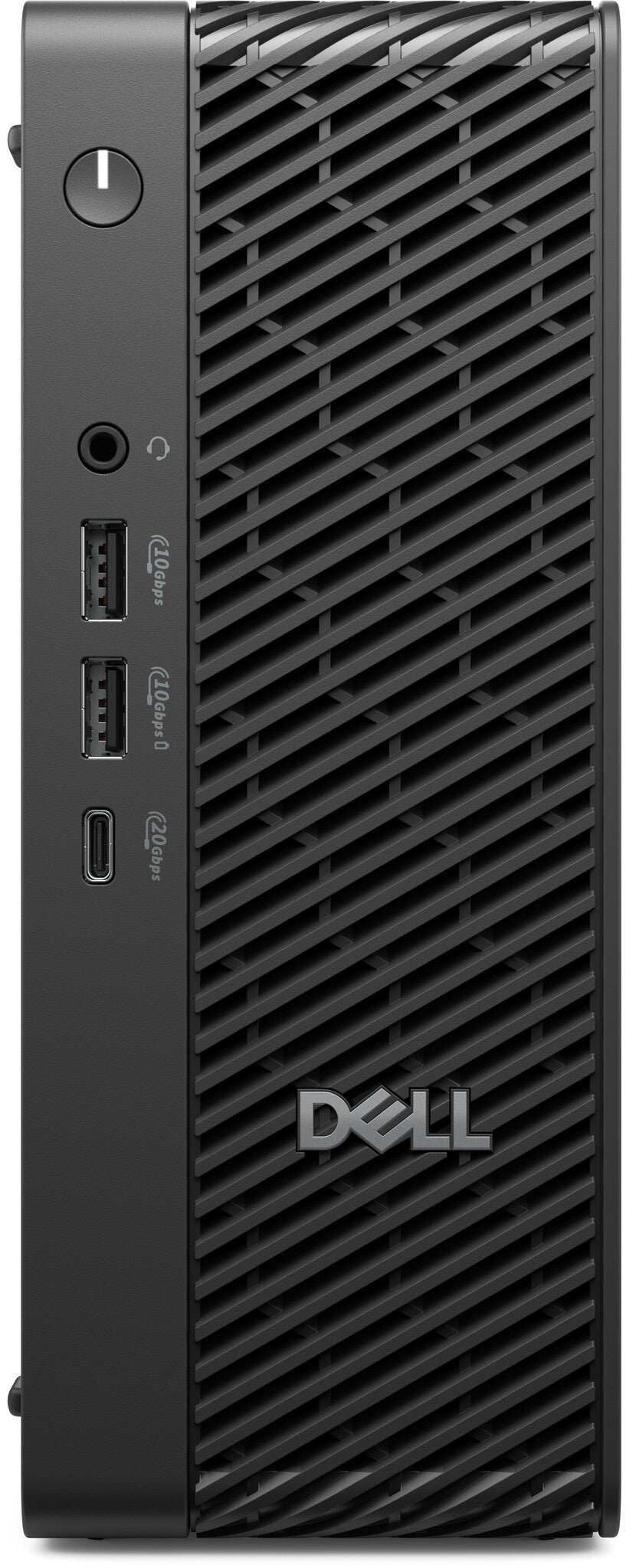

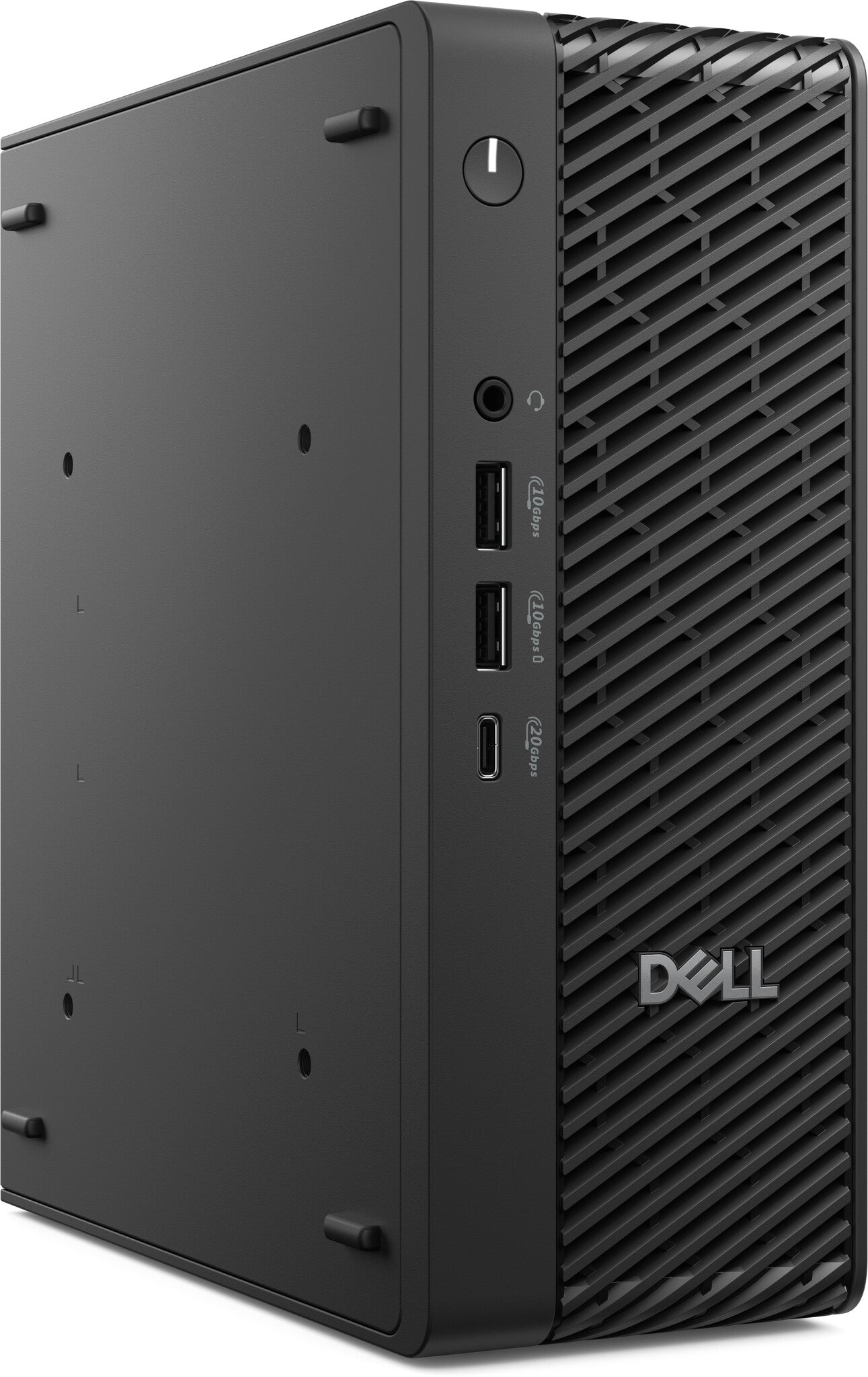

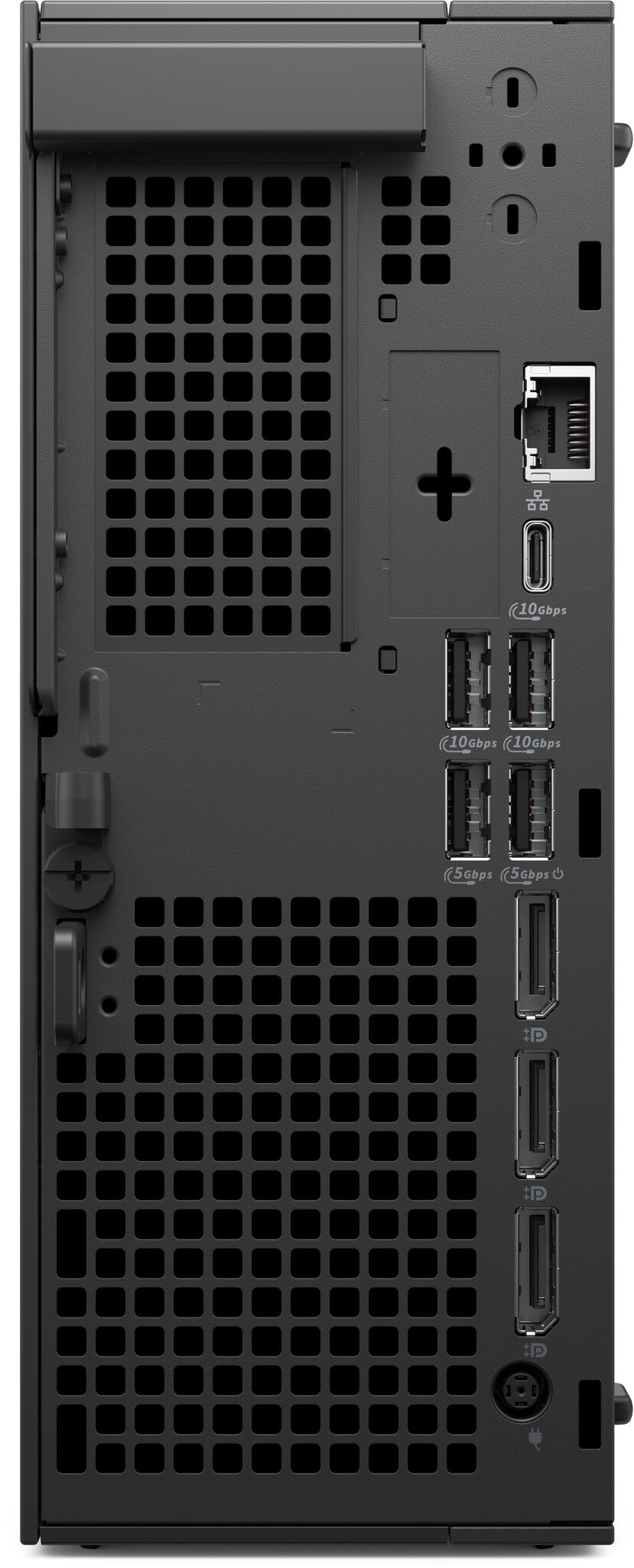

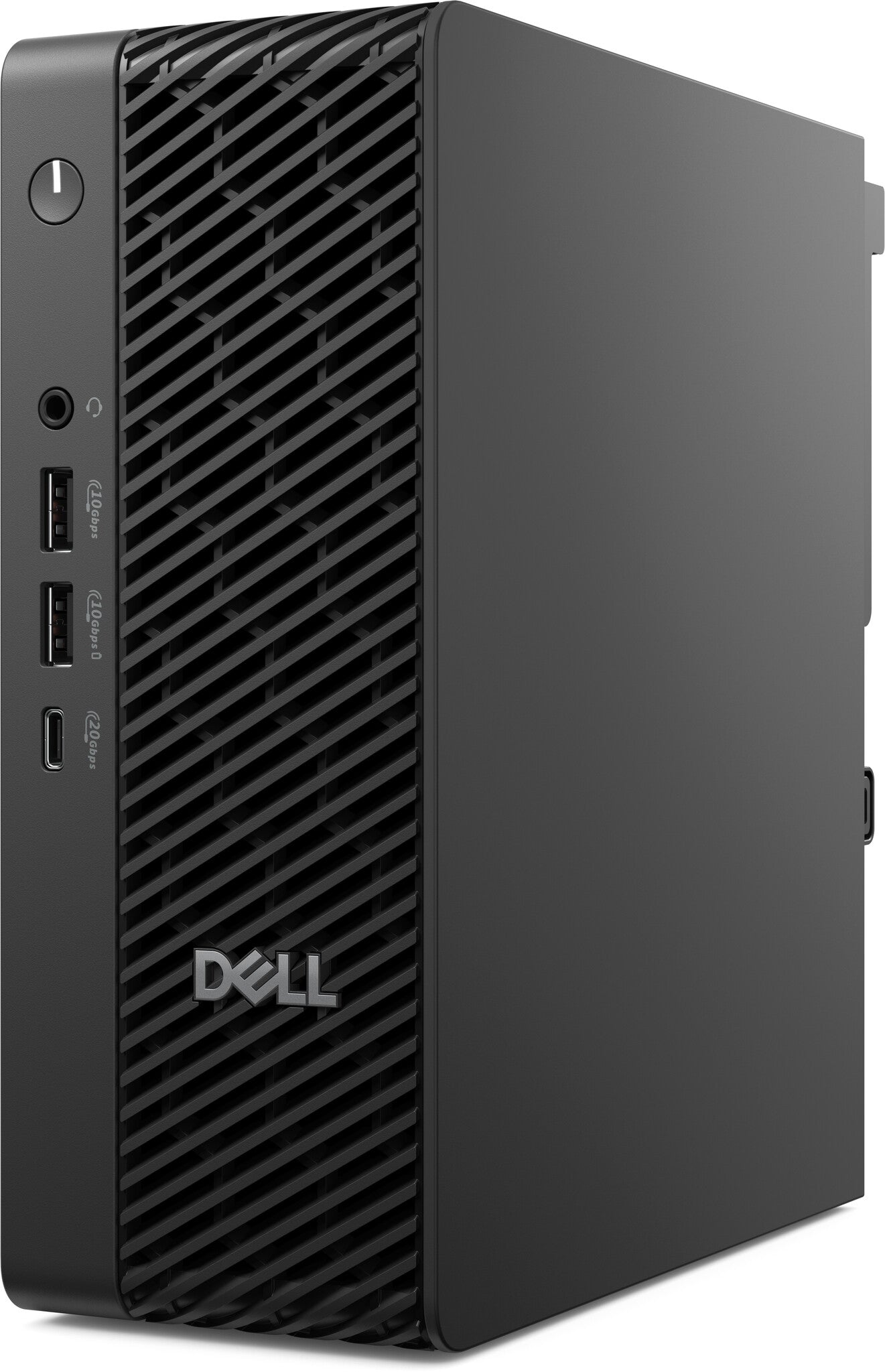

Engineered for those who demand exceptional power without sacrificing space, the Dell Pro Max Micro delivers top-tier speed and efficiency in a sleek, space-saving design.
| Processor |
|---|
| Processor base power |
15 W |
| Maximum turbo power |
57 W |
| Number of processors installed |
1 |
| Processor cache |
12 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
1.7 GHz |
| Performance-core base frequency |
2.1 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.4 GHz |
| Efficient-core Max Turbo Frequency |
4.2 GHz |
| Performance-core Max Turbo Frequency |
5.3 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
2 |
| Processor boost frequency |
5.3 GHz |
| Processor threads |
14 |
| Processor cores |
12 |
| Processor model |
265 |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Non-ECC |
Yes |
| Memory data transfer rate |
5600 MT/s |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
|---|
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
512 GB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
|---|
| Graphics card Mini DisplayPort ports quantity |
4 |
| On-board graphics card model |
Intel Graphics |
| On-board graphics card family |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA RTX A400 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
|---|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Expansion slots |
|---|
| PCI Express x8 (Gen 4.x) slots |
2 |
| Performance |
|---|
| Product type |
Mini PC |
| Software |
|---|
| Trial software |
Activate Your Microsoft 365 For A 30 Day Trial |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply input frequency |
50/60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
280 W |
| Operational conditions |
|---|
| Operating altitude |
-15.2 - 3048 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Weight |
2.54 kg |
| Height |
206 mm |
| Depth |
178 mm |
| Width |
79.3 mm |
| Packaging content |
|---|
| Cables included |
AC |
| Keyboard included on selected markets |
Dell Wired Keyboard - KB216 - UK (QWERTY) - Black |
| Mouse included on selected markets |
Dell Optical Mouse-MS116 - Black |
| Display included |
No |
| General |
|---|
| Product family |
Pro Max |
| Carbon footprint |
|---|
| Total carbon footprint (kg of CO2e) |
183 |
| Carbon emissions, manufacturing (kg of CO2e) |
63.318 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
68.259 |
| Total carbon emissions, standard deviation (kg of CO2e) |
|
| Carbon emissions, logistics (kg of CO2e) |
3.66 |
| Carbon emissions, energy usage (kg of CO2e) |
114.741 |
| Carbon emissions, end-of-life (kg of CO2e) |
1.28 |
| PAIA version |
GaBi version 1, 2024 |
