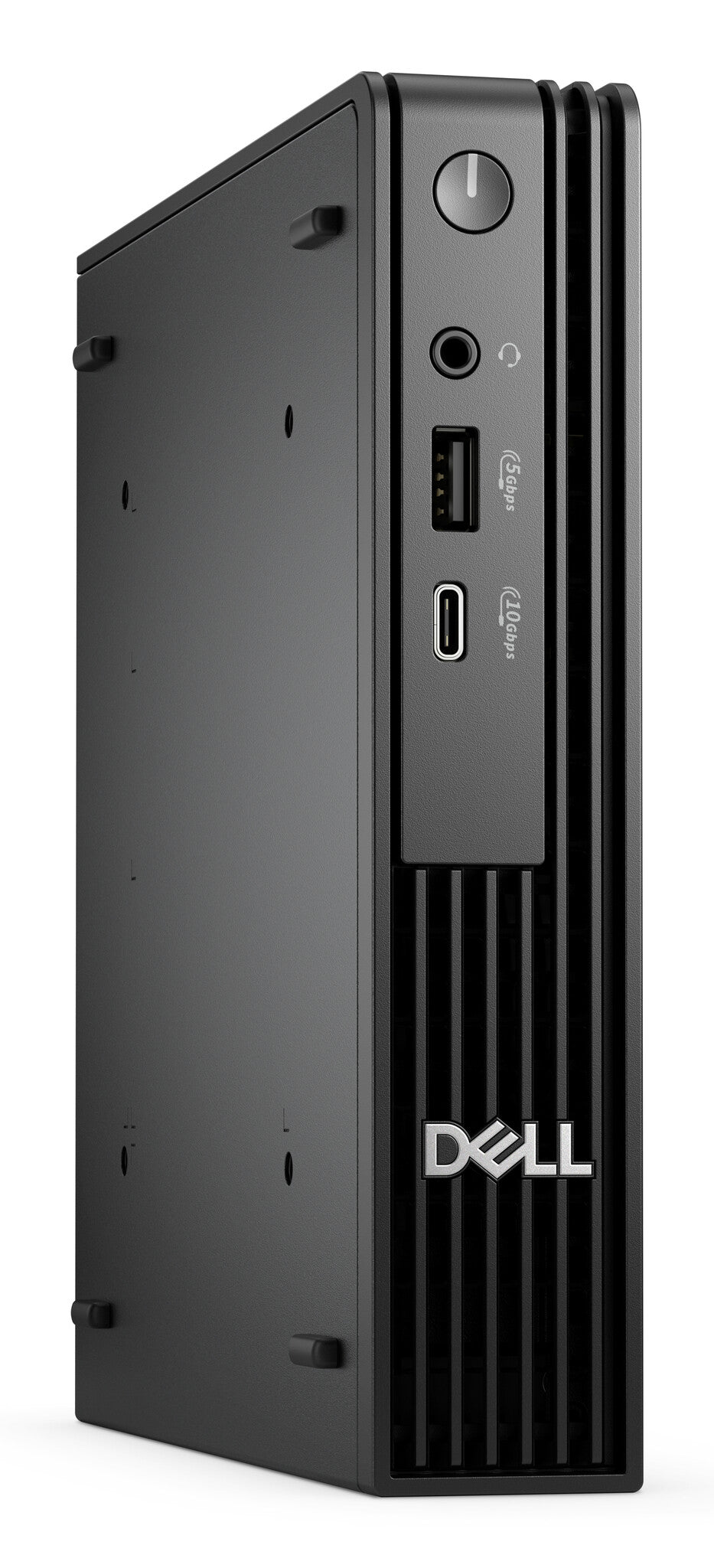

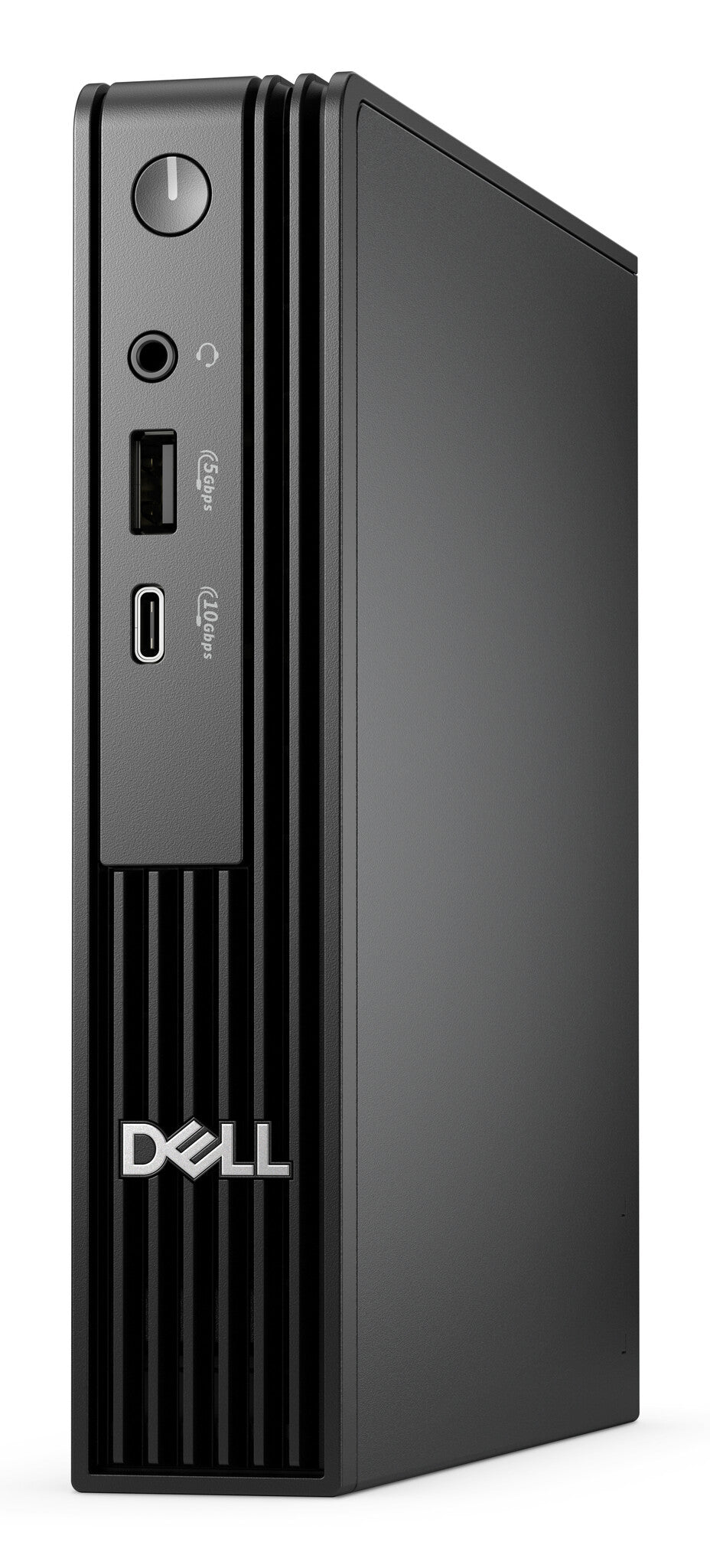

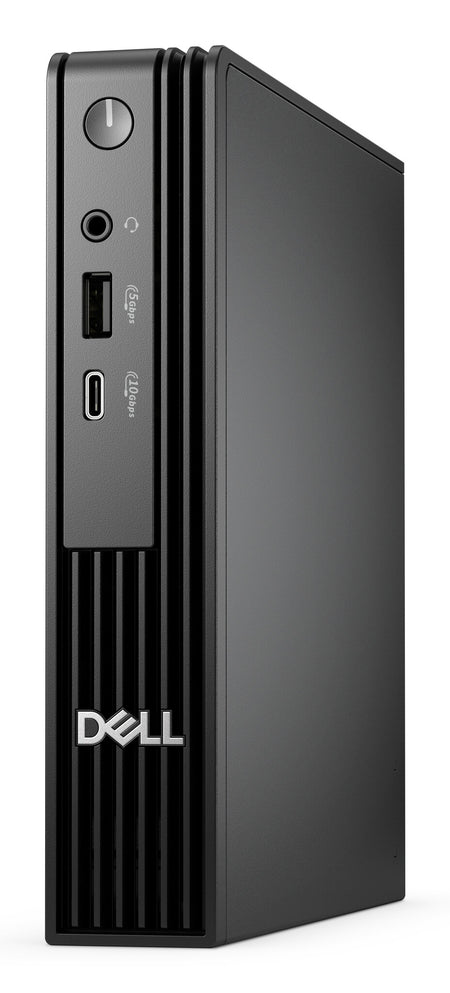

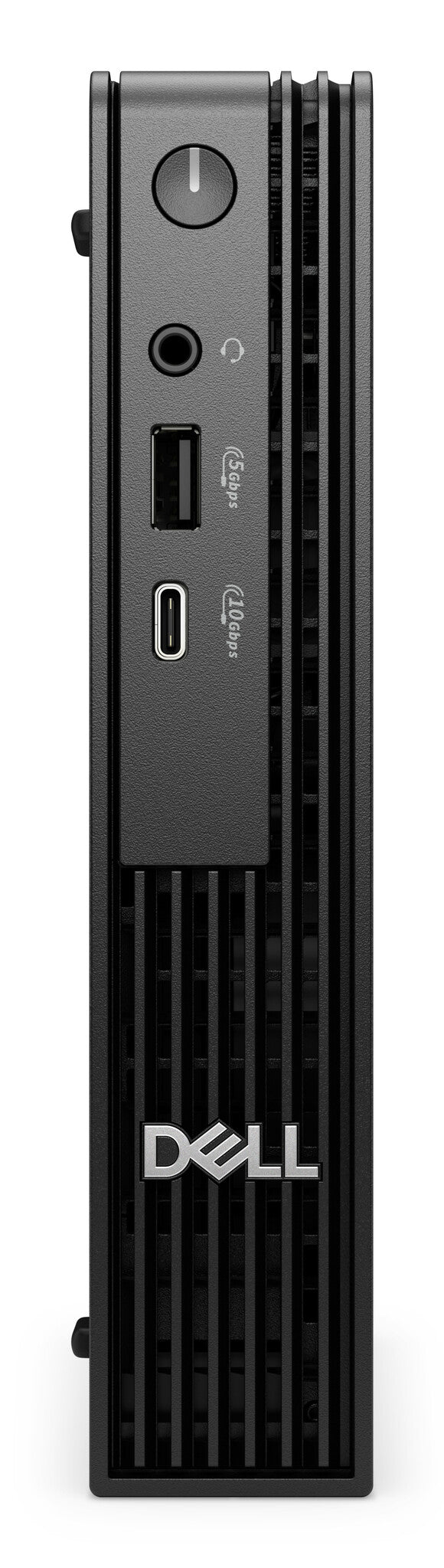

Ultracompact desktops designed to maximise efficiency and productivity in small workspaces.
| Processor |
|---|
| Processor base power |
35 W |
| Maximum turbo power |
92 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Efficient-core base frequency |
1.2 GHz |
| Performance-core base frequency |
1.7 GHz |
| Efficient-core Max Turbo Frequency |
3.4 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
20 |
| Processor cores |
14 |
| Processor model |
i5-14500T |
| Processor generation |
Intel® Core™ i5 (14th gen) |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Memory |
|---|
| Non-ECC |
Yes |
| Memory channels |
Single-channel |
| Memory data transfer rate |
4800 MT/s |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
8 GB |
| Storage |
|---|
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
|---|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |

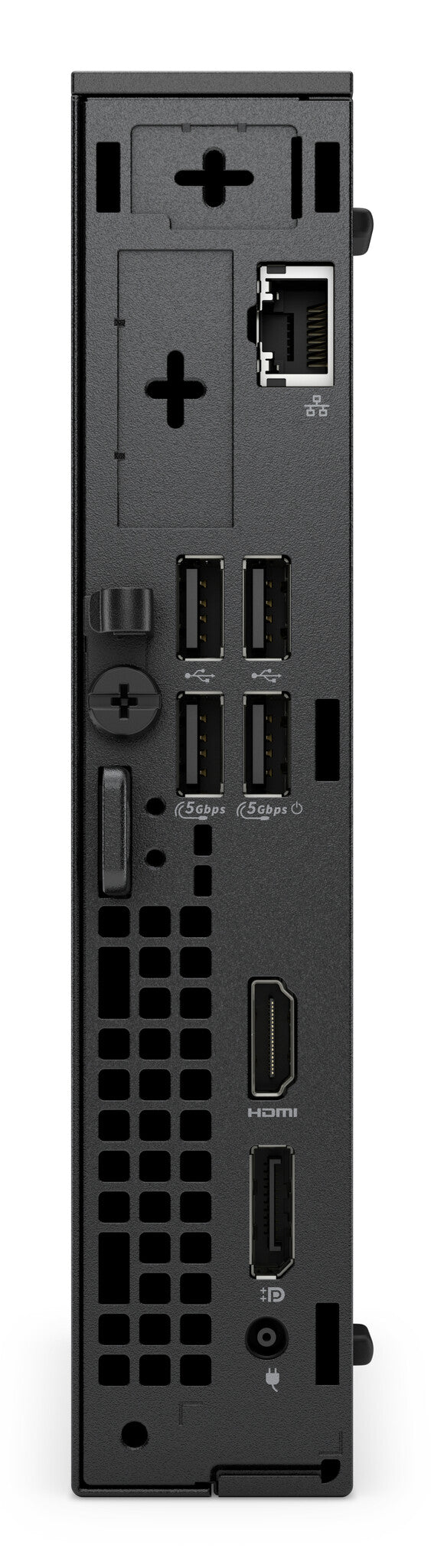

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Performance |
|---|
| Product type |
Mini PC |
| Software |
|---|
| Trial software |
Activate Your Microsoft 365 For A 30 Day Trial |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply input frequency |
50 / 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
90 W |
| Operational conditions |
|---|
| Operating altitude |
-15.2 - 3048 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Weight & dimensions |
|---|
| Weight |
1.16 kg |
| Height |
182 mm |
| Depth |
178 mm |
| Width |
36 mm |
| Packaging content |
|---|
| Keyboard included on selected markets |
Dell Wired Keyboard - KB216 - UK (QWERTY) - Black |
| Mouse included on selected markets |
Dell Optical Mouse-MS116 - Black |
| Display included |
No |
| General |
|---|
| Product family |
Pro |
