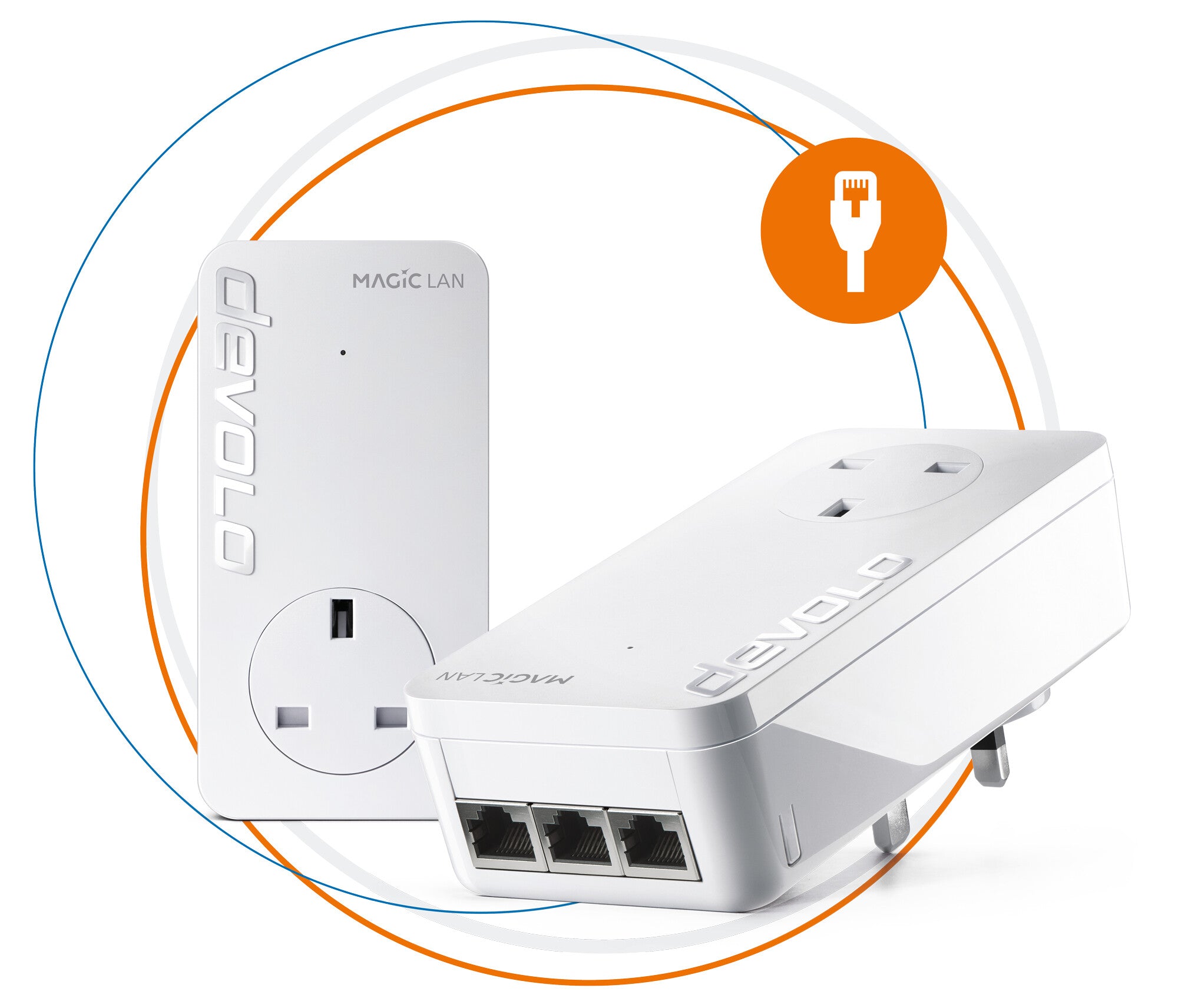

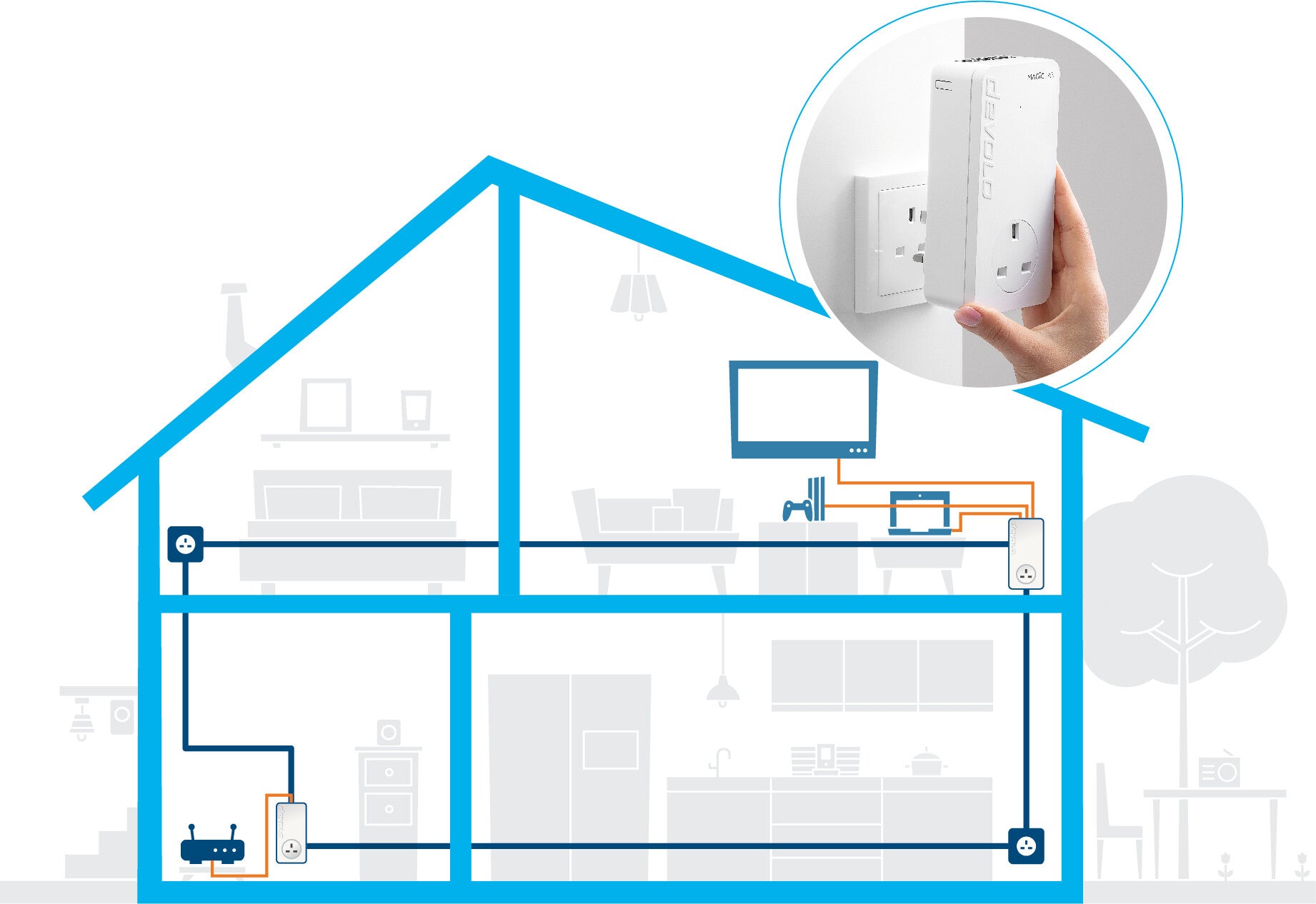

Internet from your wall socket: devolo Magic’s Powerline technology enables you to enjoy a fast, stable Internet connection in any room. The Magic 2 LAN triple power socket adapter is equipped with three Gigabit LAN ports with a maximum speed of 2400 Mbps. The Starter Kit design gives you a new Powerline network with the adapter. But you can also use the Magic 2 LAN triple to expand an existing network. This allows you to dispense with a LAN switch in your home office or living room.
Notice: devolo Magic adapters are compatible with all routers, network devices, devolo Magic adapters and products certified by HomeGrid Forum. dLAN® Powerline adapters and other HomePlug AV products, including the devolo Outdoor WiFi Powerline adapter, are not supported.

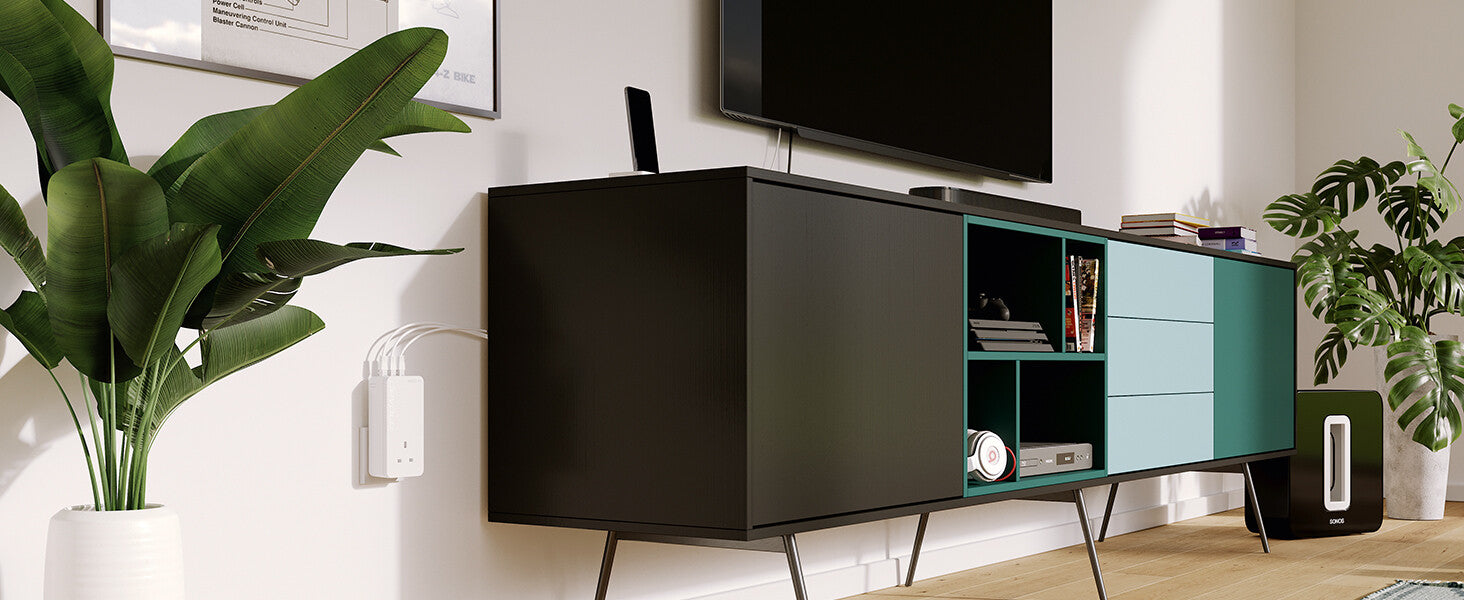

Three ports for your multi-media centre
Because there are three Gigabit LAN ports on the Magic 2 LAN triple adapter, one power socket adapter is plenty for going online with the entire multi-media centre in your living room, for example. Signal disruption? – There are scarcely any in a Powerline network (especially compared to a conventional WiFi connection).
| Performance |
|---|
| Quality of Service (QoS) support |
Yes |
| Damping filter |
2 - 80 MHz |
| Filter characteristics |
-22 - -45 dB |
| Maximum operating distance |
500 m |
| Security algorithms |
128-bit AES |
| Modulation |
64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, OFDM, QPSK |
| Built-in power socket |
Yes |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Wi-Fi |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Maximum data transfer rate |
2400 Mbit/s |
| Power |
|---|
| Power over Ethernet (PoE) |
No |
| Current |
16 A |
| AC input frequency |
50 Hz |
| AC input voltage |
196 - 250 V |
| Power consumption (standby) |
0.9 W |
| Power consumption (typical) |
5 W |
| Design |
|---|
| Certification |
CE |
| Country of origin |
Germany |
| Product colour |
White |
| LED indicators |
Yes |
| Antenna type |
Internal |
| System requirements |
|---|
| Mobile operating systems supported |
Android, iOS |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
143 mm |
| Depth |
41 mm |
| Width |
72 mm |
| Packaging data |
|---|
| Package weight |
810 g |
| Package height |
92 mm |
| Package depth |
231 mm |
| Package width |
188 mm |

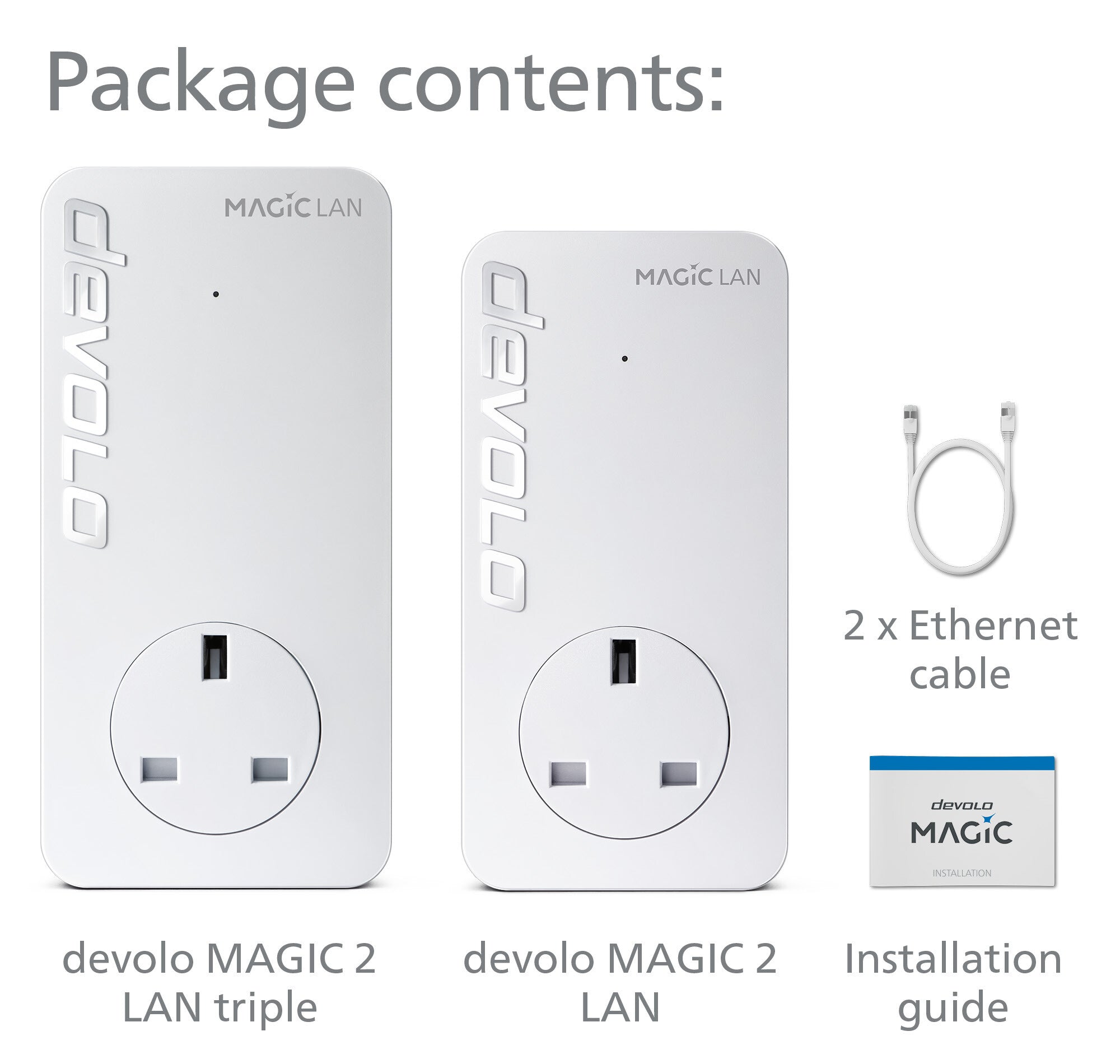

| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
