SKU: ANT-1205W

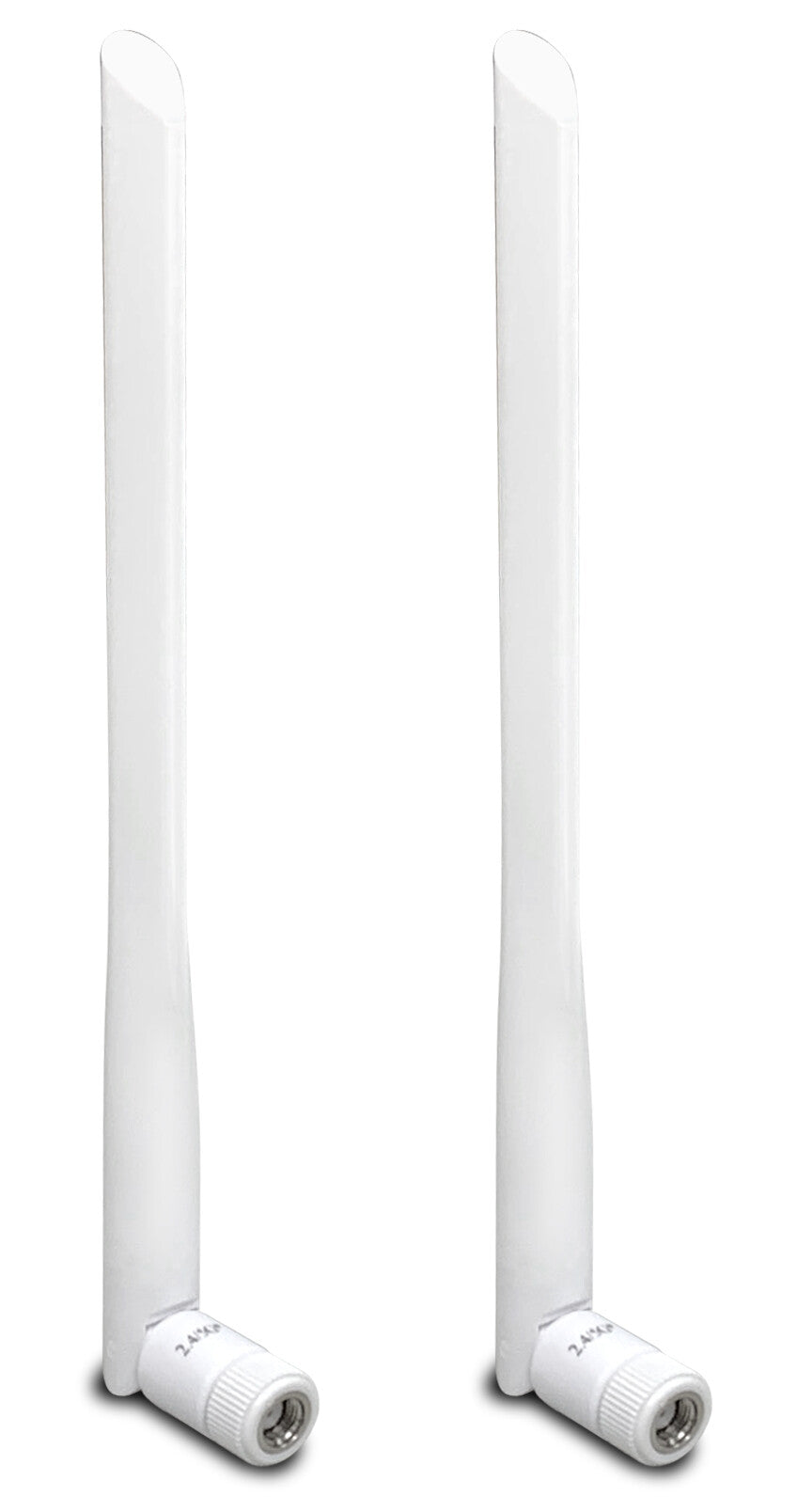

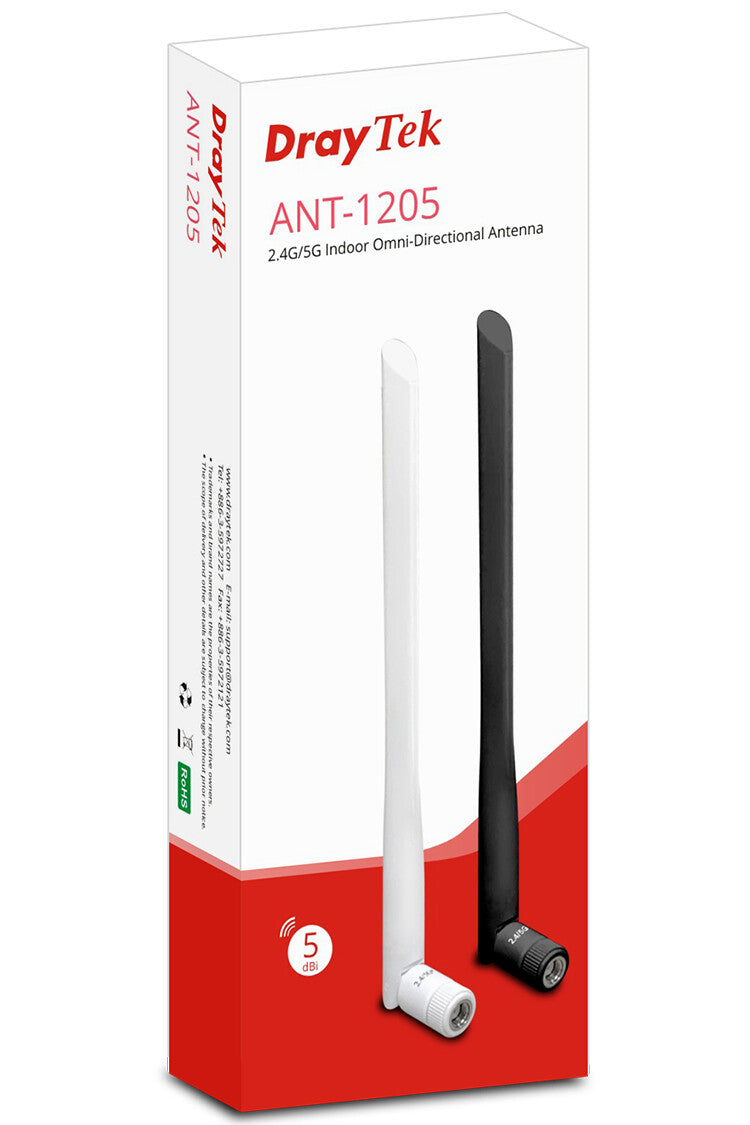

DrayTek ANT-1205 network antenna Omni-directional antenna RP-SMA 5 dBi

Draytek
£22.45
  • High-Gain Dual-Band Aerials
  • Set of 2 Antennas
  • Available in white or black
  • Can improve range and coverage of wireless signal
  • Suitable for all DrayTek routers & access Points
  • Suitable for 802.11ac & 802.11ax (Wi-Fi 6)
  • Frequency Range : 2400-2500Mhz & 5150-5850Mhz
  • 4.5dBi Gain at 5.8Ghz
  • 5dBi Gain at 2.4Ghz
  • Connector: RP-SMA
  • Suitable for indoor use only
  • Optional magnetic/extension base (ANT-BAS1)
Performance
Vertical beam width (5 GHz) 25°
Vertical beam width (2.4 GHz) 30°
Horizontal beam width 360°
Impedance 50 Ω
Antenna gain (2.4 GHz) 2 dBi
Antenna gain (5 GHz) 4.5 dBi
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency band 2.4 - 5 GHz
Antenna gain level (max) 5 dBi
Features
Power handling 1 W
Product colour White
Polarization Linear polarization
Antenna connector type RP-SMA
Antenna type Omni-directional antenna
Weight & dimensions
Diameter 1.3 cm
Height 198 mm
Packaging content
Quantity per pack 2 pc(s)
