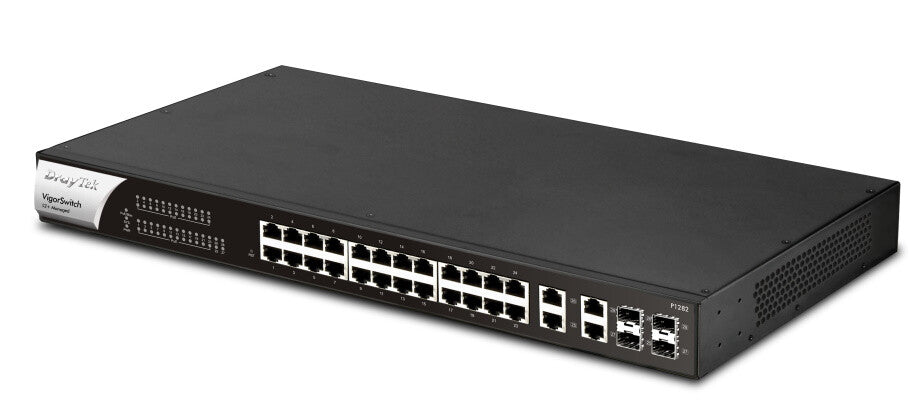

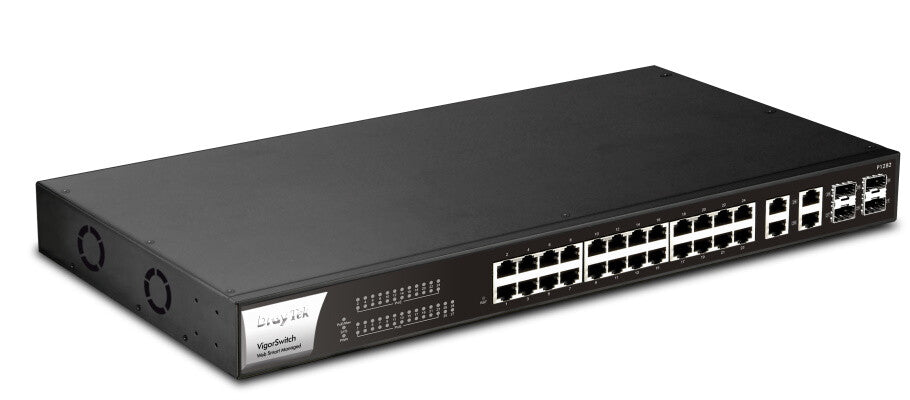

Smart Managed Gigabit Switch with 24 Gigabit PoE+ Ports & 4 SFP Ports
The VigorSwitch P1282 is a high-performance, Smart Managed Gigabit Ethernet switch with 4 SFP uplink ports. With 24 PoE+ (Power over Ethernet) RJ-45 LAN ports, it's ideal for powering connected IP phones, IP cameras and wireless access points.
The 400 watt PoE power budget provides ample power through Ethernet, to each of its 24 PoE / PoE+ enabled Gigabit LAN ports.
Designed for centralised management, the VigorSwitch P1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, through VigorConnect, through a DrayTek Vigor router, or directly via the device's Web Interface.
Automatic VLAN Assignment
Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in.
Useful Security Features
Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard.
Smart Power over Ethernet
Provides ample power through Ethernet to each of the 24 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & Device Check features ensure your PoE devices are powered and working.
IP Camera Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.
4 SFP Ports for Uplinks
Uplink to Fibre or direct-attach to additional switches, with 4x Gigabit SFP Ports. Connect switches over long distances with SFP Fibre modules.
| Management features |
|---|
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Console port |
RJ-45 |
| Combo SFP ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Forwarding rate |
41.7 Mpps |
| Switching capacity |
56 Gbit/s |
| MAC address table |
8000 entries |
| Security |
|---|
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Reset button |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
450 W |
| Power consumption (typical) |
400 W |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
4.3 kg |
| Height |
44 mm |
| Depth |
281 mm |
| Width |
441 mm |
