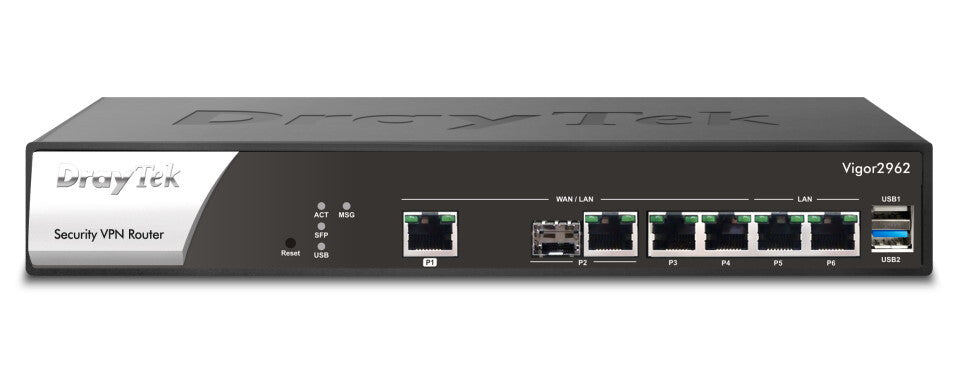

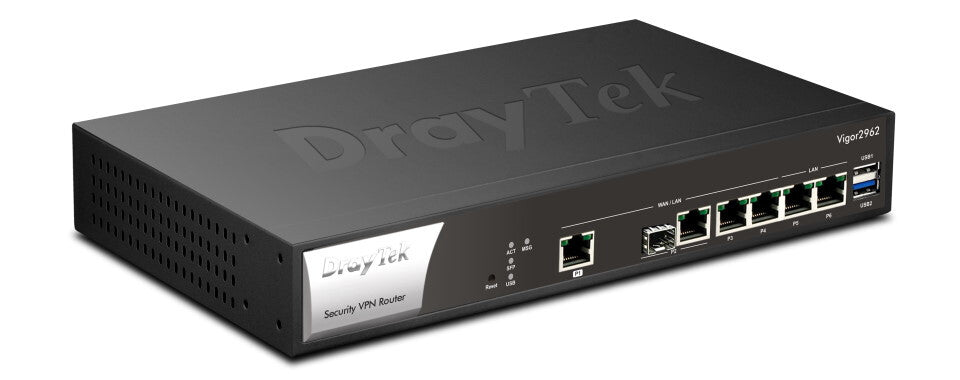

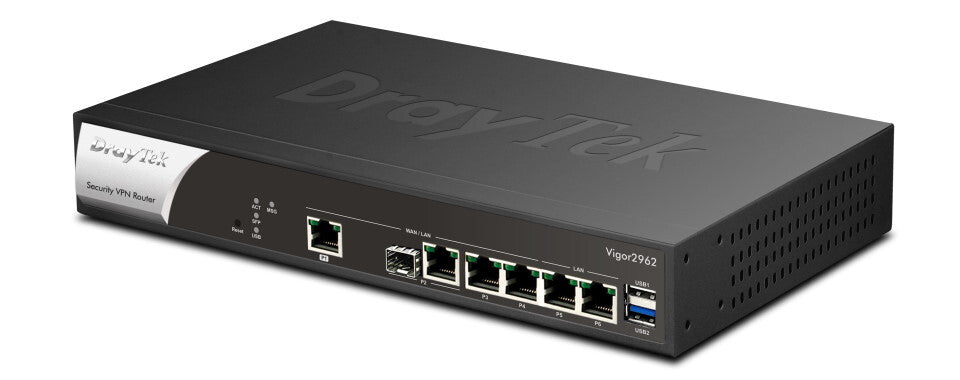

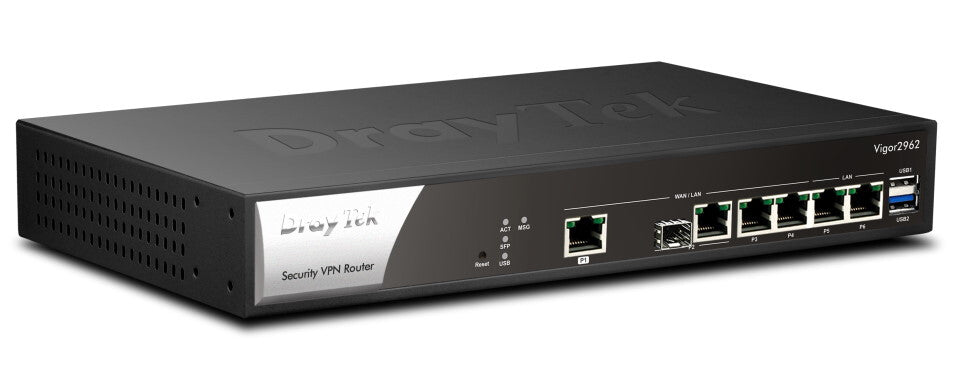

The DrayTek Vigor 2962 Dual-WAN Load Balancing Firewall VPN router surpasses Gigabit speeds, to get the best performance out of FTTP Fibre Broadband and more. Connects to 2.5Gb Ethernet and SFP Fibre, for LAN or WAN use.
The Vigor 2962 provides a reliable, flexible, and secure network solution with extensive Firewall, Content Filtering, VPN client/server and Quality of Service controls.
An ideal VPN concentrator with 500Mbps SSL VPN performance. Connect up to 50 SSL VPN & OpenVPN users, or 200 IPsec tunnels, simultaneously. With up to 20 LAN subnets, BGP and OSPF, it’s well equipped to manage larger, more complex networks and Multi Occupancy Offices.
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| Network |
|---|
| Policy-based routing |
Yes |
| Port forwarding |
Yes |
| Traffic control |
Yes |
| Multicast support |
Yes |
| VLAN support |
Yes |
| Throughput |
2.2 Gbit/s |
| Forwarding rate |
900 Mpps |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Networking standards |
IEEE 802.1Q |
| Mobile network |
|---|
| Mobile network generation |
Not supported |
| Management features |
|---|
| Firmware upgradeable |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| USB ports quantity |
2 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN (RJ-45) ports |
4 |
| Protocols |
|---|
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| Routing protocols |
RIP-1, RIP-2, RIPng |
| DMZ support |
Yes |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Security |
|---|
| VPN tunnels quantity |
200 |
| Network address translation (NAT) |
Yes |
| DoS attack prevention |
Yes |
| URL filtering |
Yes |
| MAC address filtering |
Yes |
| Firewall |
Yes |
| Security algorithms |
HTTPS, SSH |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Design |
|---|
| LED indicators |
Activity, USB |
| Rack mounting |
Yes |
| Product colour |
Black, White |
| Power |
|---|
| AC input voltage |
220 - 240 V |
| Power consumption (typical) |
15 W |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
1.7 kg |
| Height |
45 mm |
| Depth |
170 mm |
| Width |
273 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
