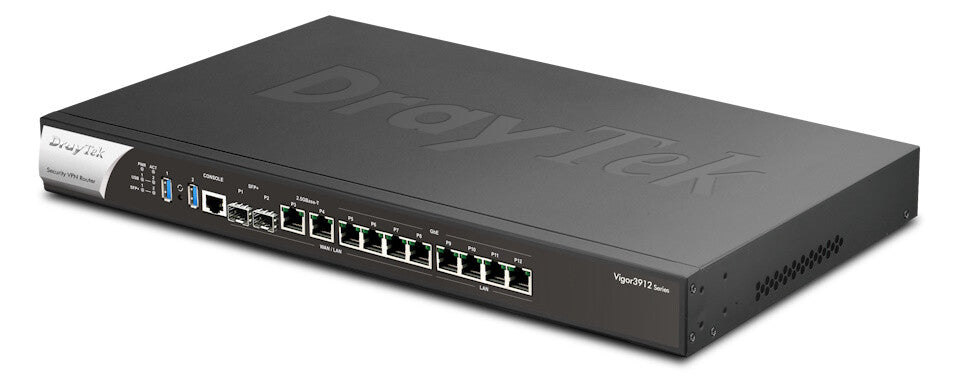

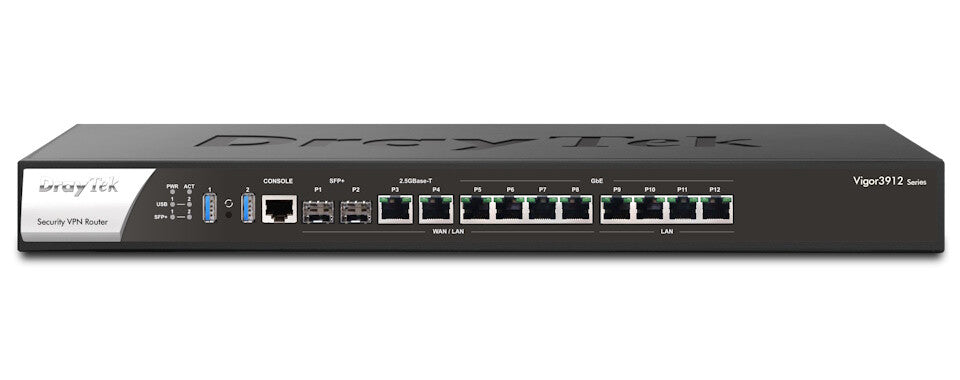

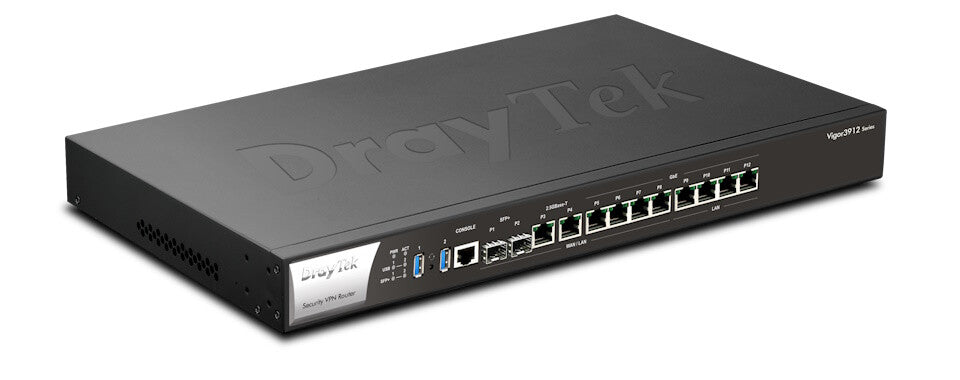

The DrayTek Vigor 3912 series is a premium next generation multi-WAN router making it ideal for your most demanding and complex networks. This VPN concentration is the evolution of our powerful 3910 model with even faster hardware to solve your large network challenges.
| Data transmission |
|---|
| Load balancing |
Yes |
| VoIP |
Yes |
| IPSec VPN throughput |
5 Gbit/s |
| VPN throughput |
5 Gbit/s |
| Firewall throughput |
12.5 Gbit/s |
| Performance |
|---|
| Reset button |
Yes |
| Syslog |
Yes |
| Network |
|---|
| Point-to-point protocol over Ethernet (PPPoE) |
Yes |
| Number of VLANs |
100 |
| DHCP server |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Port forwarding |
Yes |
| DHCP client |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Dynamic routing |
Yes |
| Static route |
Yes |
| Number of users |
500 user(s) |
| Maximum Number of VPN connections supported |
500 |
| Number of VPN connections |
500 |
| Security |
|---|
| VPN support |
IPsec IKEv1IKEv2IKEv2 EAPIPsec-XAuthDrayTek SSL VPNOpenVPNWireGuardGRE over IPsecPPTPL2TPL2TP over IPsec |
| Stateful Packet Inspection (SPI) |
Yes |
| DDoS protection |
Yes |
| Security algorithms |
3DES, DES, EAP, HTTPS, MD5, SHA-1, SHA-256 |
| Protocols |
|---|
| Routing protocols |
BGP, OSPF |
| Management protocols |
http, https, ssh, telnet, tr-069 |
| Management features |
|---|
| On/off switch |
Yes |
| URL filtering |
Yes |
| Management platform |
VigorACS |
| Remote administration |
yes |
| Web-based management |
Yes |
| LED indicators |
Power, System, USB |

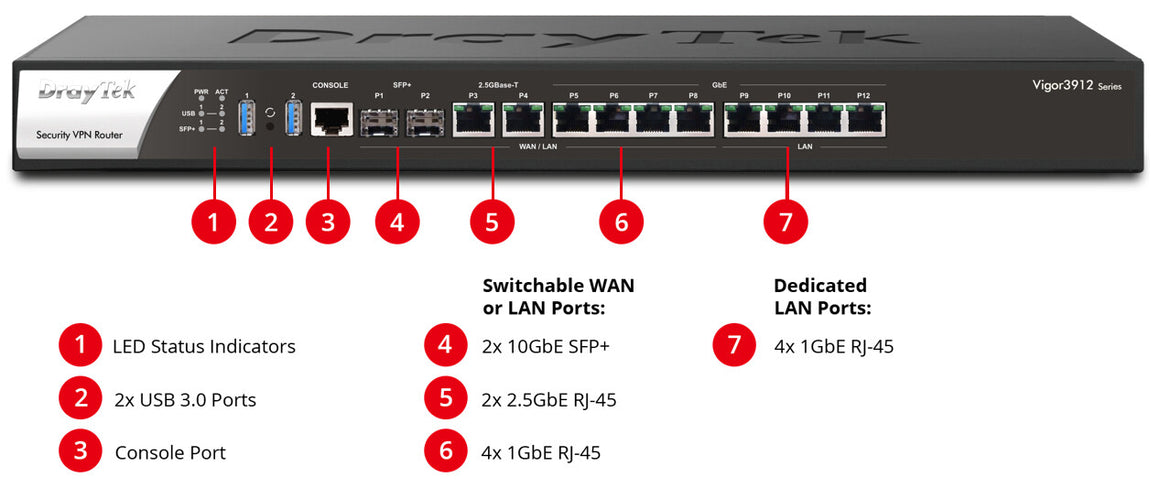

| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| WAN connection |
Ethernet (RJ-45) |
| Console port |
RJ-45 |
| Ethernet LAN (RJ-45) ports |
10 |
| Gigabit Ethernet (copper) ports quantity |
8 |
| 10G (fiber) ports quantity |
2 |
| Connectivity technology |
Wired |
| Design |
|---|
| Built-in fan |
Yes |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (typical) |
35 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 55 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
3.76 kg |
| Height |
45 mm |
| Depth |
285 mm |
| Width |
443 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Screws included |
Yes |
| Rack mount kit |
Yes |
| Cables included |
LAN (RJ-45) |
| Other features |
|---|
| Firewall throughput |
12500 Mbit/s |
| VPN throughput |
5000 Mbit/s |
