SKU: VAP1062C-K

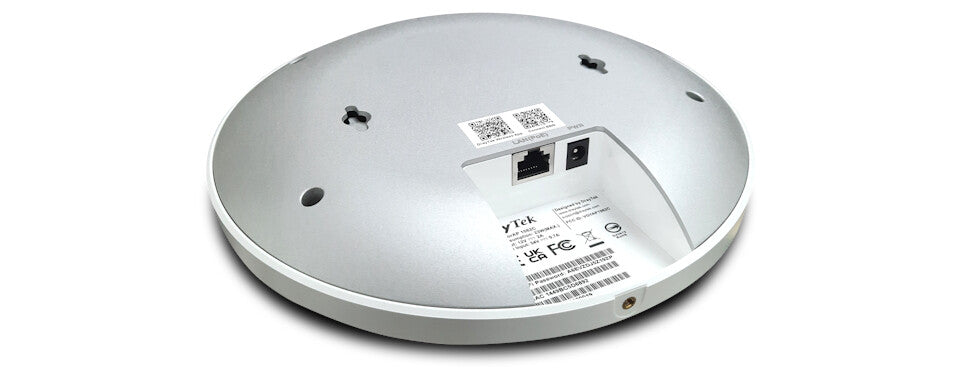

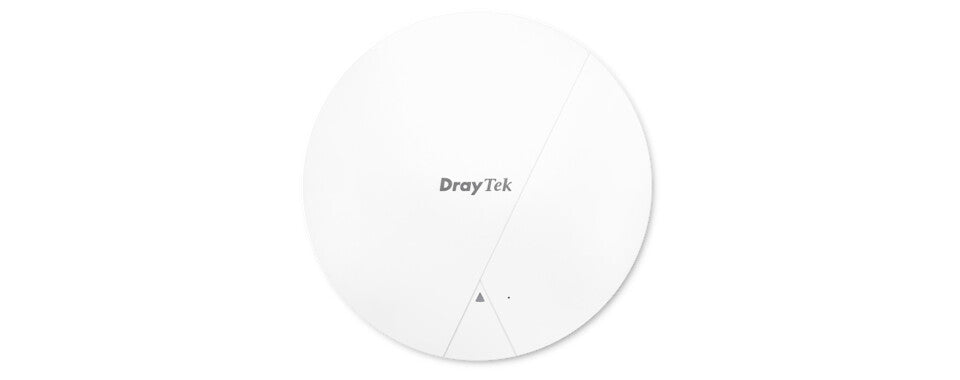

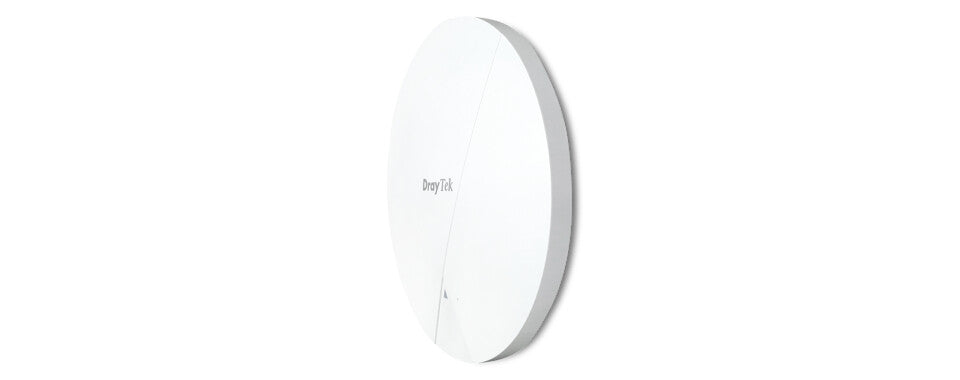

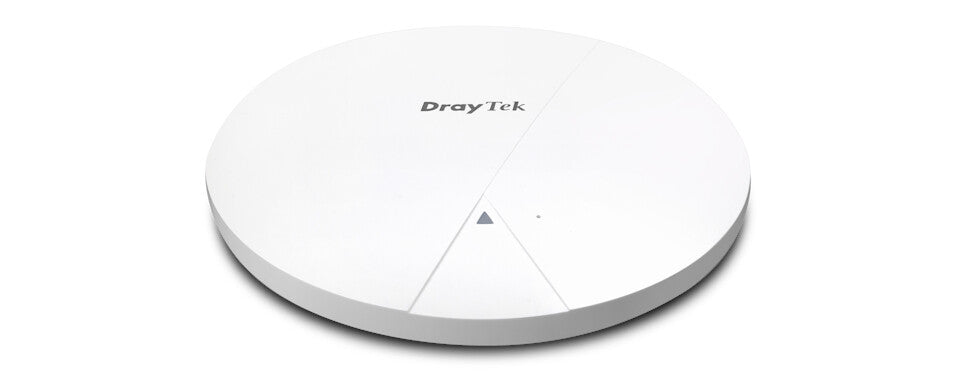

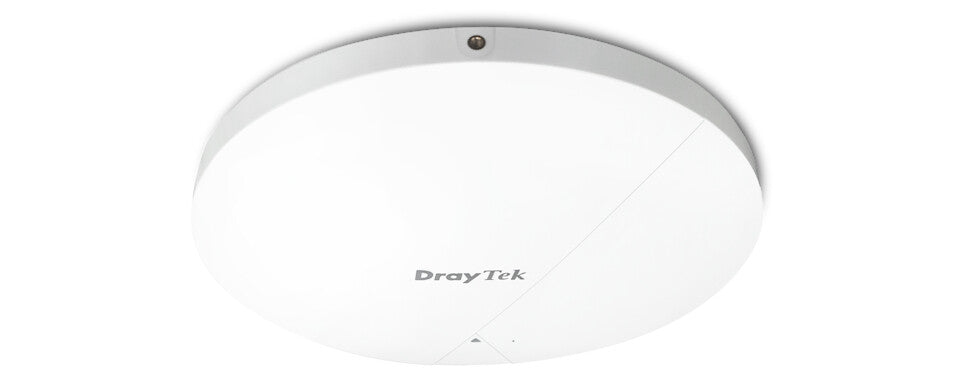

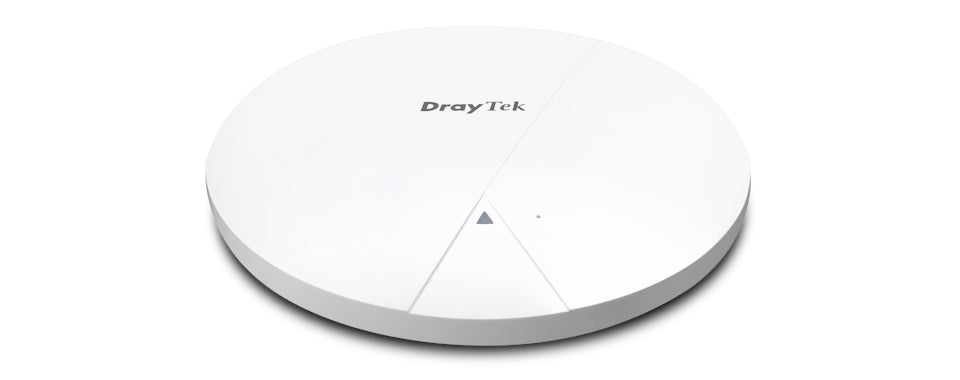

DrayTek VigorAP 1062C Wi-Fi 6 AX6000 Ceiling AP with 2.5Gb PoE Ethernet

Draytek
£216.58
  • WiFi 6 Mesh Ceiling-mount Mesh Wireless Access Point and Range Extender
  • AX6000 – 11ax Dual Band Wireless
  • WPA3 Security – Stronger Security with WPA3 Personal & Enterprise
  • Power through 802.3at PoE+ or DC Power Adapter
  • Multi-SSID over Mesh – Separate Internal and Guest Networks over Mesh*
  • 2.5Gb Ethernet Uplink
  • Centrally Managed or Standalone Operation

The VigorAP 1062C is a high-performance ceiling or wall-mounted Mesh Wireless Access Point. It offers up to 6Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity.

Features
BeamForming Yes
Cloud services supported Draytek VigorACS
Band steering Yes
Wireless isolation Yes
Virtual LAN features SSID-based VLAN assignment
VLAN support Yes
Fit AP mode features Mesh networking
MIMO type Multi User MIMO
MIMO Yes
Duplex mode auto-negotiation Yes
Full duplex Yes
Automatic channel selection Yes
Number of users 256 user(s)
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at
Ethernet LAN data rates 2500 Mbit/s
Maximum data transfer rate (5 GHz) 4800 Mbit/s
Maximum data transfer rate (2.4 GHz) 1200 Mbit/s
Maximum data transfer rate 6000 Mbit/s
5 GHz Yes
2.4 GHz Yes
Security
Number of SSID supported 16
Service Set Identifier (SSID) features Hidden SSID, Multiple SSIDs, SSID broadcast on/off
MAC address filtering Yes
Security algorithms 802.1x RADIUS, HTTPS, SSID, WEP, WMM, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, WPS
Protocols
DHCP client Yes
DHCP server Yes
Management features
Firmware upgradeable Yes
Syslog Yes
Command-line interface (CLI) Yes
Web-based management Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 23 W
Power over Ethernet (PoE) Yes
Design
Market segment Business
Recommended usage Indoor
LED indicators System
Reset button Yes
Product colour White
Placement Ceiling, Wall
Antenna
Antenna direction type Omni-directional
Antenna type Internal
Weight & dimensions
Weight 813 g
Height 208 mm
Depth 32.1 mm
Width 208 mm
Packaging content
Quick start guide Yes
Mounting kit Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
