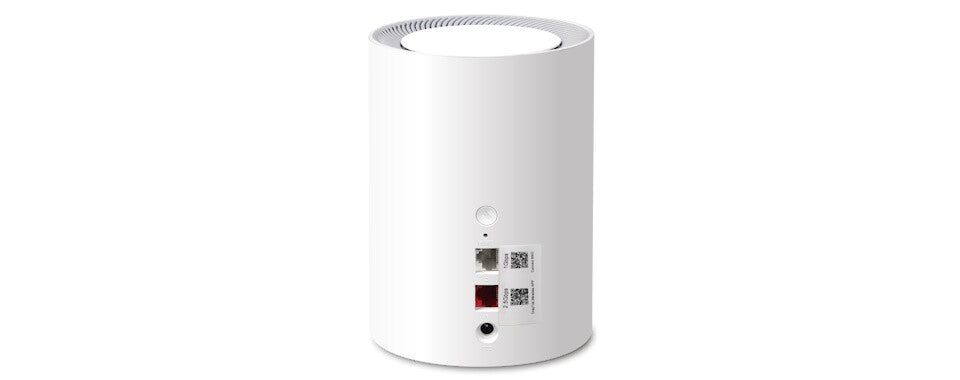

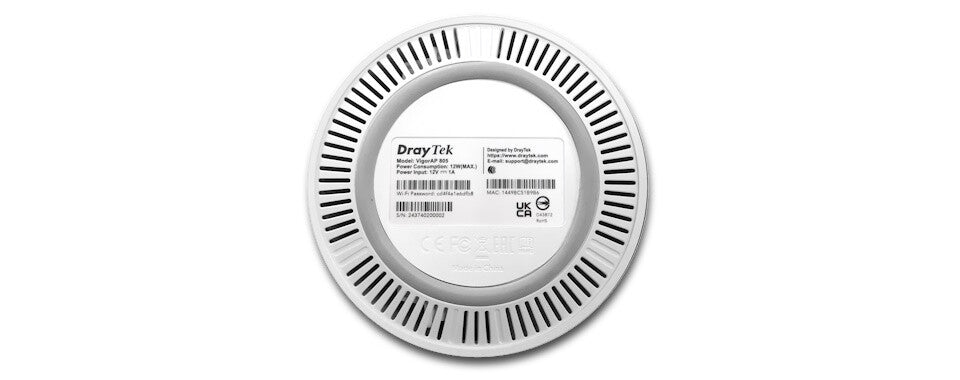

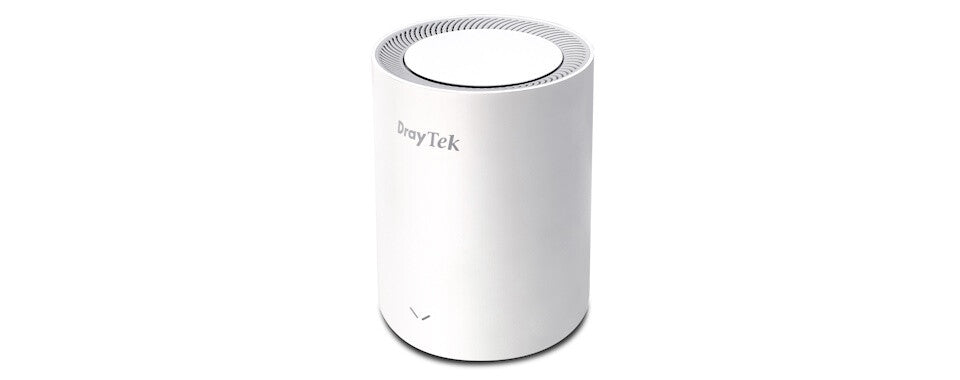

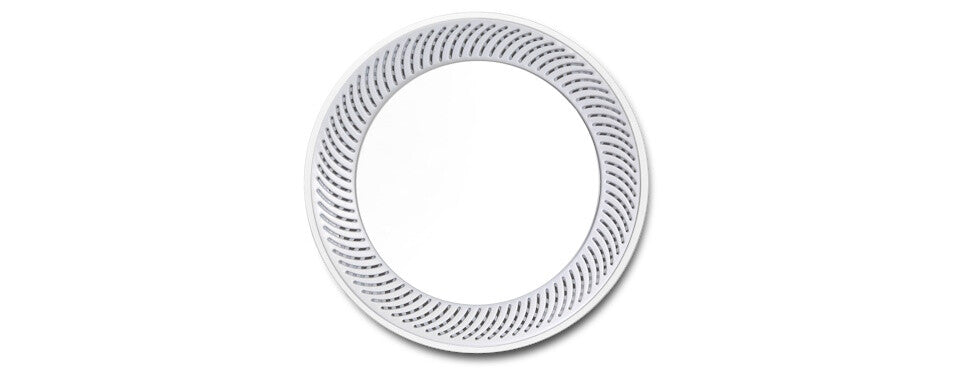

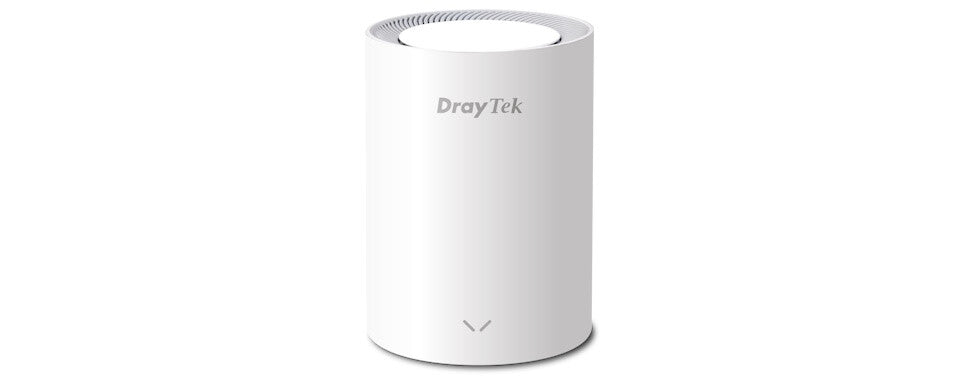

The VigorAP 805 is a high-performance Mesh Wireless Access Point. It offers up to 3Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity. The second Gigabit Ethernet port can be used as a mini switch to connect a computer or printer.
| Features |
|---|
| BeamForming |
Yes |
| Cloud services supported |
Draytek VigorACS |
| Dynamic Frequency Selection (DFS) |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Band steering |
Yes |
| Smart mesh system |
Yes |
| Wireless isolation |
Yes |
| VLAN support |
Yes |
| Fast roaming |
Yes |
| Wi-Fi roaming |
Yes |
| Fit AP mode features |
802.11k & 802.11v smart roaming, Mesh networking, WDS zero-configuration deployment, Wireless distribution system (WDS) |
| Spread spectrum method |
OFDMA |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Full duplex |
Yes |
| Automatic channel selection |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Maximum data transfer rate (5 GHz) |
600 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
2400 Mbit/s |
| Maximum data transfer rate |
3000 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Access Control List (ACL) |
Yes |
| Auto Wireless Distribution System (WDS) |
Yes |
| Number of SSID supported |
16 |
| Service Set Identifier (SSID) features |
Hidden SSID, Multiple SSIDs, SSID broadcast, SSID broadcast on/off |
| MAC address filtering |
Yes |
| Security algorithms |
SNMP, SNMPv2, SNMPv3, SSH, SSID, WPA, WPA2, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise, WPS |
| Protocols |
|---|
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| Management protocols |
TR-069 |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Management features |
|---|
| Firmware upgradeable |
Yes |
| Batch upgrade |
Yes |
| Management platform |
Draytek vigorACS |
| Syslog |
Yes |
| Command-line interface (CLI) |
Yes |
| Local AP management |
Telnet |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Interface |
2 |
| Power |
|---|
| Power consumption (max) |
12 W |
| Power over Ethernet (PoE) |
No |
| Design |
|---|
| LED indicators |
LAN, System |
| Housing material |
Plastic |
| Product colour |
White |
| Placement |
Desk, Table, Shelf |
| Antenna |
|---|
| Antenna gain level (max) |
4.9 dBi |
| Antenna type |
Internal |
| Performance |
|---|
| Operating system installed |
DrayOS |
| Certificates |
|---|
| PSTI certified |
Yes |
| Compliance certificates |
CE, UKCA |
| Weight & dimensions |
|---|
| Weight |
405 g |
| Height |
153 mm |
| Depth |
110 mm |
| Width |
110 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Rack mounting |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
