The VigorAP 905 is a high-performance WiFi 6 Mesh Wireless Access Point. It offers up to 3Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity. The additional Gigabit Ethernet ports can be used as a mini switch to connect computers or printers. The AP can be mounted on a wall or placed on a desk.
| Features |
|---|
| Airtime Fairness (ATF) |
Yes |
| Band steering |
Yes |
| Wireless isolation |
Yes |
| Wireless meshing |
Yes |
| VLAN support |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Number of simultaneously connected devices (max) |
256 |
| Ethernet LAN data rates |
2500 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
600 Mbit/s |
| Maximum data transfer rate |
3000 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Whitelist |
Yes |
| Blacklist |
Yes |
| Access Control List (ACL) |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Auto Wireless Distribution System (WDS) |
Yes |
| Service Set Identifier (SSID) features |
Hidden SSID, Multiple SSIDs, SSID broadcast, SSID broadcast on/off |
| MAC address filtering |
Yes |
| Security algorithms |
802.1x RADIUS, SNMP, SNMPv2, SNMPv3, WEP, WPA, WPA2, WPA3, WPS |
| Protocols |
|---|
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Management features |
|---|
| Firmware upgradeable |
Yes |
| Access point management |
Wi-Fi schedule |
| Syslog |
Yes |
| Command-line interface (CLI) |
Yes |
| Web-based management |
Yes |

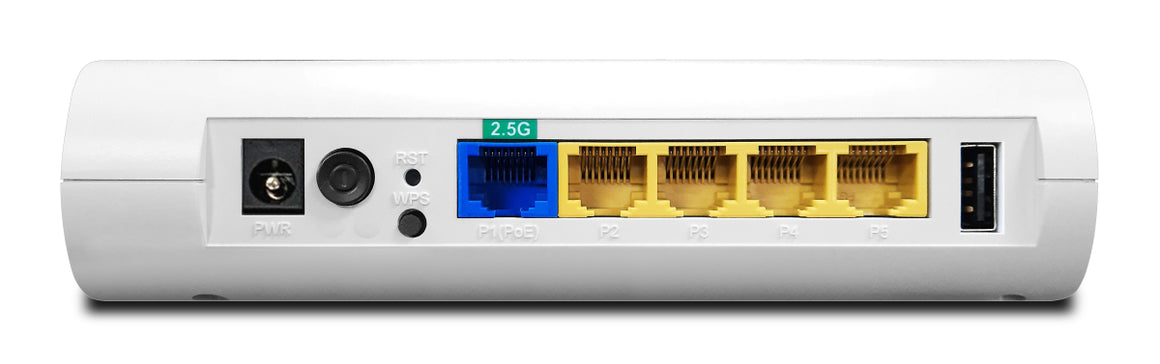

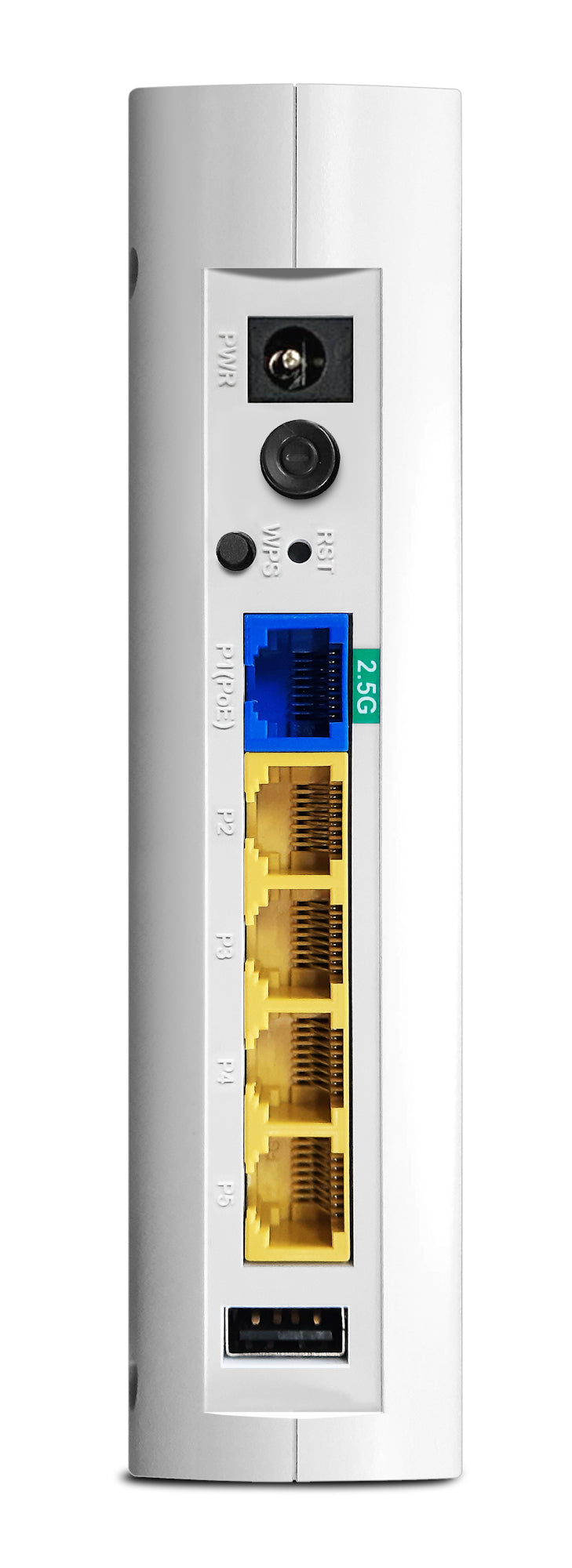

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 2.0 ports quantity |
1 |
| Internal RJ-45 ports quantity |
5 |
| Power |
|---|
| Power consumption (max) |
17 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Design |
|---|
| LED indicators |
Power, USB, WLAN, Wi-Fi |
| WPS push button |
Yes |
| Reset button |
Yes |
| On/off switch |
Yes |
| Housing material |
Plastic |
| Product colour |
White |
| Placement |
Desk, Shelf, Table, Wall |
| Antenna |
|---|
| Antenna features |
Detachable antenna |
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal & external |
| Performance |
|---|
| Operating system installed |
DrayOS |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
