SKU: VSP2542X-K

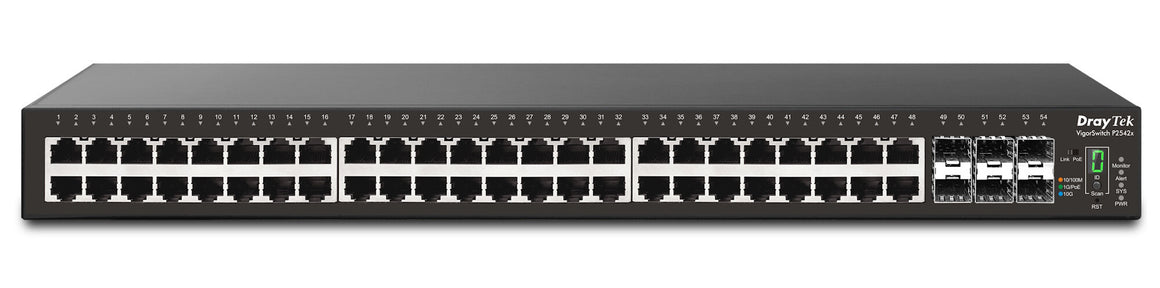

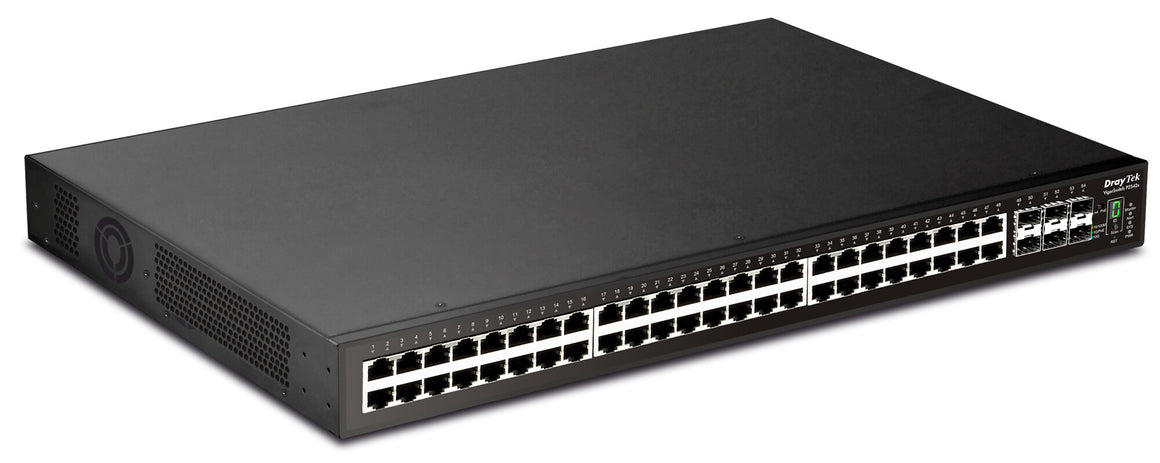

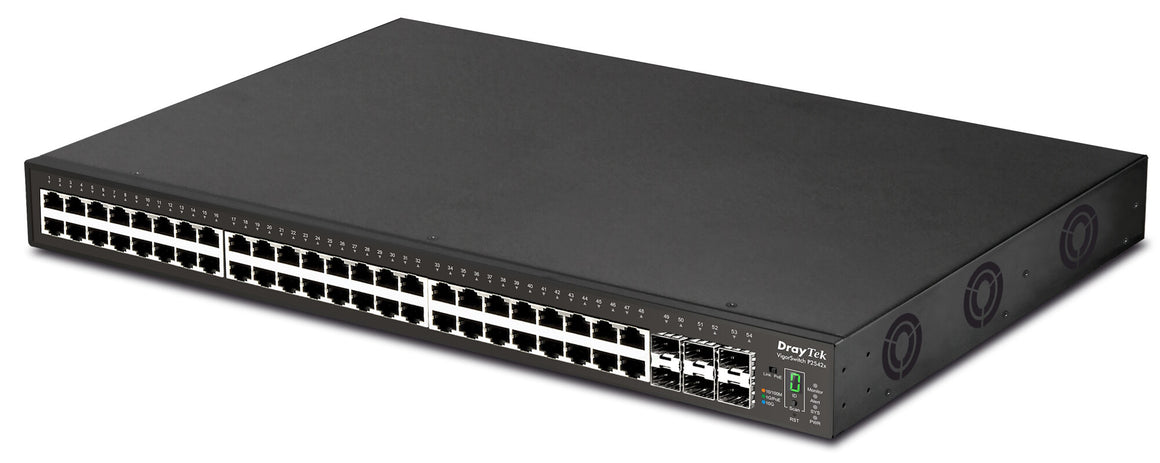

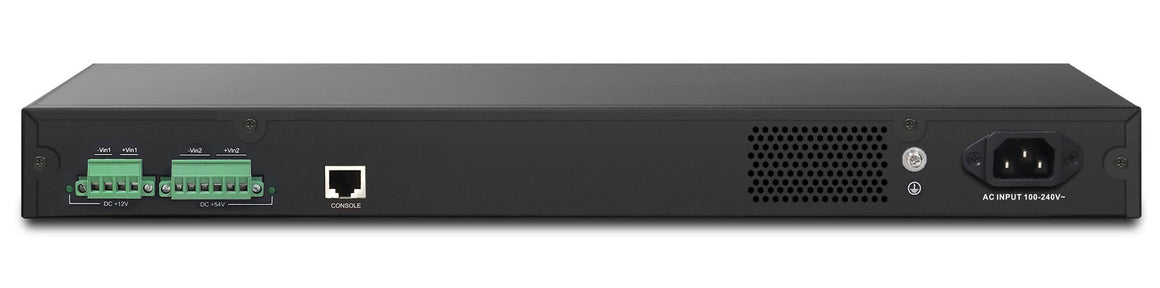

DrayTek VigorSwitch P2542x Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Draytek
£677.47
iFrame
  • Managed L2+ Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
  • 10G support
  • MAC address table: 32000 entries Switching capacity: 216 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • AC/DC Power supply included Power over Ethernet (PoE)
Management features
System event log Yes
Traffic classification Yes
Web-based management Yes
Cloud-managed Yes
Quality of Service (QoS) support Yes
Switch layer L2+
Switch type Managed
Ports & interfaces
Power connector AC/DC
Console port RJ-45
SFP+ module slots quantity 6
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
VLAN support Yes
Auto MDI/MDI-X Yes
Spanning tree protocol Yes
Full duplex Yes
Port mirroring Yes
10G support Yes
Data transmission
Static route Yes
Forwarding rate 160 Mpps
Switching capacity 216 Gbit/s
MAC address table 32000 entries
Security
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP Option 66, DHCP Option 67, DHCP client, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support Yes
Design
Market segment Business
LED indicators LAN
Reset button Yes
Housing material Metal
Product colour Black
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Firmware upgradeable Yes
Operating system installed DrayOS
Power
Redundant power supply (RPS) support Yes
Power supply included Yes
Power source AC/DC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 400 W
Power over Ethernet (PoE) Yes
Other features
Warranty period 2 year(s)
Operational conditions
Heat dissipation 1562 BTU/h
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 5.49 kg
Height 44 mm
Depth 346 mm
Width 440 mm
Packaging content
Rack mount kit Yes
Quick start guide Yes
Packaging data
Package type Box
