SKU: VSP1281X-K

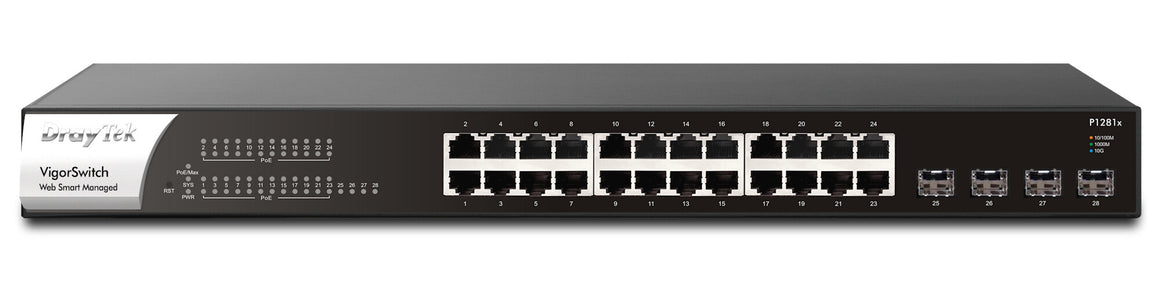

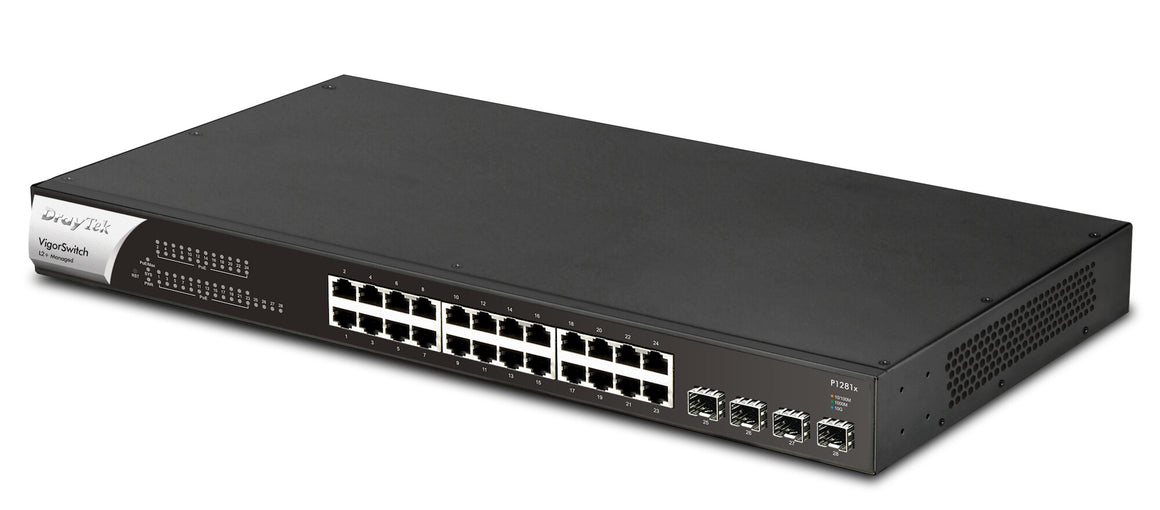

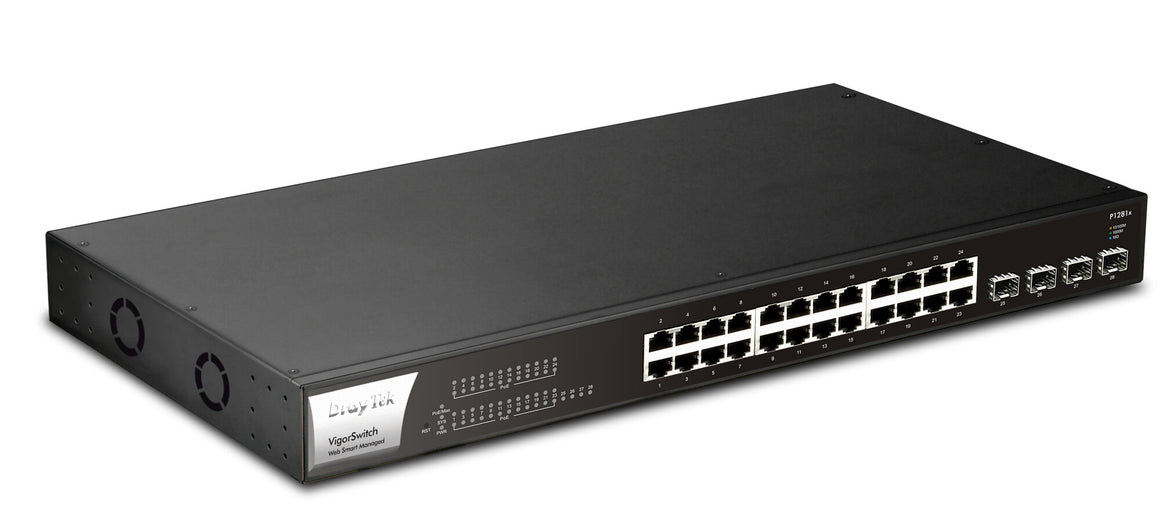

DrayTek VSP1281X-K network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Draytek
£312.98
  • 24 RJ-45 Ethernet PoE+ Ports – 10/100/1000Mbps
  • 4 x SFP+ 10GbE Ports for Uplink / Fibre
  • PoE (Power-over-Ethernet) for IP phones, wireless access points, IP cameras etc
  • 140-watt Power-over-Ethernet budget
  • Cloud Managed with VigorACS
  • 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
  • ONVIF IP Camera Surveillance Management with PoE Device Check
  • Access Control List (ACL) for port & traffic level security
  • Port Mirroring & Link Aggregation
  • IGMP Snooping & Querying
  • IPv4 and IPv6 Support with IP Conflict Prevention
  • Centrally managed or standalone operation

VigorSwitch P1281x is a smart switch with 24 x GbE PoE+ ports (total of 140W output) and 4 additional independent SFP+ 10Gbps interfaces. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.
Designed for centralised management, the VigorSwitch P1281x can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.

Management features
System event log Yes
Traffic classification Yes
Web-based management Yes
Cloud-managed Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
VLAN support Yes
Protocols
IP Source Guard (IPSG) Yes
Design
Product colour Black
Form factor 1U
Rack mounting Yes
Performance
Fanless Yes
Firmware upgradeable Yes
Power
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 140 W
Power over Ethernet plus (PoE+) ports quantity 24
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) type supported PoE+
Power over Ethernet (PoE) Yes
Other features
Warranty period 2 year(s)
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 3.25 kg
Height 44 mm
Depth 216 mm
Width 440 mm
Packaging content
Rack mount kit Yes
Quick start guide Yes
Cables included LAN (RJ-45), Power
