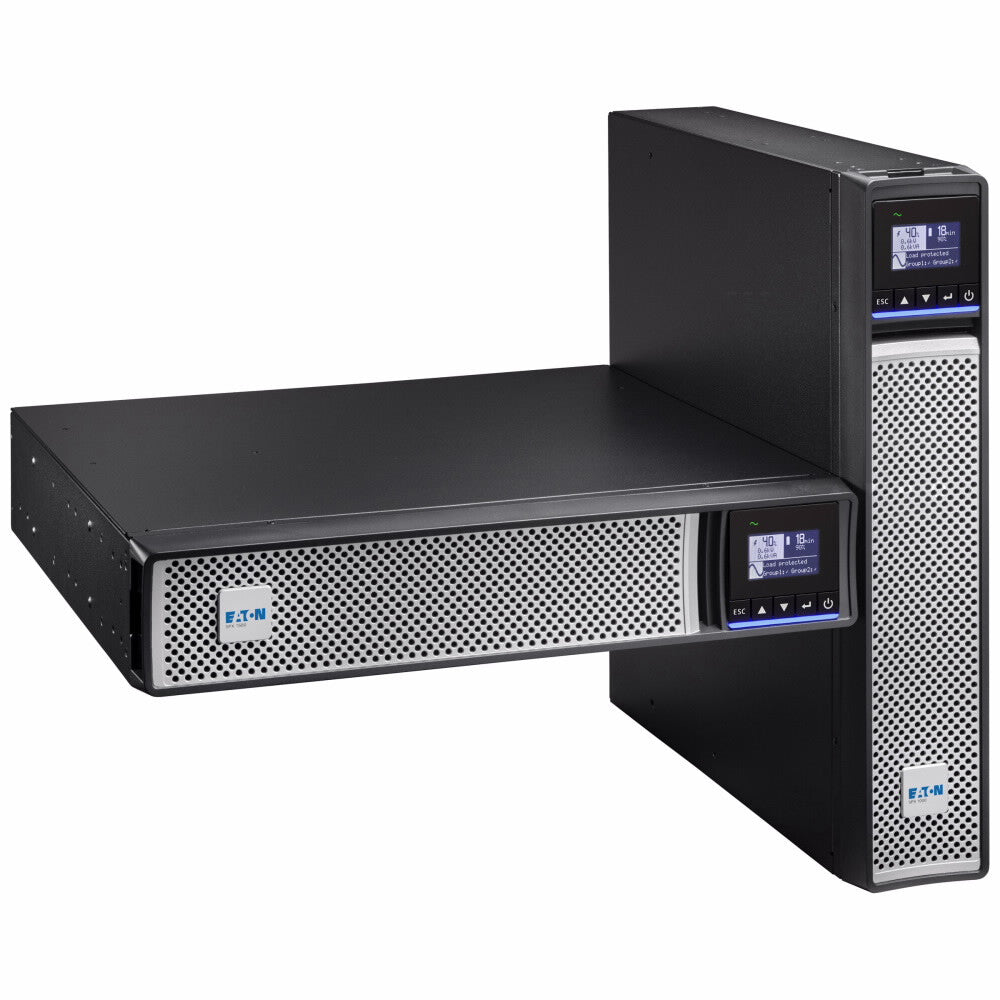

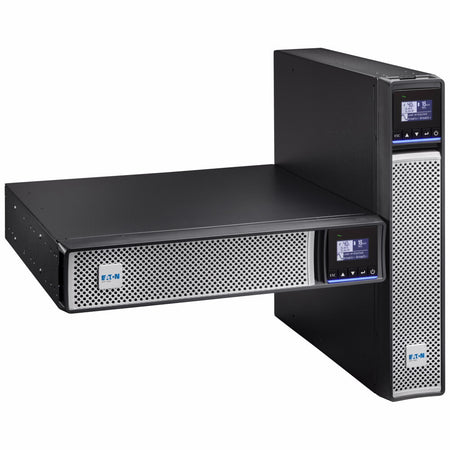

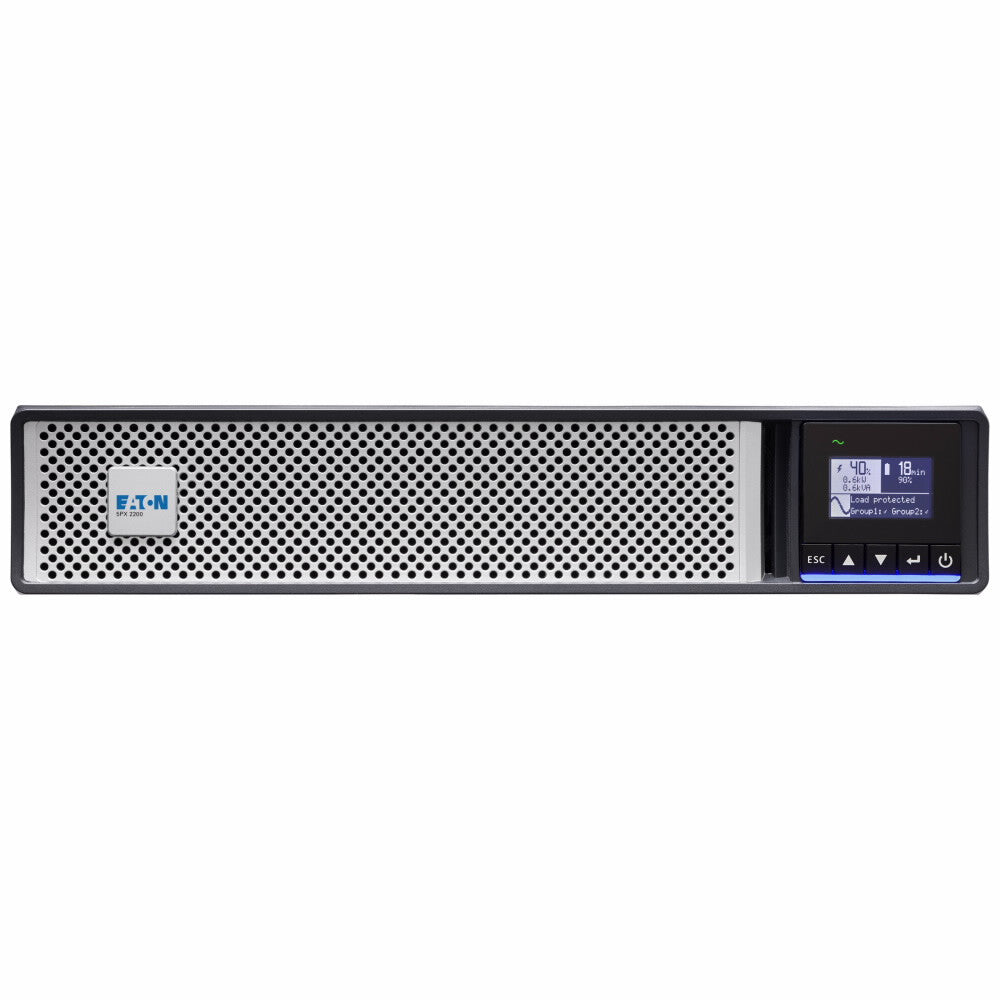

The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximising IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.
| Features |
|---|
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Output power factor |
1 |
| Power factor |
1 |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
47/70 Hz |
| Input operation voltage (max) |
294 V |
| Input operation voltage (min) |
150 V |
| Waveform |
Sine |
| Output power |
2200 W |
| Output power capacity |
2.2 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
|---|
| Automatic battery test |
Yes |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
|---|
| Display type |
LCD |
| Cable length |
1.8 m |
| Product colour |
Black, Silver |
| Form factor |
Rackmount/Tower |
| Operational conditions |
|---|
| Operating altitude |
0 - 3000 m |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA 22.2cTUVusEACCmUKCAUkrKCC |
| Compliance certificates |
CE, REACH, RoHS |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Packaging content |
|---|
| Cables included |
Input power cable, Serial, USB cable |
