SKU: EVMAF332A

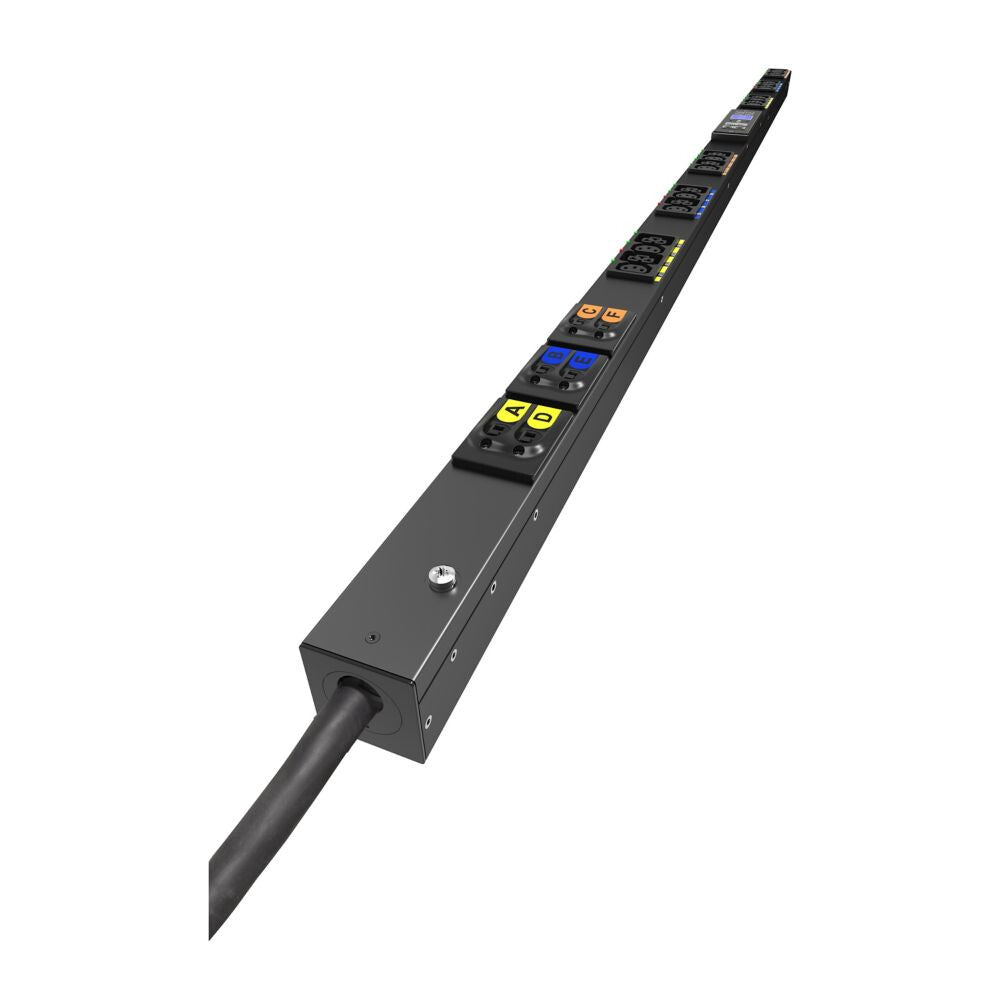

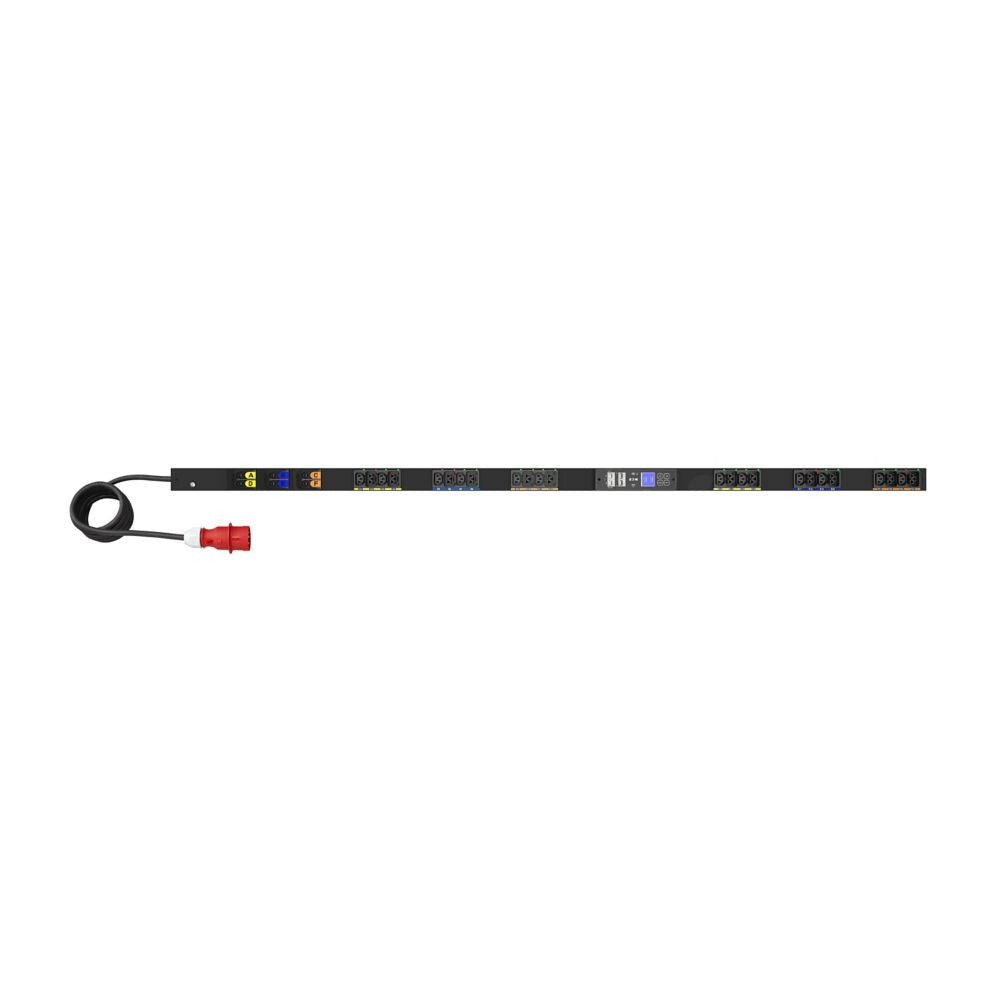

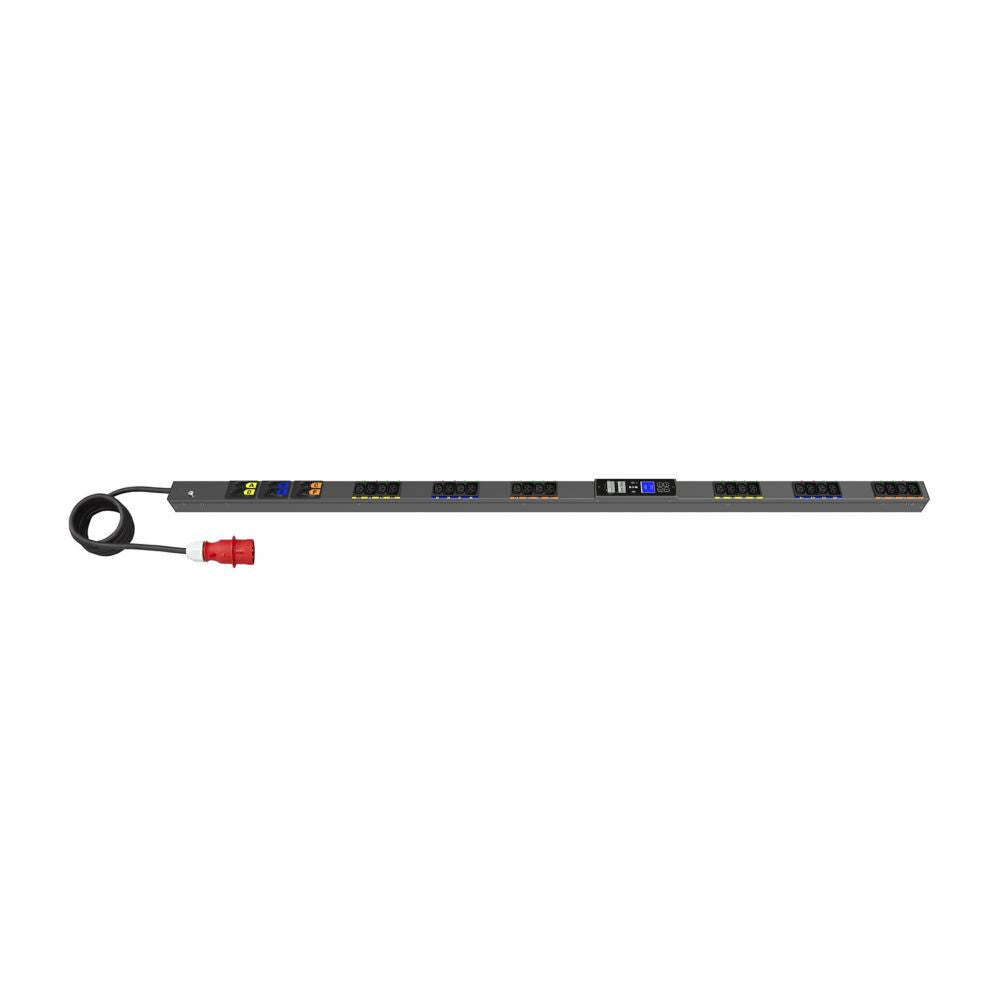

Eaton EVMAF332A power distribution unit (PDU) 24 AC outlet(s) 39U Black

Eaton
£1,835.62
iFrame
  • Remote Site Management
  • Versatile C39 outlet supports C14 or C20 power cord plug
  • High retention outlets designed to securely fit standard power cords and support P-Lock power cords
  • Cybersecurity standards UL 2900-1 and IEC 62443-4-2
  • Hot-Swap network control module
  • Network Cascading, connect up to 32 PDUs via network loop
  • Power sharing between two network modules PDUs ensures constant access to PDU data & sensors
  • 1% IEC Class 1 billing grade measurement accurancy
  • Gigabit network card with 2x Gb ports
  • Support protocols RestAPI, Modbus TCP, SNMP, LDAP, HTTPS
  • 1% measurement accuracy at the outlet level (V, W, A)
  • Outlets control for On/Off, reboot, and sequential start-up capabilities
Design
Display LCD
Product colour Black
Housing material Aluminium
Mounting Vertical
Rack capacity 39U
Type Three-phase
PDU types Managed
Ports & interfaces
USB ports quantity 2
Ethernet LAN (RJ-45) ports 4
AC outlet types C13 coupler, C39 coupler
Power plug IEC 60309
AC outlets quantity 24 AC outlet(s)
Features
Security algorithms SNMP
Cable length 3 m
Colour-coded outlets Yes
Management features
Supported network protocols HTTPS
Power
Maximum power 22000 W
Maximum current 32 A
AC input frequency 50/60 Hz
Nominal input voltage 200-240 V
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Weight & dimensions
Height 1730 mm
Depth 53 mm
Width 52 mm
