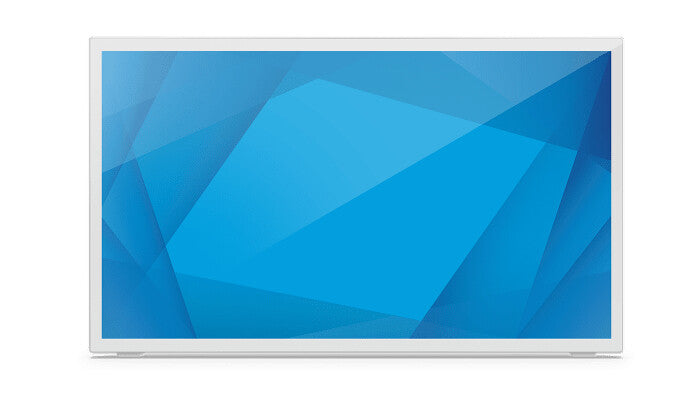

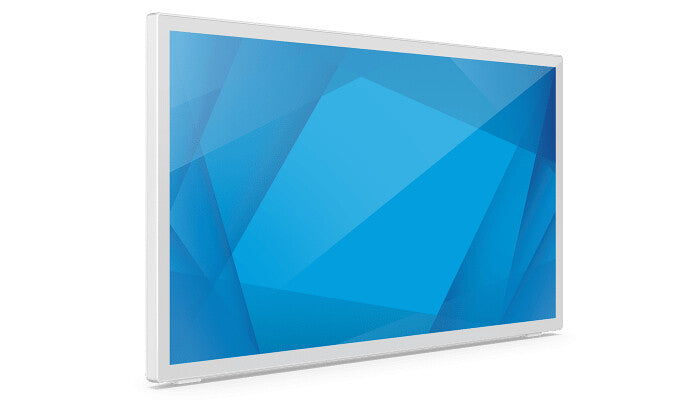

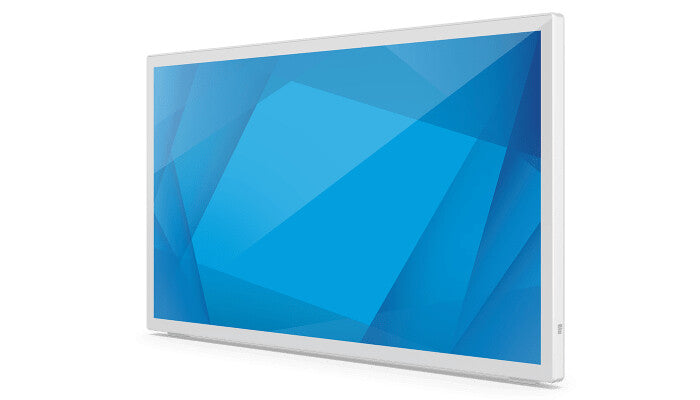

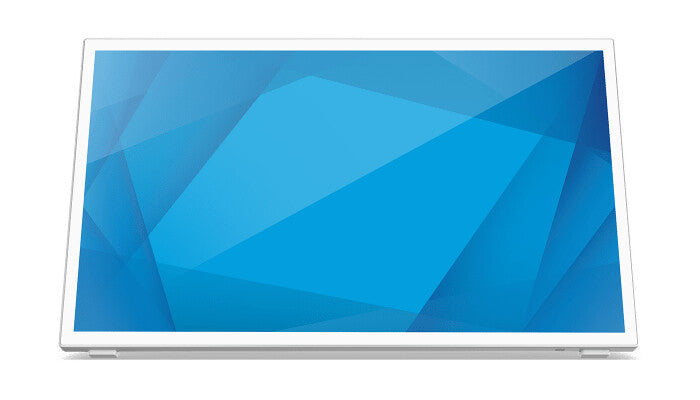

The bezel just got smaller.
The 2270L 22” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Minimalistic design to fit any space.

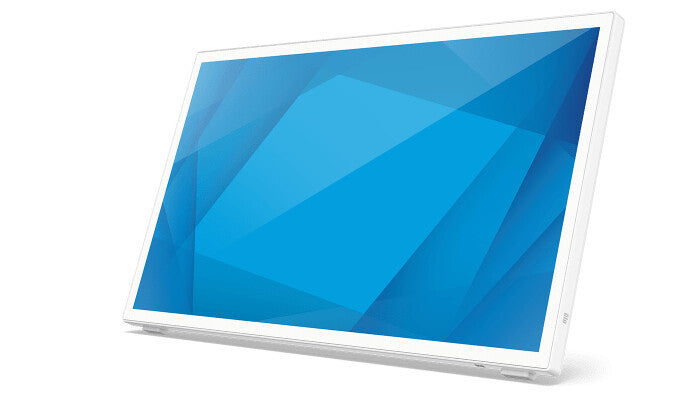

From 20 degrees to 70 degrees, angle the display where you want it.
Place it on a desktop, mount it on a wall or configure the 2270L to fit your space with VESA-compatibility.
VESA-compatibility. Built-in speakers and integrated IO.
Durable, energy efficient touchscreen.
Scratch-resistant glass surface.
IK07 impact resistant.
ES8.0 certified for greater energy efficiency.
Increase viewing comfort with low blue light and flicker free features.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
| Display |
|---|
| Vertical scan range |
50 - 75 Hz |
| Horizontal scan range |
30 - 82 kHz |
| Display number of colours |
1.67 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Response time |
14 ms |
| Display brightness |
405 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Capacitive |
| Panel type |
TFT |
| HD type |
4K Ultra HD |
| Touchscreen |
Yes |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5") |
| Performance |
|---|
| Number of simultaneous touchpoints (Windows 7) |
10 |
| OmniTapps Multitouch compatibility |
No |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in microphone |
No |
| Built-in camera |
No |
| RMS rated power |
20 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
White |
| Ports & interfaces |
|---|
| HDCP |
Yes |
| Headphone outputs |
1 |
| Audio output |
Yes |
| Audio input |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB upstream port type |
USB Type-A, USB Type-B |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
1361162 |
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.16 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
13.8 W |
| Energy consumption (SDR) per 1000 hours |
12 kWh |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
D |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 95% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight (without stand) |
4.1 kg |
| Height (without stand) |
302.4 mm |
| Depth (without stand) |
41.3 mm |
| Width (without stand) |
504.7 mm |
| Packaging data |
|---|
| Package weight |
6.3 kg |
| Package height |
136 mm |
| Package depth |
395 mm |
| Package width |
589 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, HDMI, USB |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Other features |
|---|
| Certification |
UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC |
| Mean time between failures (MTBF) |
50000 h |
| Compliance certificates |
RoHS |
| Display viewable area (HxV) |
1209.6 x 680.4 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
