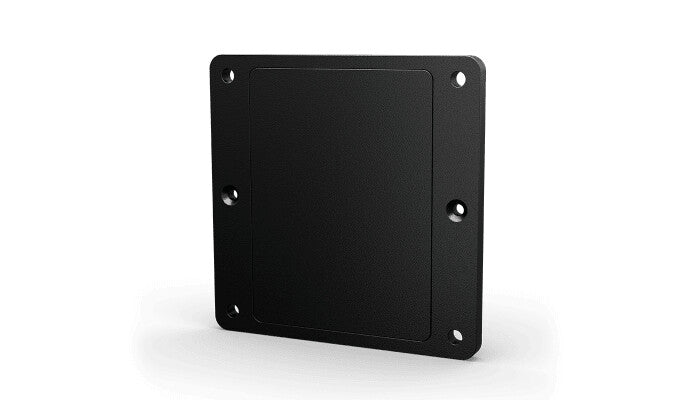

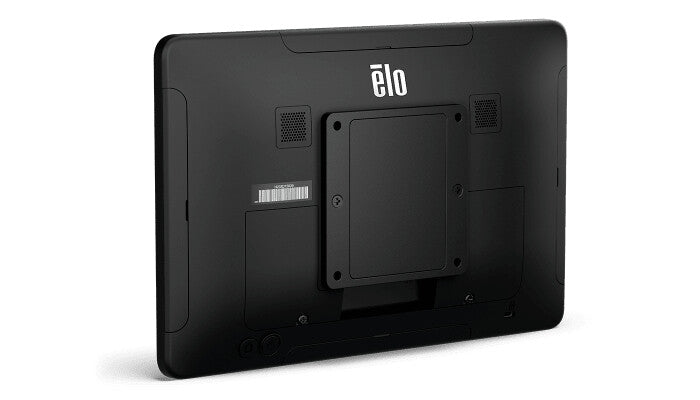

The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the Android I-Series. The module allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source. So instead of requiring a power drop which can be expensive, you can run a low voltage network to simplify installation of solutions for shelf signage and AV applications like conference room schedulers or AV control displays.
| Network |
|---|
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Features |
|---|
| Easy to install |
Yes |
| Wall mountable |
Yes |
| Product colour |
Black |
| Power |
|---|
| Power over Ethernet (PoE) voltage |
1500 V |
| Certificates |
|---|
| Certification |
UL/cUL (US), FCC (US), IC (Canada), CE (Europe), CB (International), VCCI, MIC (Japan), RCM (Australia) |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), VCCI, cUL |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
UL ECOLOGO |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
32 - 104 °F |
| Weight & dimensions |
|---|
| Weight |
119 g |
| Height |
115 mm |
| Depth |
18.8 mm |
| Width |
115 mm |
| Packaging content |
|---|
| Packaging content |
POE Module, 2x M3x8mm flat head screws (in a ziplock bag, labeled), 4x M4x12mm flat head screws (in a ziplock bag, labeled)4x M4x12mm pan head screws (in a ziplock bag, labeled), 1x POE Spacer, Hot plug warning labe |
| Quick installation guide |
Yes |
| Number of products included |
1 pc(s) |
| Wall mounting kit |
Yes |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
250 g |
| Package height |
167 mm |
| Package depth |
64 mm |
| Package width |
164 mm |
