The touchmonitor just got better.

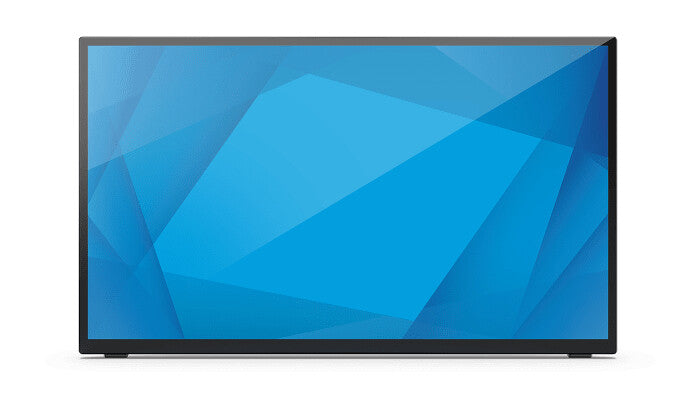

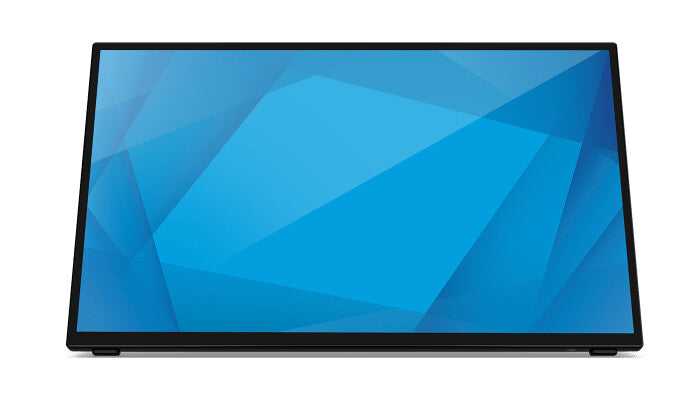

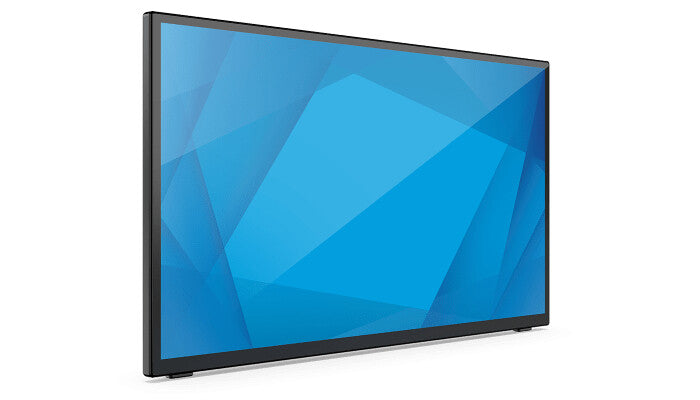

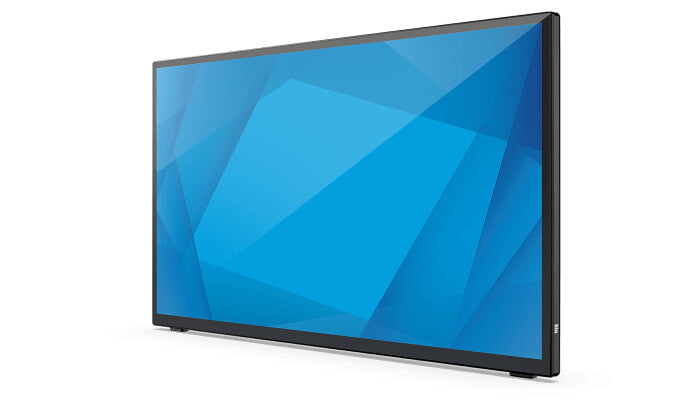

Elo 2470L 24" Full HD Touchscreen Monitor
The bezel just got smaller.
The 2470L 24” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Minimalistic design to fit any space.

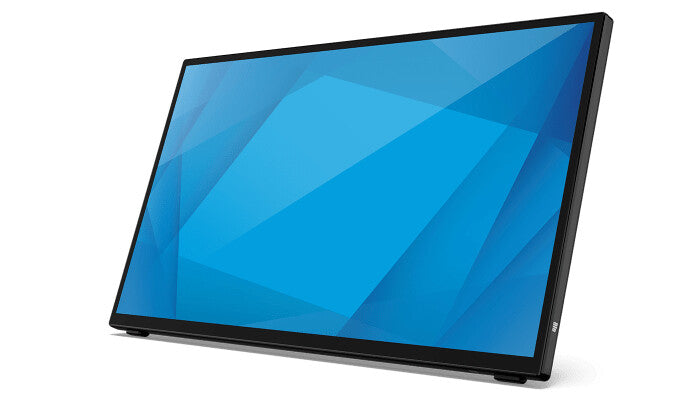

From 20 degrees to 70 degrees, angle the display where you want it.
Place it on a desktop, mount it on a wall or configure the 2470L to fit your space with VESA-compatibility.
Scratch-resistant glass surface
- IK07 impact resistant
- ES8.0 certified for greater
- energy efficiency
Increase viewing comfort with low blue light and flicker free features.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
| Display |
|---|
| Vertical scan range |
50 - 75 Hz |
| Horizontal scan range |
30 - 82 kHz |
| Display number of colours |
1.67 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Response time |
16 ms |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Capacitive |
| Panel type |
TFT |
| HD type |
4K Ultra HD |
| Touchscreen |
Yes |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Performance |
|---|
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in camera |
No |
| RMS rated power |
20 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Ports & interfaces |
|---|
| Audio output |
Yes |
| Audio input |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB upstream port type |
USB Type-A, USB Type-B |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| On Screen Display (OSD) |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
1365137 |
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.16 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
13.8 W |
| Energy consumption (SDR) per 1000 hours |
12 kWh |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
D |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 95% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight (without stand) |
4.8 kg |
| Height (without stand) |
329.3 mm |
| Depth (without stand) |
41.8 mm |
| Width (without stand) |
550.2 mm |
| Packaging data |
|---|
| Package weight |
7.1 kg |
| Package height |
136 mm |
| Package depth |
418 mm |
| Package width |
630 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, HDMI, USB |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Other features |
|---|
| Certification |
UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC |
| Mean time between failures (MTBF) |
50000 h |
| Compliance certificates |
RoHS |
