EloPOS™ System Modern. Modular. Made for Retail.
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15.6-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.
Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
Connections. Connections. Connections.
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.
Configure Your Solution
EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.

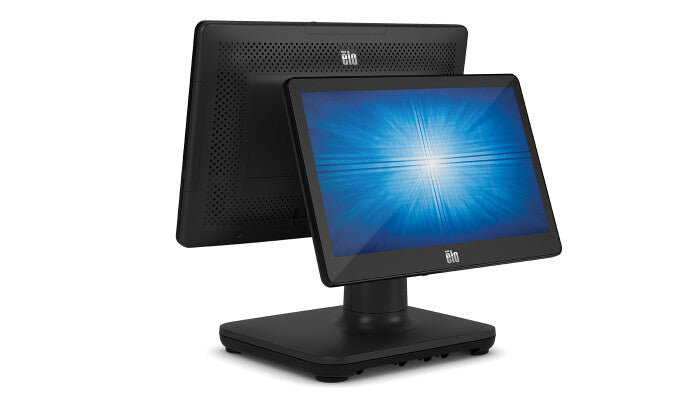

Add a Customer-Facing
Display with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a customer-facing - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Windows or Linux. You Choose.
EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.
Retail-Hardened
Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare Advance Exchange options - making EloPOS the ideal product for point of sale applications.
Get Peace of Mind With EloCareSM
Your point of sale system is central to your operation, and no one wants to experience difficulty during the checkout process. With EloCare Advance Exchange, in the event you have an issue, all you have to do is call Elo. We will have you up and running as soon as possible by shipping you a replacement unit.*
*This program is available for customers within the United States and Canada.
| Display |
|---|
| Display brightness |
220 cd/m² |
| Aspect ratio |
16:9 |
| Touchscreen technology |
Projected capacitive system |
| Viewing angle, horizontal |
45° |
| Viewing angle, vertical |
50° |
| Display number of colours |
262144 colours |
| Effective viewing area |
344.2 x 193.5 mm |
| Contrast ratio (typical) |
400:1 |
| Response time |
10 ms |
| Display type |
LCD |
| Touchscreen |
Yes |
| Display resolution |
1366 x 768 pixels |
| Display diagonal |
39.6 cm (15.6") |
| Processor |
|---|
| Motherboard chipset |
Intel® H310 |
| System bus rate |
8 GT/s |
| Processor cache |
6 MB |
| Processor frequency |
3.1 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Processor model |
i3-8100T |
| Processor generation |
8th gen Intel® Core™ i3 |
| Processor family |
Intel® Core™ i3 |
| Memory |
|---|
| Memory clock speed |
2400 MHz |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
4 GB |
| Storage |
|---|
| SSD form factor |
M.2 |
| SSD capacity |
128 GB |
| SSD interface |
Serial ATA |
| Number of storage drives supported |
1 |
| Storage media type |
SSD |
| Storage media |
SSD |
| Total storage capacity |
128 GB |
| Graphics |
|---|
| Maximum on-board graphics card memory |
64 GB |
| Graphics card |
UHD Graphics 630 |
| Graphics card manufacturer |
Intel |
| Features |
|---|
| Certification |
UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC |
| Multimedia |
|---|
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Network |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Line-out |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
3 |
| Performance |
|---|
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Operating system installed |
Windows 10 |
| Power |
|---|
| Power supply |
180 W |
| Power consumption (typical) |
65 W |
| AC adapter output voltage |
24 V |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Ergonomics |
|---|
| Mean time between failures (MTBF) |
50000 h |
| Weight & dimensions |
|---|
| Weight (with stand) |
4.9 kg |
| Height (with stand) |
369.3 mm |
| Depth (with stand) |
221.2 mm |
| Width (with stand) |
386.2 mm |
| Packaging data |
|---|
| Package weight |
7.3 kg |
| Package height |
470 mm |
| Package depth |
299 mm |
| Package width |
462 mm |
| Packaging content |
|---|
| Power adapter included |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC, LAN (RJ-45), Serial |
| Security |
|---|
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Logistics data |
|---|
| Harmonized System (HS) code |
84715000 |
| Other features |
|---|
| I/O ports |
Micro USB 2.0, Cash Drawer, USB-C |
