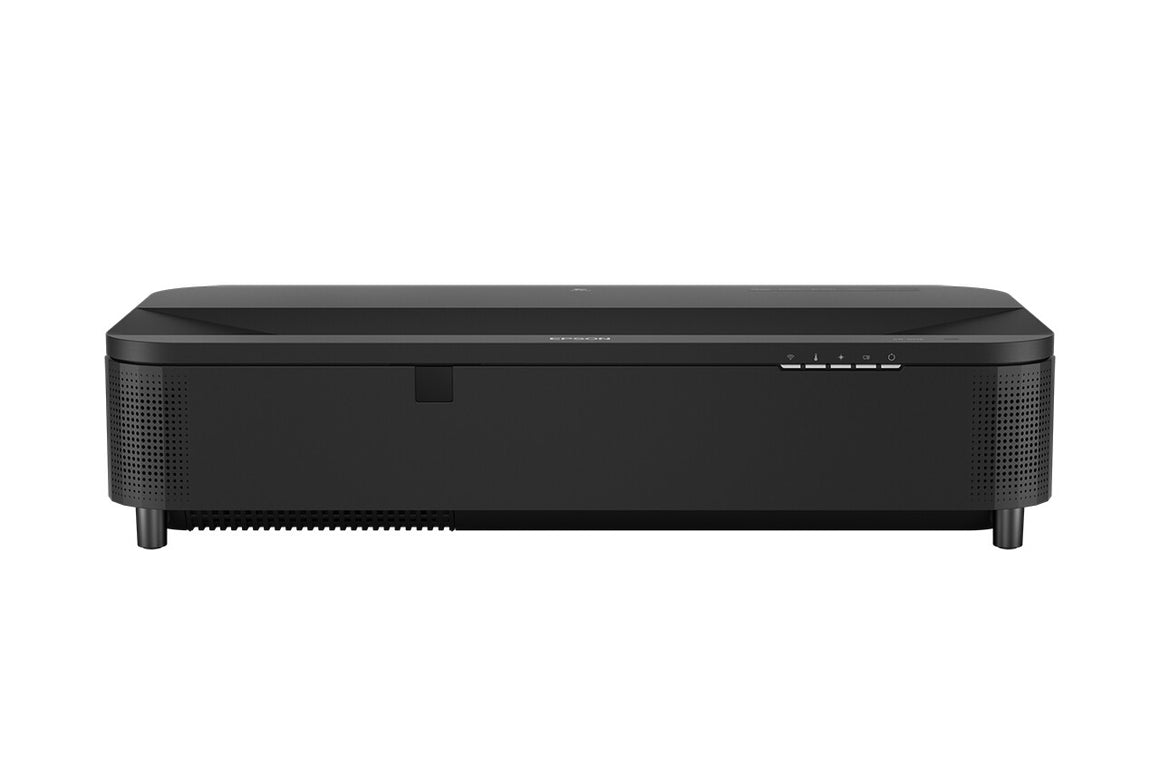

EB-815E, Epson’s first 4KE super-ultra-short-throw laser display designed for businesses, hybrid working and immersive spaces
The EB-815E can be placed just centimetres away from a wall to create bright 4KE images up to 160”. It projects content in stunning clarity and offers a low cost, energy efficient large display solution with a convenient and quick set up.
| Projector |
|---|
| Matrix size |
1.57 cm (0.62") |
| Projector brightness (economic mode) |
3500 ANSI lumens |
| Screen size compatibility |
2032 - 4064 mm (80 - 160") |
| Smart projector |
No |
| Native aspect ratio |
16:9 |
| Contrast ratio (typical) |
25000000:1 |
| Projector native resolution |
1080p (1920x1080) |
| Projection technology |
3LCD |
| Projector brightness |
5000 ANSI lumens |
| Light source |
|---|
| Service life of light source (economic mode) |
30000 h |
| Service life of light source |
20000 h |
| Light source type |
Laser |
| Lens system |
|---|
| Throw ratio |
0.16 - 0.40:1 |
| Zoom ratio |
1.35:1 |
| F-number (relative aperture) |
1.8 |
| Fixed focal length |
2.3 mm |
| Focus |
Manual |
| Video |
|---|
| Video colour modes |
Blackboard, Cinema, DICOM simulation mode, Dynamic, Natural, Presentation |
| 3D |
No |
| Full HD |
Yes |
| Analog signal format system |
Not supported |
| Ports & interfaces |
|---|
| Serial interface type |
RS-232C |
| USB 2.0 ports quantity |
2 |
| Service port type |
USB Type-B |
| DVI port |
No |
| HDMI ports quantity |
3 |
| Network |
|---|
| Miracast |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN |
Yes |
| Smart TV |
No |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Password protection |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Noise level (economic mode) |
26 dB |
| Noise level |
35 dB |
| Interactive |
No |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Design |
|---|
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Placement |
Ceiling, Desktop, Wall |
| Product colour |
Black |
| Market positioning |
Business |
| Product type |
Ultra short throw projector |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC adapter output voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (economy mode) |
192 W |
| Power consumption (max) |
380 W |
| Power consumption (typical) |
290 W |
| Power source |
AC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Weight & dimensions |
|---|
| Height |
156 mm |
| Depth |
341 mm |
| Width |
695 mm |
| Weight |
12.5 kg |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
