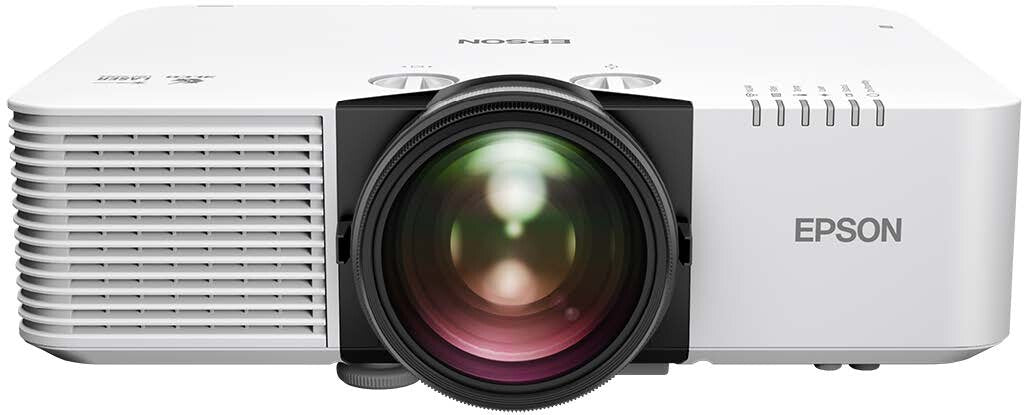

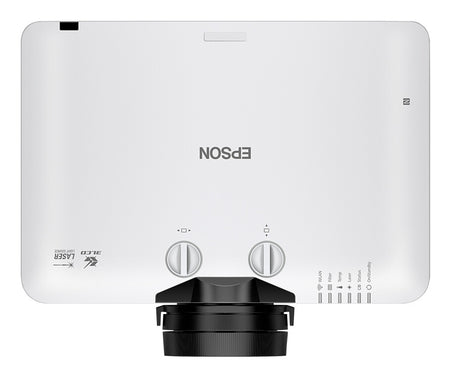

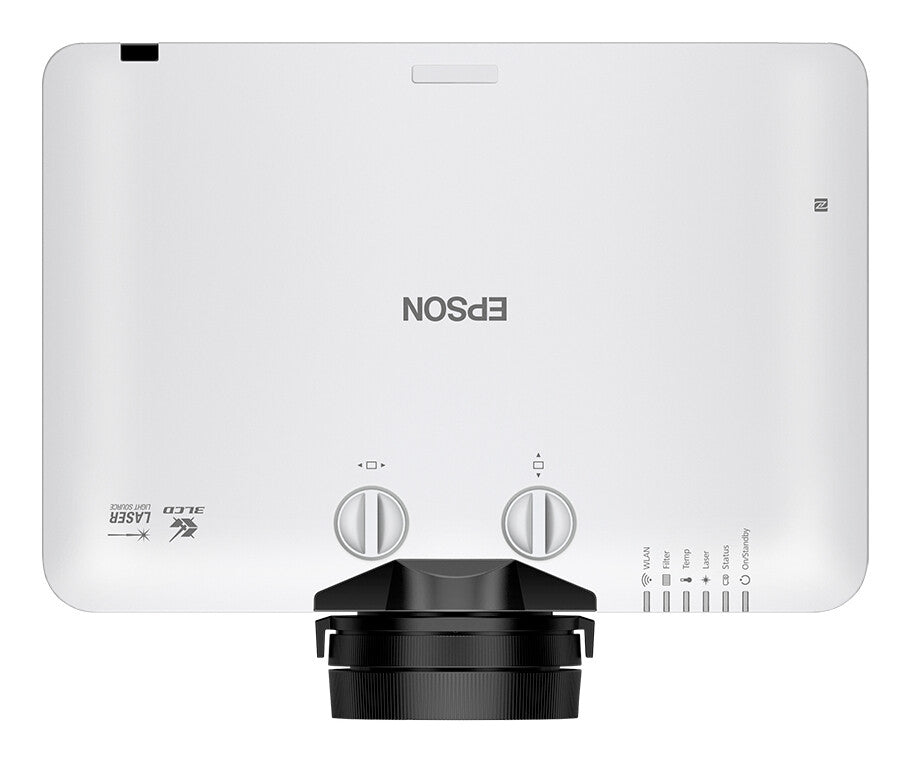

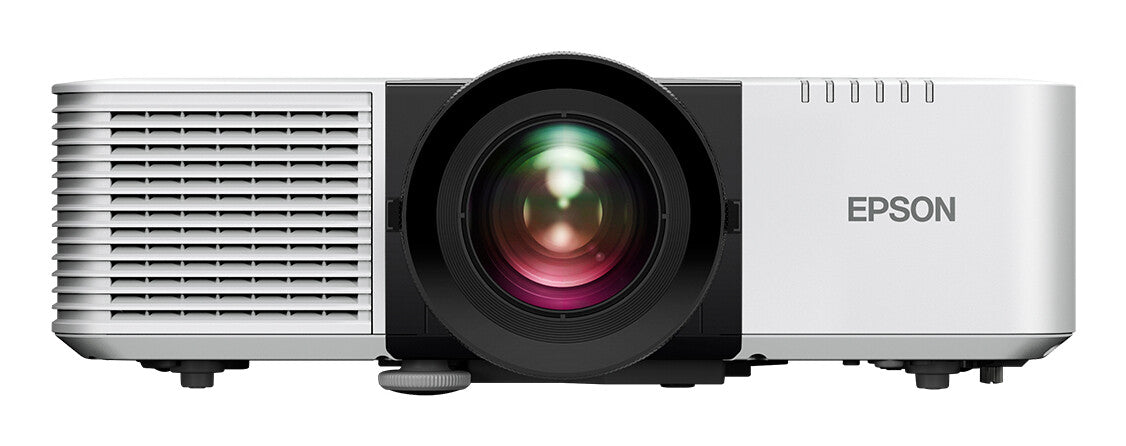

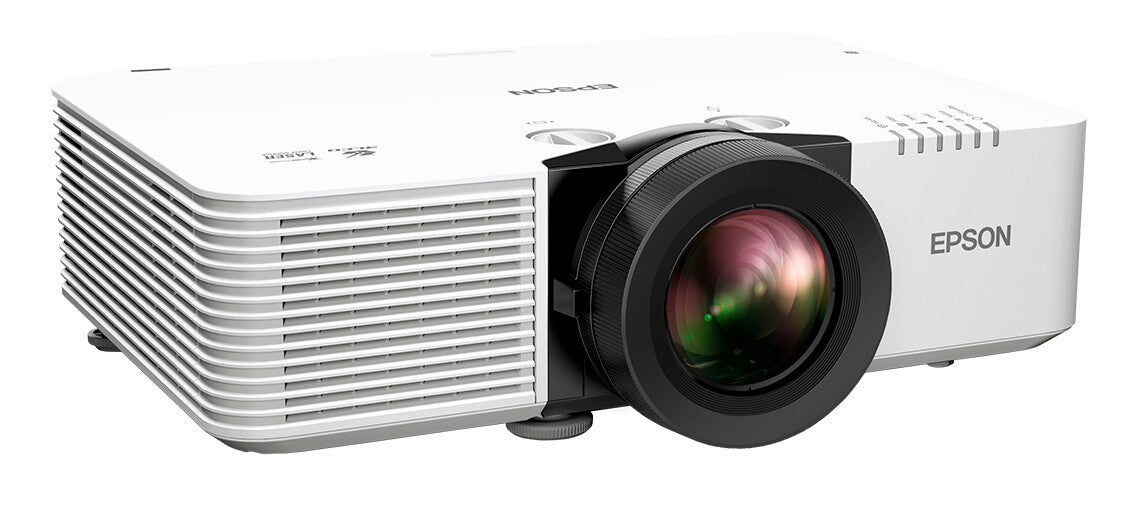

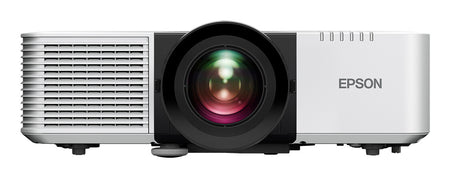

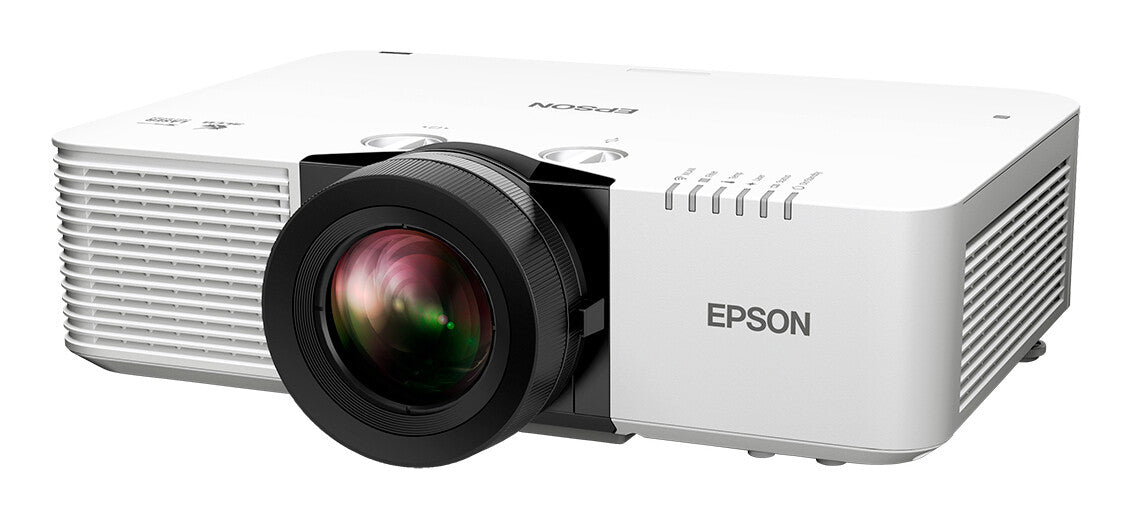

Designed for compact spaces, the EB-L690SU short-throw offers 6,200 lumens of bright WUXGA resolution, HDR and advanced installation features. It provides up to 30,000 hours of maintenance-free projection in Eco mode, lens shift, 1.7x zoom and 10W speakers. Ideal for professional applications with flexible control options via HDBaseT, LAN, and wireless.
Spectacular short throw professional projector
Create stunning, shadow-free presentations in compact spaces with a short throw ratio of 0.79–1.36:1, built-in lens shift and WUXGA resolution. Featuring 1.7x optical zoom, corner focus and display sizes up to 400", this high-performance display is ideal for sports simulators, visitor attractions, retail and more. Its compact design, low noise and sleek white chassis deliver bright, vibrant, crystal-clear images, even in well-lit environments, ensuring exceptional visuals.
Flexible installation for professional setups
Designed for easy installation, the EB-L690SU can be quickly configured to deliver optimal performance in any room layout. Features such as lens shift, horizontal and vertical keystone correction, and 360° projection ensure precise image positioning. Options like split-screen capabilities, edge blending, and geometry correction, along with the optional ELPEC01 camera and Epson Projector Professional Tool, provide fast setup and calibration, offering flexibility for complex installations.
Smart control for seamless experience
Enhance usability with NFC for easy large-scale rollouts using the Epson Projector Config Tool. The user-friendly OSD menu simplifies navigation, while Epson’s EPMC cloud monitoring allows effortless remote management. Fully compatible with Crestron XiO Cloud, it offers centralised control, and OTA firmware updates ensure the display remains up-to-date for a seamless experience.
Peace of mind with high durability and support
Engineered for long-lasting performance, the EB-L690SU features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson’s renowned after-sales support.
Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.
Stream and share easily
With Apple AirPlay 2 and Miracast connectivity, sharing content is quick and simple - users can wirelessly mirror their device screens to the display for seamless collaboration. The USB-A port also enables PC-free streaming, while additional options like HDBaseT and HDMI daisy-chaining further enhance flexibility.
| Projector |
|---|
| Keystone correction, horizontal |
-30 - 30° |
| Keystone correction, vertical |
-30 - 30° |
| Projector brightness (economic mode) |
4340 ANSI lumens |
| Number of colours |
1.07 billion colours |
| Projection distance (tele) |
1.8 - 11.9 m |
| Projection distance (wide) |
1 - 7 m |
| Projection distance |
1.02 - 11.89 m |
| Screen size compatibility |
1524 - 10160 mm (60 - 400") |
| Supported aspect ratios |
16:10, 16:6, 21:9 |
| Native aspect ratio |
16:10 |
| Contrast ratio (typical) |
5000000:1 |
| Projector native resolution |
WUXGA (1920x1200) |
| Projection technology |
3LCD |
| Projector brightness |
6200 ANSI lumens |
| Light source |
|---|
| Service life of light source (economic mode) |
30000 h |
| Service life of light source |
20000 h |
| Light source type |
Laser |
| Lens system |
|---|
| Vertical lens shift range |
-50 - 50% |
| Horizontal lens shift range |
-20 - 20% |
| Throw ratio |
0.79 - 1.36:1 |
| Zoom ratio |
1.2:1 |
| Zoom type |
Manual |
| Zoom capability |
Yes |
| Aperture range (F-F) |
1.7 - 2.1 |
| Focal length range |
11.6 - 19.9 mm |
| Focus |
Manual |
| Video |
|---|
| Video colour modes |
Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| 3D |
No |
| Full HD |
Yes |
| Analog signal format system |
Not supported |
| Ports & interfaces |
|---|
| Serial interface type |
RS-232C |
| USB 2.0 Type-B ports quantity |
1 |
| USB 2.0 Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
3 |
| HDBaseT port |
Yes |
| DVI port |
No |
| HDMI ports quantity |
2 |
| Network |
|---|
| Apple AirPlay 2 support |
Yes |
| Miracast |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Password protection |
Yes |
| HDCP version |
2.3 |
| On Screen Display (OSD) |
Yes |
| Preset modes |
Cinema, Dynamic, Presentation |
| HDCP |
Yes |
| Noise level (economic mode) |
25 dB |
| Noise level |
34 dB |
| Interactive |
No |
| Multimedia |
|---|
| RMS rated power |
10 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Placement |
Ceiling, Desktop |
| Product colour |
White |
| Market positioning |
Education |
| Product type |
Short throw projector |
| Display |
|---|
| Display diagonal |
1.7 cm (0.67") |
| Display |
LCD |
| Built-in display |
Yes |
| Power |
|---|
| AC adapter output voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (economy mode) |
233 W |
| Power consumption (max) |
399 W |
| Power consumption (standby) |
0.4 W |
| Power consumption (typical) |
336 W |
| Power source |
AC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Weight & dimensions |
|---|
| Height |
151 mm |
| Depth |
362 mm |
| Width |
440 mm |
| Weight |
8.9 kg |
| Packaging content |
|---|
| Cables included |
Power |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Technical details |
|---|
| Warranty period |
3 year(s) |
| Other features |
|---|
| RS-232C |
Yes |
| Supported network protocols |
HTTPS, SNMP, ESC/VP.net, PJLink |
