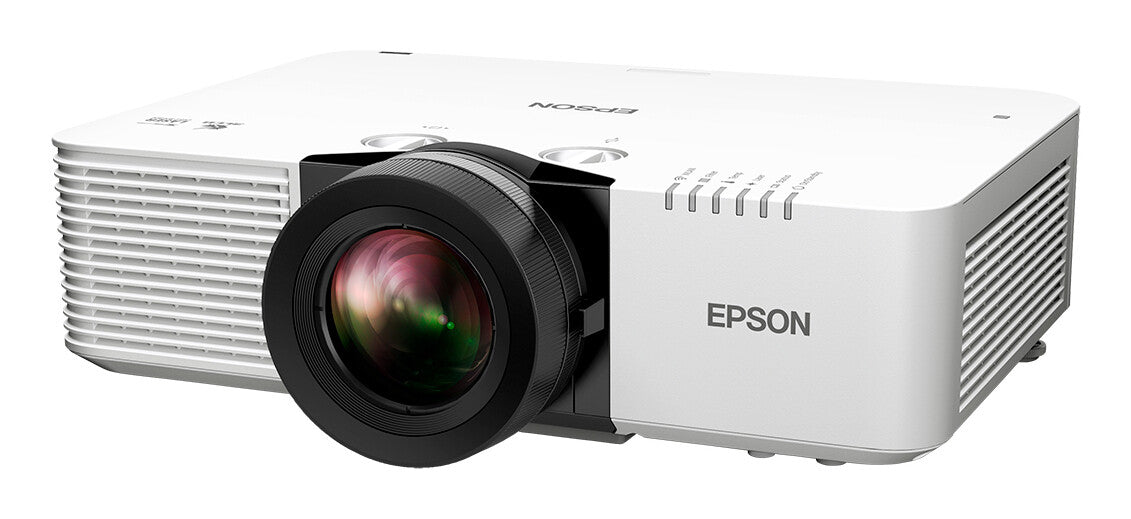

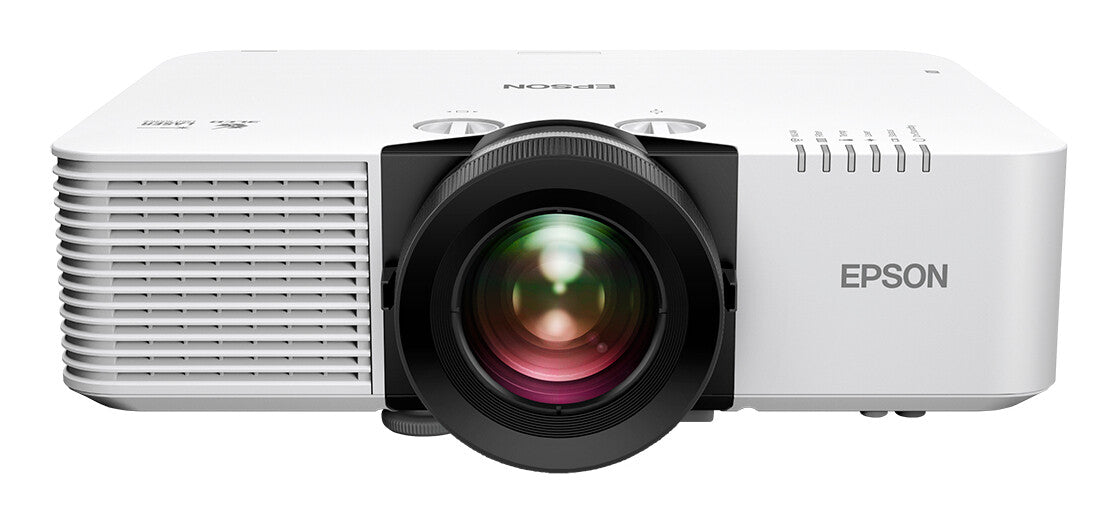

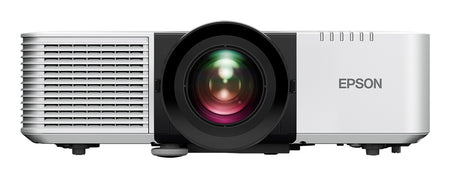

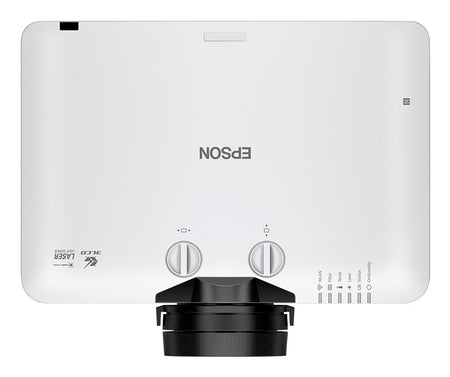

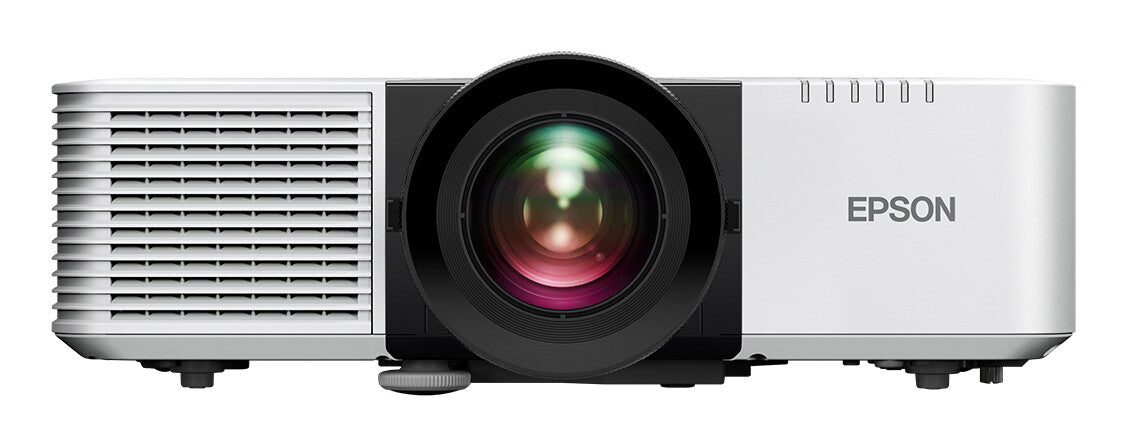

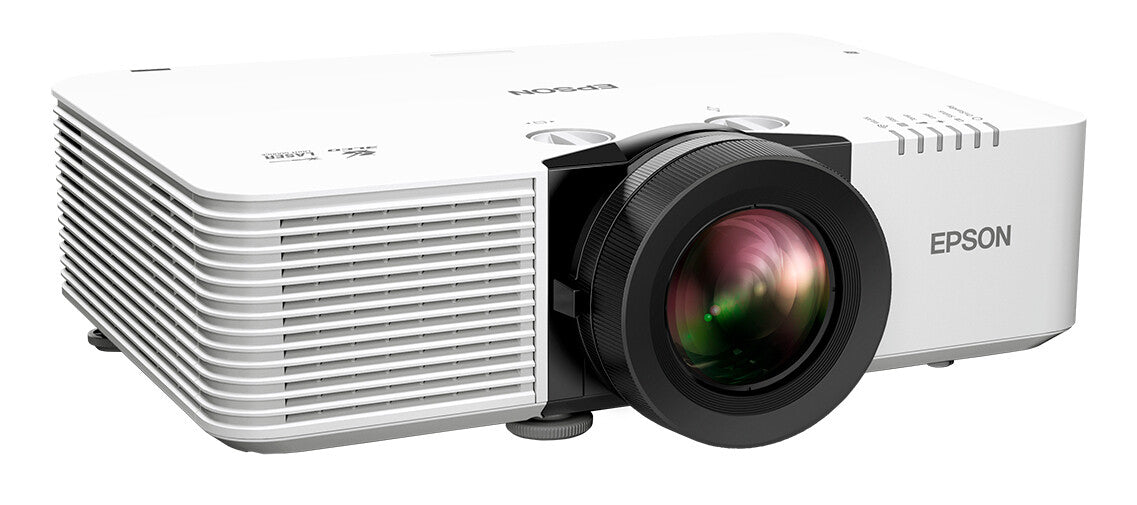

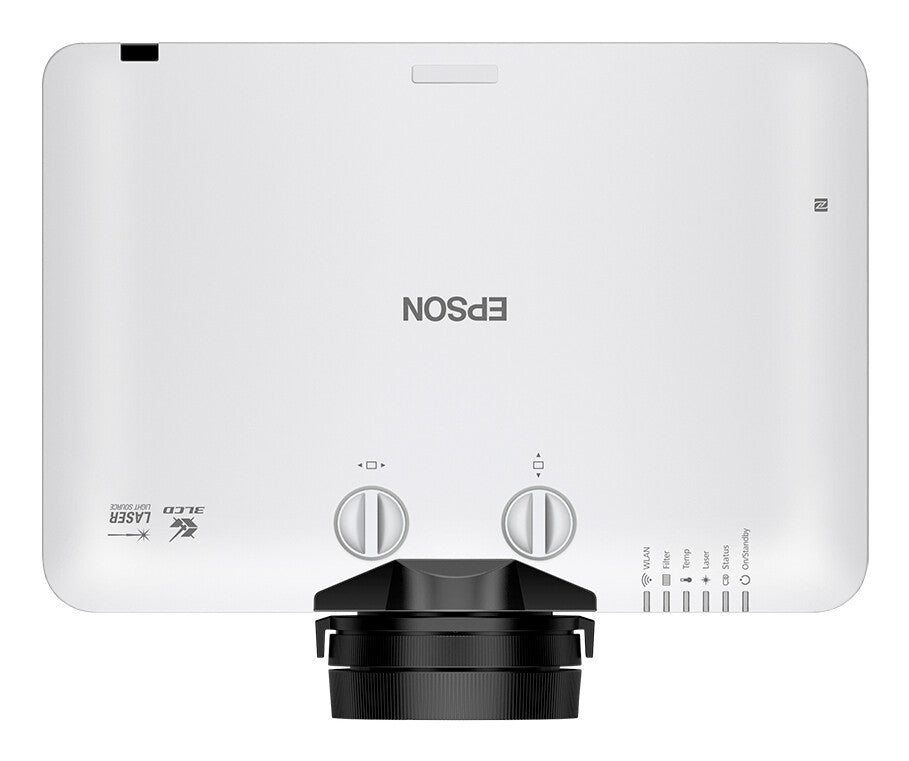

The EB-L890U delivers 8,000 lumens, WUXGA resolution, HDR and advanced installation features. It provides up to 30,000 hours of maintenance-free projection in Eco mode. Featuring a fixed centre lens with manual lens shift, 1.6x zoom and 10W speakers, it’s ideal for professional applications and offers flexible control options via HDBaseT, LAN and wireless.
| Projector |
|---|
| Keystone correction, horizontal |
-30 - 30° |
| Keystone correction, vertical |
-30 - 30° |
| Number of colours |
1.07 billion colours |
| Projection distance (tele) |
2.4 - 23.8 m |
| Projection distance (wide) |
1.4 - 14.8 m |
| Screen size compatibility |
1270 - 12700 mm (50 - 500") |
| Native aspect ratio |
16:10 |
| Contrast ratio (typical) |
5000000:1 |
| Projector native resolution |
WUXGA (1920x1200) |
| Projection technology |
3LCD |
| Projector brightness |
8000 ANSI lumens |
| Light source |
|---|
| Service life of light source (economic mode) |
30000 h |
| Service life of light source |
20000 h |
| Light source type |
Laser |
| Lens system |
|---|
| Vertical lens shift range |
0 - 50% |
| Horizontal lens shift range |
0 - 20% |
| Throw ratio |
1.35 - 2.2:1 |
| Zoom type |
Manual |
| Zoom capability |
Yes |
| Aperture range (F-F) |
1.5 - 1.7 |
| Focal length range |
20 - 31.8 mm |
| Focus |
Manual |
| Video |
|---|
| Video colour modes |
Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
| 3D |
No |
| Full HD |
Yes |
| Analog signal format system |
Not supported |
| Ports & interfaces |
|---|
| Serial interface type |
RS-232C |
| USB 2.0 Type-B ports quantity |
1 |
| USB 2.0 Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
3 |
| Service port type |
USB Type-B |
| HDBaseT port |
Yes |
| DVI port |
No |
| HDMI ports quantity |
3 |
| Network |
|---|
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) |
| HDCP |
Yes |
| Noise level (economic mode) |
26 dB |
| Noise level |
36 dB |
| Interactive |
No |
| Multimedia |
|---|
| RMS rated power |
10 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Placement |
Ceiling, Desktop |
| Product colour |
White |
| Market positioning |
Education |
| Power |
|---|
| AC adapter output voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (economy mode) |
266 W |
| Power consumption (max) |
450 W |
| Power consumption (standby) |
0.4 W |
| Power consumption (typical) |
388 W |
| Power source |
AC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Weight & dimensions |
|---|
| Height |
138 mm |
| Depth |
340 mm |
| Width |
440 mm |
| Weight |
8.5 kg |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
