See in great detail

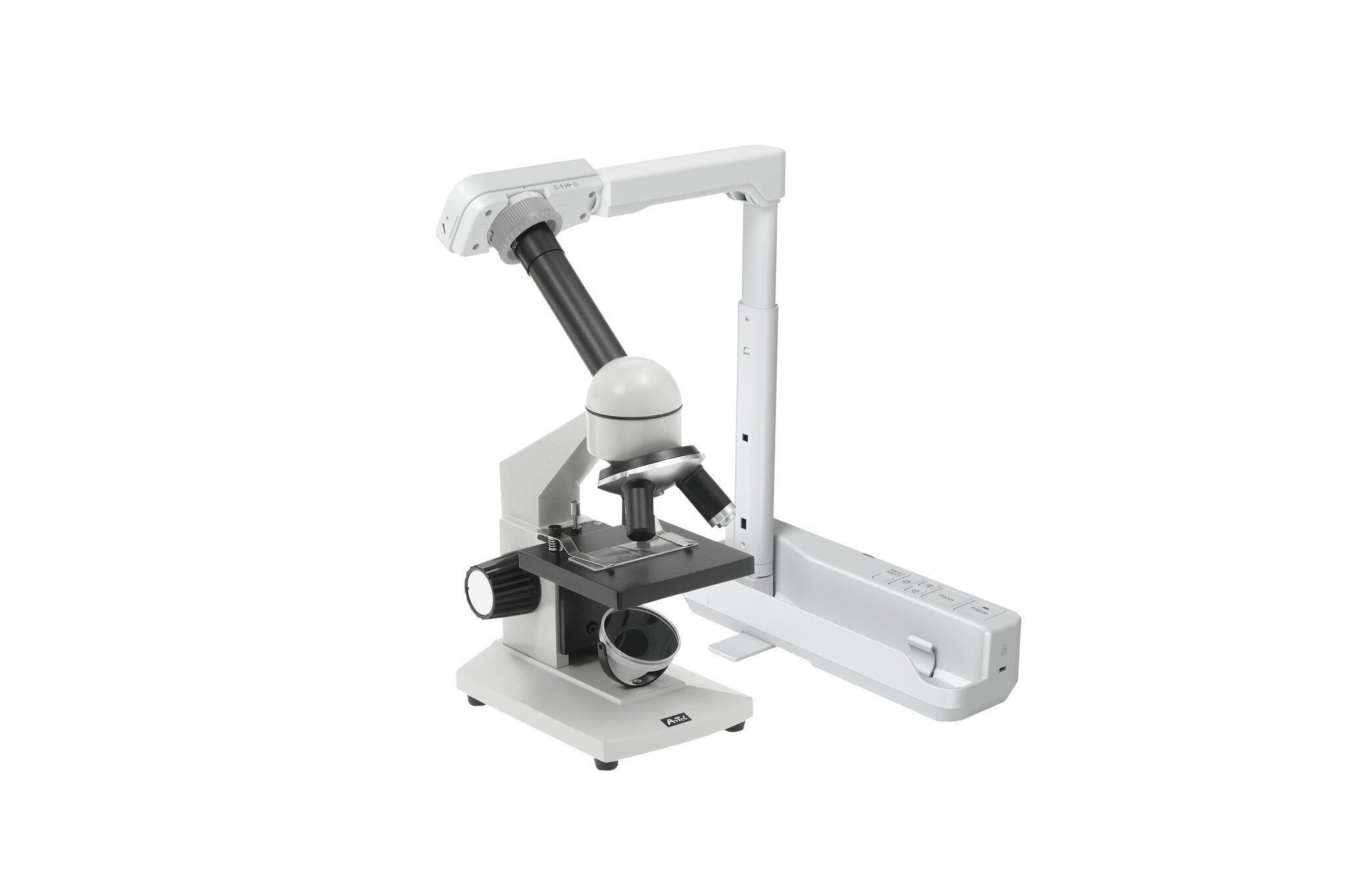

Share high-quality visuals including detailed diagrams and textbook pages with a Full HD 1080p output and 8x digital zoom. You can even adjust the height and rotate the camera 90º to accommodate 3D objects. For science lessons, the supplied microscope attachment can also be used to unveil fascinating microscopic worlds in real-time.
Effortless to use
Minimise preparation time with this high-tech, compact and affordable portable solution, that makes it quick and easy to enlarge source material. In just seconds, you can connect directly to the latest Epson projectors using the two in one USB cable connection which provides power and transmits the video signal.
Highly portable, modern design

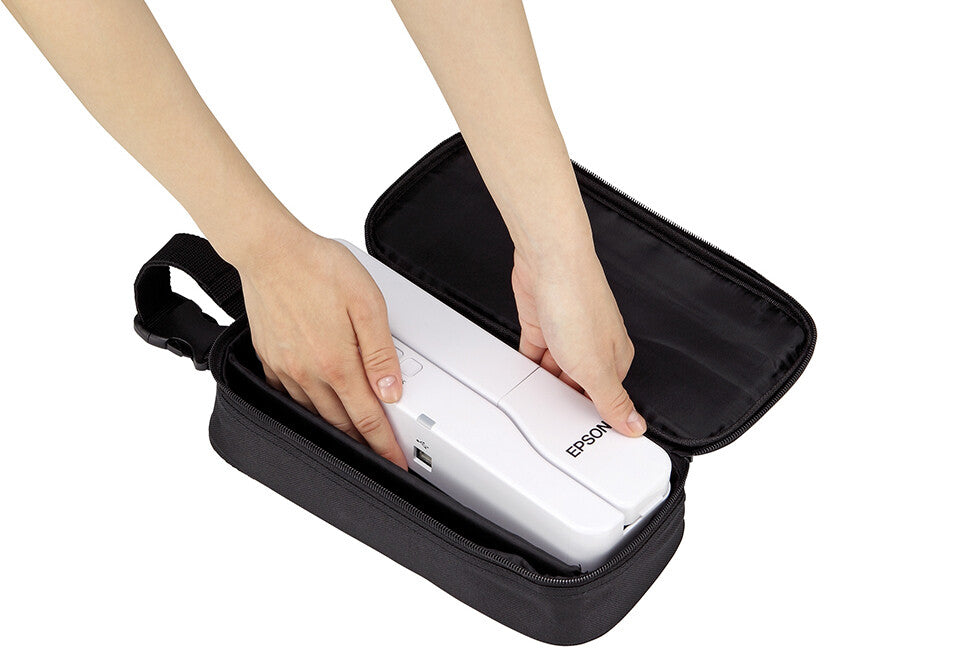

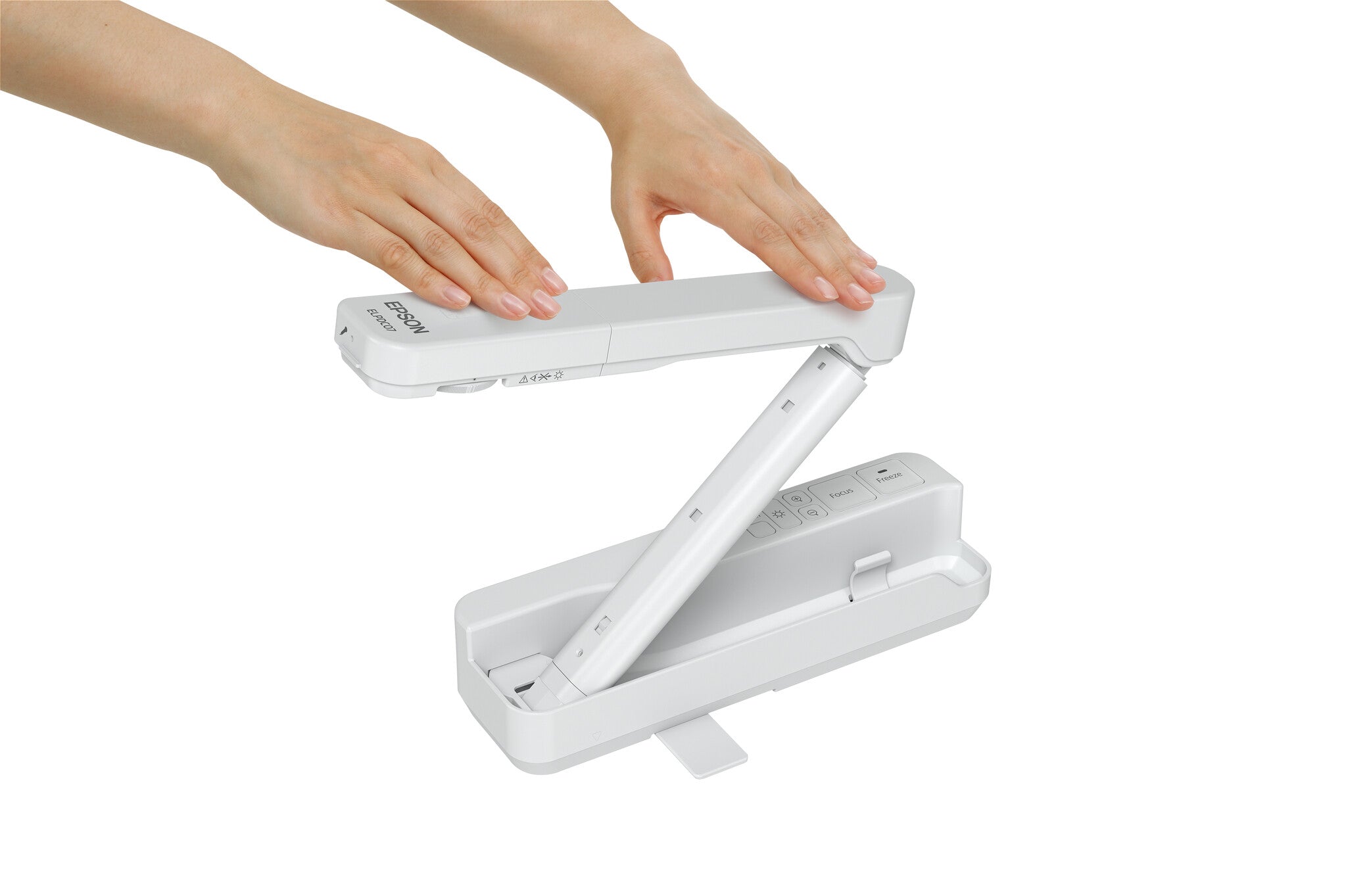

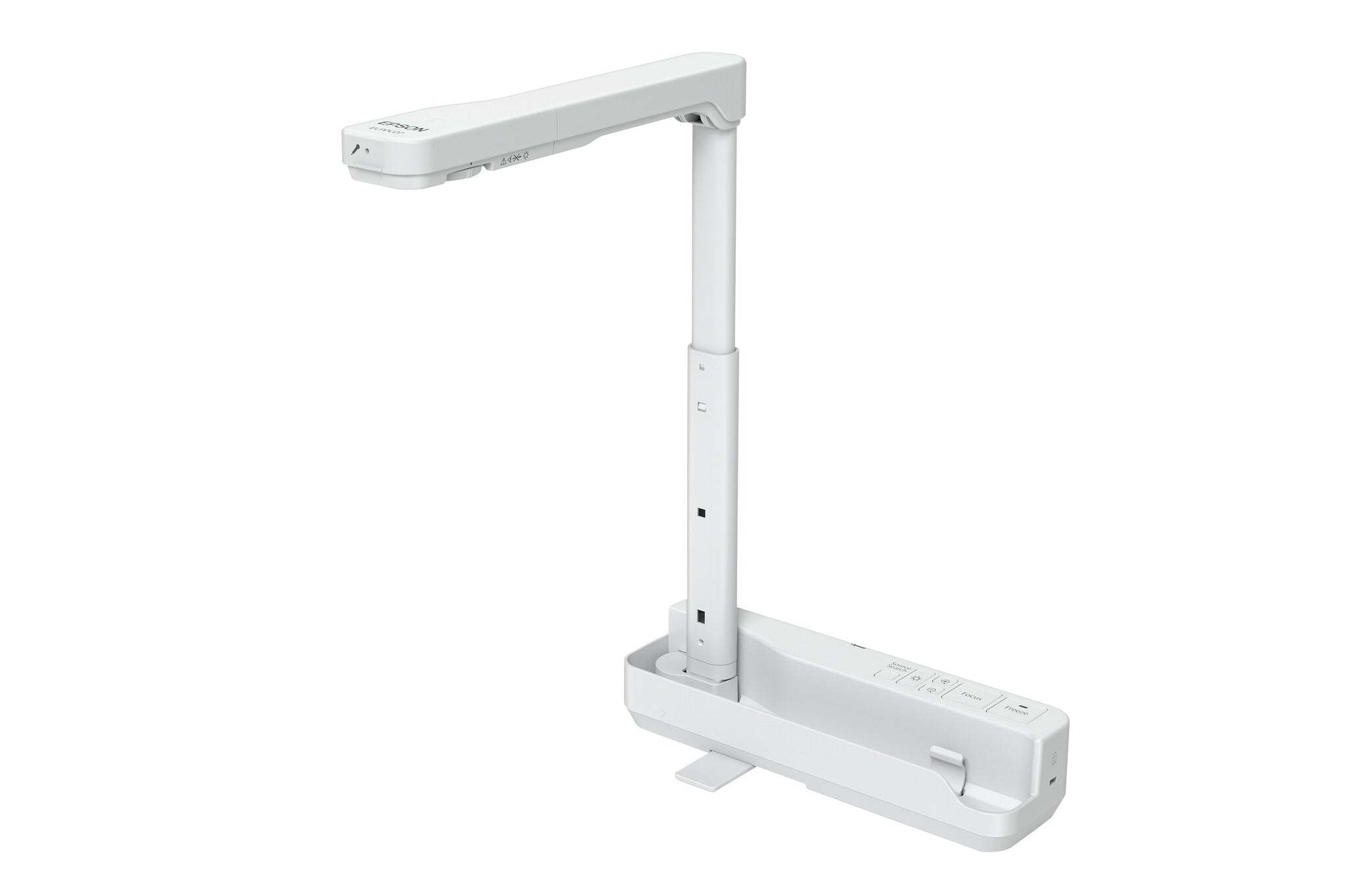

The Epson ELPDC07 visualiser is neat and compact, it features LED illumination, a built-in microphone and doesn’t need a separate power supply. It’s also light and easy to carry in the included carry case, with the arm folding neatly down into the base. Needing just 2.5W, you can be sure that its power consumption meets modern energy conservation requirements .
| Camera |
|---|
| Light source |
LED |
| Image freeze |
Yes |
| Maximum frame rate |
30 fps |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Sensor type |
CMOS |
| Optical sensor size |
25.4 / 2.7 mm (1 / 2.7") |
| Effective sensor resolution |
2 MP |
| Lens system |
|---|
| Shooting area (WxD) |
297 x 420 mm |
| Digital zoom |
8x |
| Auto focus |
Yes |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-B |
| Interface |
USB 2.0 |
| Technical details |
|---|
| Country of origin |
Philippines |
| Illumination |
Yes |
| Bundled software |
Easy Interactive Tools, TWAIN-Treiber für Epson Dokumentenkamera (für Windows) |
| Image quality adjustment |
Brightness |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Display modes |
Microscope |
| Product colour |
White |
| Power |
|---|
| Power consumption (standby) |
2.5 W |
| Power consumption (typical) |
2.5 W |
| Power supply type |
USB |
| Weight & dimensions |
|---|
| Dimensions folded (WxDxH) |
260 x 60 x 76 mm |
| Weight |
1 kg |
| Height |
76 mm |
| Depth |
388 mm |
| Width |
260 mm |
| Packaging data |
|---|
| Package weight |
1.73 kg |
| Package height |
120 mm |
| Package depth |
320 mm |
| Package width |
195 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Cables included |
USB |
| Carrying case |
Yes |
| Warranty card |
Yes |
