Flexible technical printer
The 36-inch technical printer for professionals looking for reliability and cost saving, with high-quality precision printing in-house.

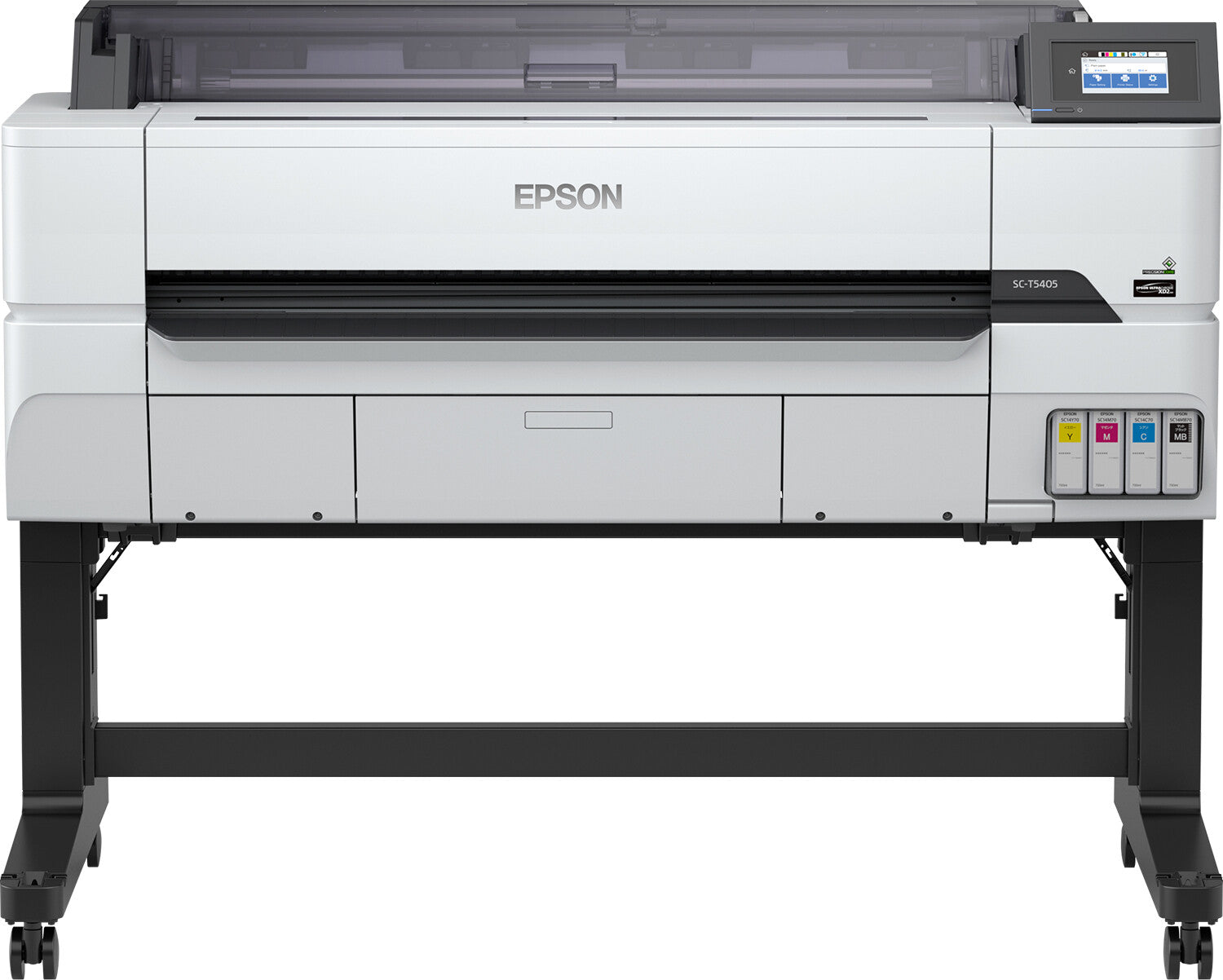

SureColor SC-T5405 - wireless printer (with stand)
The SC-T5405 large format printer is ideal for printing high-quality CAD designs, architectural or engineering technical drawings, general office documents, high-visibility posters for event organisers or point-of-purchase (POP) signage for retailers. Designed for those who need a professional-level, floor-standing, technical printer which boasts a low total cost of ownership.
Enhanced productivity

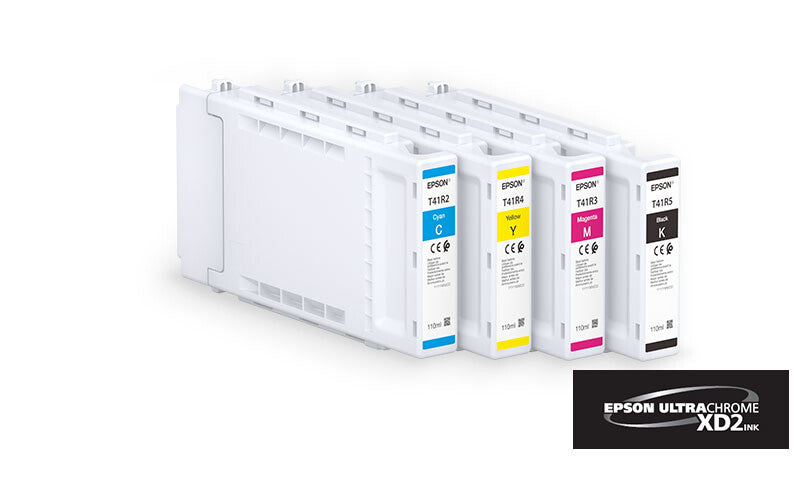

High capacity ink cartridges (110ml, 350ml and 700ml) and 4-colour pigment UltraChrome XD2 inks that are smudge and water resistant. Also, the SC-T5405 delivers deep blacks and crisp, dense lines — which is ideal for technical graphics.
A bigger picture
The SC-T5405 offers cost and time saving benefits by enabling a document enlargement workflow. Simply connect your Epson inkjet multifunction printer to your LFP and select the size you desire (up to A0 / 36 inches). Change seamlessly between LFP roll and sheetfeed as this printer supports up to A0 cut sheets as well as rolls. Even occasional users can expect consistent print quality. Unique Nozzle Verification Technology (NVT) helps prevent misprints by constantly monitoring for any blockages.
| Printing |
|---|
| Print head nozzles |
800 nozzles black,800 nozzles per colour |
| Print cartridge volume (metric) |
700 ml |
| Print speed (normal quality, A1) |
22 pph |
| Printing colours |
Pigment black, Pigment cyan, Pigment yellow, Pigment magenta |
| Page description languages |
ESC/P-R, HP-GL/2, HP-RTL |
| Number of print cartridges |
4 |
| Maximum resolution |
2400 x 1200 DPI |
| Colour |
Yes |
| Print technology |
Inkjet |
| Input & output capacity |
|---|
| Total number of input trays |
2 |
| Paper handling |
|---|
| Roll paper |
Yes |
| Print margin cut-sheet |
3 x 3 x 20 x 3 |
| Media thickness |
0.05 - 0.3 mm |
| Cut sheets |
Yes |
| ISO B-series sizes (B0...B9) |
B1, B2, B3, B4, B5 |
| ISO A-series sizes (A0...A9) |
A0, A1, A2, A3, A3+, A4 |
| Paper tray media types |
Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Roll, Satin paper |
| Maximum print size |
A0 (841 x 1189 mm) |
| Ports & interfaces |
|---|
| Mobile printing technologies |
Apple AirPrint |
| Supported network protocols |
TLS, SSL, IEE 802, SNMP, IPSec, IPv6 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Direct printing |
Yes |
| USB connector |
USB Type-A / USB Type-B |
| USB port |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Sound pressure level (printing) |
50 dB |
| Sound pressure level (standby) |
32 dB |
| Maximum internal memory |
1000 MB |
| Internal memory |
1024 MB |
| Control type |
Touch |
| Display diagonal |
27.7 cm (10.9") |
| Colour display |
Yes |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Black, Grey, White |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100-240 V |
| Power consumption (standby) |
13 W |
| Power consumption (typical) |
38 W |
| Power consumption (off) |
0.25 W |
| System requirements |
|---|
| Compatible operating systems |
Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Weight & dimensions |
|---|
| Weight |
76 kg |
| Height |
1060 mm |
| Depth |
750 mm |
| Width |
1385 mm |
| General |
|---|
| Product family |
SureColor |
| Other features |
|---|
| Minimum line width |
0.02 mm |
| Compatible products |
WorkForce DS-6500, WorkForce DS-60000 |
| Touchscreen |
Yes |
| Line accuracy |
+/- 0,1 |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
