Affordable flatbed scanner
Versatile and fast with the smallest footprint in its class1 and a high-speed ADF for enhanced productivity.

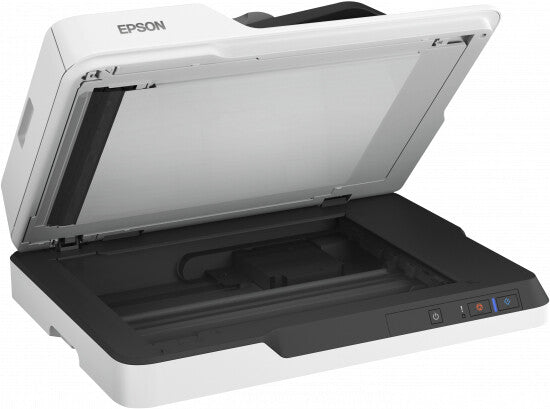

WorkForce DS-1630
Combining a flatbed scanner with the convenience of a 50-page ADF makes it possible to scan a wide range of challenging documents, including books, bound documents, passports and delicate items while quickly and simply scanning stacks of office documents. Its small footprint makes it easy to position in front office and customer-facing environments, as well as back office workgroups.
Intelligent features
Smart colour and image adjustments, including auto crop, skew correction, blank page and background removal, with Epson's Image Processing Technology. With long document mode it's possible scan over three metres (3048mm) of paper single sided.
Boost your office efficiency
One of the fastest scanners in its class with a 25ppm scan speed. USB 3.0 connectivity means there is no slow down, even when scanning at 300dpi high resolution. Scan both sides of a page with double-sided scanning capability for greater convenience. Create up to 30 jobs with the optional network panel and scan directly to server locations, cloud services and Microsoft SharePoint. Included Epson software enables dual image output; scan once and send to two different destinations. The DS-1630 also encourages easy, one-touch scanning to folders, email, online storage accounts2 and more.
Key Features
- Smallest footprint in its class1: Making it easy to position in both front or back-office environments.
- Scan a wide range of documents: Including books, bound documents, passports and delicate items
- Intelligent colour and image adjustments: Auto crop, skew correction, blank page and background removal
- One of the fastest in its class: 25ppm scan speed
- USB 3.0 connectivity: No slow down, even when scanning at 300dpi high resolution
Scanning |
ADF scan speed (colour, A4) |
25 ppm |
ADF scan speed (b/w, A4) |
25 ppm |
Duplex scanning |
Yes |
Colour scanning |
Yes |
Enhanced scan resolution |
1200 x 1200 DPI |
Optical scanning resolution |
600 x 600 DPI |
Maximum scan size |
210 x 3048 mm |
Design |
Display |
LCD |
Product colour |
Black, White |
Built-in display |
No |
Scanner type |
Flatbed scanner |
Performance |
Scanning noise level |
55 dB |
Scan drivers |
ISIS, TWAIN |
Daily duty cycle (max) |
1500 pages |
Scan file formats |
PDF, TIFF |
Light source |
ReadyScan LED |
Input capacity |
Auto document feeder (ADF) input capacity |
50 sheets |
Paper handling |
Maximum scan area (ADF) |
89 x 127 mm |
Minimum scan area (ADF) |
210 x 3048 mm |
Auto Document Feeder (ADF) media weight |
50 - 120 g/m² |
Letter |
Yes |
Legal |
Yes |
ISO A-series sizes (A0...A9) |
A4, A5, A6 |
ISO B-series sizes (B0...B9) |
B5 |
Maximum ISO A-series paper size |
A4 |
Ports & interfaces |
Standard interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) |
USB version |
3.2 Gen 1 (3.1 Gen 1) |
USB port |
Yes |
Network |
Supported network protocols |
TCP/IP, DHCP, DNS, SNMP, SLP |
Power |
Power supply type |
AC |
Weight & dimensions |
Weight |
3.7 kg |
Height |
120 mm |
Depth |
315 mm |
Width |
451 mm |
Packaging content |
Drivers included |
Yes |
Cables included |
AC, USB |
General |
Product family |
WorkForce |
Sustainability |
Sustainability certificates |
ENERGY STAR |
System requirements |
Windows operating systems supported |
Yes |
Operational conditions |
Storage relative humidity (H-H) |
20 - 80% |
Operating relative humidity (H-H) |
20 - 80% |
Storage temperature (T-T) |
-20 - 60 °C |
Operating temperature (T-T) |
10 - 35 °C |
Logistics data |
Harmonized System (HS) code |
84716070 |
