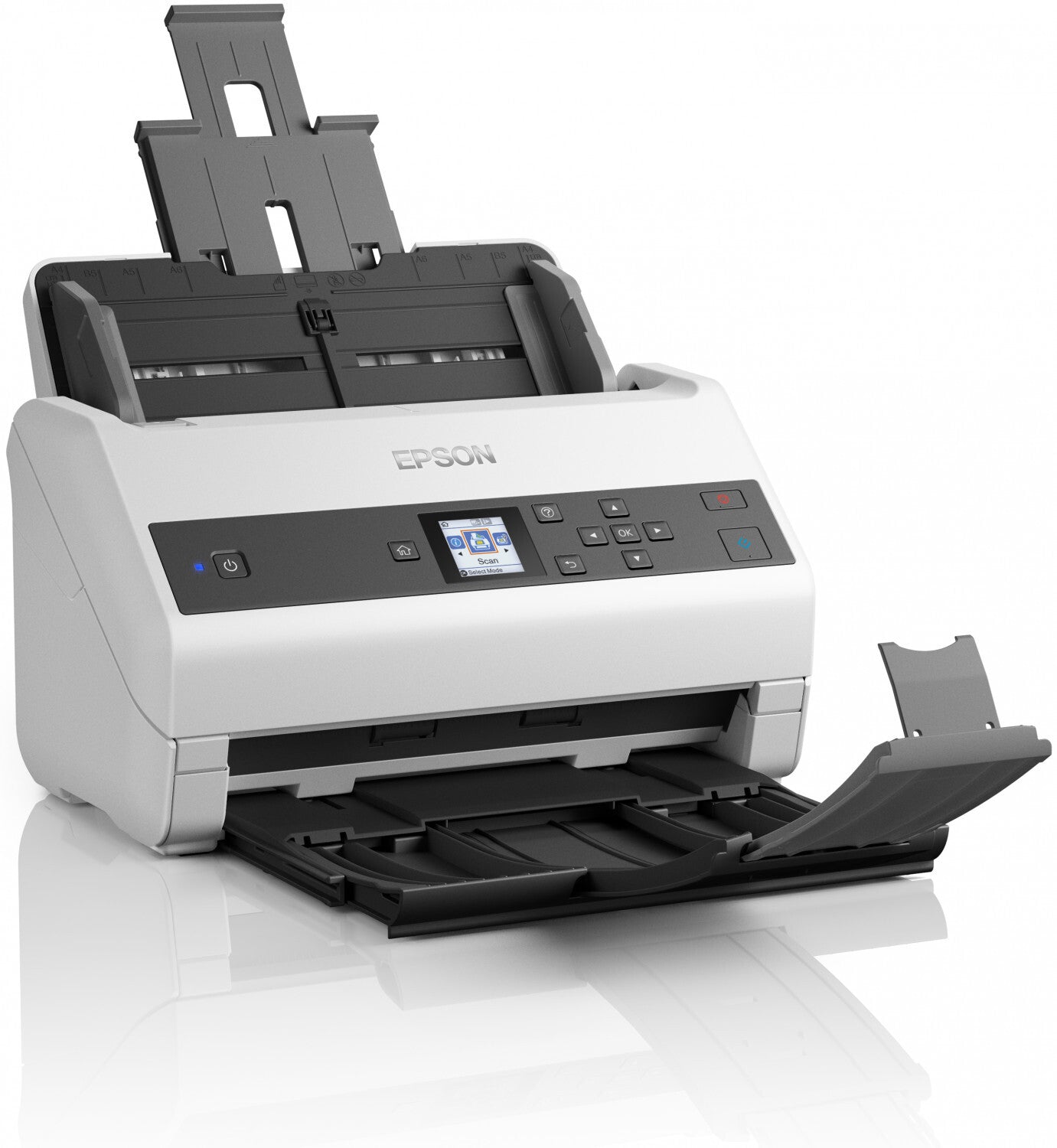

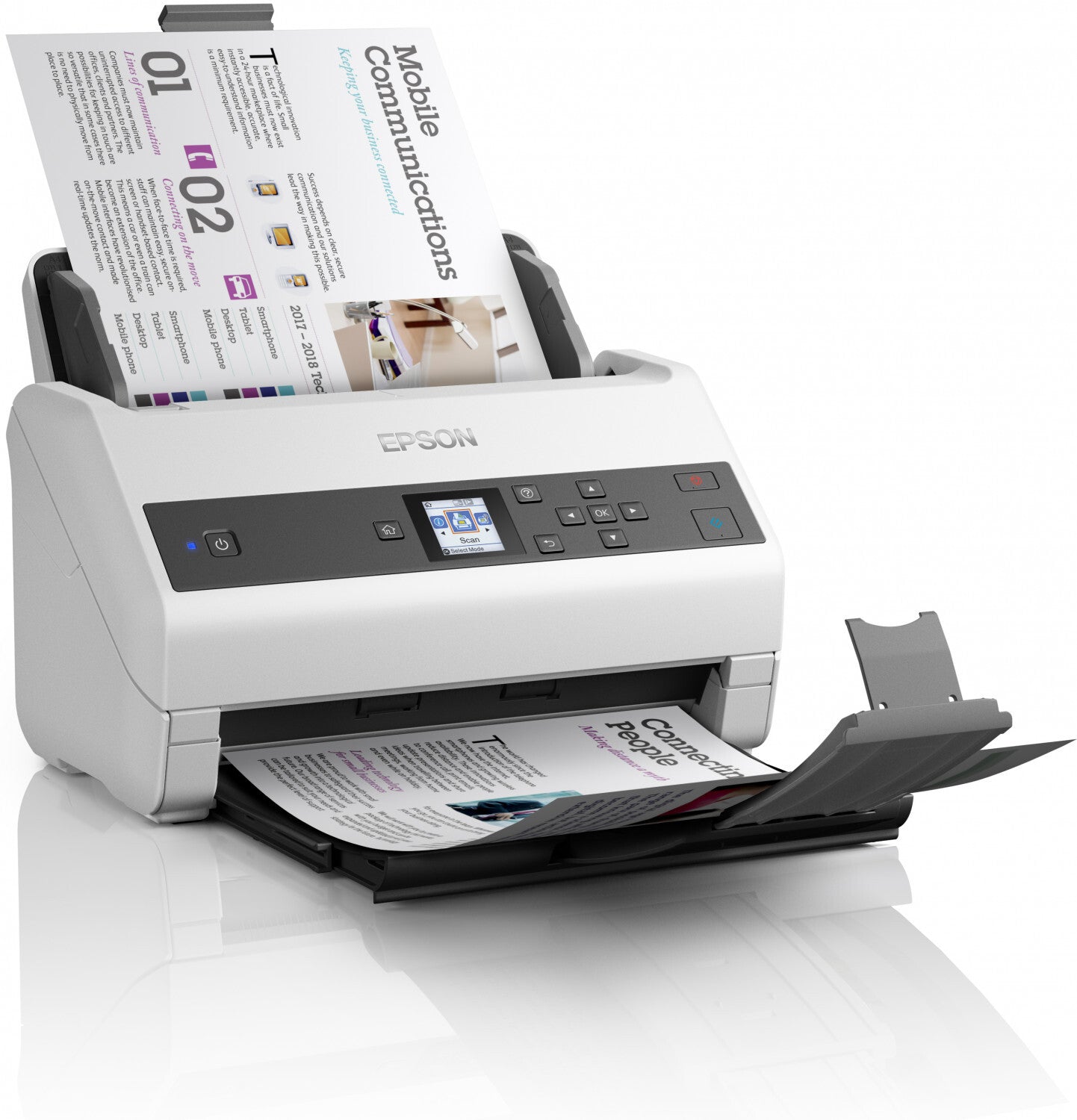

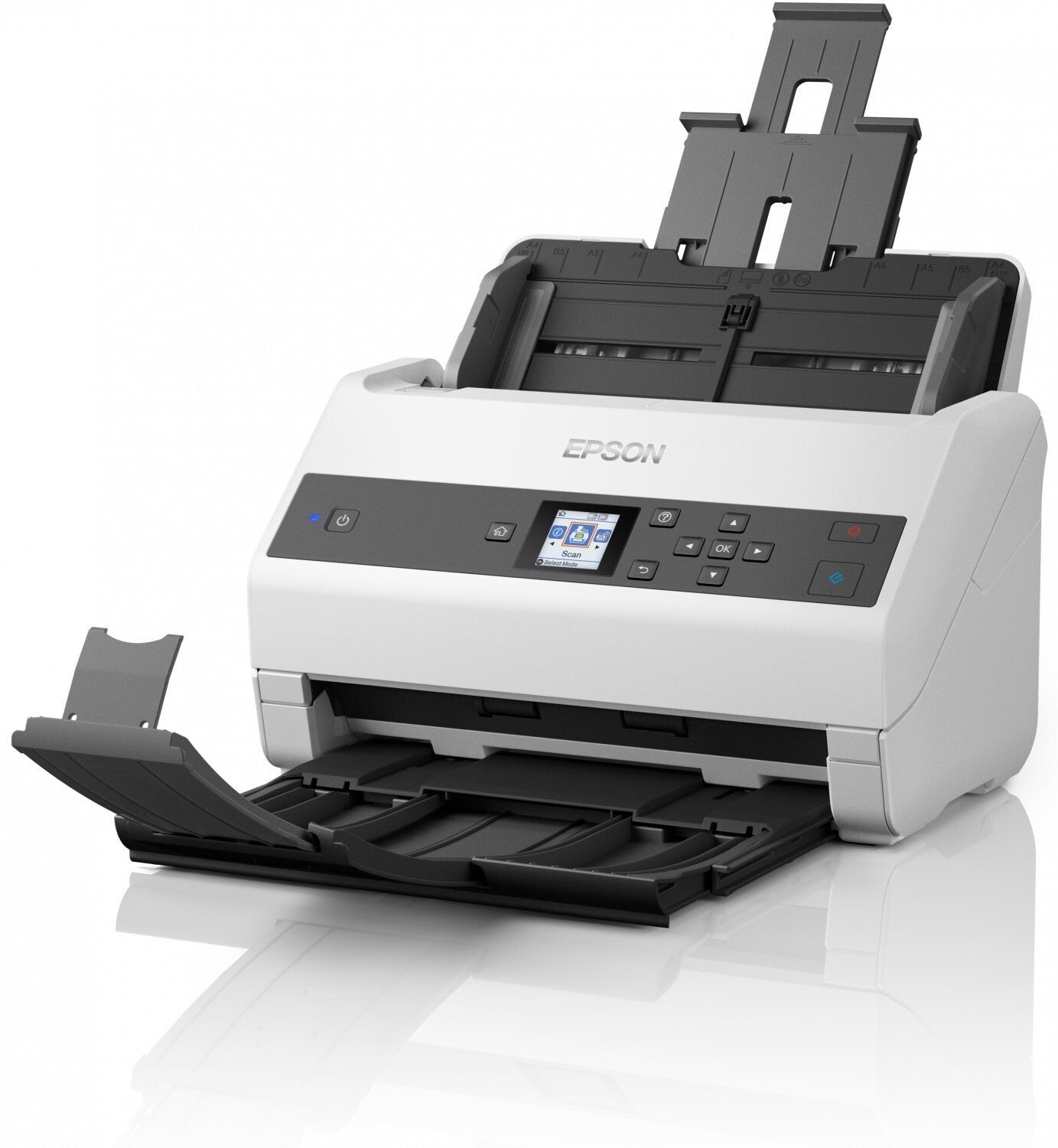

WorkForce DS-870
Create a better business environment with the support of a global leader in document scanning. Where high-volume document scanning environments meet the need for document integrity, the WorkForce DS-870 offers class-leading performance with easy-to-use features that put you in control of your documents.
Volume and speed
With a 100-page ADF (Automatic Document Feeder), 65ppm or 130ipm scanning speed and continuous scanning with an automatic feed mode, the WorkForce DS-870 gets through large jobs quickly and efficiently. It also features high-speed USB 3.0 for fast data transfer with TWAIN, WIA and ISIS drivers for enhanced compatibility with document management systems.
Efficient document processing
Users need not worry about variations in documents they need to capture – it offers Epson’s widest media handling from 27gsm to 413gsm and a long paper scanning mode up to 6096mm. For documents that cannot be scanned via the ADF – three different flatbed solutions up to A3 in size are available. Slow mode decreases document friction by reducing the speed of the rollers, making it easier to capture fragile or damaged documents, without increasing file sizes. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned. Additonally, the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes.
Image enhancement and document management software
Epson Scan 2.0 software makes it easy to edit images with features such as de-skew and auto rotate, while Document Capture Pro is the easy to use solution for capturing and storing electronic documents at the touch of a button.
Scanning |
Black/white scanning colour modes |
Monochrome |
ADF scan speed (colour, A4) |
130 ppm |
ADF scan speed (b/w, A4) |
130 ppm |
Output monochrome depth |
1 bit |
Output colour depth |
24 bit |
Input colour depth |
30 bit |
Duplex scanning |
Yes |
Colour scanning |
Yes |
Optical scanning resolution |
600 x 600 DPI |
Design |
Colour display |
Yes |
Display diagonal |
3.68 cm (1.45") |
Display |
LCD |
Product colour |
Black, White |
Built-in display |
Yes |
Scanner type |
Sheet-fed scanner |
Performance |
Scan drivers |
ISIS, SANE, TWAIN, WIA |
Daily duty cycle (max) |
7000 pages |
Scan file formats |
BMP, JPEG, PDF, PNG, TIFF |
Light source |
LED |
Sensor type |
CIS |
Input capacity |
Auto document feeder (ADF) input capacity |
100 sheets |
Paper handling |
Auto Document Feeder (ADF) media weight |
27 - 413 g/m² |
Letter |
Yes |
Legal |
Yes |
ISO A-series sizes (A0...A9) |
A4, A5, A6 |
ISO B-series sizes (B0...B9) |
B4, B5, B6 |
Scanning media types supported |
Business Card, Plastic Card |
Maximum ISO A-series paper size |
A4 |
Ports & interfaces |
Standard interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) |
USB version |
3.2 Gen 1 (3.1 Gen 1) |
USB port |
Yes |
Network |
Supported network protocols |
TCP/IP, DHCP, DNS, SNMP, SLP |
Power |
Power consumption (sleep) |
1.4 W |
Input voltage |
100-240 V |
Sleep mode |
Yes |
AC input frequency |
50-60 Hz |
Power consumption (off) |
0.1 W |
Power consumption (standby) |
8.5 W |
Power supply type |
AC |
Power consumption (typical) |
18 W |
Weight & dimensions |
Weight |
3.6 kg |
Height |
167 mm |
Depth |
169 mm |
Width |
296 mm |
Packaging content |
Bundled software |
Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2 |
Drivers included |
Yes |
Cables included |
AC, USB |
AC adapter included |
Yes |
Warranty card |
Yes |
Manual |
Yes |
General |
Product family |
WorkForce |
System requirements |
Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
Mac operating systems supported |
Mac OS X 10.6 Snow Leopard |
Server operating systems supported |
Windows Server 2003, Windows Server 2008, Windows Server 2012 R2 |
Operational conditions |
Storage relative humidity (H-H) |
15 - 85% |
Operating relative humidity (H-H) |
15 - 80% |
Storage temperature (T-T) |
25 - 60 °C |
Operating temperature (T-T) |
5 - 35 °C |
Technical details |
Data compression |
IFF (JPEG(7), CCITT G4, LZW), PDF, JPEG |
Logistics data |
Harmonized System (HS) code |
84716070 |
