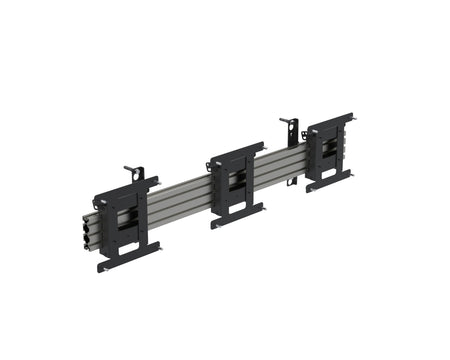

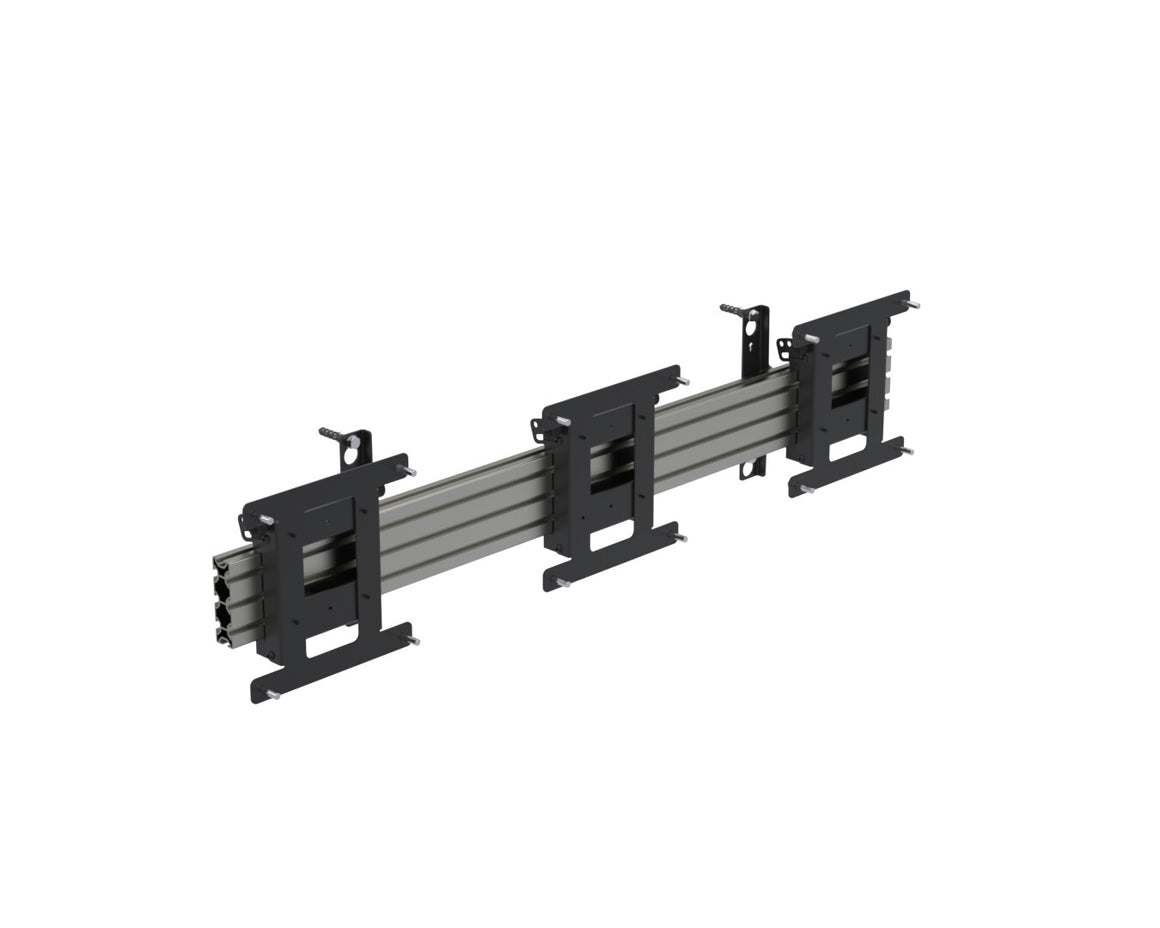

Our wall mounted Menu Board with tilt is designed for three screens (up to 32") in portrait orientation. It supports VESA 100 & 200 configurations and features adjustable tilt for optimal viewing angles. Perfect for dynamic menus or digital signage.
| Mounting |
|---|
| Number of displays supported |
3 |
| Panel mounting interface |
200 x 200 mm |
| Maximum VESA mount |
200 x 200 mm |
| Minimum VESA mount |
100 x 100 mm |
| Mounting type |
Wall |
| Maximum screen size |
81.3 cm (32") |
| Minimum screen size |
38.1 cm (15") |
| Maximum weight capacity |
150 kg |
| Ergonomics |
|---|
| Distance to the wall (min) |
0 mm |
| Cable management |
Yes |
| Tilt angle range |
0 - 15° |
| Design |
|---|
| Housing material |
Metal |
| Product colour |
Aluminium |
| Weight & dimensions |
|---|
| Weight |
7.59 kg |
| Height |
235.1 mm |
| Depth |
80 mm |
| Width |
1100 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
8 kg |
| Package height |
350 mm |
| Package depth |
250 mm |
| Package width |
1200 mm |
| General |
|---|
| Product family |
SpacePole Digital Signage |
| Technical details |
|---|
| Version |
1.0 |
| Pallet net height |
190 cm |
| Pallet net length |
120 cm |
| Pallet net width |
80 cm |
| Pallet net weight |
145 kg |
| Warranty period |
5 year(s) |
| Compliance certificates |
REACH |
| Other features |
|---|
| Country of origin |
Denmark |
| Logistics data |
|---|
| Pallet gross weight |
145 kg |
| Products per pallet |
15 pc(s) |
| Pallet gross length |
120 cm |
| Pallet gross width |
80 cm |
| Pallet gross height |
190 cm |
| Harmonized System (HS) code |
8473308000 |
