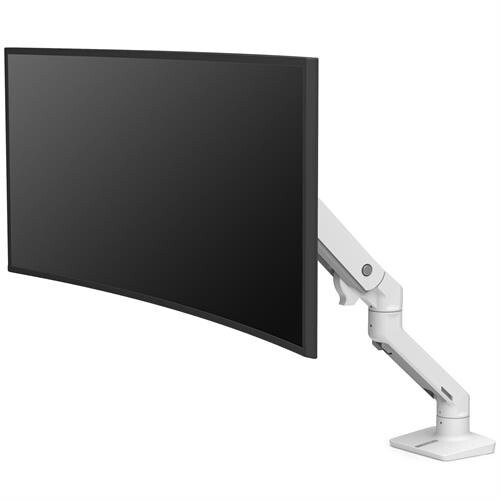

The HX Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The HX features a new post design, frees up space and allows positioning of your display for greater productivity.
Sleek and streamlined, it accommodates large monitors weighing up to 42 lbs (19 kg). Extension/retraction motion and height adjustment capability promote user comfort.
- Increases viewing comfort: Helps reduce eye, back and neck strain
- Sleek new post design
- Constant Force motion technology provides premium ease-of-use display adjustment
- Cable management feature routes cables tightly under the arm and through the extension, out of the way
- Eliminates scrolling: Rotate screen for portrait viewing of photos and documents
- Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
- Folding arm frees up space in constrained areas
- Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
| Mounting |
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100,200 x 100,200 x 200,400 x 200,400 x 400,400 x 300 |
| Maximum VESA mount |
400 x 400 mm |
| Minimum VESA mount |
75 x 75 mm |
| Suitable for TV |
Yes |
| Mounting |
Clamp |
| Mounting type |
Desk |
| Maximum screen size |
124.5 cm (49") |
| Maximum weight capacity |
19 kg |
| Ergonomics |
| Cable management |
Yes |
| Pan range |
-180 - 180° |
| Angle of rotation |
360° |
| Tilt angle range |
-75 - 75° |
| Tilt adjustment |
Yes |
| Adjustable depth |
Yes |
| Height adjustment type |
Manual |
| Height adjustment |
Yes |
| Design |
| Easy to install |
Yes |
| Product colour |
White |
| Weight & dimensions |
| Weight |
7.03 kg |
| Packaging data |
| Package weight |
8.3 kg |
| Package height |
178 mm |
| Package depth |
488 mm |
| Package width |
305 mm |
| General |
| Product family |
HX Series |
| Other features |
| Certification |
BIFMA level® 2 |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
