Find your best view, save desk space and discover your most productive self, thanks to the LX Wall Monitor Arm. Place your screen where you need it for each project, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.
The flexible, modular design of the Ergotron LX family of monitor arms help you to find your best view while keeping your workspace clean. Place your screen where you need it for each project, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.
| Mounting |
|---|

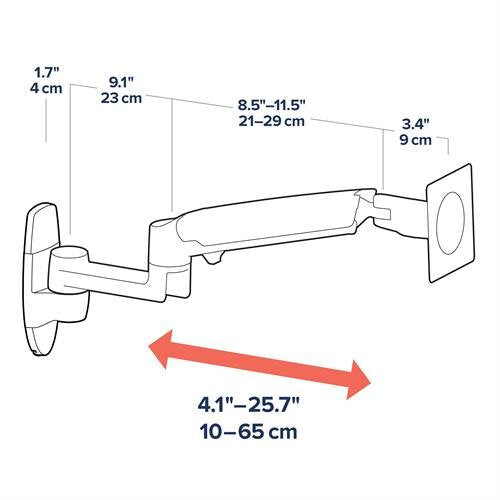

| Extension arm (max) |
64 cm |
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Suitable for TV |
Yes |
| Mounting |
Screws |
| Maximum weight capacity (per display) |
11.3 kg |
| Mounting type |
Wall |
| Maximum screen size |
86.4 cm (34") |
| Minimum screen size |
50.8 cm (20") |
| Maximum weight capacity |
11.3 kg |
| Ergonomics |
|---|

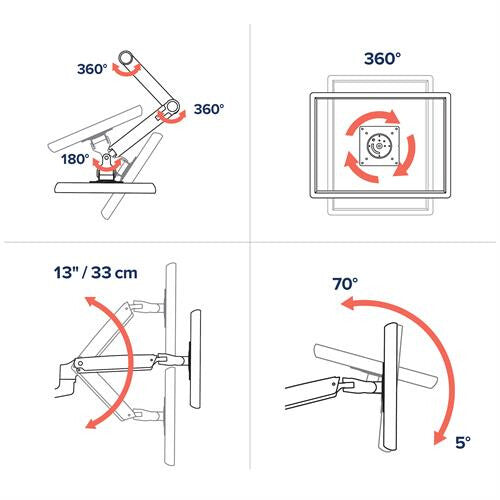

| Pan range |
360 |
| Angle of rotation |
360° |
| Tilt angle range |
75 |
| Tilt adjustment |
Yes |
| Height adjustment range |
0 - 330 mm |
| Design |
|---|
| Easy to install |
Yes |
| Orientation |
Landscape/Portrait |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium, Steel |
| Product colour |
Aluminium |
| Weight & dimensions |
|---|
| Weight (imperial) |
2.49 kg (5.5 lbs) |
| Weight |
2.5 kg |
| Depth |
100 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.8 kg |
| Package height |
445 mm |
| Package depth |
175 mm |
| Package width |
195 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| VESA mount included |
Yes |
| General |
|---|
| Product family |
LX Series |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Other features |
|---|
| Mounting interface |
VESA |
| Warranty period |
10 year(s) |
| Compliance certificates |
ETL |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
