Ion 3 Gold delivers efficient, stable power for next-generation gaming systems. With ATX12V 3.1 compatibility, native PCIe Gen 5 support, and 80 PLUS Gold efficiency, it’s built for reliable, long-term performance.
Future-ready
Connect next-generation components with ATX12V 3.1 compatibility and enjoy stable performance with graphics card power excursion support.
Native Gen 5 support
Power modern graphics cards with 16-pin PCIe Gen 5 12V-2×6 support featuring shortened sense pins for a reliable, secure connection.
Momentum cooling

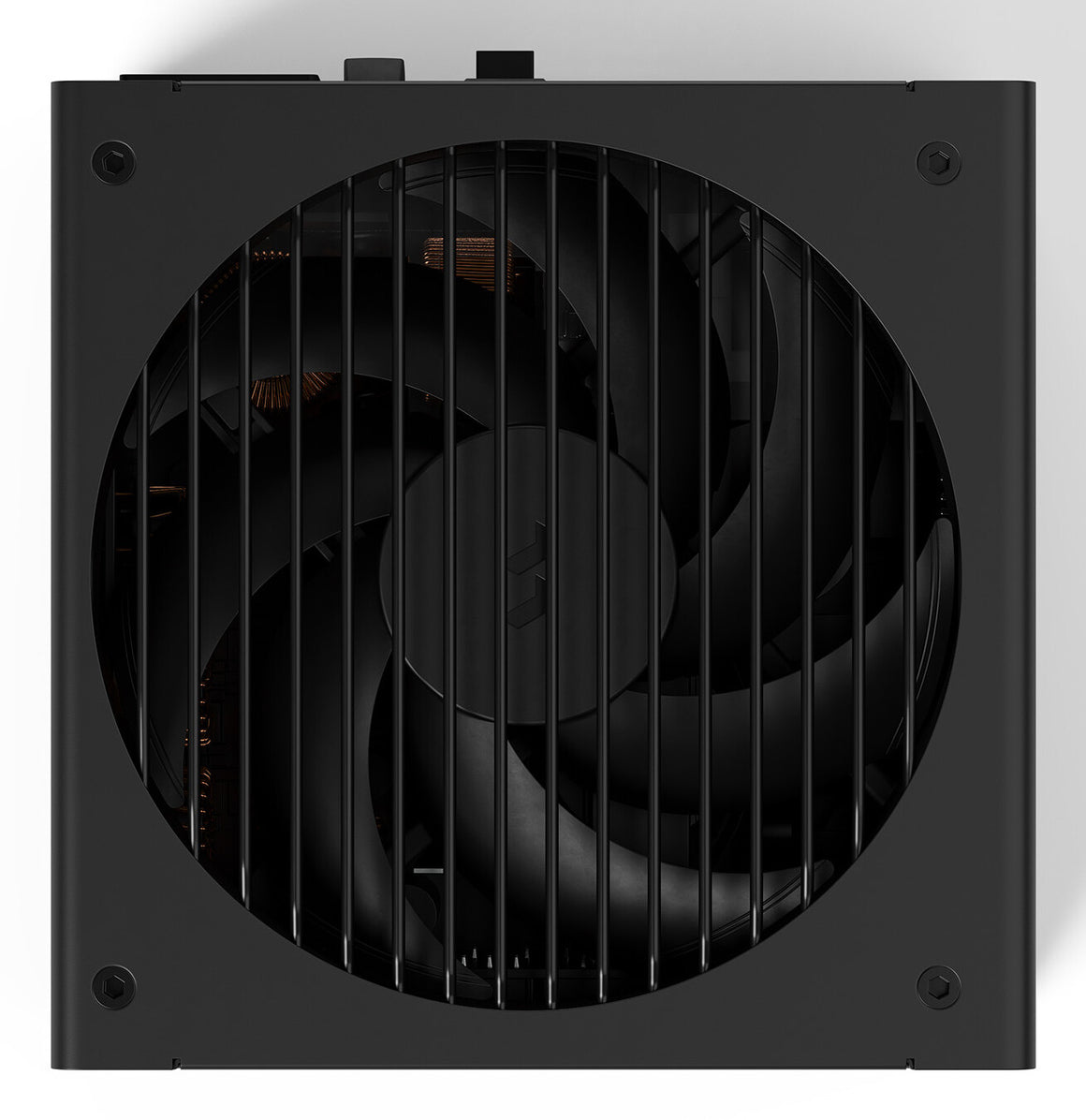

Featuring a powerful Momentum 14 fan with a fluid dynamic bearing and LCP blades to ensure lower noise, cooler operation, and a longer lifespan.
Certified efficiency
80 PLUS Gold–certified for efficient performance with reduced energy use and heat output through optimized power delivery.

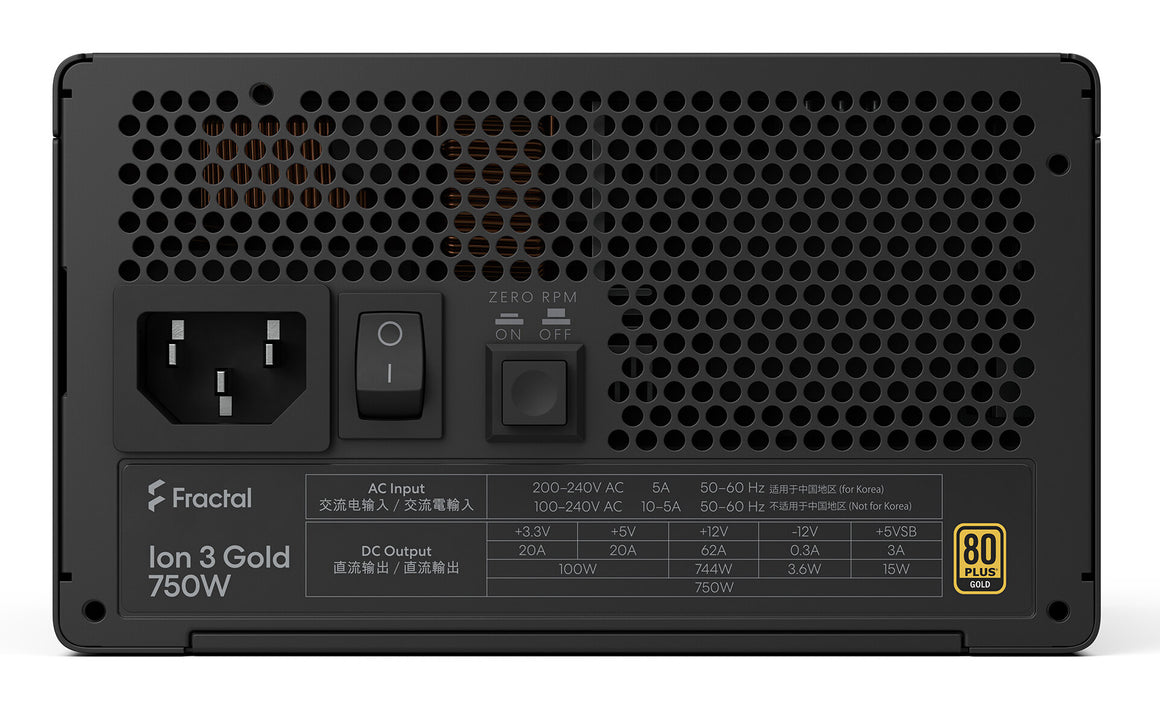

Quiet operation

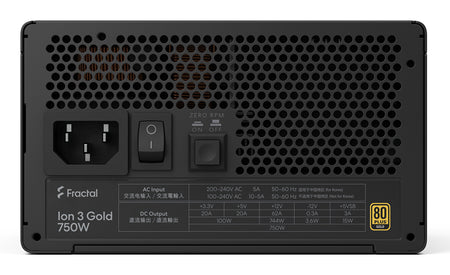

Featuring variable fan speeds for adaptive cooling and the option to activate Zero RPM Mode for near-silent operation under lighter loads.

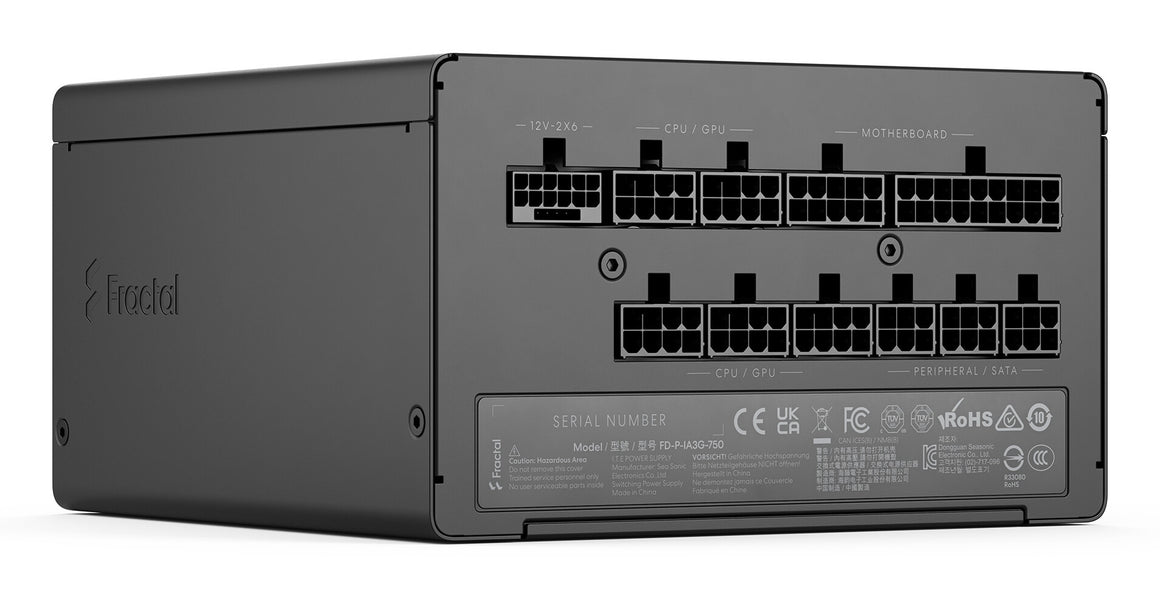

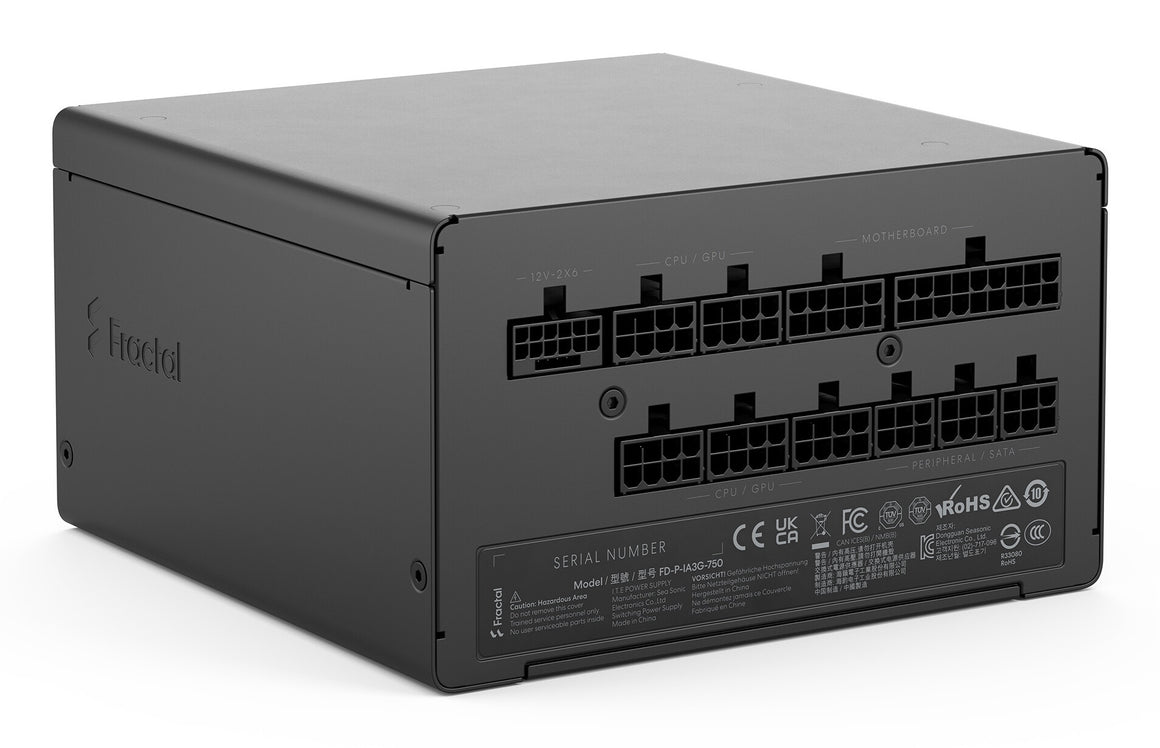

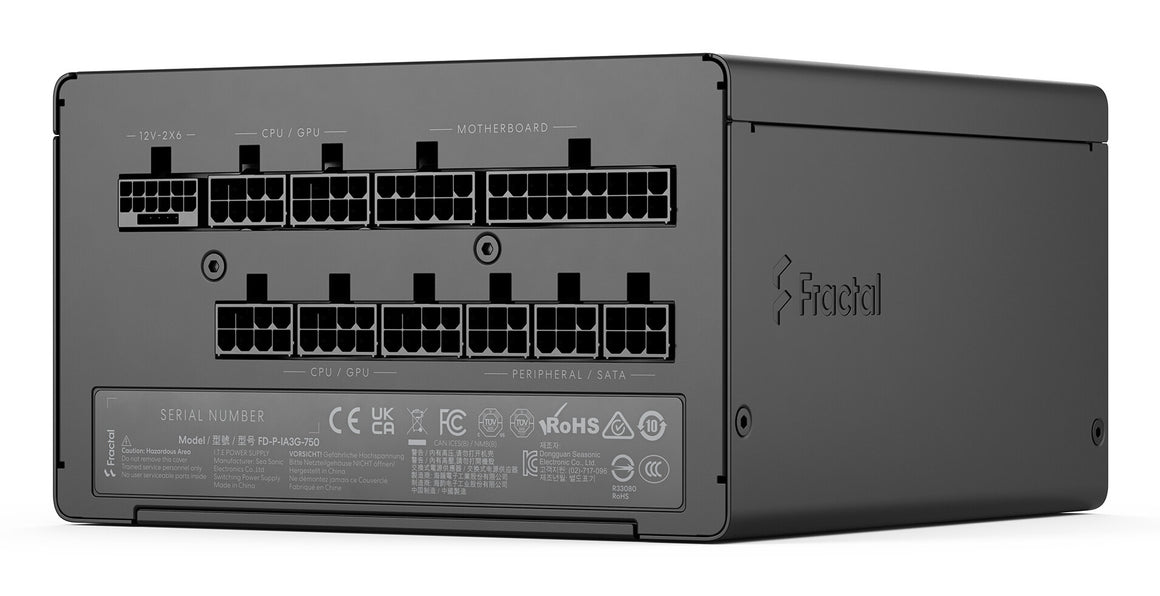

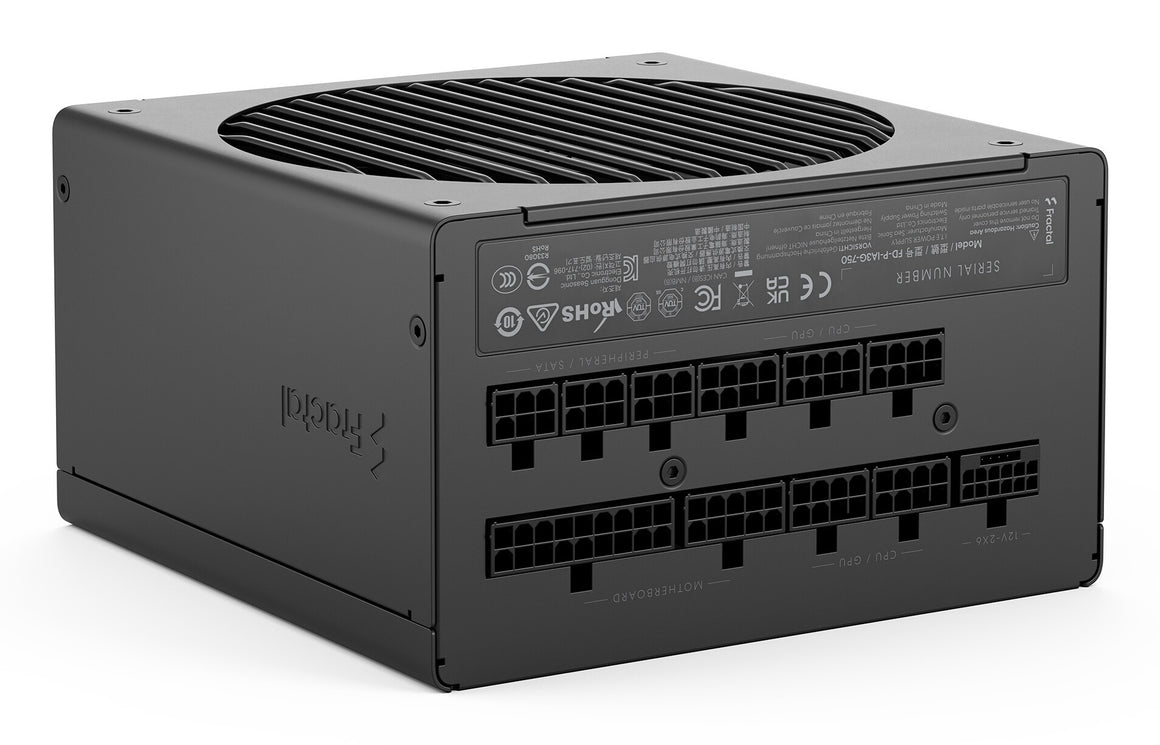

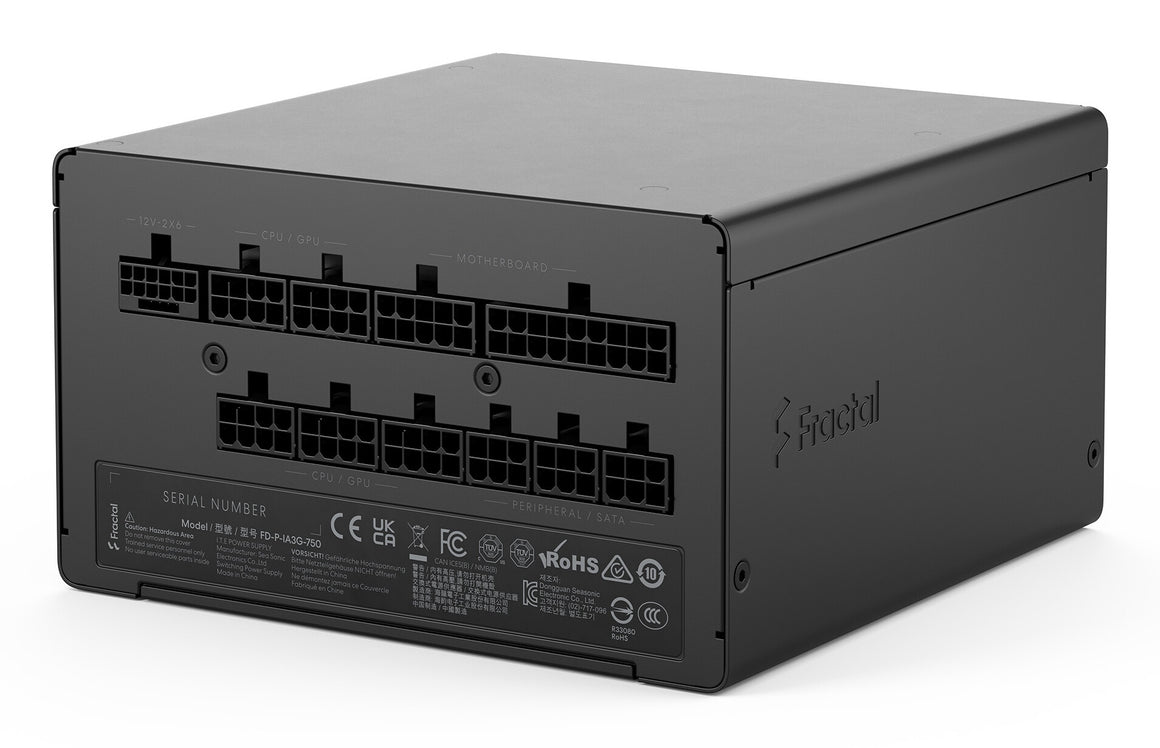

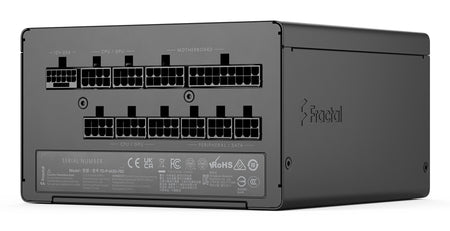

Fully modular

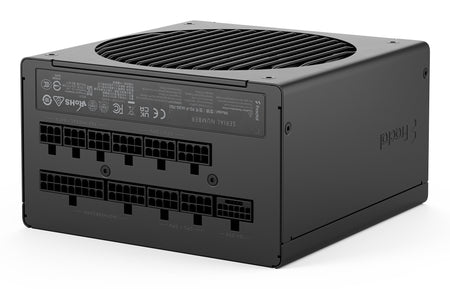

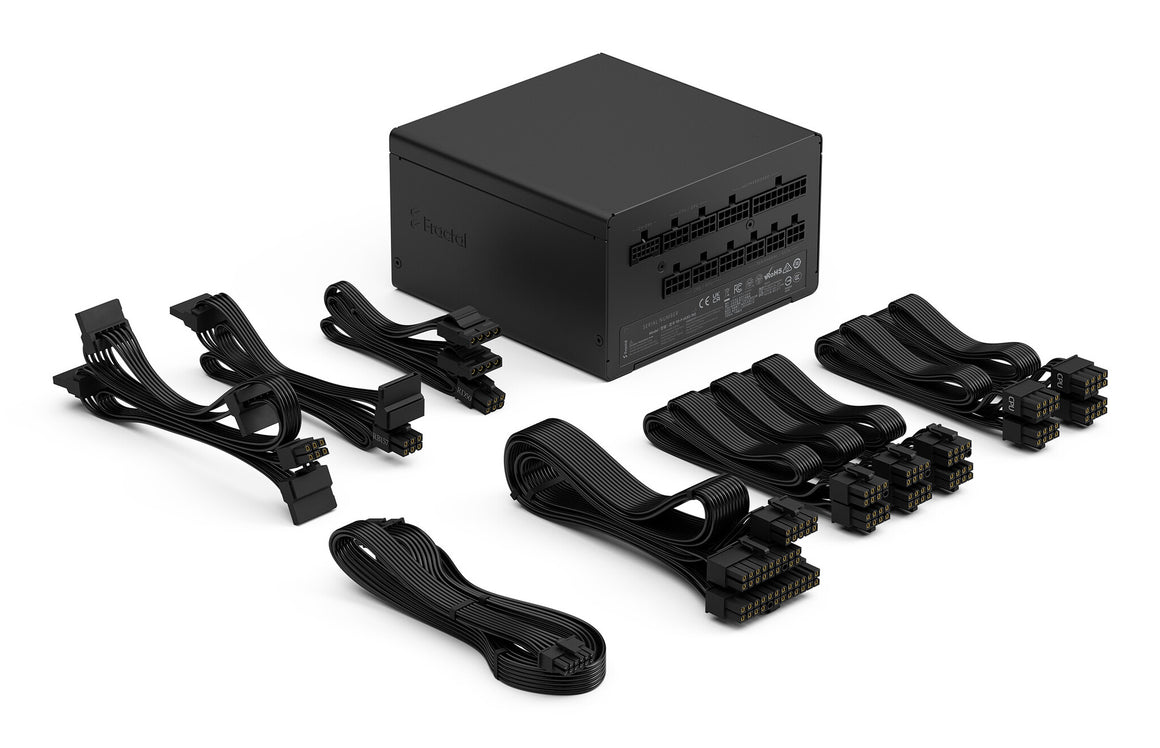

Achieve a clean, uncluttered build with a fully modular design and UltraFlex cables for smoother cable routing.
Designed to last
Built with high-quality, reliable components including Japanese 105°C capacitors and an extensive 10-year warranty.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Short circuit, Under voltage |
| Efficiency |
45% |
| Number of +12V rail(s) |
1 |
| Power Factor Correction (PFC) type |
Active |
| AC input voltage |
100 - 240 V |
| Total power |
750 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| ATX Power connector (24-pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
3 |
| Peripheral (Molex) power cable length |
150,650 mm |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| SATA power cable length |
150,650 mm |
| Number of SATA power connectors |
6 |
| Motherboard power cable length |
60 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| Fan location |
Rear |
| Product colour |
Black |
| General |
|---|
| Product family |
Ion |
| Operational conditions |
|---|
| Operating temperature (T-T) |
40 - 50 °C |
| Packaging content |
|---|
| Cables included |
DC |
| Certificates |
|---|
| Compliance certificates |
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), ICES, KC, RCM, TÜV mark, UKCA, cULus |
| Weight & dimensions |
|---|
| Weight |
1.8 kg |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package weight |
3.2 kg |
| Package height |
122 mm |
| Package depth |
354 mm |
| Package width |
189 mm |
| Technical details |
|---|
| Sustainability certificates |
ErP |
