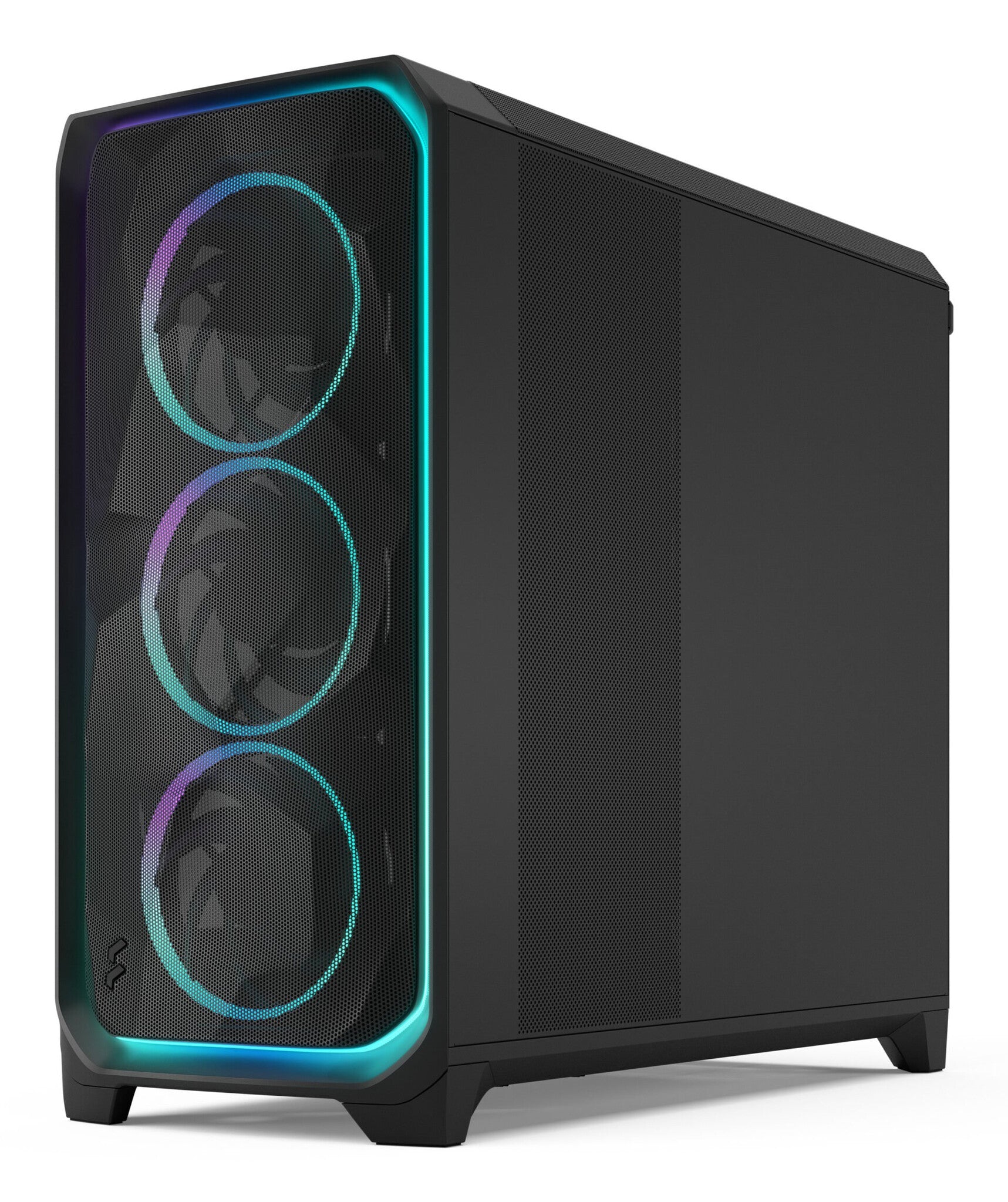

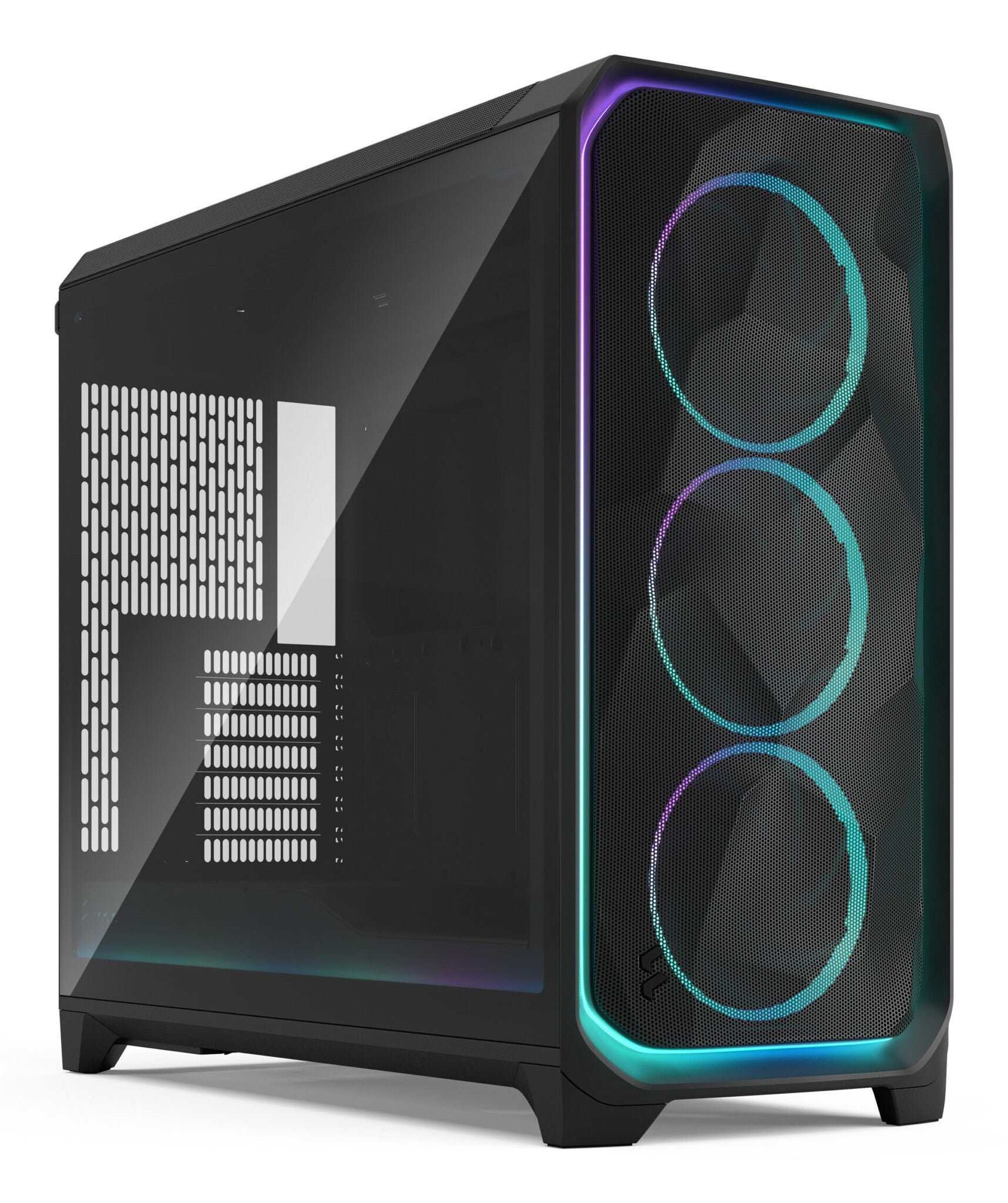

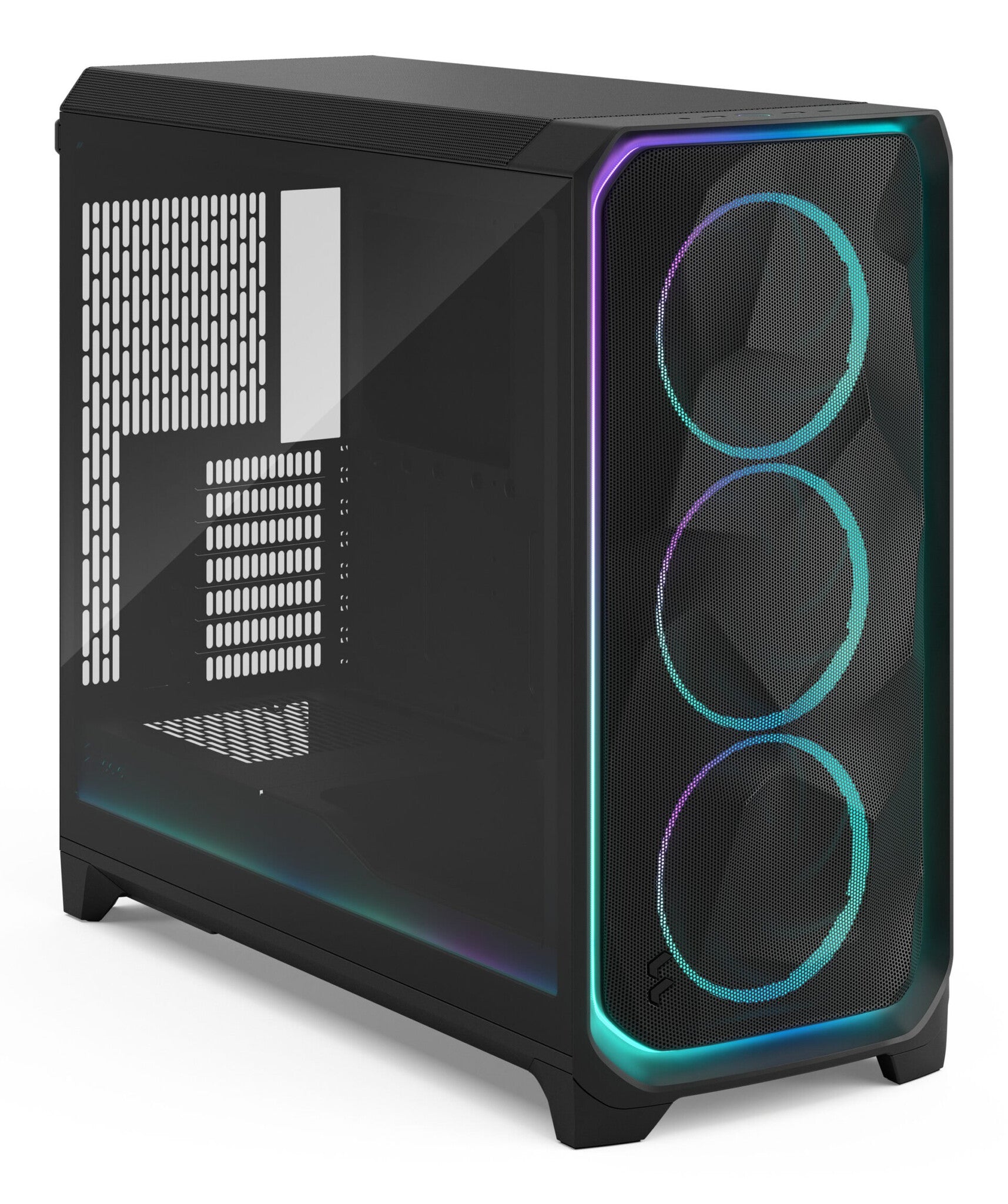

Experience advanced cooling and expressive, aerodynamic design in a spacious format. An evolution of our mesh performance series, Meshify 3 XL offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.
Advanced airflow
Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.
Evolved design

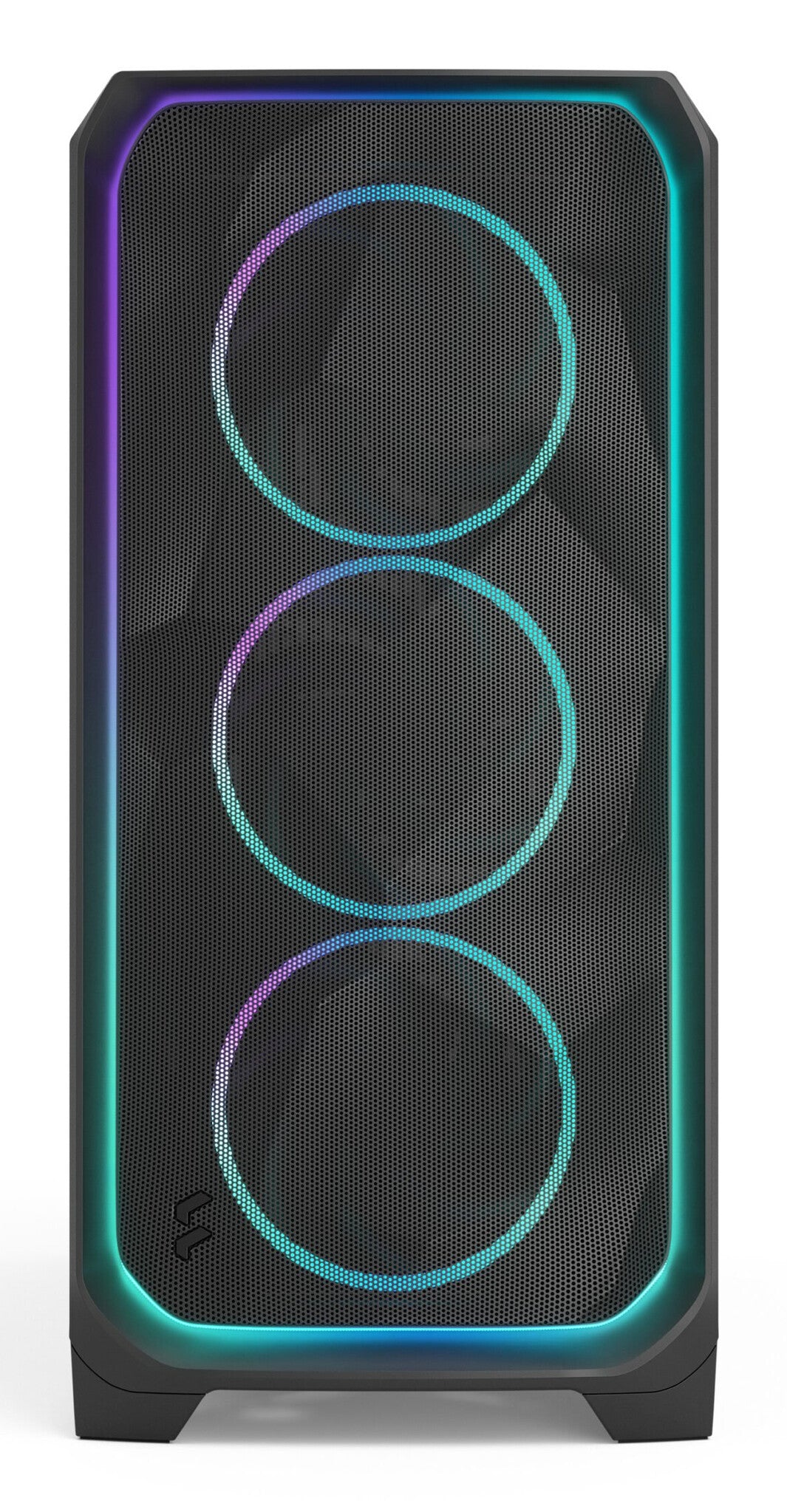

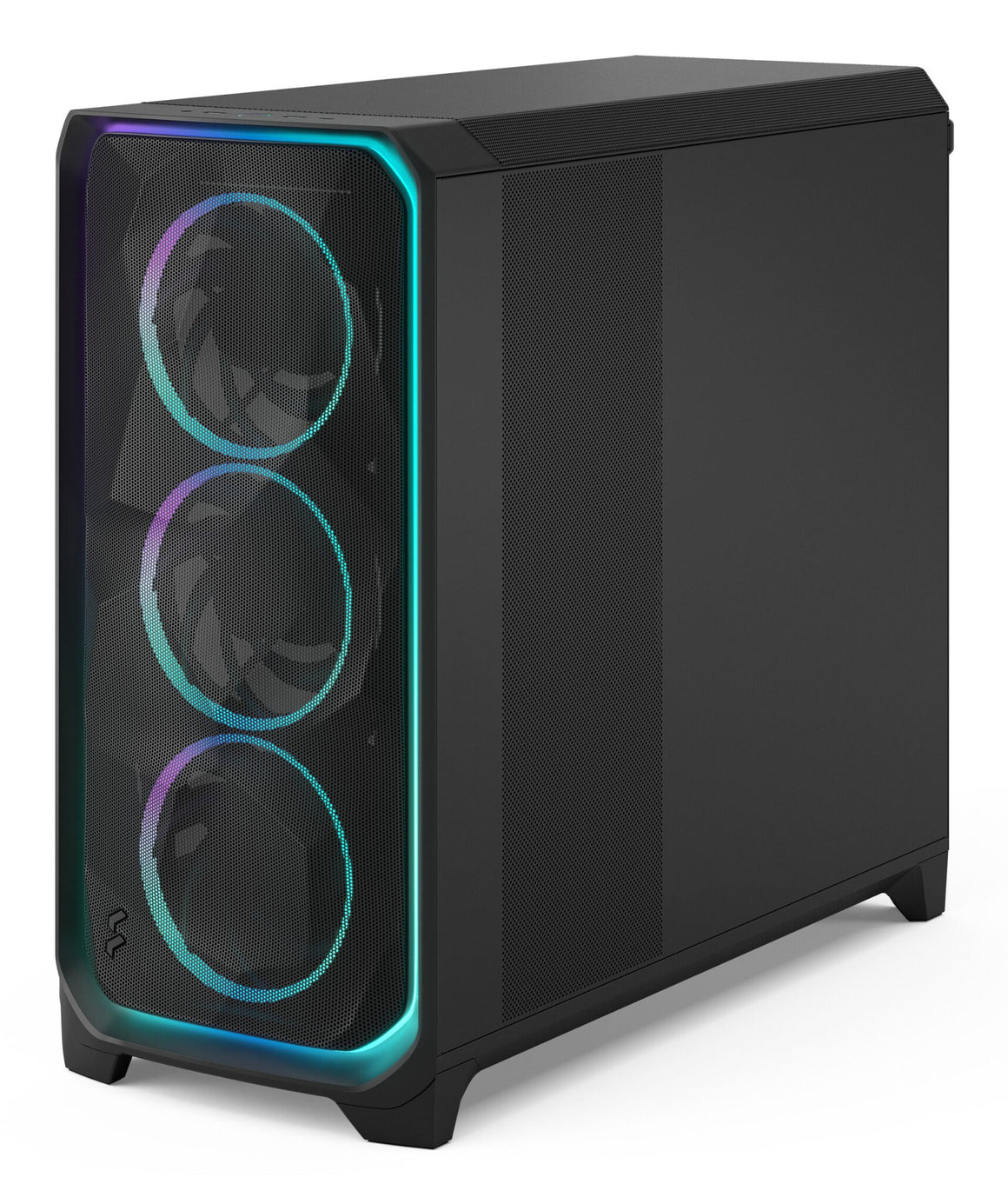

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.
Designed for gaming
Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX (330 mm) motherboard compatibility.
Ambience Pro RGB Version
Enhanced lighting
Create the right atmosphere with advanced ARGB Gen 2 ambient lighting, including an animated PC startup effect.
Ambience Pro RGB Version
Tailored experience
Customize your lighting and fans easily with a download-free configuration tool, accessed via the included Adjust Pro Hub.
Easily accessible

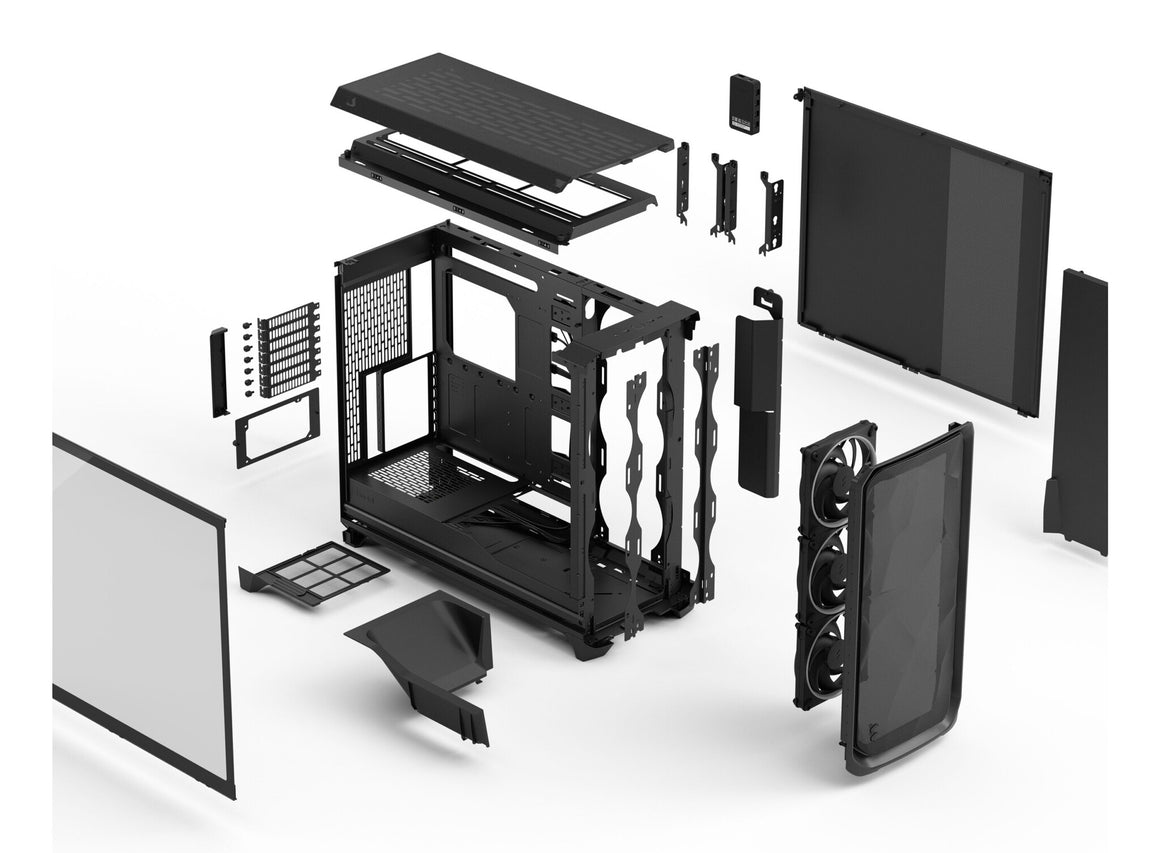

Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.
Powerful fans included
Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
Ideal for custom loops
Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.
Accessible I/O

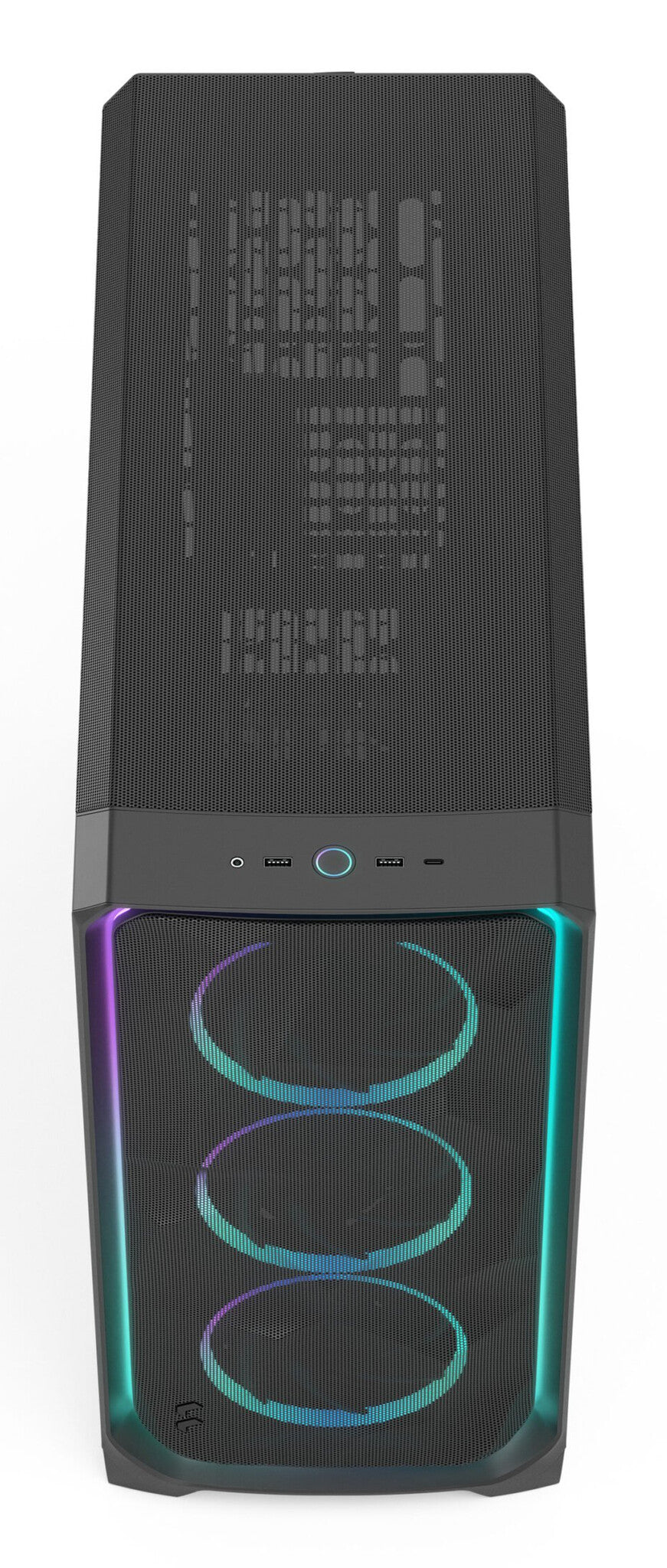

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.
Clean finish

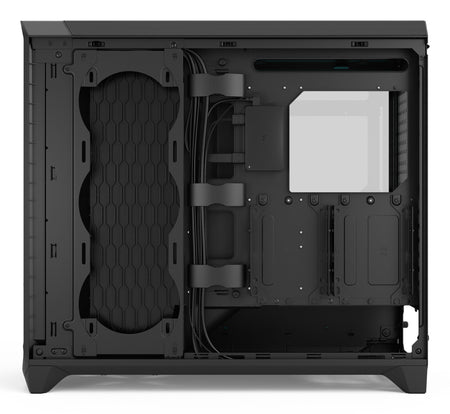

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.
| Design |
|---|
| Maximum PSU length |
23 cm |
| Maximum graphics card length |
51.2 cm |
| Maximum CPU cooler height |
18.2 cm |
| On/off button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |

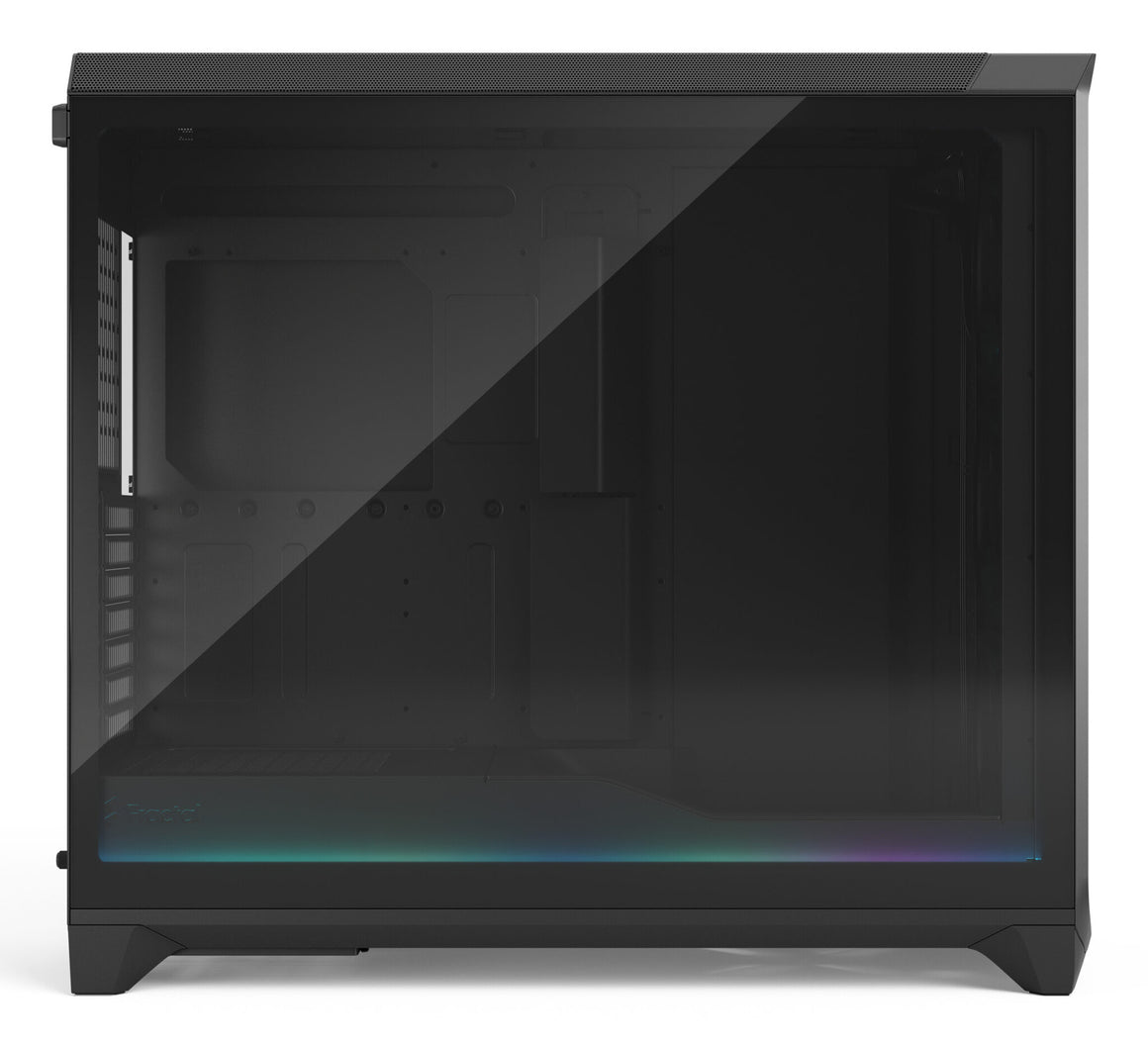

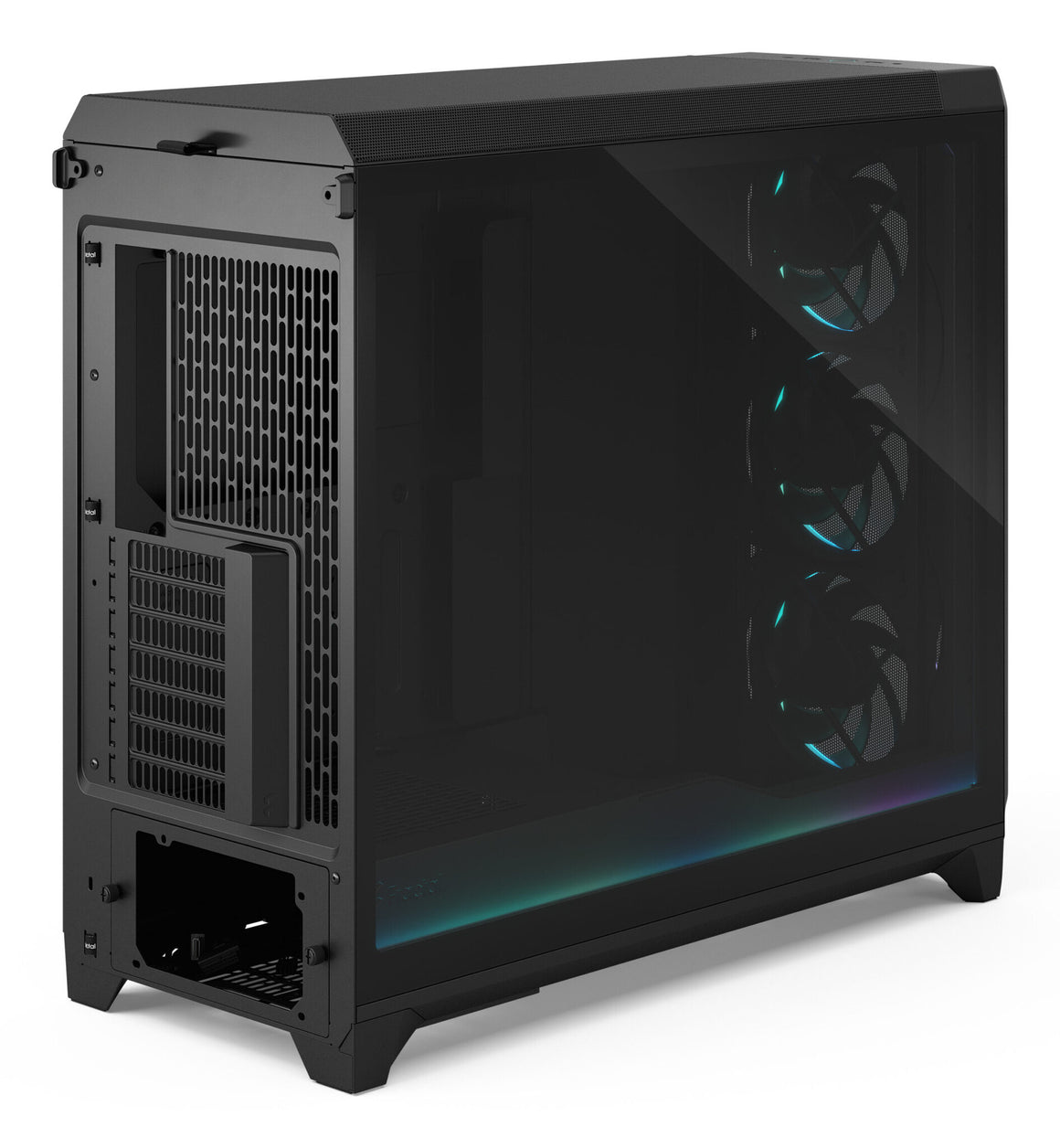

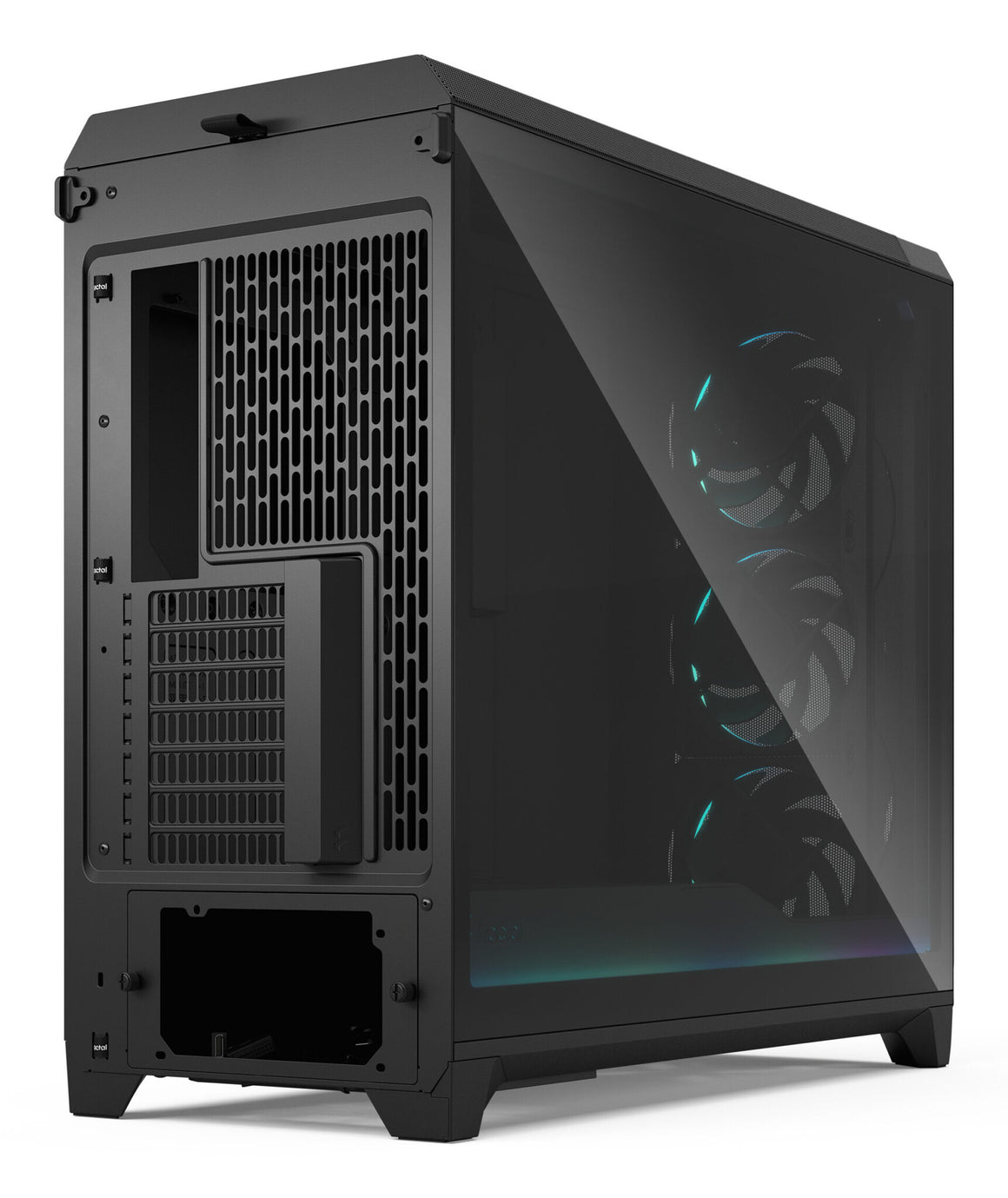

| Tempered glass panel(s) |
Yes |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Suitable for |
Gaming |
| Side window |
Yes |

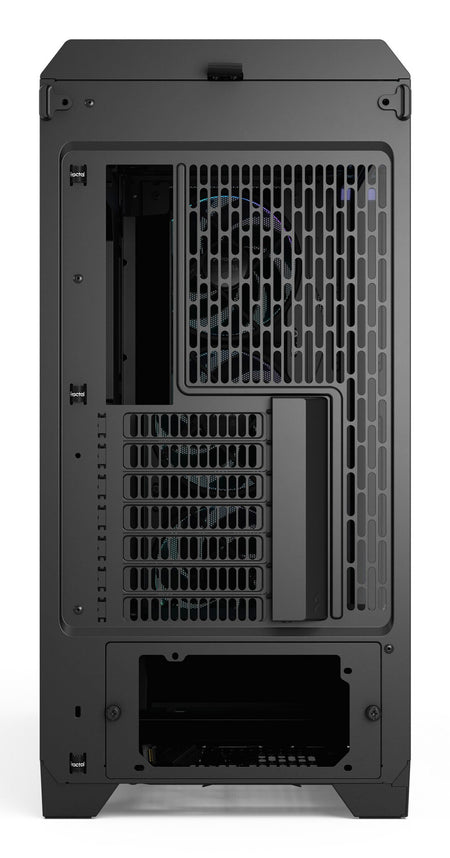

| Number of expansion slots |
7 |
| Number of internal 3.5" bays |
2 |
| Number of 2.5" bays |
4 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB |
| Product colour |
Black |
| Material |
Steel, Tempered glass |
| Type |
PC |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
|---|
| Top radiator sizes supported |
360,420 mm |
| Top radiator installed |
No |
| Rear radiator sizes supported |
120,140 mm |
| Rear radiator installed |
No |
| Side radiator sizes supported |
360 mm |
| Front radiator sizes supported |
280,360 mm |
| Front radiator installed |
No |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Side fans diameters supported |
140 mm |
| Number of side fans supported (max) |
3 |
| Front fans diameters supported |
120,140,180 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 140 mm |
| Storage |
|---|
| SSD form factor |
2.5" |
| Supported HDD sizes |
2.5,3.5" |
| General |
|---|
| Product family |
Meshify |
| Packaging content |
|---|
| Manual |
Yes |
| Technical details |
|---|
| Warranty period |
2 year(s) |
| Weight & dimensions |
|---|
| Weight |
11.4 kg |
| Height |
515 mm |
| Depth |
575 mm |
| Width |
245 mm |
| Packaging data |
|---|
| Package weight |
13.3 kg |
| Package height |
596 mm |
| Package depth |
688 mm |
| Package width |
350 mm |
| LED controller |
Yes |
