SKU: PSUGMXGX850PRO

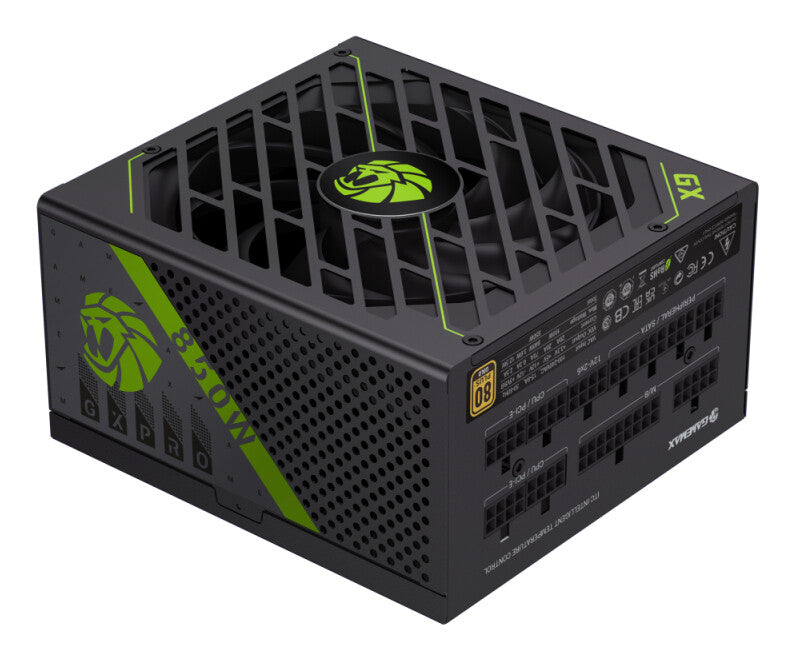

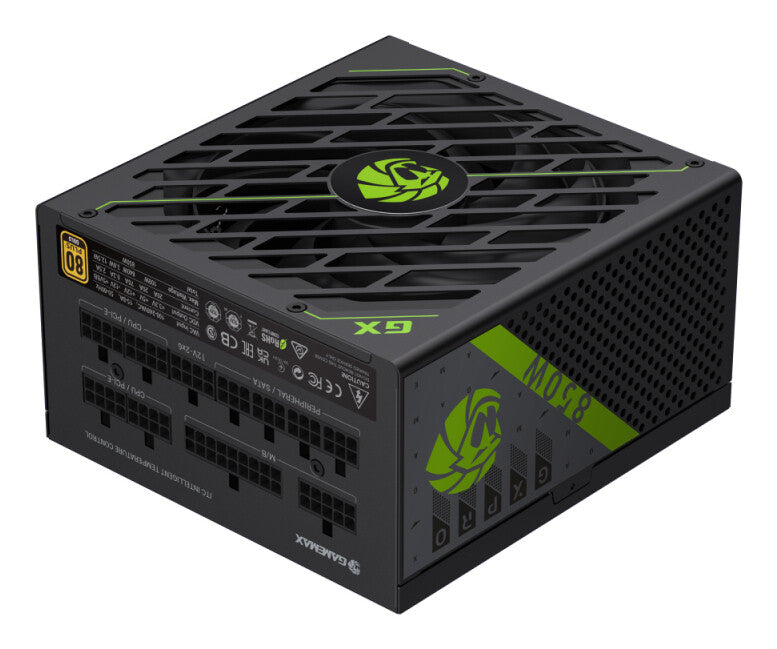

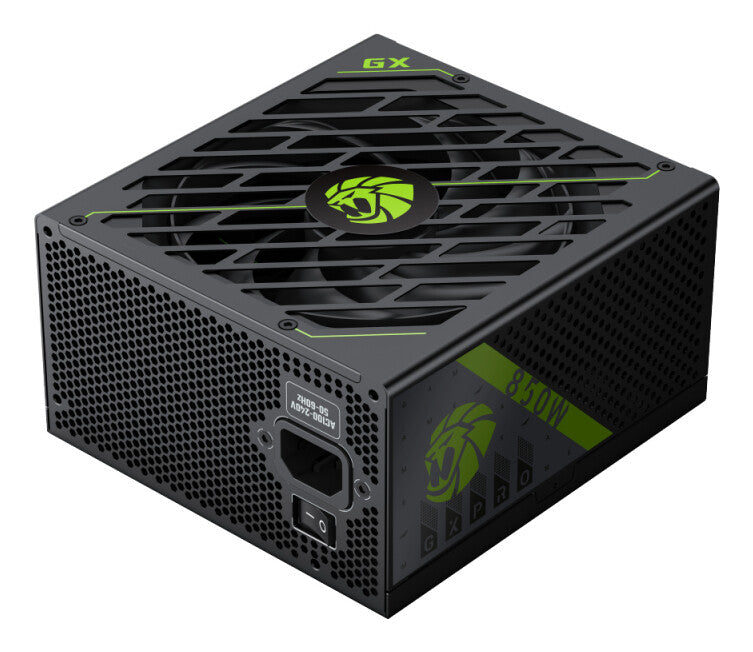

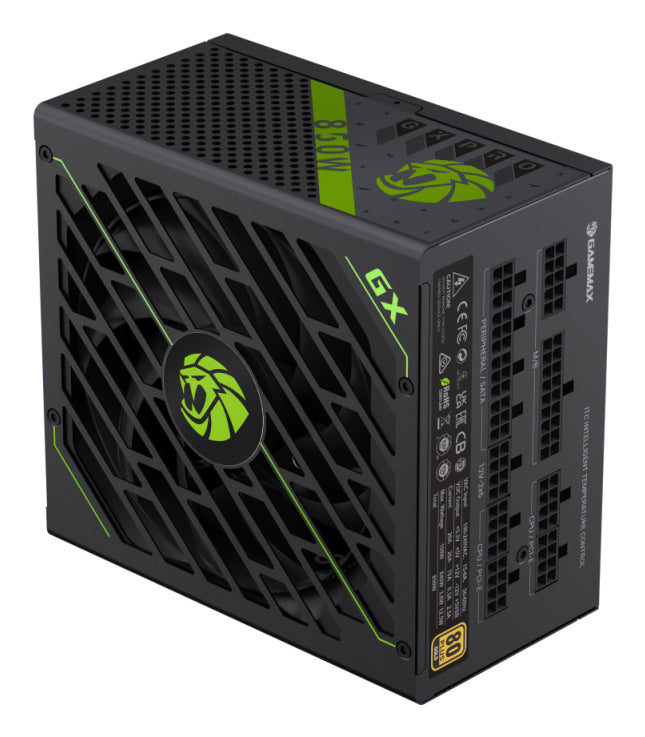

GameMax GX-850 PRO power supply unit 850 W 20+4 pin ATX ATX Black

GameMax
£99.08
  • ATX3.1 & PCIe5.1 ready with 12V-2*6 connector
  • LLC MPS1213 Chipset optimizes LLC resonant circuit for high efficiency at all loads
  • UP3861 Chip ensures stable 3.3V and 5V outputs with reduced ripple noise
  • MPS6924 Chip boosts efficiency via optimized synchronous rectification
  • 105℃ Japanese bulk capacitors ensure long life and stable output

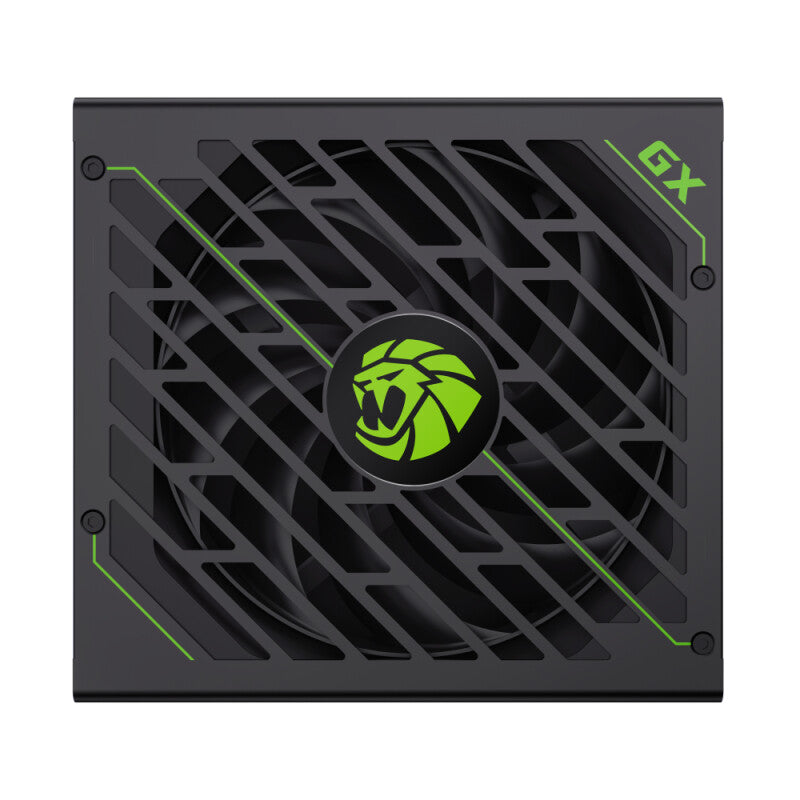

  • Quiet, temperature-controlled axial fan for efficient cooling
  • Seven protection levels: OTP, OCP, SCP, OVP, UVP, OPP, SIP
  • Black flat copper output cables for efficient power delivery
  • SMT-produced components for fast heat dissipation and stability

850W 80 Plus Gold ATX3.1 PCIe5.1 power supply with PCIe5.1 12V-2*6 connector for direct RTX™ 40 Series GPU connection, minimizing current loss.

Power
Power protection features Over current, Over power, Surge & inrush protection (SIP), Under power
Efficiency 87%
Hold time 10 ms
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Max output current (+5V) 20 A
Max output current (+12V) 70 A
Max output current (+3.3V) 20 A
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Combined power (+5V) 100 W
Combined power (+12V) 840 W
Combined power (+3.3V) 100 W
Power Factor Correction (PFC) type Active
Power factor 0.99
Maximum input current (@220V) 5 A
Maximum input current (@110V) 10 A
Input current 10 - 5 A
AC input frequency 50/60 Hz

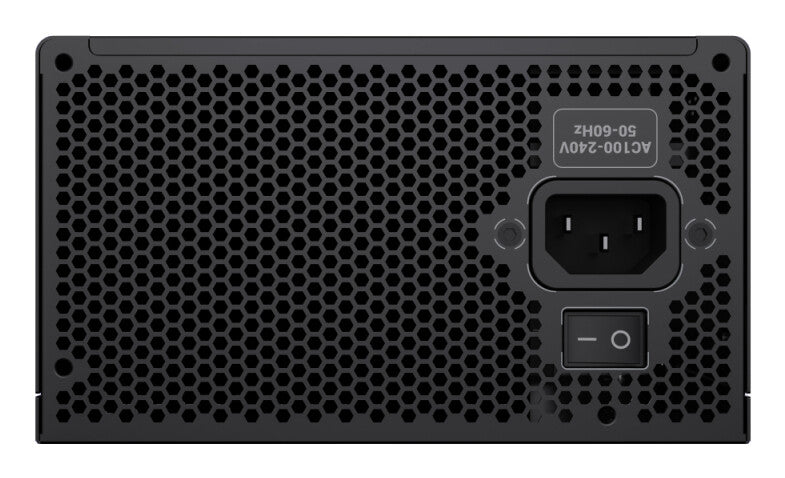

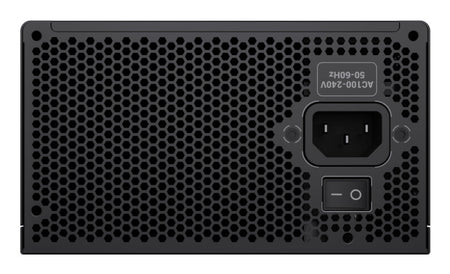

AC input voltage 100 - 240 V
Total power 850 W
Ports & interfaces

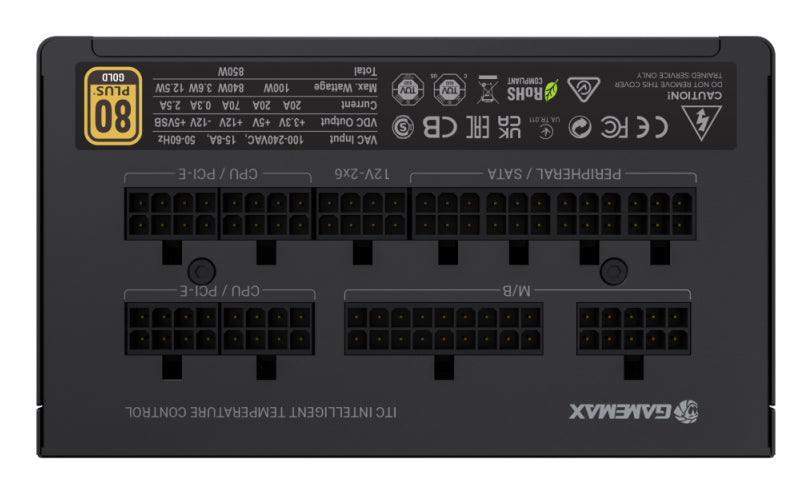

Cabling type Fully-Modular
CPU power cable length 15 cm
CPU power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
SATA power cable length 500,650,800 mm
Number of PATA power connectors 3
Number of SATA power connectors 6
Motherboard power cable length 65 cm
Motherboard power connector 20+4 pin ATX
Performance
Mean time between failures (MTBF) 100000 h
Noise level 25 dB
ATX version 3.1
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
Purpose PC
Design
On/off switch Yes
Number of fans 1 fan(s)
Fan diameter 13.5 cm
Cooling type Active
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Certificates
Compliance certificates CB, CE, Federal Communications Commission (FCC), cTUVus
Weight & dimensions
Height 85 mm
Depth 150 mm
Width 160 mm
Packaging data
Package type Box
